BetaFPV Micro-Nano Module Adapter (Standard Version)

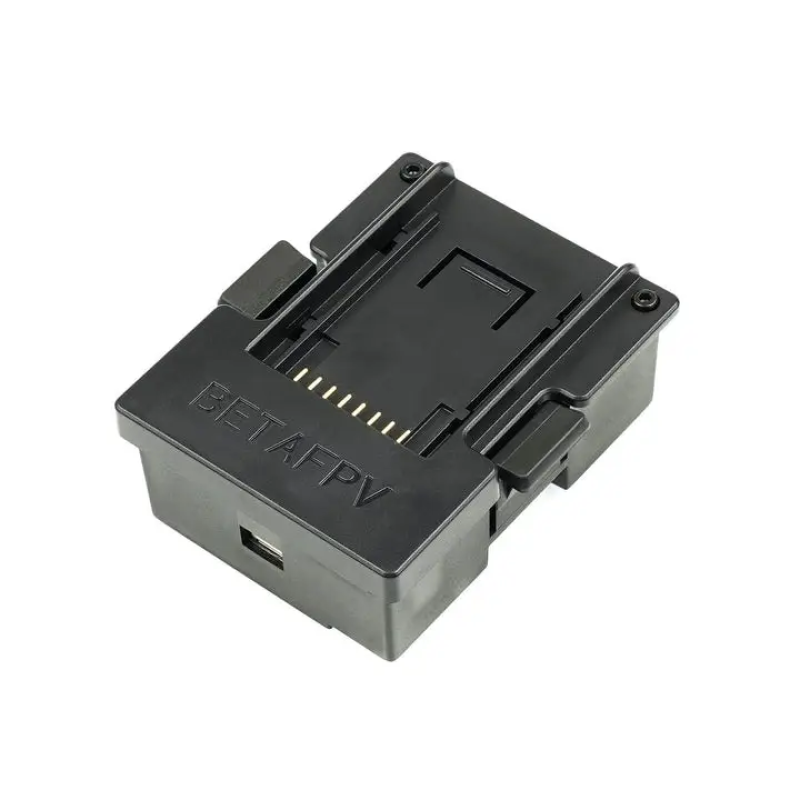

The BetaFPV Micro-Nano Module Adapter (Standard Version) is a high-quality adapter from the BetaFPV brand, designed to integrate Nano TX modules with transmitters that have a Micro or JR port. The device specifically supports the BETAFPV ELRS Nano TX module and compatible Nano modules, ensuring a reliable connection and convenient operation as part of radio control for drones and quadcopters.

Description and Key Compatibility

The adapter is equipped with a 3PIN GH1.25 terminal connector at the bottom, making it suitable for use with radio controllers that do not support OpenTX. This allows the adapter to be used with a wide range of transmitters and modules without additional changes to the equipment design. The adapter is suitable for integrating Nano modules into classic Micro/JR transmitter housings, maintaining the compactness and functionality of the control system.

Compatible Transmitters

• Frsky X9D, X9D Plus, X12S, X10, X10S, X7, X7S
• Flysky TH9X
• Turnigy 9XR, 9XR PRO
• FUTABA 16IZ
• Jumper T16, T18, T18 Pro
• Radiomaster TX16S, TX18S
• TBS Mambo

Compatible TX Modules

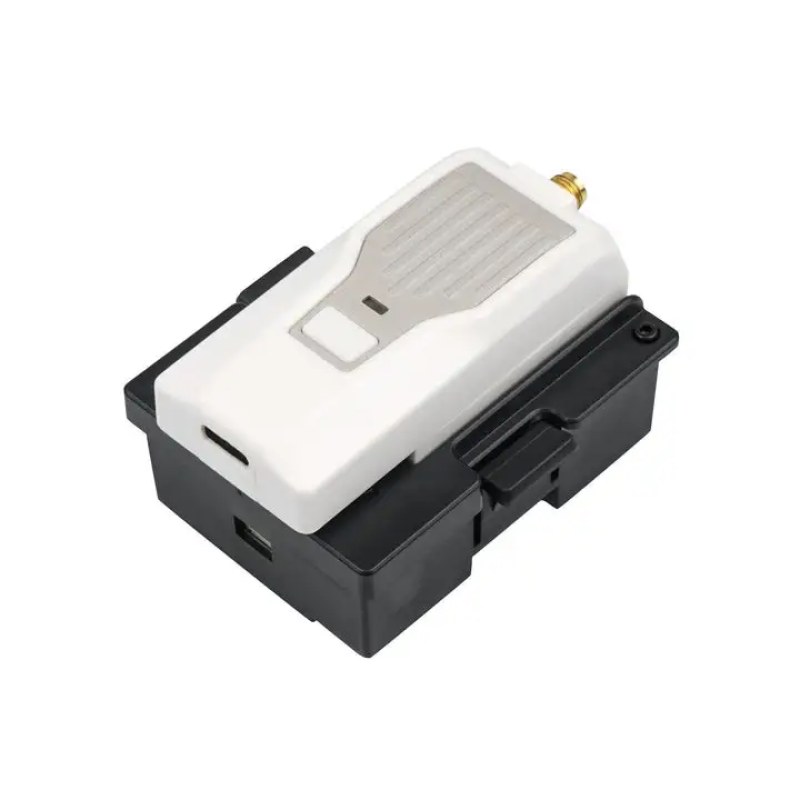

• BETAFPV Nano TX (including BETAFPV ELRS Nano TX)
• TBS Crossfire Nano TX
• Frsky XJT Lite, R9M Lite, R9M Lite Pro

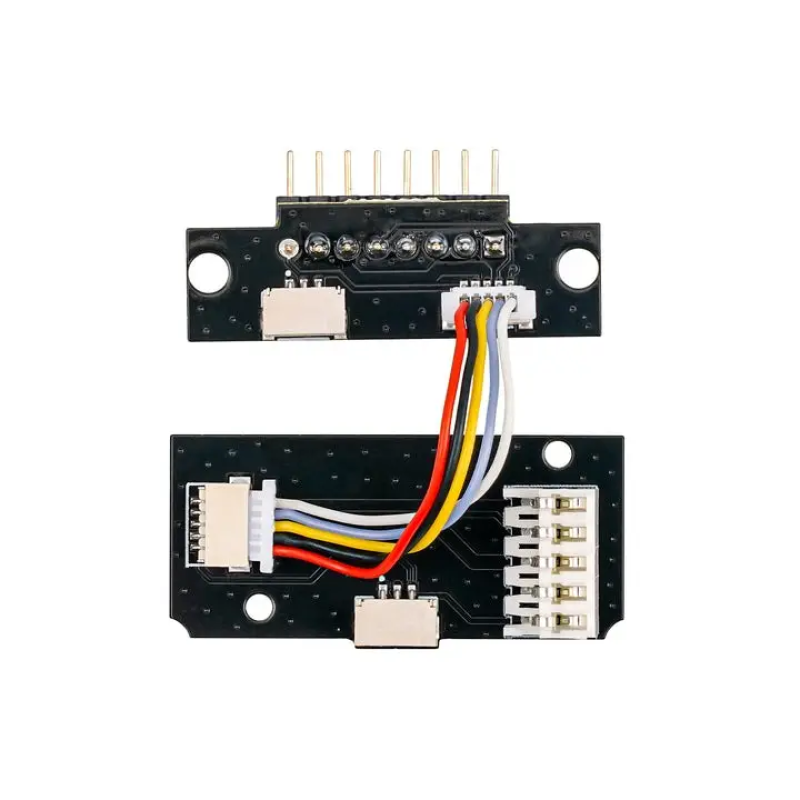

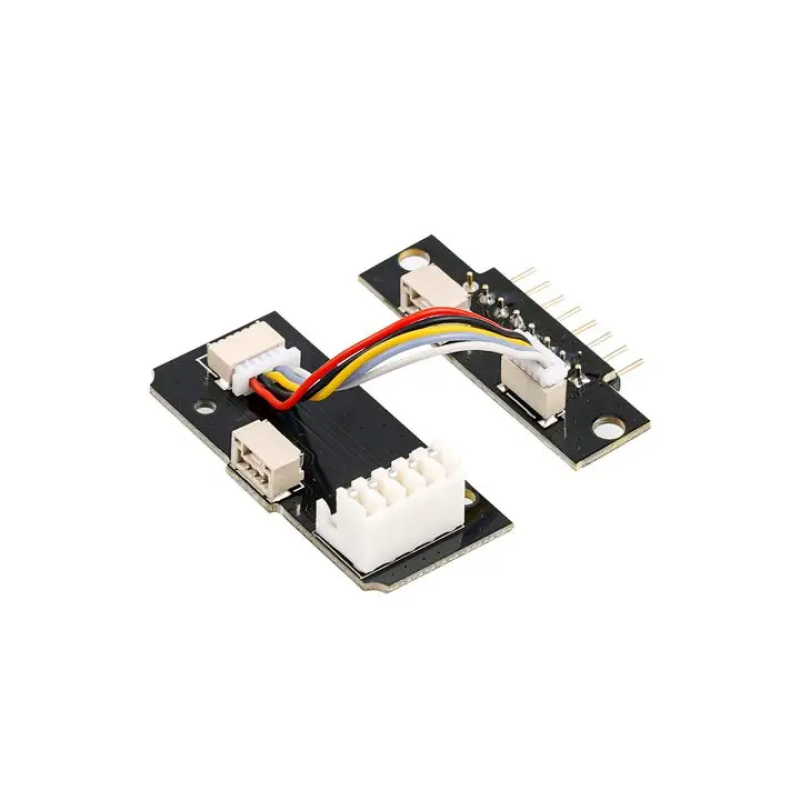

PCBA and Housing

Compared to the previous version, the PCBA appearance has been updated, and a 3PIN GH1.25 connector has been added, making the board compatible with radio controllers without OpenTX support. The PCBA can be used without a housing or installed in a printed housing — for those who wish to print their own housing, an STL file (adapter case STL file) is available. Note: ensure that the wiring is connected correctly if using the PCBA without a housing.

Dimensions, Weight, and Design

• Dimensions: 65 mm × 48 mm × 28 mm (JR module size)

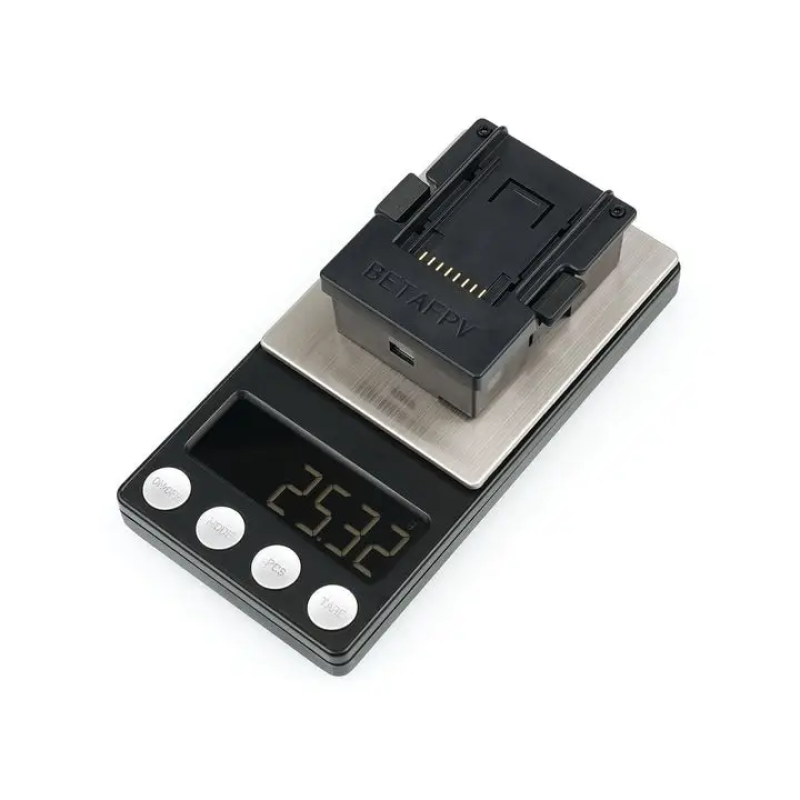

• Weight: 25 g

Package Contents

• Micro-Nano Module Adapter x1
• Cable x1
• Double-sided tape x1

The adapter is a universal solution for users who want to combine modern Nano modules with classic Micro/JR transmitters. Thanks to its compact size and low weight, the adapter does not burden the transmitter and easily integrates into an existing drone control system. The updated PCBA with a 3PIN GH1.25 connector ensures compatibility with a wide range of equipment and allows the adapter to be used both in the factory housing and in a self-printed one, making the device flexible for tuning and modifications.
