Radio Signal Transmitter TBS Tracer Nano TX Starter Set
Manufacturer: TBS. Category: Drones & Quadcopters > Drone Components > Drone Parts > Transmitters. Product ID: 11030.
Description
TBS CROSSFIRE Nano TX Starter Set — is a high-tech radio module kit for remote drone control, combining long-range communication, reliability, and low latency. The module features high sensitivity down to -130 dB, uses advanced radio frequency algorithms for self-healing connection, adaptive channel optimization, and frequency hopping (DSSS, FHSS). With a 150 Hz refresh rate and minimal latency, the pilot gets the smoothest control and best aircraft response in challenging conditions.
Features
- Long range and adaptive, reliable remote control system for your drone.
- Immunity to onboard noise.
- Two-way communication link with real-time communication and telemetry channels.
- Self-healing and frequency hopping (DSSS, FHSS).
- Adaptive bandwidth management and range optimization.
- RX beacon mode for quick drone retrieval.
- Easy binding and configuration via built-in display.
- Low latency, 150 Hz refresh rate (3x faster than conventional RC links) for perfect immersion.
- Two receiver models: 8-channel Diversity Rx and 4-channel PPM/SBUS mini-receiver (weight 4g).
- 8 or 12-channel output via PPM/SBUS/CRSF on both receivers.
- Ability to fly with multiple friends simultaneously (10+).
- Selectable RF power from 25mW to 1000mW (subject to local restrictions).
- Transmitter LED indicates connection status.
- Micro-receiver for small drones.
- Software updates via RF Link.
Specifications
| Parameter | Value |
|---|---|
| Sensitivity | -130 dB |
| Frequency Bands | 868 MHz (EU, Russia) / 915 MHz (USA, Asia, Australia) |
| Input Voltage | 3.5 – 13 V |
| Module Power Consumption | 1.1 W (10 mW) – 2 W (100 mW) |
| Module Size | 65 x 48 x 22 mm (JR module size) |
| Module Weight | 48 g |
| Receiver Size | 11 x 18 mm |
| Receiver Weight | 0.5 g |

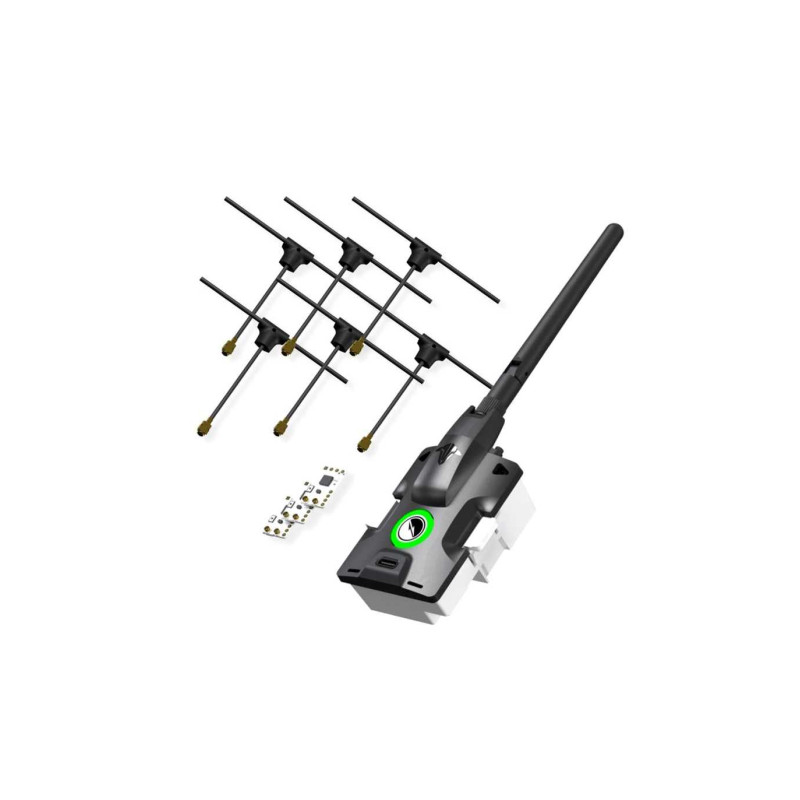

Package Contents
- TBS Crossfire Nano TX
- X9D Lite Adapter
- TBS Crossfire Nano RX — 3 pcs.
- TBS Crossfire Micro Antenna — 3 pcs.
- TBS Crossfire Immortal T V2 Antenna — 3 pcs.
- Cable and Heat Shrink Tube Set — 3 pcs.
The TBS Tracer Nano TX Starter Set is ideal for pilots seeking a reliable, durable control link with telemetry support, fast refresh, and minimal latency. Thanks to variable outputs (PPM/SBUS/CRSF), two receiver types, and transmitter power selection options, the device easily integrates into compact and racing drones. The ability to choose RF power from 25mW to 1000mW allows adapting settings to regional requirements, while beacon mode and self-healing connection functions ensure additional flight safety.
