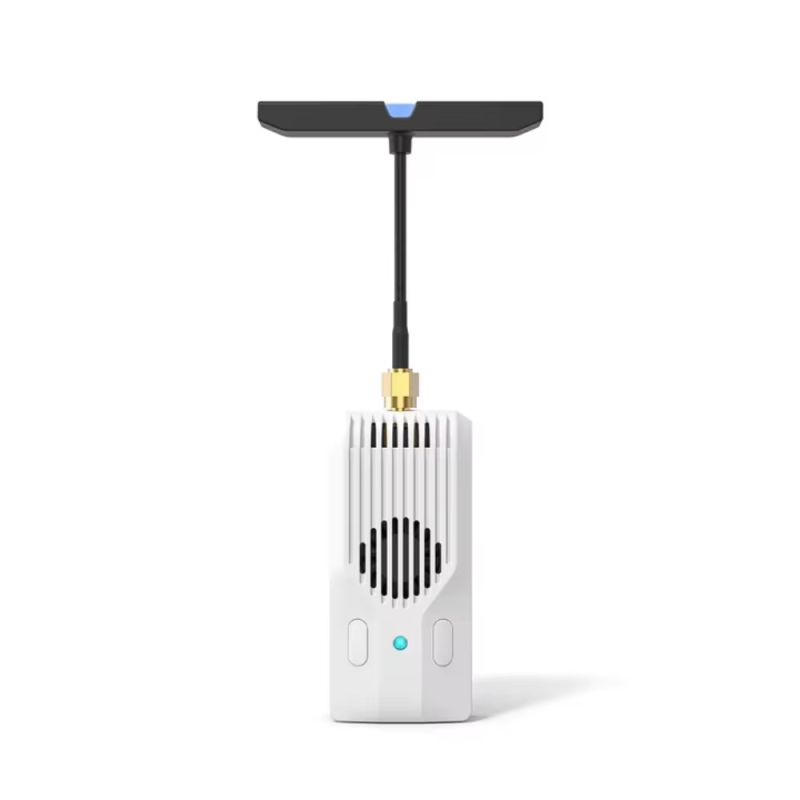

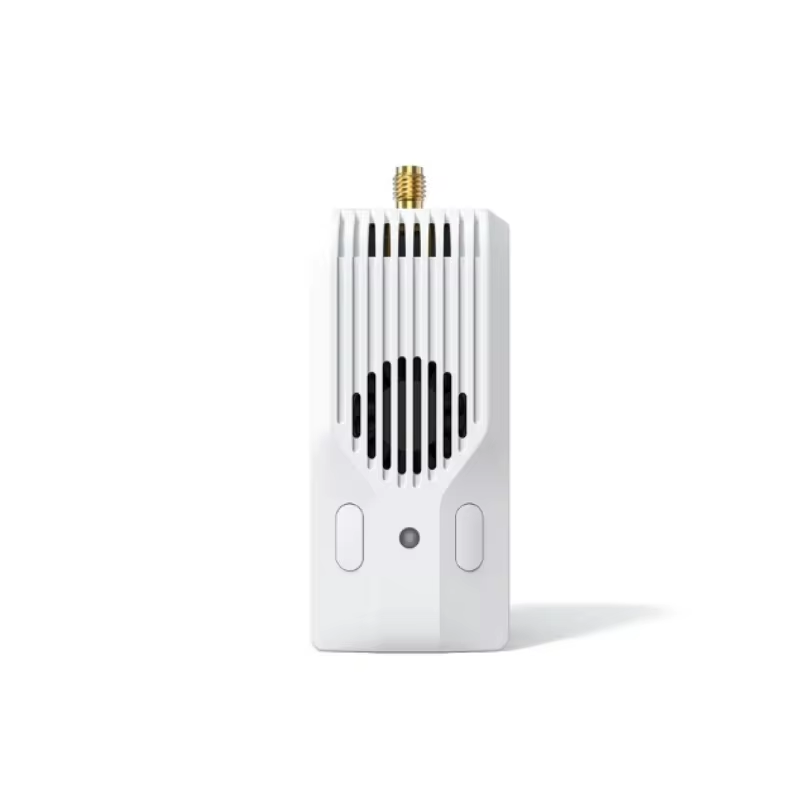

BetaFPV Nano V2 915 2W Radio Transmitter

The BetaFPV Nano TX V2 915MHz 2W is a powerful and compact FPV transmitter module created by the BetaFPV brand. This transmitter ensures stable communication between your remote controller and drone thanks to ELRS (ExpressLRS) protocol support and a maximum output power of 2W (2000 mW). Its compact form factor and weight of only 28g make the Nano TX V2 an ideal solution for mounting on various quadcopter frames where size and weight are critical.

Key Advantages

• Compact form factor and low weight — only 28g, which doesn't burden the aircraft.
• ELRS (Enhanced Long Range System) support for reliable and long-range communication between the remote controller and the drone.
• Maximum RF power up to 2000 mW (2W) for long-distance flights.
• Convenient USB Type-C port for firmware updates and quick settings without additional adapters.

Technical Specifications

• Product Name: BETAFPV Nano TX V2 915MHz Module
• Brand: BetaFPV

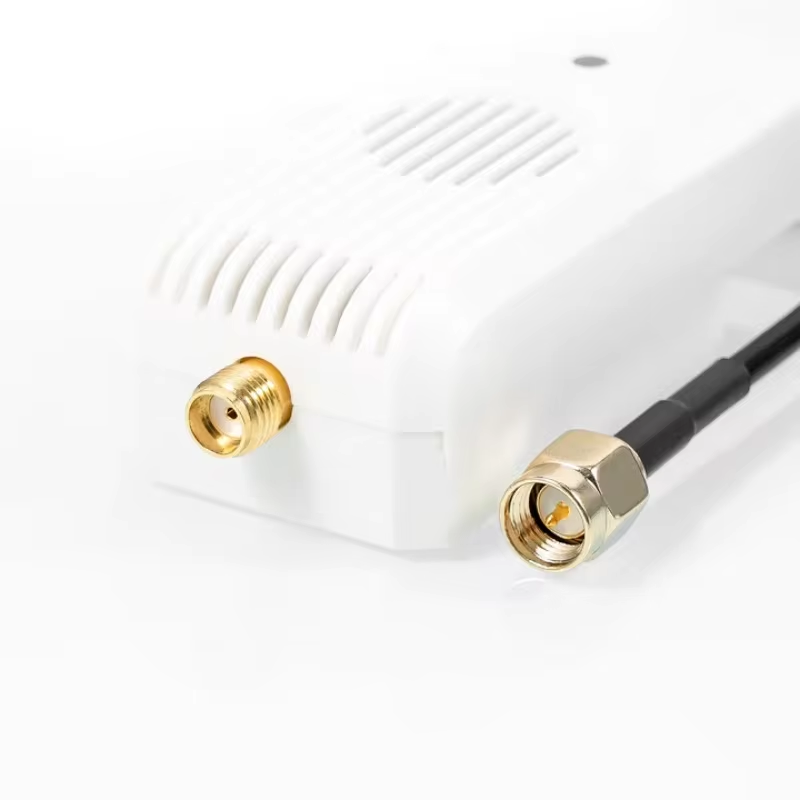

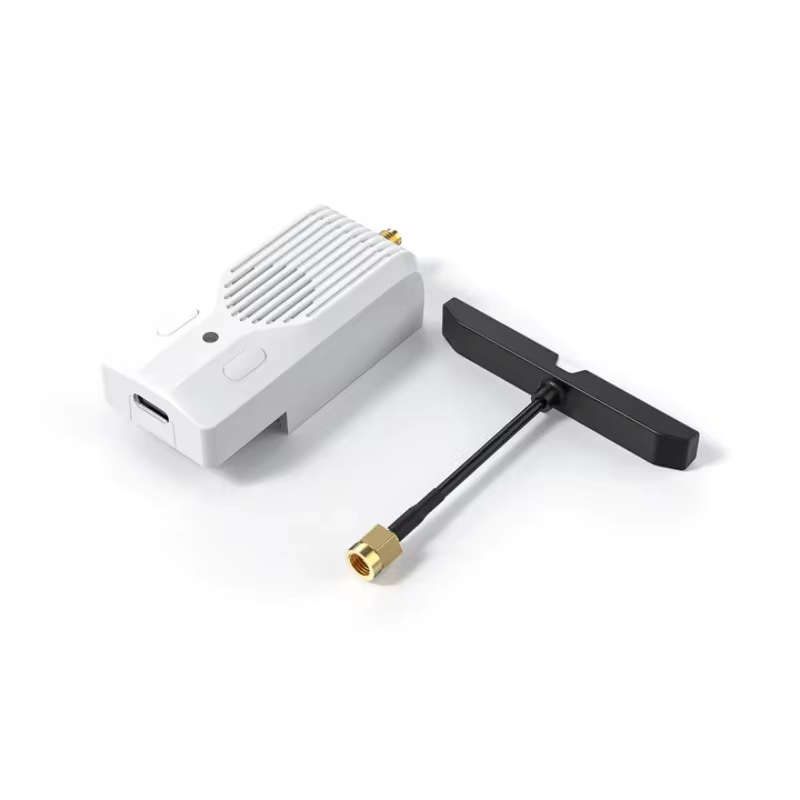

• Antenna Connector: SMA — compatibility with various antennas for optimizing signal range and directionality
• RF Power: 10 mW / 25 mW / 50 mW / 100 mW / 250 mW / 500 mW / 1000 mW / 2000 mW
• Packet Rate: 25 Hz / 50 Hz / 100 Hz / 100 Hz (Full) / 200 Hz / D50
• Frequency Range: 915 MHz (FCC)

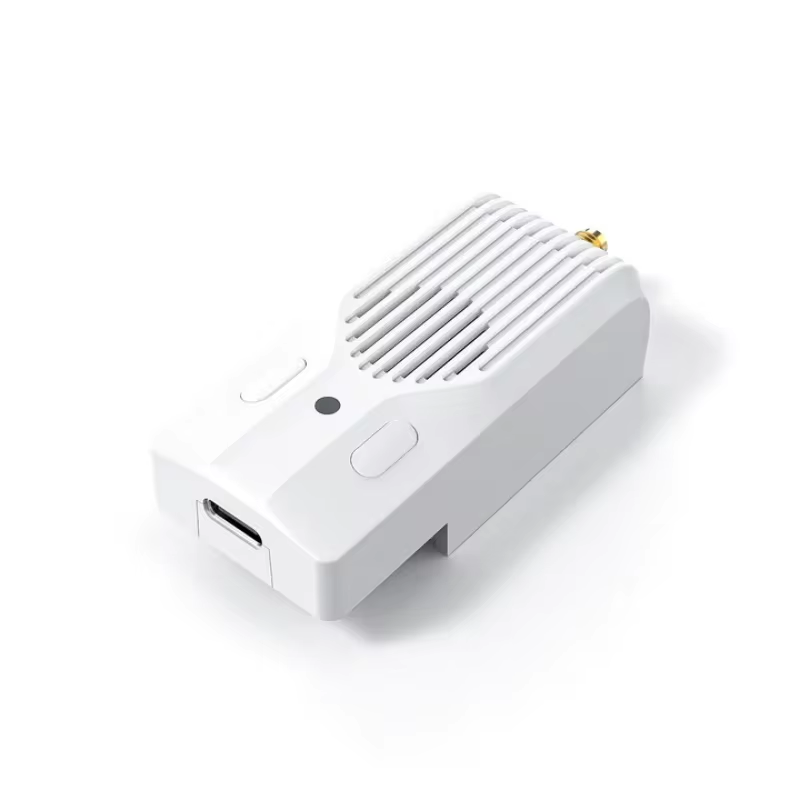

• USB Port: Type-C for firmware and settings
• Fan Voltage: 5 V
• Consumption: 8 V, 1000 mA at 1000 mW, 50 Hz, 1:128

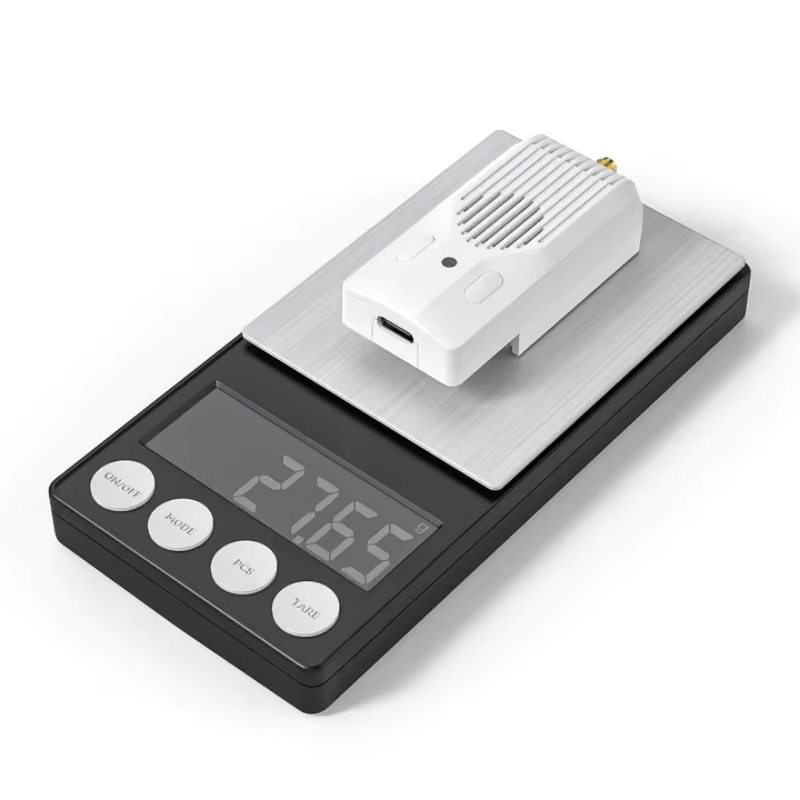

• Weight: 28 g
• Color: White
• Standard Firmware Version: ExpressLRS V3.3.0
• Category: Drones & Quadcopters > Drone Components > Drone Spare Parts > Transmitters

The BetaFPV Nano TX V2 is designed for pilots who seek a combination of compactness and long-range communication. The SMA connector simplifies antenna selection for specific flight needs, while the USB Type-C interface ensures quick ExpressLRS V3.3.0 firmware updates and settings adjustments. Thanks to a wide range of power modes and high sensitivity, the module allows for fine-tuning of power consumption and range according to flight conditions.

Before purchasing, please note that the 915 MHz band complies with the FCC standard and may require checking local regulatory requirements in your country. It is also important to correctly set the transmission power depending on distance and conditions to ensure a balance between range and power consumption. The module consumes the specified amount during operation (8 V, 1000 mA at 1000 mW), so plan your drone's power system accordingly.

The BetaFPV Nano TX V2 915MHz is an excellent choice for experienced pilots and FPV enthusiasts looking for a compact yet functional transmitter with ELRS support and up to 2W operation. It is suitable for long flights, filming, and exploratory missions where communication stability and quick firmware updates are important.

Other technical questions or the selection of compatible antennas and configurations can be clarified before purchase to achieve optimal performance for your tasks.
