Trench/Vehicle EW Jammer Hrets 5MTSO from BlueBird is a high-tech electronic warfare device designed for effective counteraction against DJI Mavic series quadcopters and other UAVs operating in popular FPV bands. The device has five separate jamming bands, including dual 2.4 GHz and 5.8 GHz bands, as well as a separate 5.2 GHz band, allowing simultaneous jamming in all specified frequency ranges and providing high power and a large operating radius.

The Hrets 5MTSO EW jammer operates at frequencies of 2360-2500 MHz, 5150-5300 MHz, and 5725-5850 MHz, and thanks to its dual bands, it creates enhanced jamming that covers a wide area. The device is designed to protect military facilities, infrastructure, and civilian areas from unauthorized drones and drops.

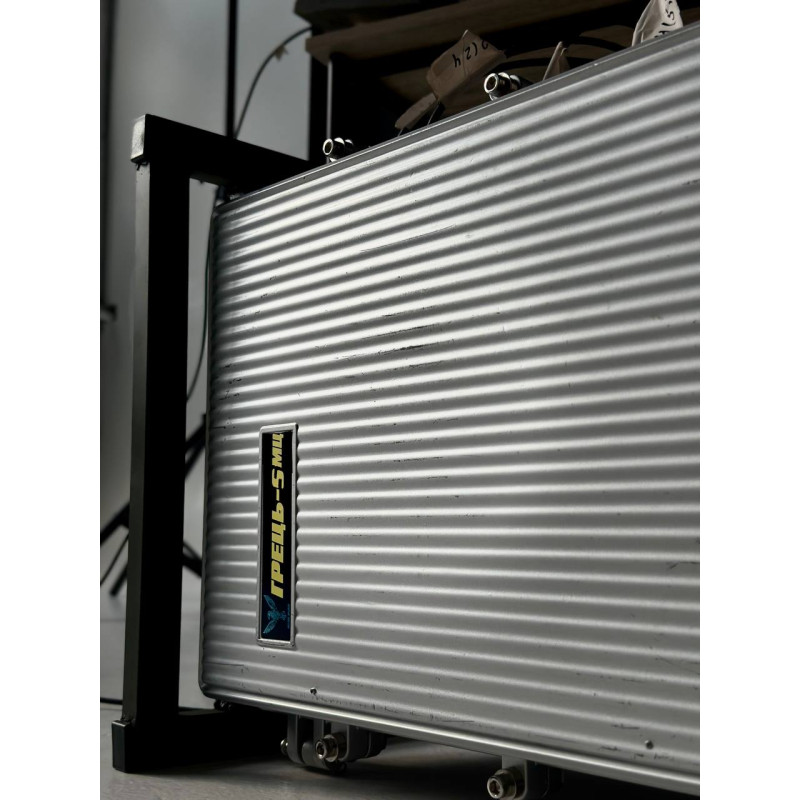

The device's casing is mentioned in the original description with dimensions of 350x230x140 mm and a weight of 12 kg; the technical list also provides a casing size of 304x184x77 mm and a weight without battery of 12 kg. The EW jammer is made of heat-dissipating materials that prevent overheating and ensure stable operation even in difficult conditions. The device is suitable for use both on land and at sea, has a wide operating temperature range from -30°C to +50°C, and an IP54 moisture protection rating.

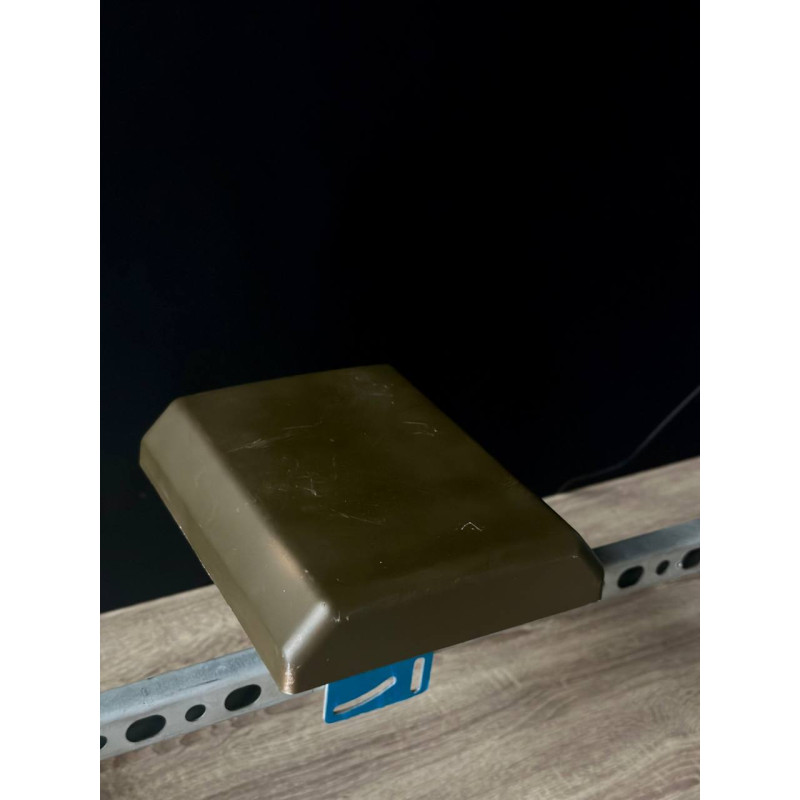

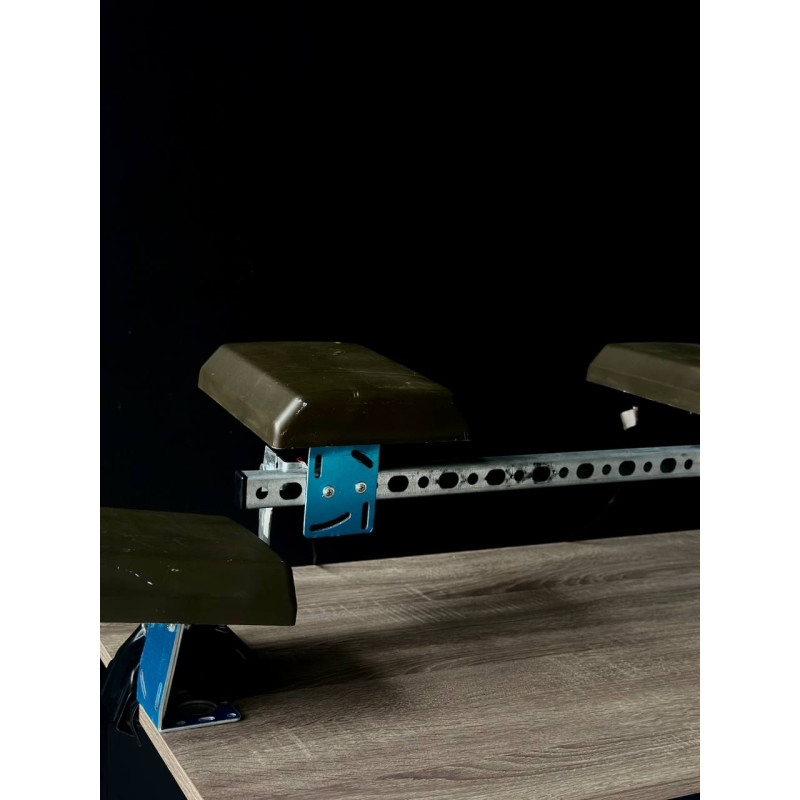

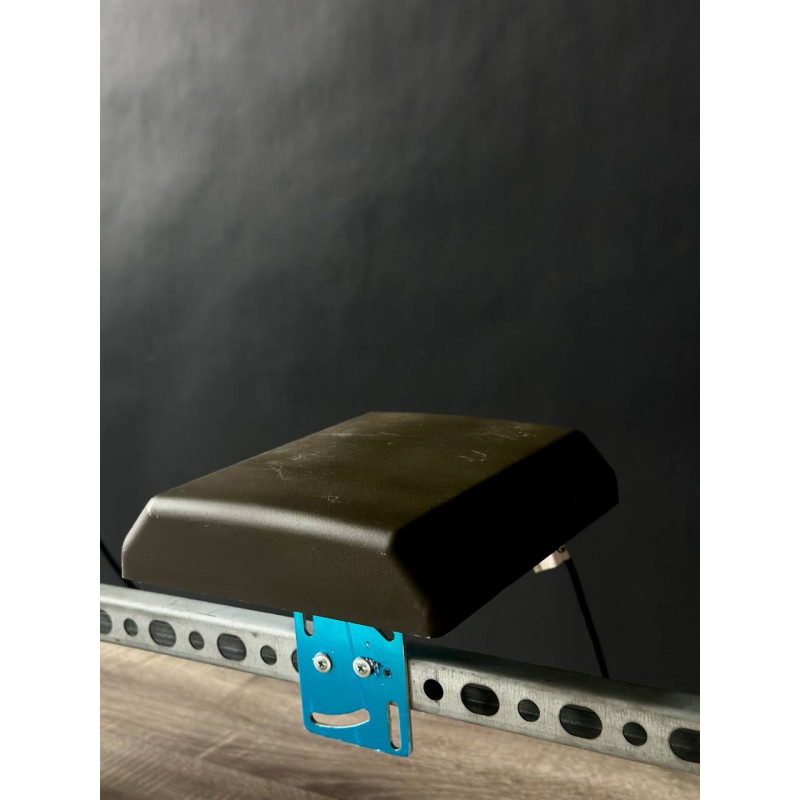

The device is equipped with five "Clover" type sector antennas that amplify and capture the signal, increasing the effectiveness of electronic warfare. The kit includes connecting cables for each band (5 pcs, 2 m each), as well as brackets for mounting antennas (the technical specifications mention a bracket for mounting 3 antennas on a vehicle or mast: 1 pc, and the delivery set also specifies a bracket for mounting 5 antennas on a vehicle or mast).

Specifications:

• Frequency range: 2.4 GHz (2 channels), 5.2 GHz, 5.8 GHz (2 channels)
• Operating frequencies (exact ranges): 2360-2500 MHz, 5150-5300 MHz, 5725-5850 MHz
• Power supply: 220 V or 28 V
• Number of antennas: 5 pcs. ("Clover" type sector antennas)
• Bracket for mounting 3 antennas on a vehicle or mast: 1 pc.
• Bracket for mounting 5 antennas on a vehicle or mast: specified in the delivery set
• Connecting cables for each band: 5 pcs, 2 m each
• Casing size: 350x230x140 mm (in description) and 304x184x77 mm (in technical list)
• Total length when assembled: 830/630 mm
• Antenna length: 600/400 mm
• Total power: (50+50+50+50+50) W
• Power consumption: (150+150+150+150+150) W
• Effective operating distance: from 50 m, depending on the distance to the enemy pilot, FPV drone frequency, and other factors
• Weight without battery: 12 kg
• Operating temperature range: from -30°C to +50°C
• Moisture protection: IP54

The Hrets 5MTSO Trench EW Jammer includes:

• 1. EW device.
• 2. Five antennas.
• 3. 220 V power cable.
• 4. Bracket for mounting 5 antennas on a vehicle or mast.
• 5. Antenna unit patch extension cable for each band (5 pcs, 2 m each).
• 6. User manual: Hrets 5MTSO.

Optionally can be added:

• Remote control

The Hrets 5MTSO EW jammer is a solution for those who need reliable and mobile protection against enemy UAVs: the equipment is compatible with 220 V mains power or a 28 V onboard system, has compact dimensions for placement on a vehicle or trench position, and provides multi-band barrage jamming thanks to five jamming bands. The use of dual bands in 2.4 GHz and 5.8 GHz increases the likelihood of blocking the pilot's signal and video channel, making the system effective in modern drone applications.
