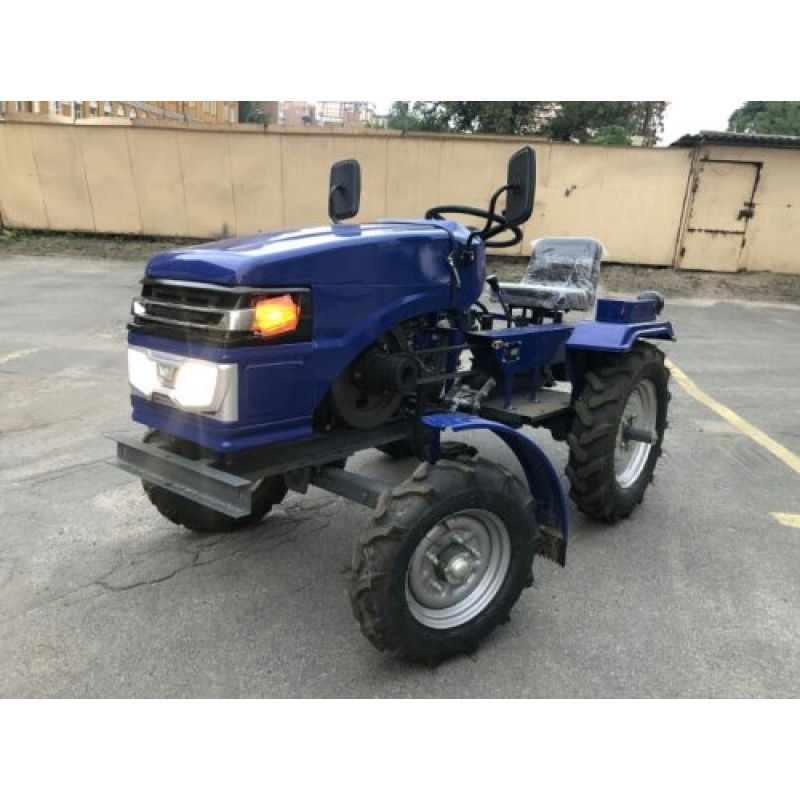

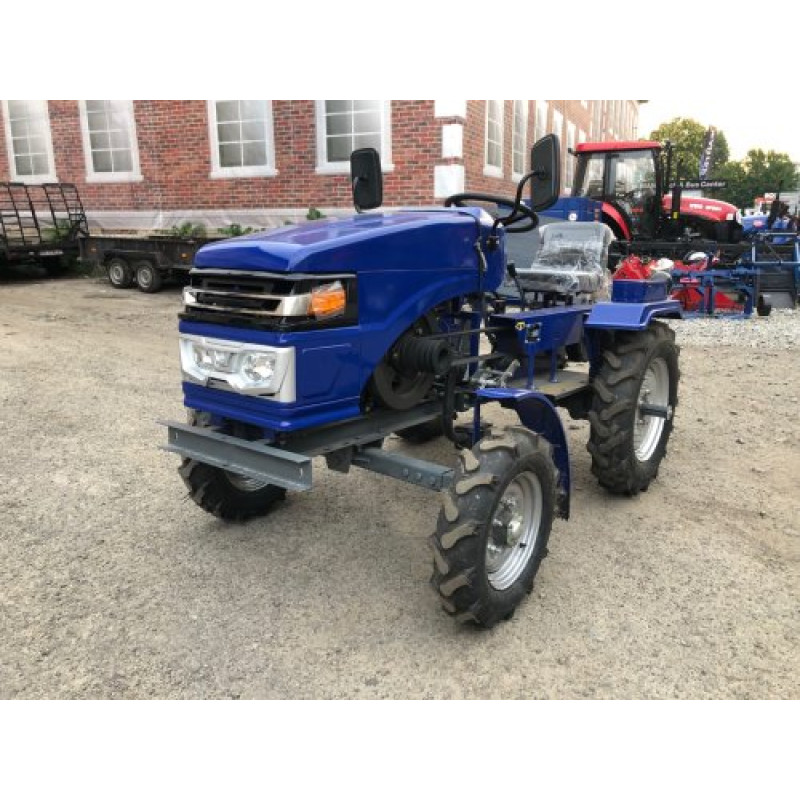

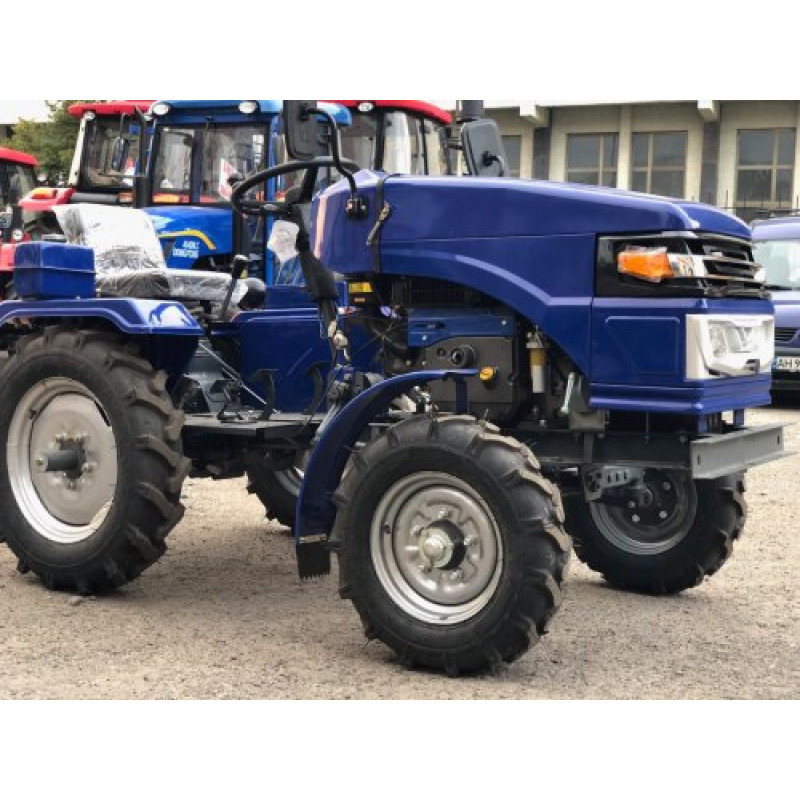

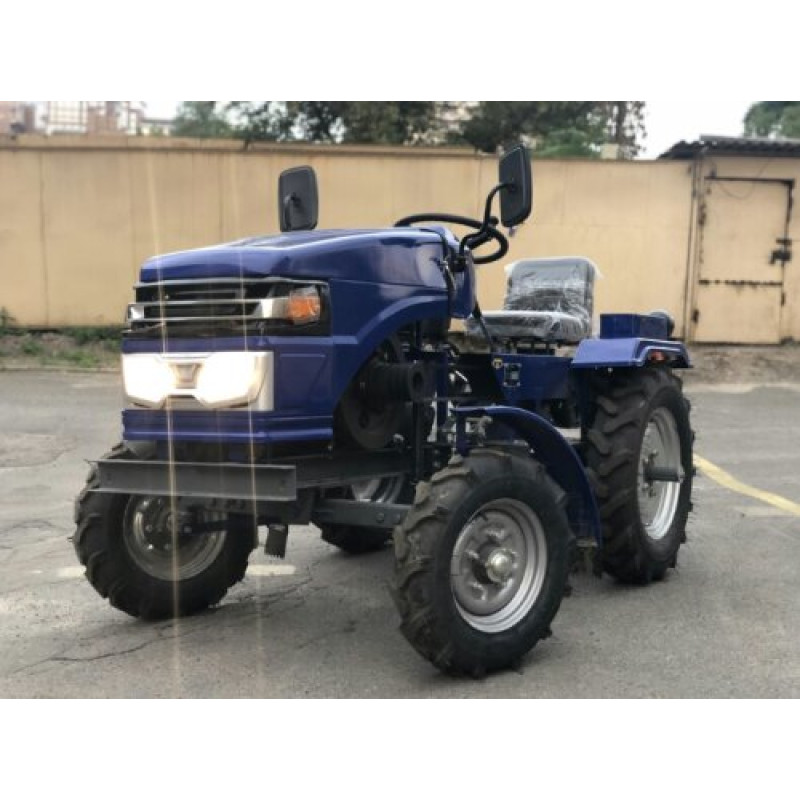

Mototractor DTZ 160 — a versatile assistant for your farm

The DTZ 160 mototractor from the manufacturer DTZ is reliable, compact, and budget-friendly equipment, ideal for both experienced farmers and beginners. Product category: Tractors > Mototractors. The model combines a simple design, practicality, and an affordable price, making it popular in the Ukrainian market.

Purpose and basic configuration

The DTZ 160 is designed for a wide range of tasks: garden and field work, harvesting and communal tasks, greenhouse cultivation, and assistance on construction sites thanks to its compact dimensions and high maneuverability. The basic configuration of the mototractor includes a 120 cm wide rotary tiller and a plow, allowing you to start working immediately and save on additional equipment. For operator convenience, it features an adjustable seat, rearview mirrors, and quality lighting for safe operation in the dark.

Engine and transmission

The DTZ 160 is equipped with a DD 195VE diesel four-stroke single-cylinder engine. The nominal power is 11.8 kW / 15 hp, engine displacement is 815 cubic cm, with one horizontally placed cylinder. The starting system is an electric starter, and the cooling system is water-cooled, ensuring stable temperature and longer engine life. The floating hydraulic mode improves the quality of work with attachments, and adjustable front and rear tracks allow adapting the equipment for different crops. The rear hitch lifting capacity is 130 kg.

Operational features and safety

The mototractor is equipped with mechanical steering, a dual-disc clutch, drum brakes, and a mechanical drive for the steered wheels with spur gear transmission. It has a rear differential lock to improve проходимость on difficult terrain. The design is engineered for reliable operation in various conditions.

Flash Army online store is an official importer of DTZ equipment, so the mototractor comes with a manufacturer's warranty. We arrange doorstep delivery within a few days after placing an order. If needed, additional attachments can be purchased: harrows, mowers, rakes, planters, excavators, cultivators, and other implements.

Specifications:

Engine

DD 195VE

Engine type

Diesel, 4-stroke

Power

11.8 kW / 15 hp

Engine displacement

815 cubic cm

Number of cylinders

1, horizontal

Cooling system

Water

Starting system

Electric starter

Tractive force

3.1 kN

PTO

1180 rpm

Crankshaft speed

2300 rpm

Clutch type

Dual-disc

Fuel consumption

249 g / kWh

Transmission

(3 + 1) x 2

Wheel formula

4 x 2

Forward speed

2.24-22.78 km / h

Reverse speed

01.72-6.97 km / h

Turning radius with brakes

2.3 m

Turning radius without brakes

1.8 m

Engine oil type

Mineral or semi-synthetic

Transmission and reducer oil type

Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90 (transmission)

Piston stroke / Cylinder diameter

115/100 mm

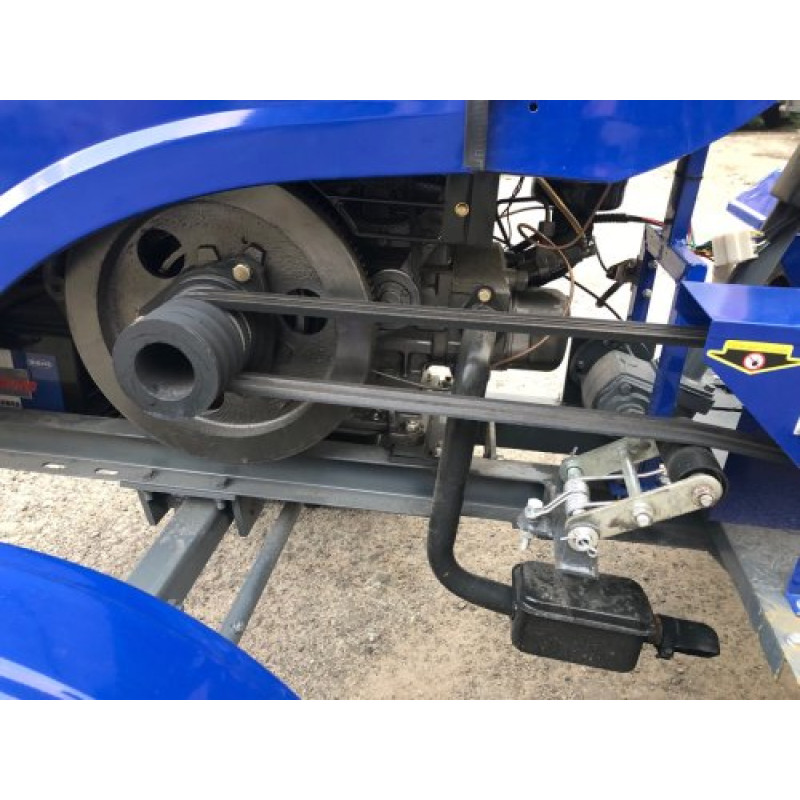

Main drive

Belt, 3 belts B-3250

Rear differential lock

Yes

Steered wheel drive

Mechanical, spur gear transmission

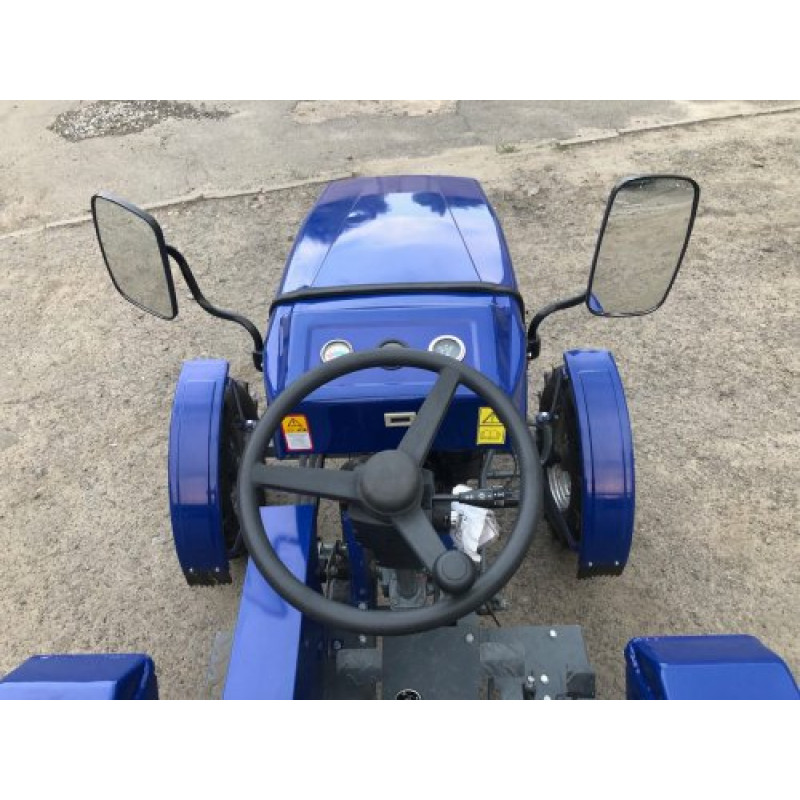

Steering

Mechanical

Brakes

Drum type

Lifting capacity

130 kg

Front tire size

5.00-12

Rear tire size

6.5-16

Wheelbase

1360 mm

Front wheel track

1080/1180/1280 mm

Rear wheel track

1020-1310 mm

Ground clearance

325 mm

Fuel tank capacity

8 L

Dimensions (LxWxH)

2050x1260x1210 mm

Weight

460 kg

The DTZ 160 is an optimal choice for those looking for an inexpensive yet functional mototractor for homesteads, small farms, or communal work. To clarify the configuration, availability of spare parts, or to arrange delivery, contact the Flash Army online store or place an order on the website. The model comes with a manufacturer's warranty, and it is also possible to purchase additional attachments to expand its functionality.
