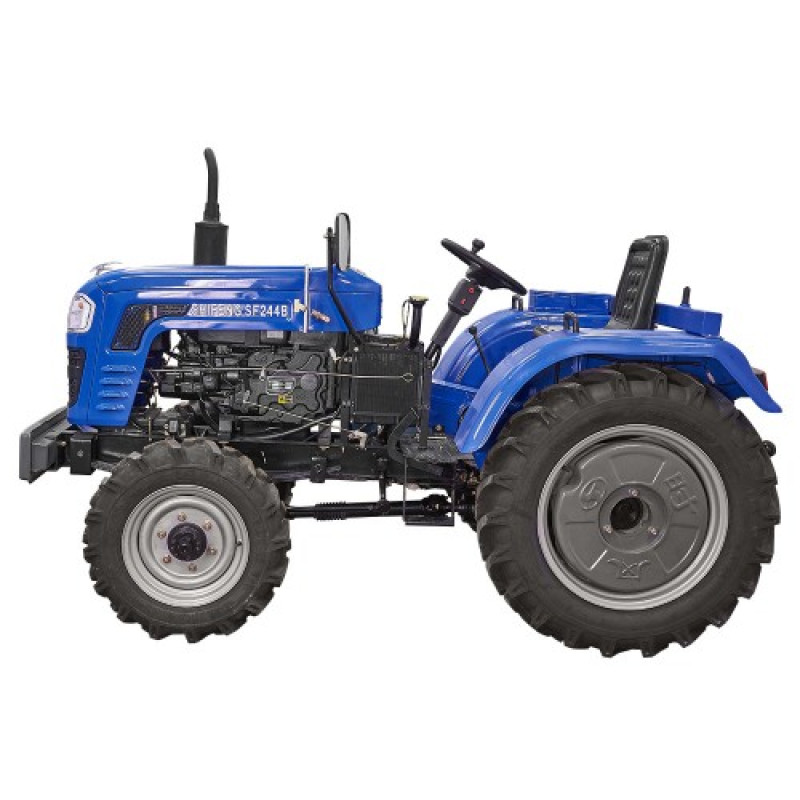

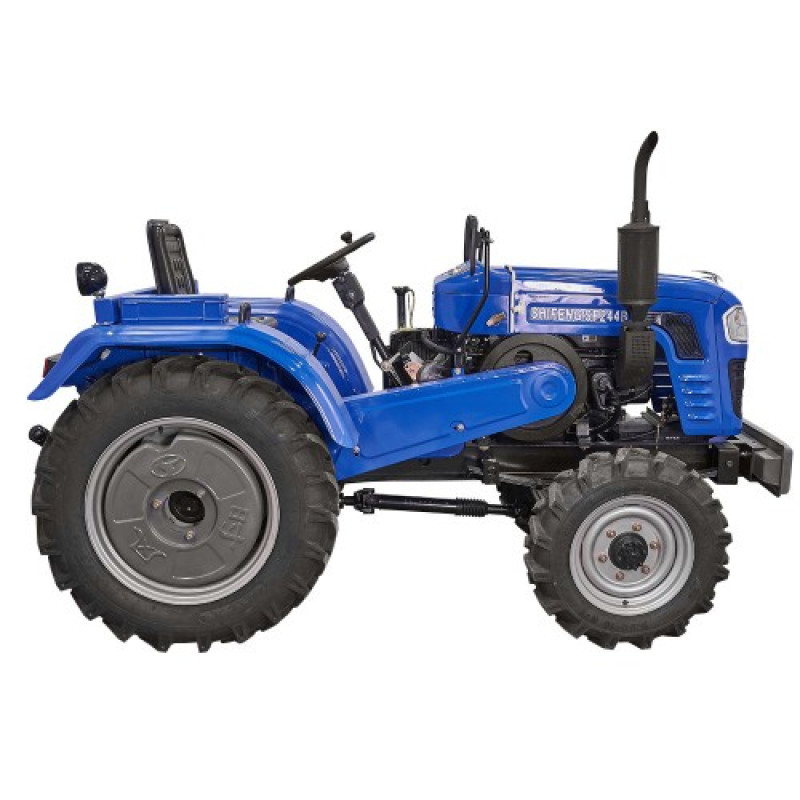

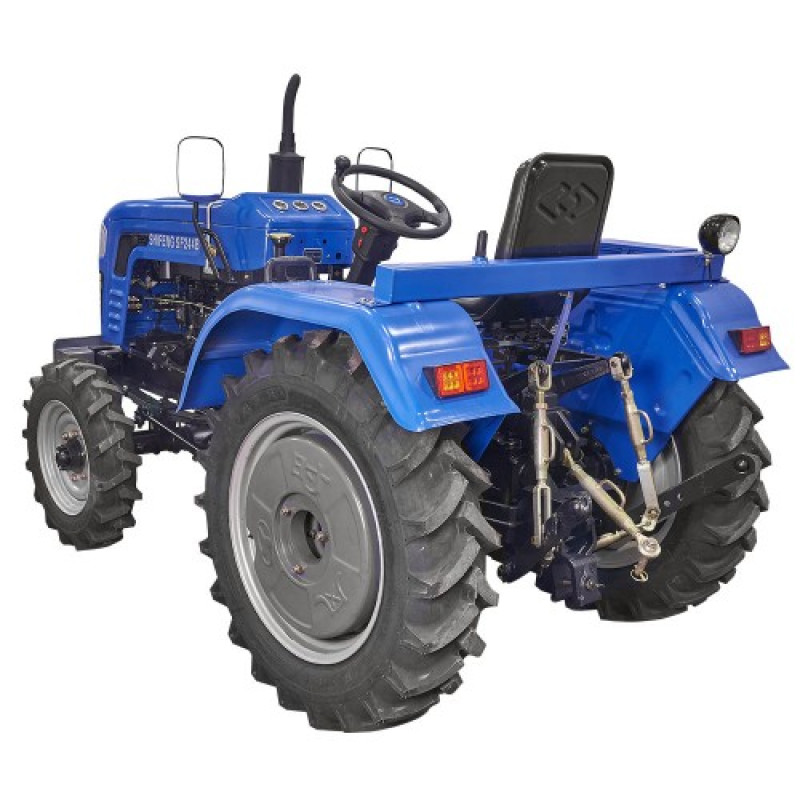

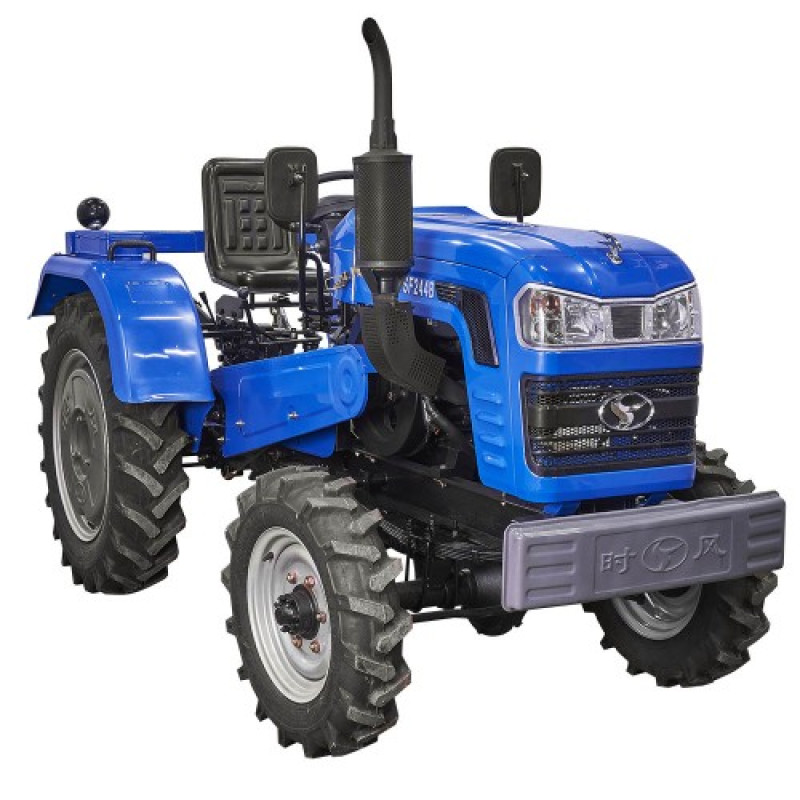

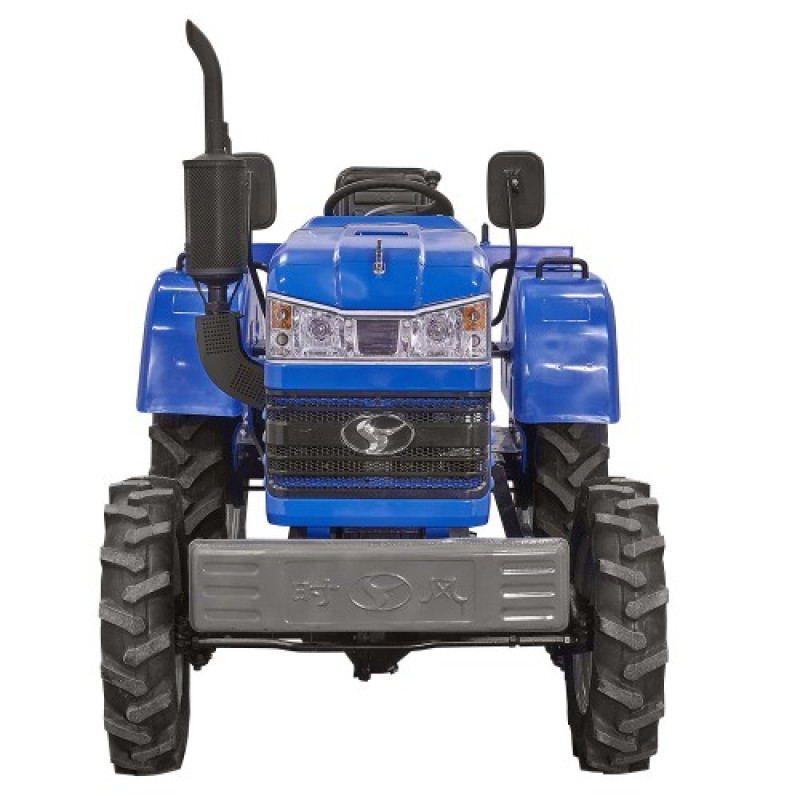

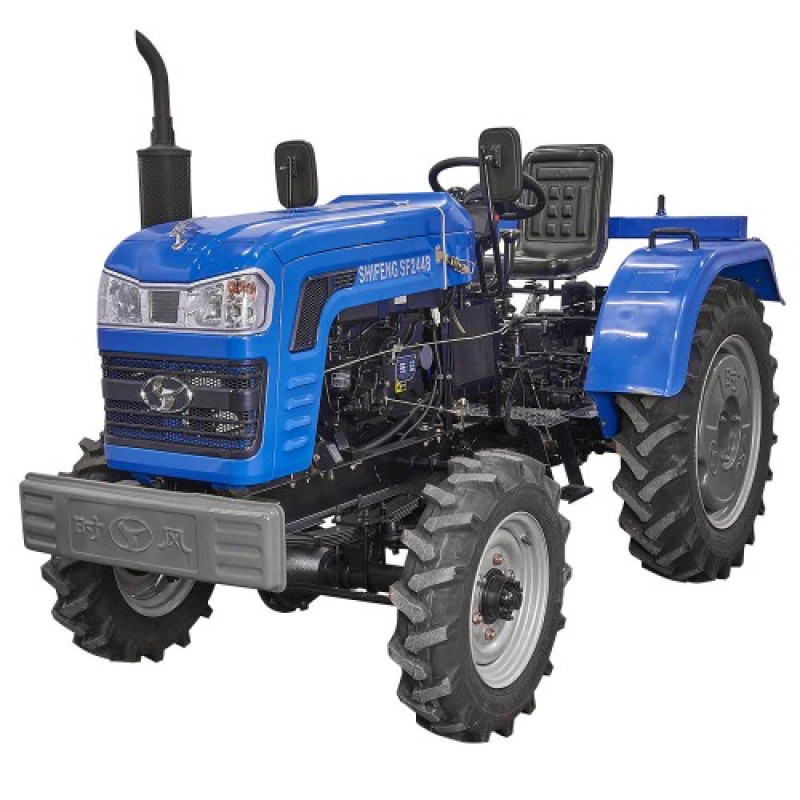

Description of the SHIFENG SF 244B Mini Tractor
The SHIFENG SF 244B is an affordable and reliably designed 24 hp all-wheel drive tractor, featuring a V-belt transmission from the engine to the gearbox. The tractor has a frame layout. The engine is a single-cylinder, horizontally positioned, water-cooled unit with forced circulation. The belt drive simplifies the design, significantly eases maintenance and repair, and reduces operating costs. The elasticity of the belt drive prevents engine and transmission damage due to overload or improper speed selection. The tractor is equipped with drum brakes, a dry-type twin-disc clutch, an 8-speed forward and 2-speed reverse gear transmission, and a power take-off shaft. The hitch system is a standard 3-point hydraulic type, with an electrical outlet.
Design Features of the SHIFENG SF 244B Mini Tractor:

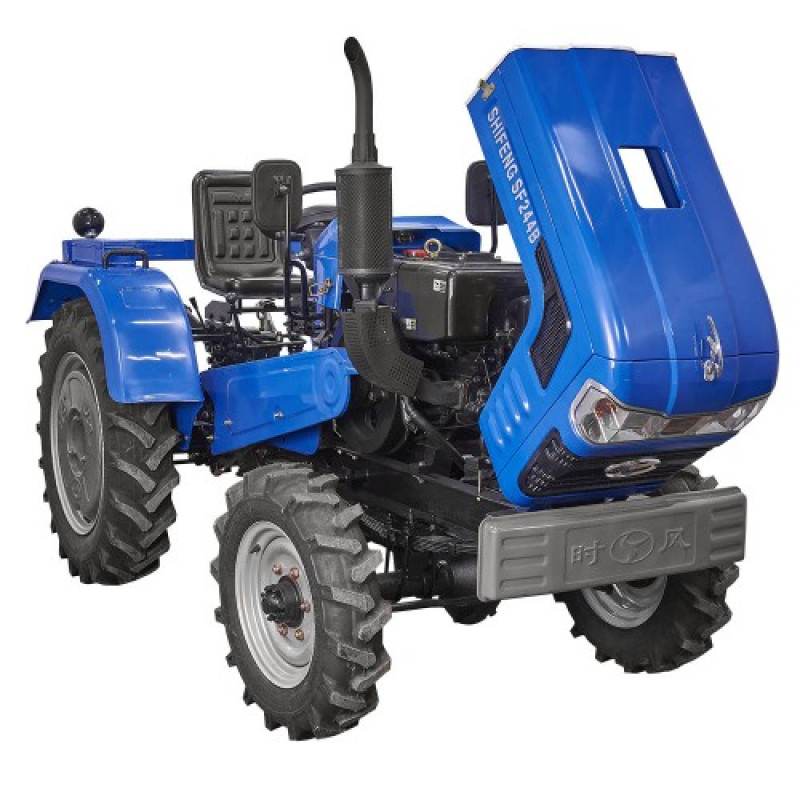

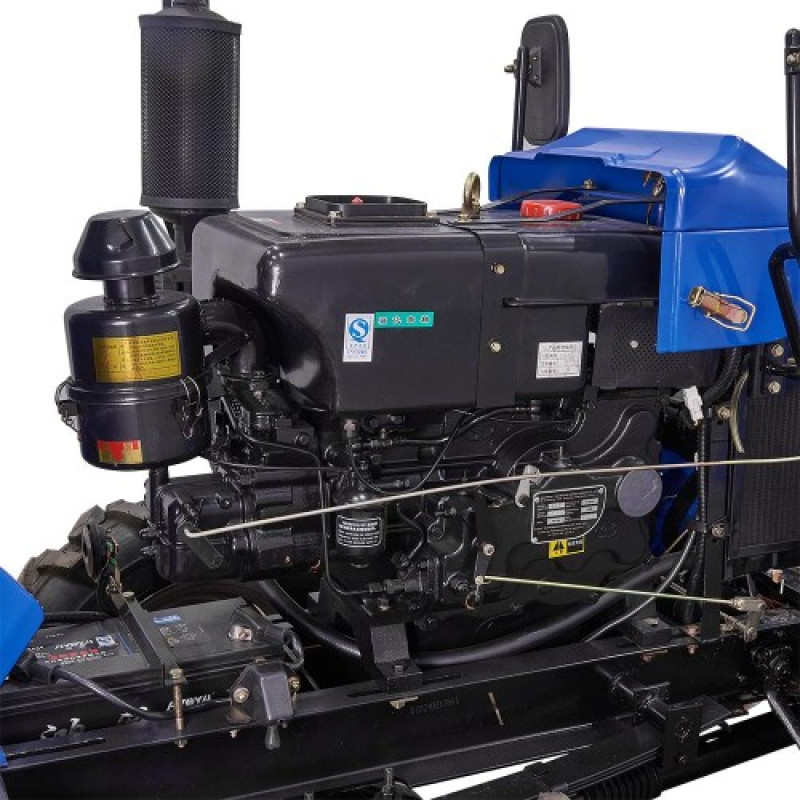

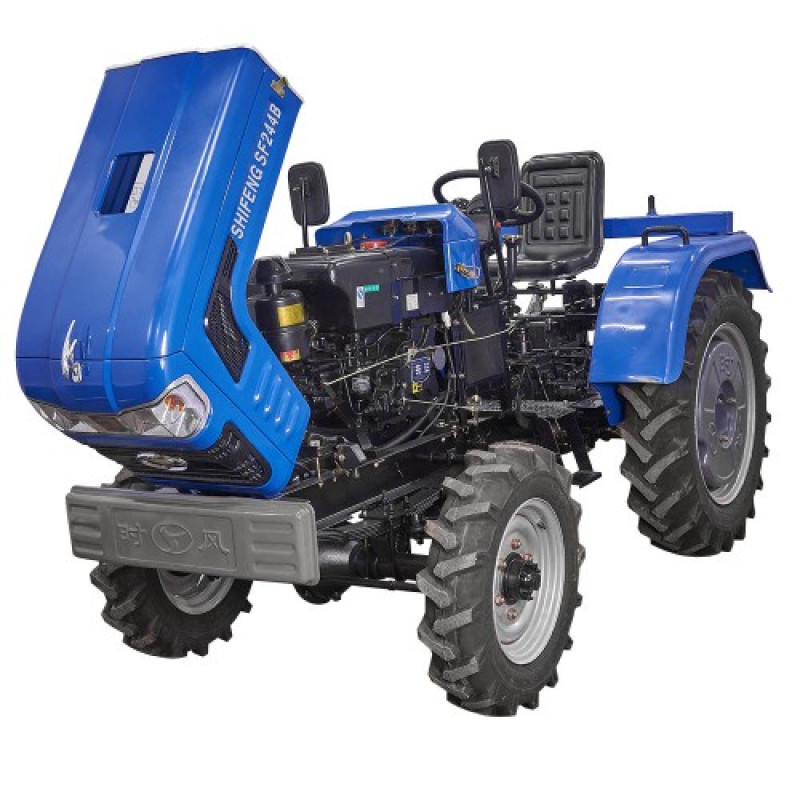

- Horizontal 1-cylinder diesel engine;
- Engine water cooling;
- V-belt drive from engine to gearbox, 4 belts;
- Fully geared transmission 8 + 2;
- Manual throttle;
- Dry-type twin-disc clutch, constantly engaged;
- Sprung front drive axle;
- Rear longitudinal PTO with 540 rpm;
- Large wheels 6.00-16 / 9.50-24;
- Rear drum brakes;
- Separate rear wheel brakes;
- Disconnectable gear pump hydraulic system drive;
- Parking brake.
SHIFENG SF 244B Tractor Configuration:
- Large rearview mirrors on swivel brackets;

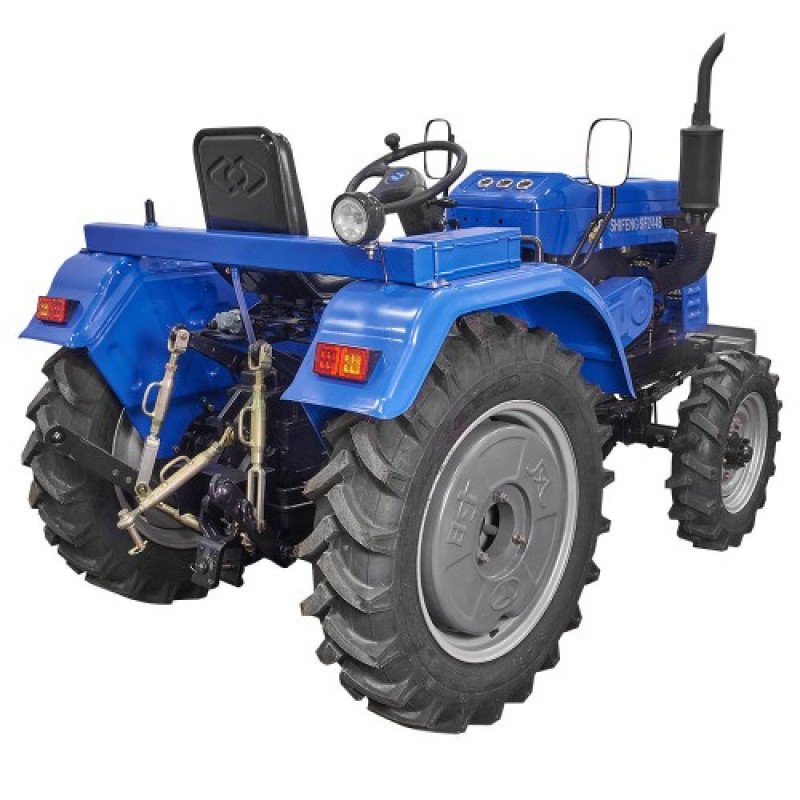

- Rear headlight;
- Toolbox on the left fender;

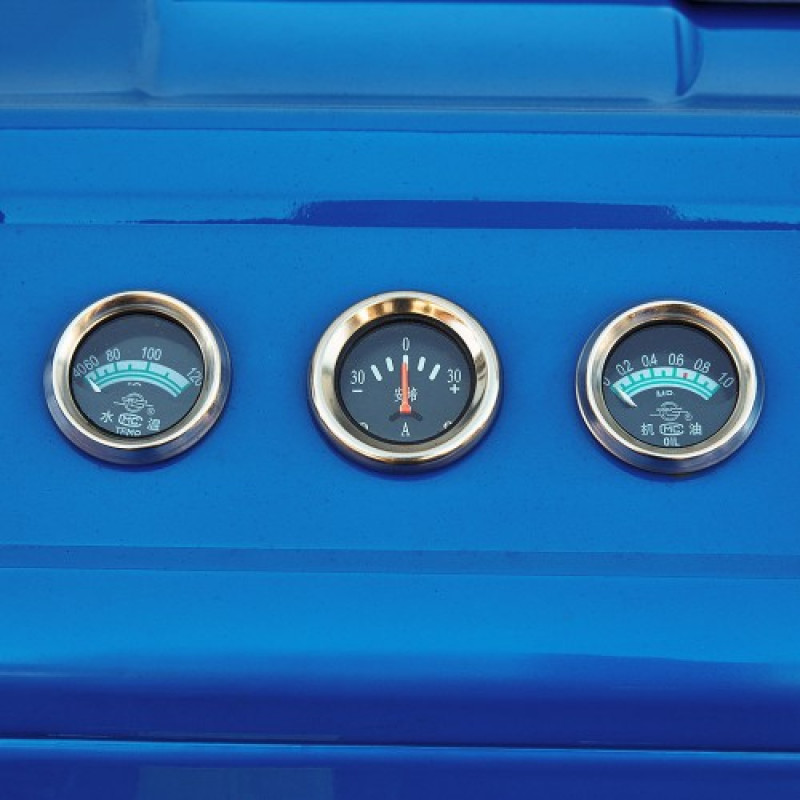

- Oil pressure gauge, coolant temperature gauge, ammeter;
- Horn, high/low beam, turn signals;
- Combined switch for electric lighting modes;
- Battery disconnect switch;
- 80 Ah battery;
- Emergency alarm;

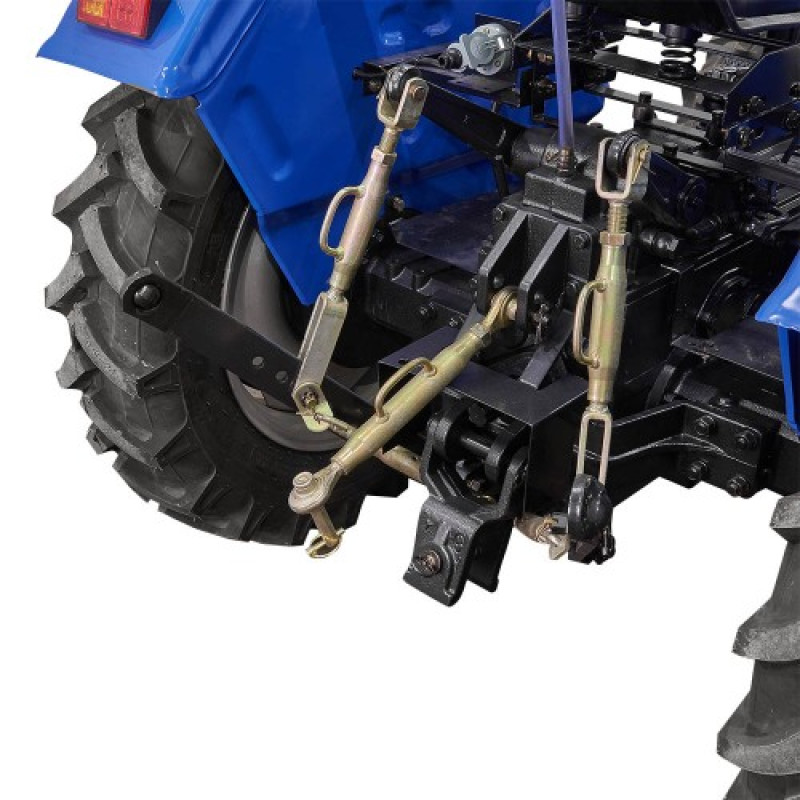

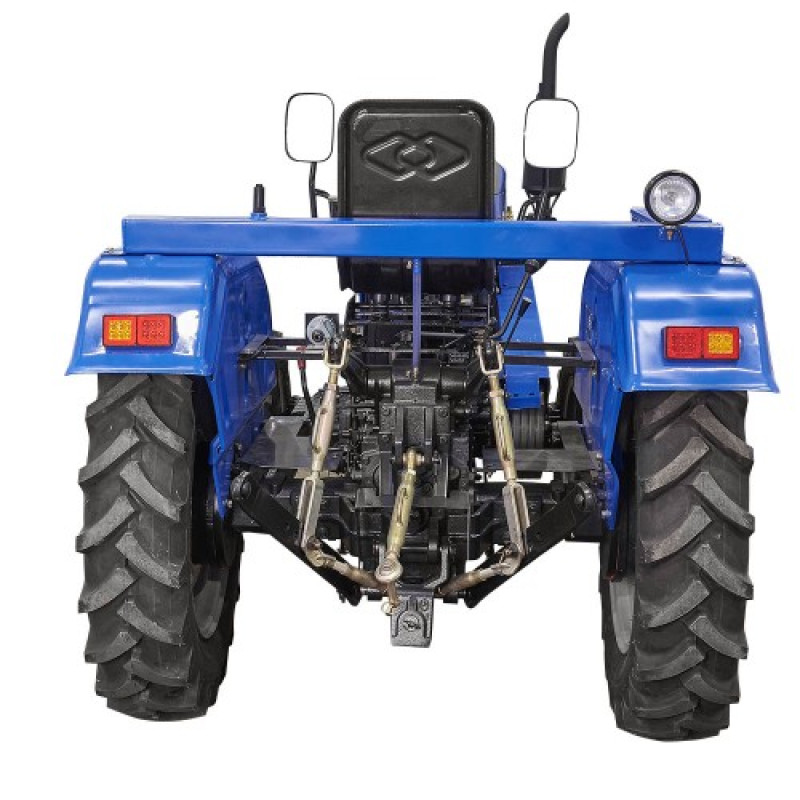

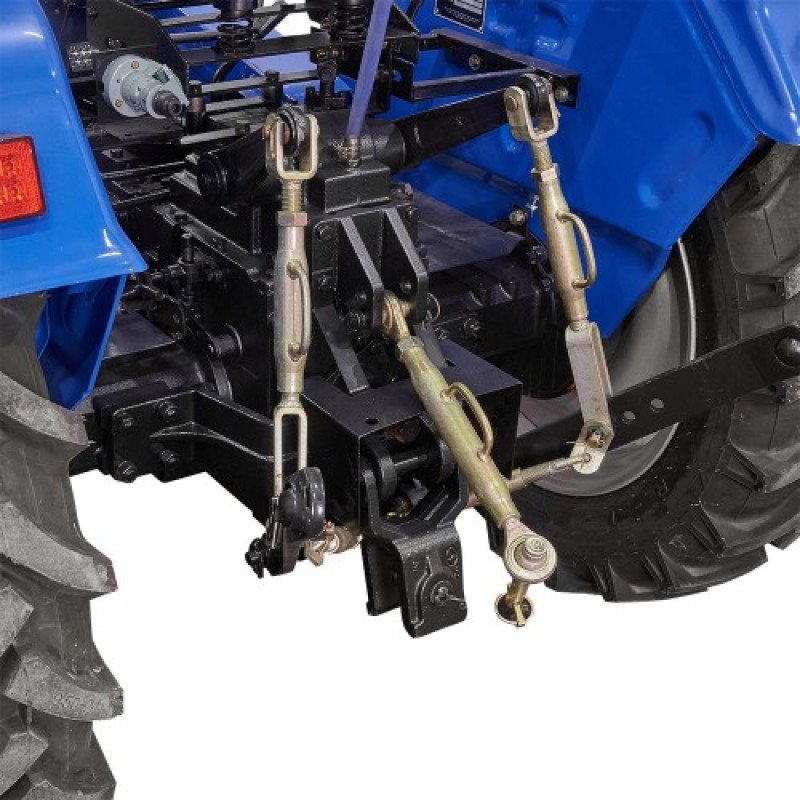

- Hydraulic system for rear hitch;

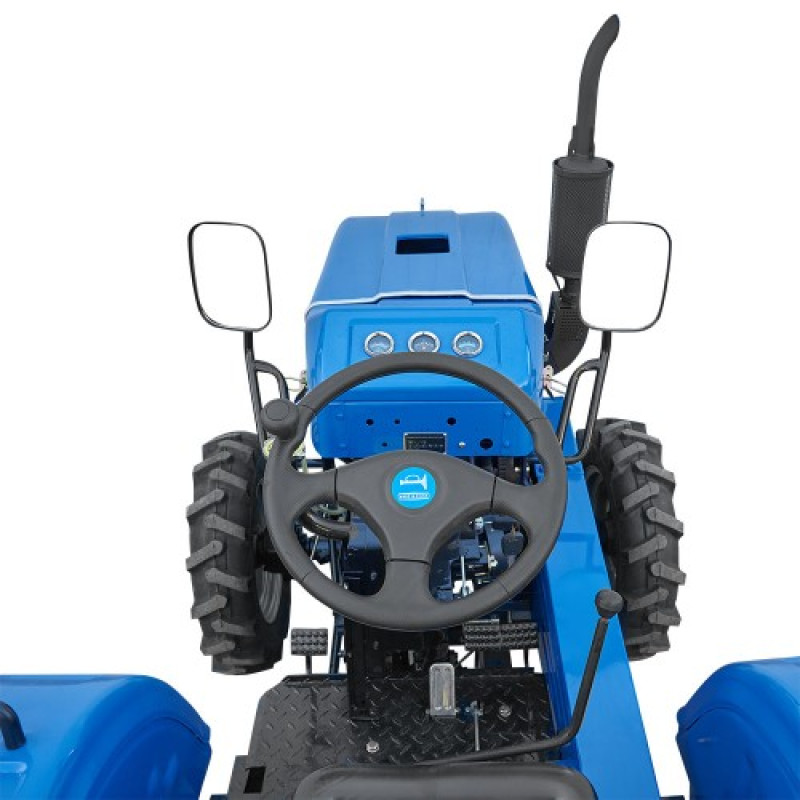

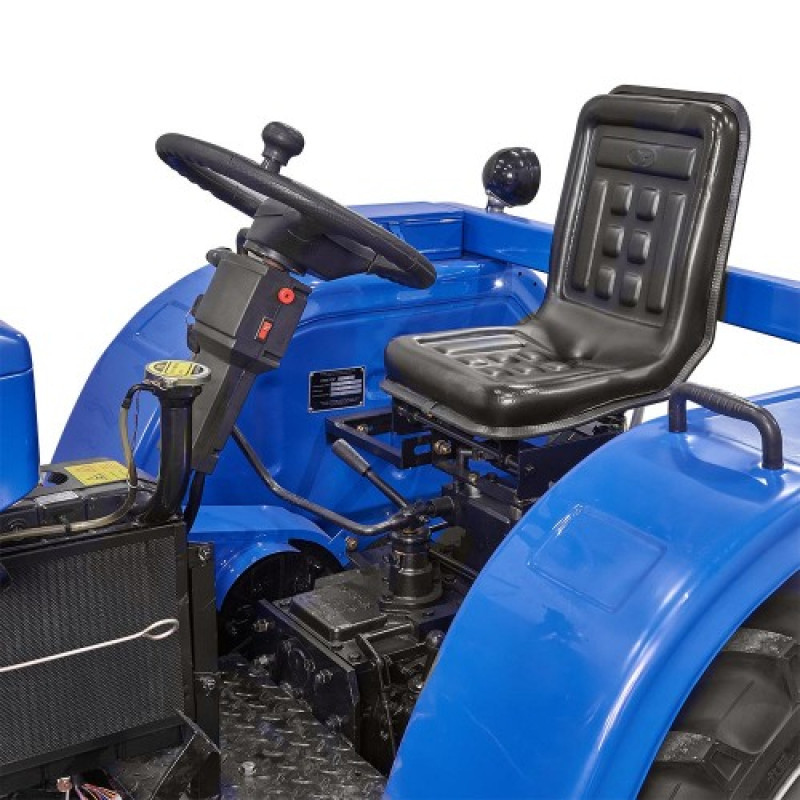

- Steering wheel quick-turn knob;
- Front and rear wheels with "Herringbone" tread.
You can buy the SHIFENG SF 244B tractor throughout Ukraine from our official representatives or order it via the special feedback form in the "Contacts" section. All SHIFENG tractors come with a 1-year warranty.
