Product Code: FA101-224084-101
In Stock
369 000 грн.
Buy this product in 1 click:
Main specifications
Additional Equipment: Horn, emergency alarm, rearview mirrors, front and rear headlights, front and rear turn signals, rear brake light and running lights, cabin lighting
Additional front/rear loads, (pcs. × kg): 4×20 / -
Additional Step-Down Gearboxes: 2 gears, neutral
Agrotechnical clearance, mm: N/A
Air Conditioner: No
All specifications
We will deliver this product:
Payment
Description

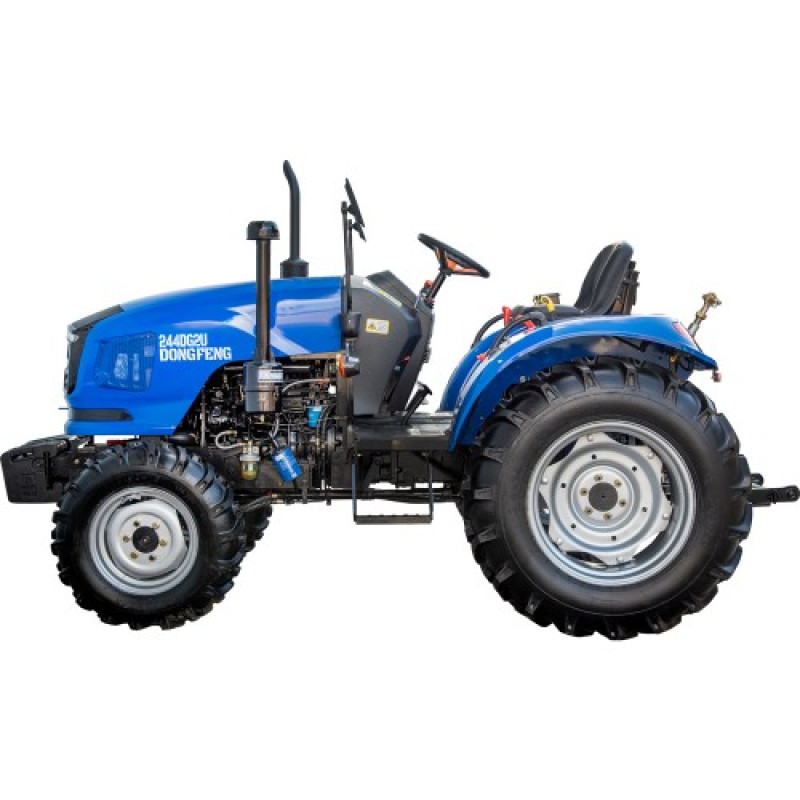

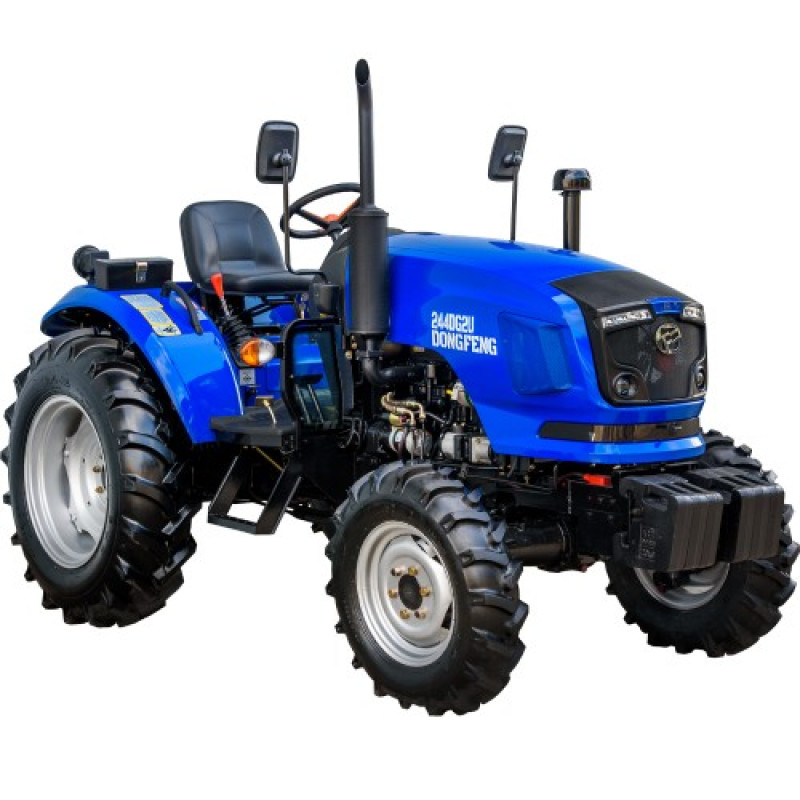

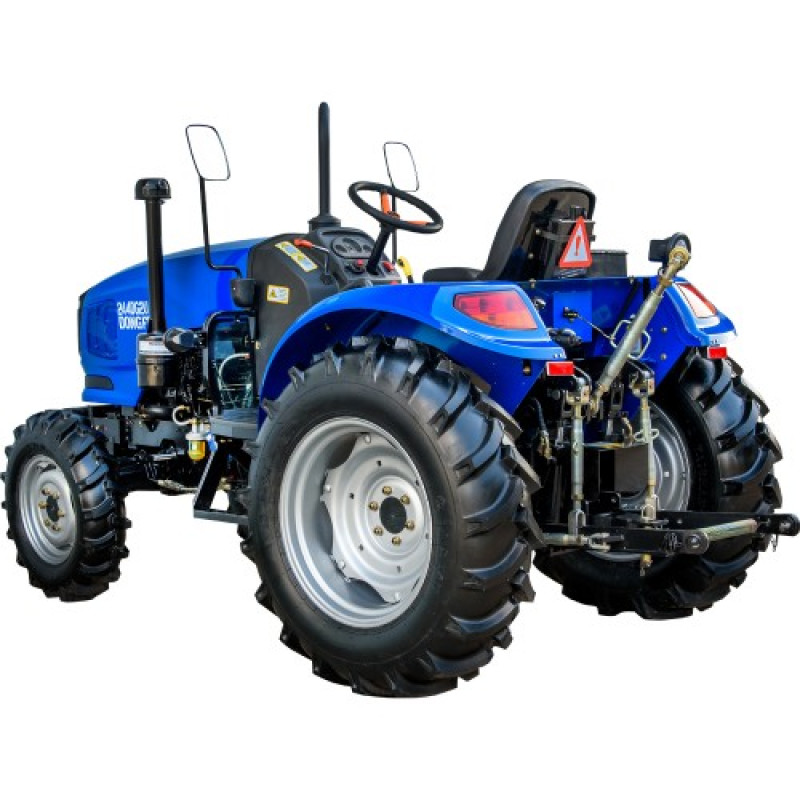

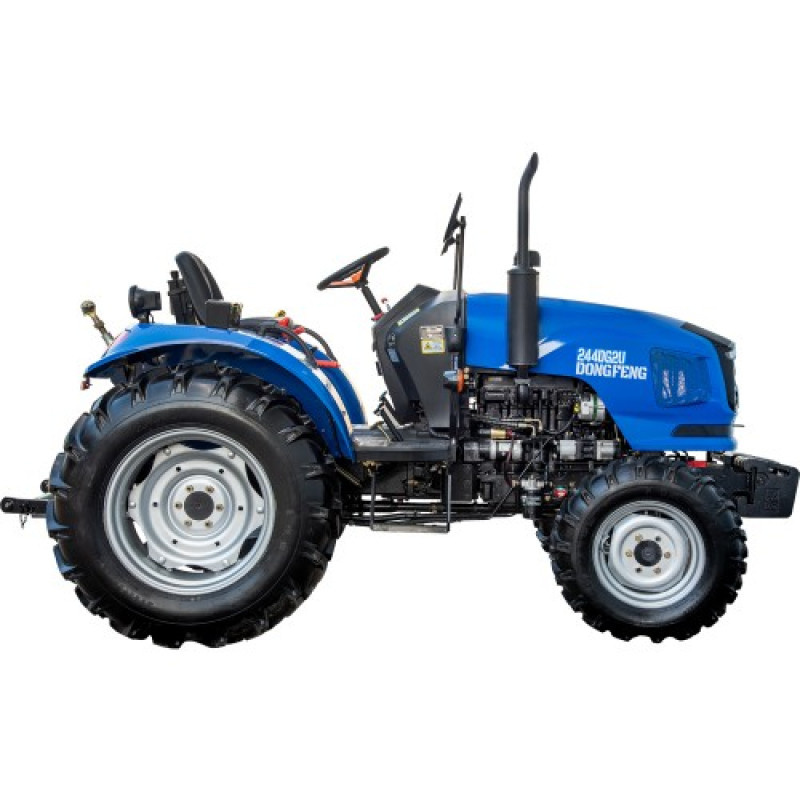

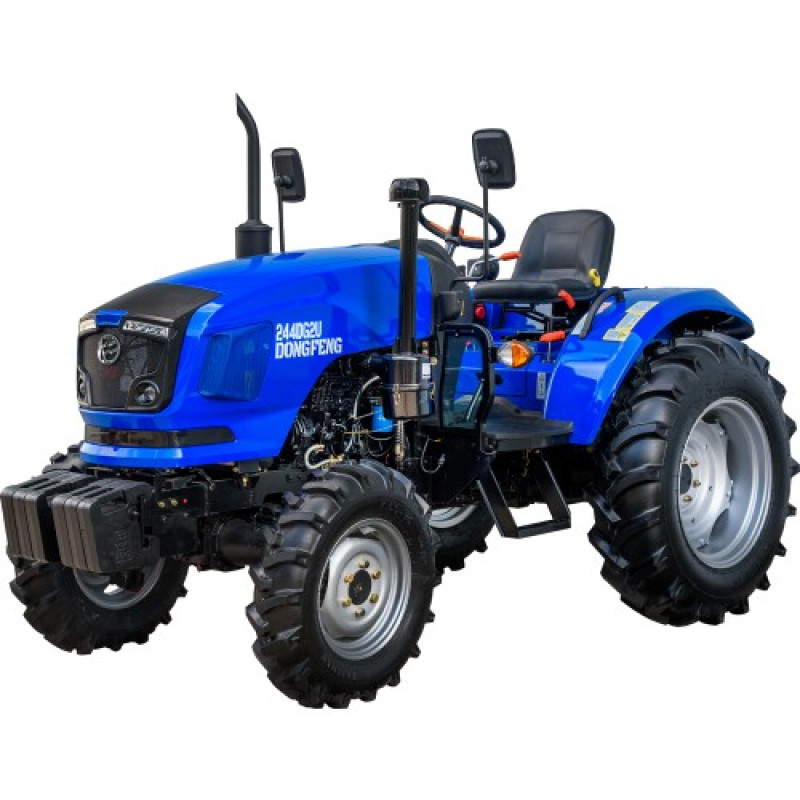

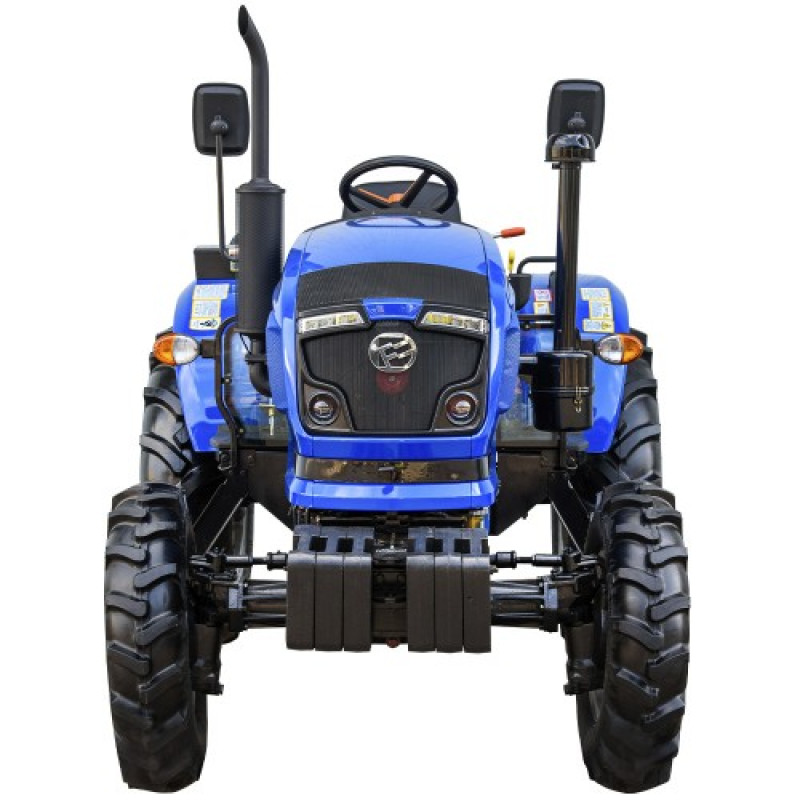

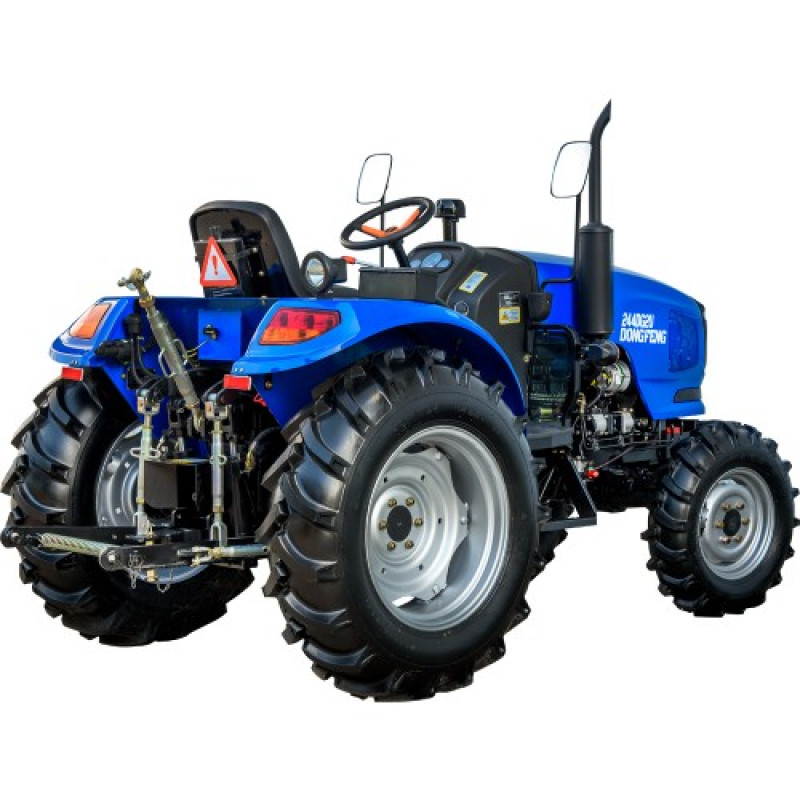

Description of the 244DG2U (Dongfeng) Tractor

The modern all-wheel-drive universal tractor 244DG2U (Dongfeng) features a 24-hp engine with a displacement of 1.81 L; a 4-speed main gearbox and a reduction gear, providing 8 forward and 8 reverse speeds; a dual-disc clutch; a reinforced low-noise transmission; a powerful three-point hitch; a two-speed power take-off (PTO) shaft (540/1000 rpm); a quick-release towing device; and hydraulic power steering with a separate tank.

It is perfectly suited for agricultural and municipal enterprises to perform various types of work, including transportation during harvesting, all soil cultivation processes (plowing, cultivating, harrowing, discing), sowing, plant protection, loading operations, etc.

Thanks to the hydraulic hitch, a wide range of equipment can be used: plow, cultivator, seeder, disc harrow, rotary tiller, potato planter, etc.

Utilizing all-wheel drive, forced differential lock, and two reduction gears ensures high off-road capability. It can be used in any working conditions.

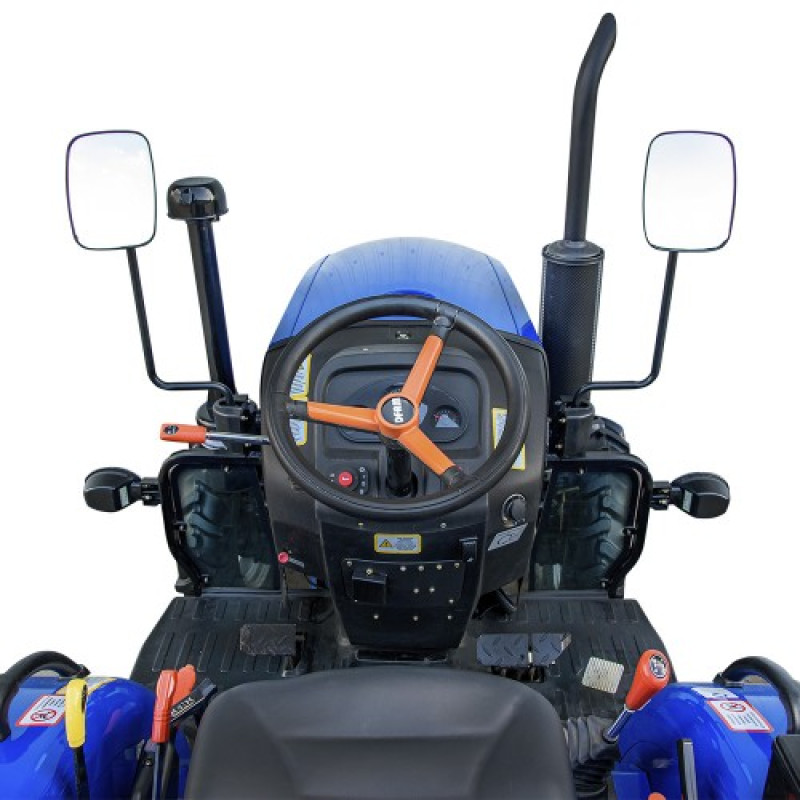

Equipped with a spacious, soundproofed, almost fully glazed cabin, providing good visibility and ease of control. A heating system adds to the comfort of working conditions. Control levers are conveniently located and have informative labels. All this ensures an appropriate level of comfort.

It offers optimal "price-quality" indicators, is easy to maintain, and can be used in farms of various specializations and in municipal, construction, and other enterprises.

Specifications
Additional Equipment Horn, emergency alarm, rearview mirrors, front and rear headlights, front and rear turn signals, rear brake light and running lights, cabin lighting
Additional front/rear loads, (pcs. × kg) 4×20 / -
Additional Step-Down Gearboxes 2 gears, neutral
Agrotechnical clearance, mm N/A
Air Conditioner No
Air Filter Contact-oil: oil bath, metal mesh, cyclone
Battery voltage and capacity, V/A•h 12/80
Brakes Rear, drum, mechanical, separate pedals for right and left wheels, synchronized simultaneous pedal action
Car Stereo No
Clearance, mm 300
Clutch coupling Single-function, dual-disc, normally closed type
Compressor No

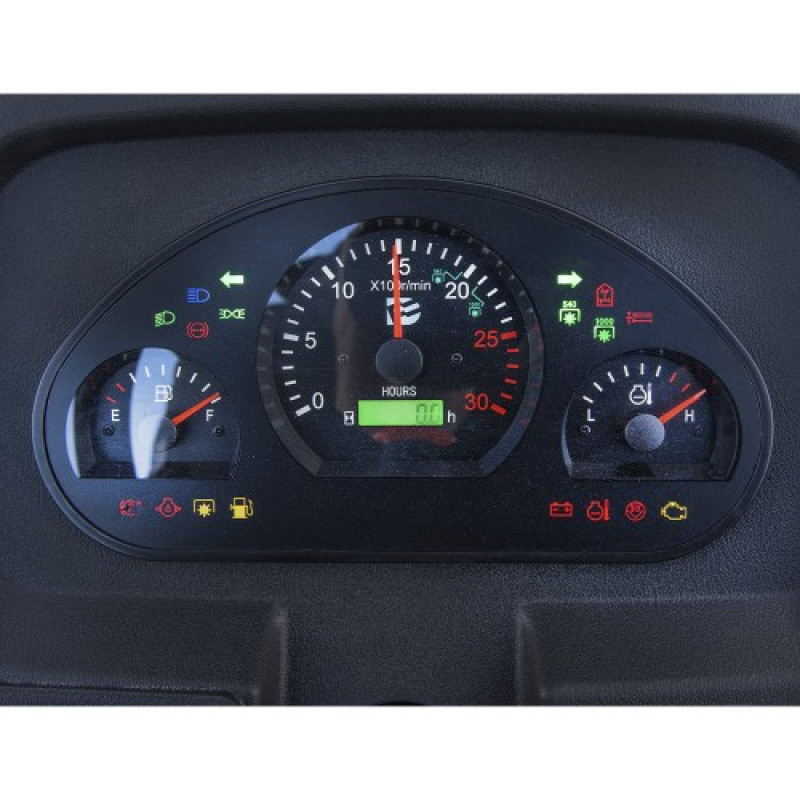

Dashboard Multifunctional
Driver's Cab No

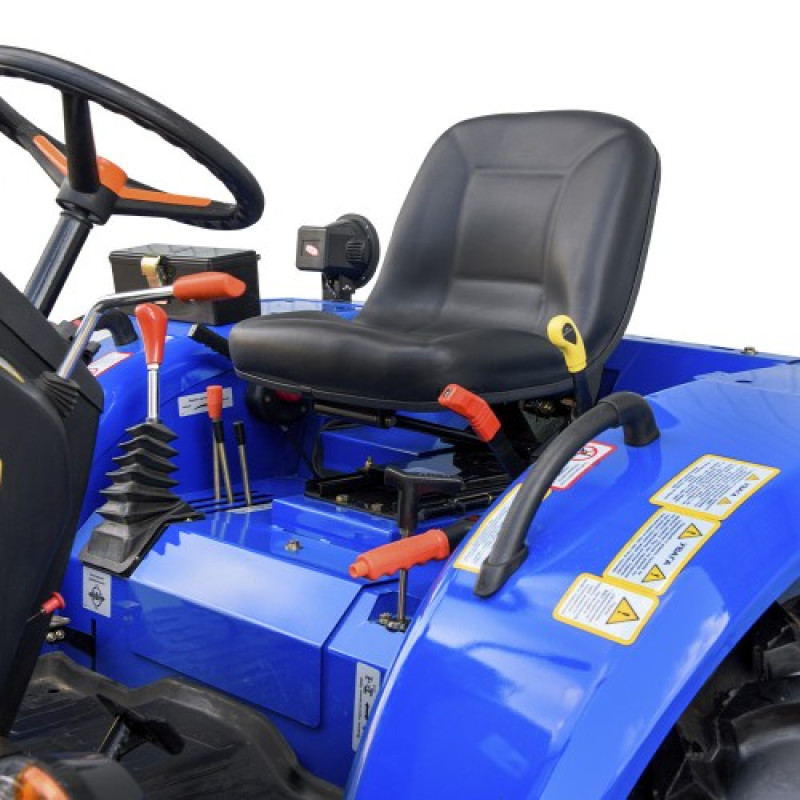

Driver's Seat On a shock absorber, adjustable for distance to the handlebar

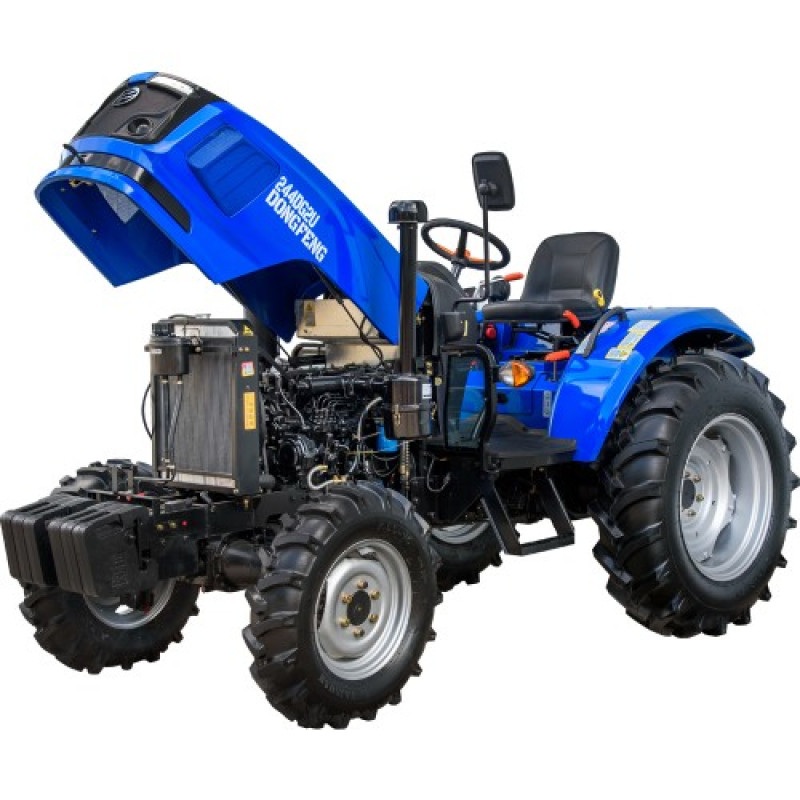

Engine displacement, cm³ 1813
Engine model ZN390T
Engine type Diesel, 4-stroke, with direct injection
Flat floor Is
Front tire size 6.5-16
Front track, mm 1240
Front wings No
Fuel tank capacity, L 50
Gear Shifting Formula (4x2)+(4x2)
Generator voltage and capacity, V/A•h N/A
Heated Cabin No
Hydraulic lift actuator 2 hydraulic cylinders
Hydraulic outputs for connecting attachments 2 (1 pressure/drain, 1 drain) with quick-release couplings, controlled by main hydraulic distributor
Hydraulic system oil tank volume, L 20
Intake manifold air heater Electric flare candle
Main Gearbox 4 speeds
Max payload capacity of suspension mechanism, kg 423
Minimum turning radius with brakes, m 3.3
Minimum turning radius without brakes, m 3.3
Nominal pulling force, kN N/A
Number and arrangement of cylinders 3, vertical
Operating weight, kg 1520
Overall dimensions (LxWxH), mm 1530x3380x1520
Power take-off (PTO) shaft speed, rpm 540-1000
Rated engine power, hp (kW) 24 (17.6)

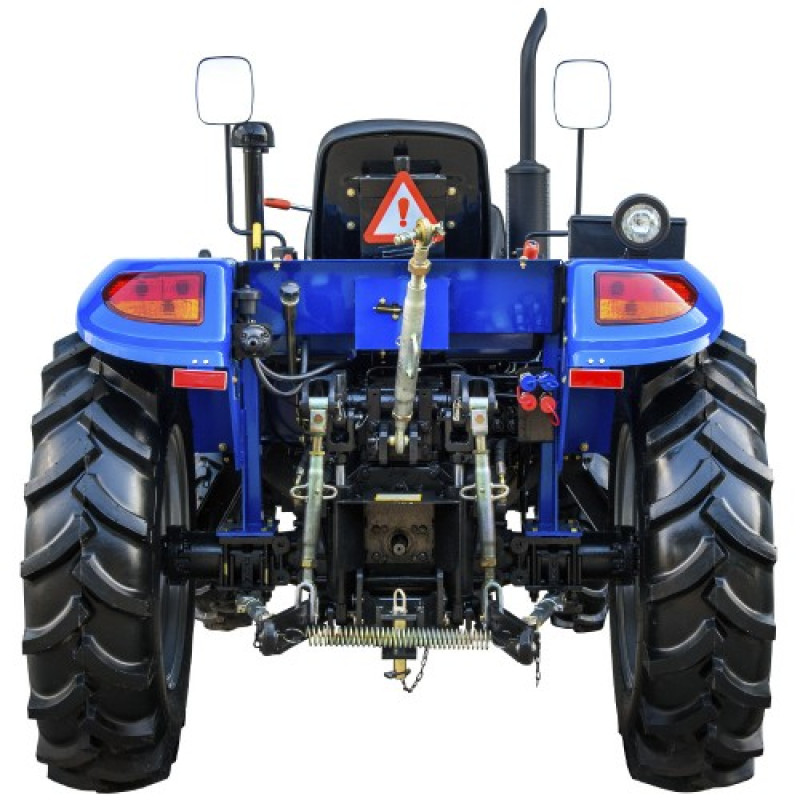

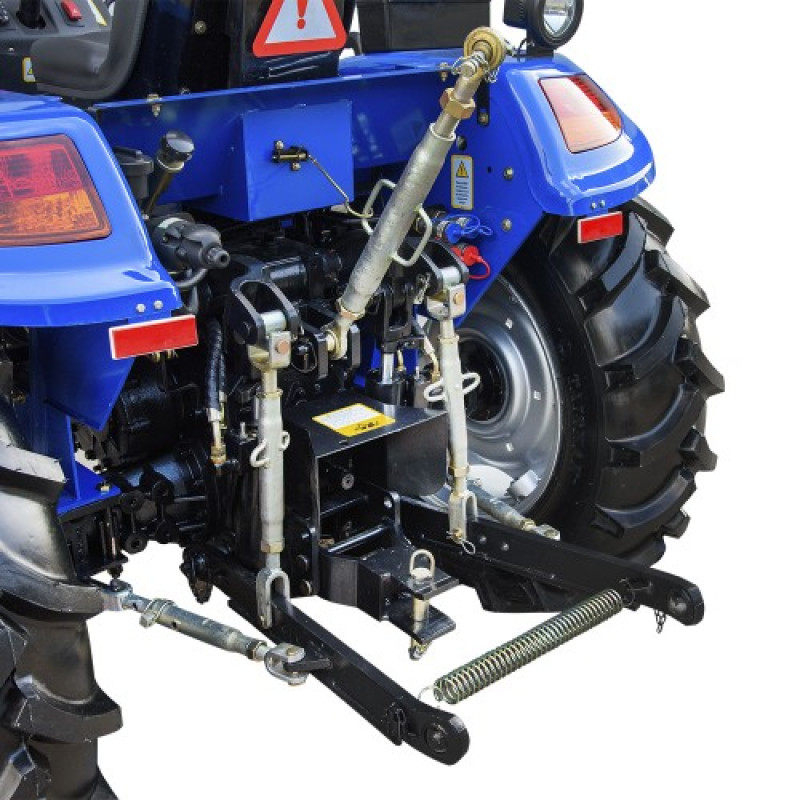

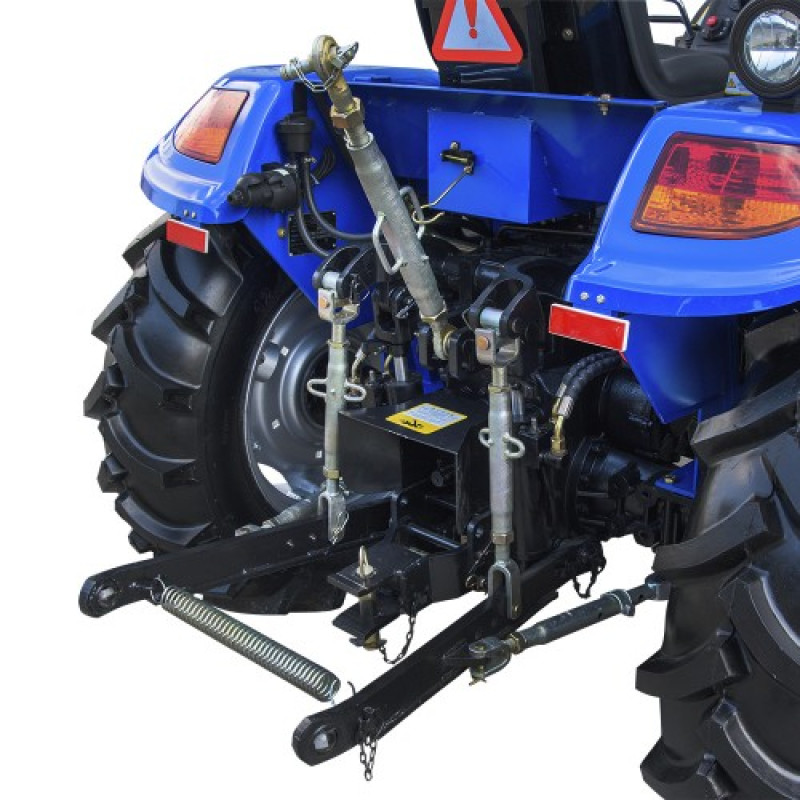

Rear attachment system Universal, 3-point
Rear axle differential lock Is
Rear Tire Size 11.2-24
Rear track, mm 1120/1220/1320
Separate Reversible Box Is
Steering Hydrostatic with separate pump and separate oil tank
Theoretical forward speed, km/h 1.4-25.5
Theoretical reverse speed, km/h 1.4-25.7
Towing Device Removable pendulum trunnion
Trailer Connector Socket Is
Transmission type Mechanical gear
Turbocharger No
Wheel formula 4×4
Wheelbase, mm 1750
