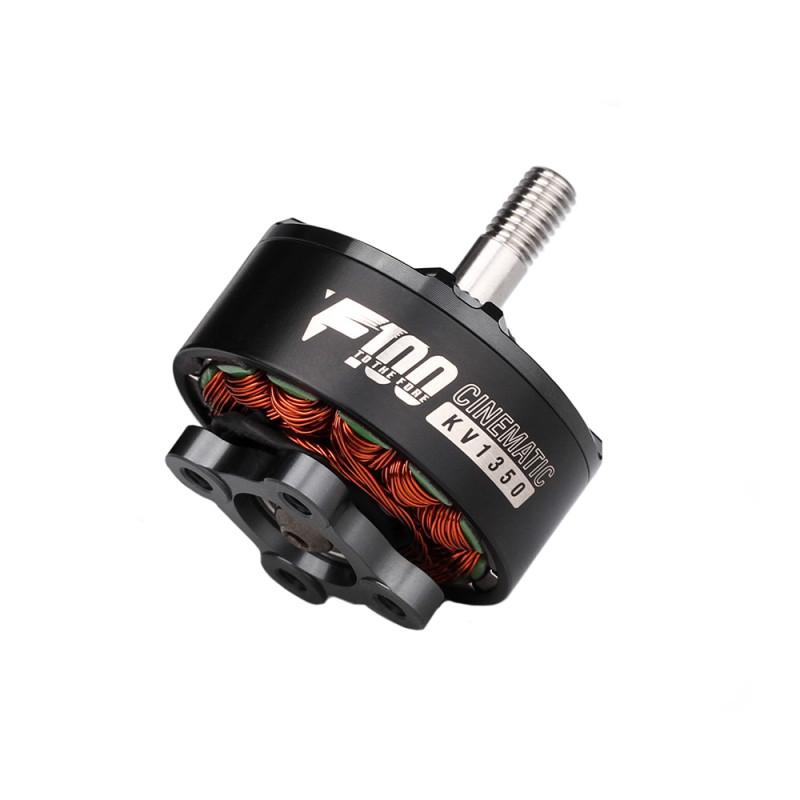

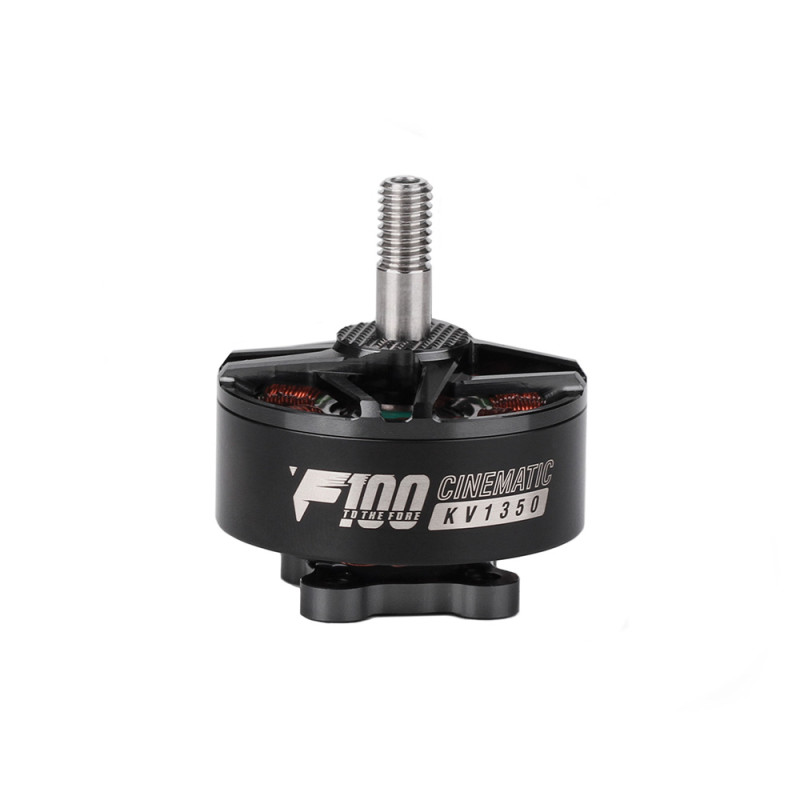

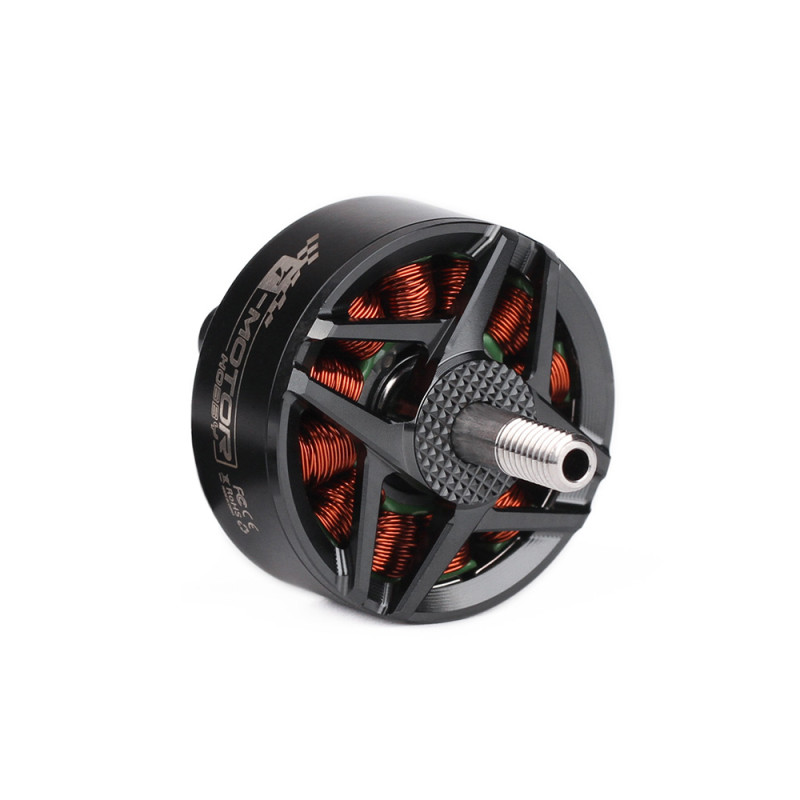

T-Motor F100 KV1100 / KV1350 Motor — Overview and Recommendations

The T-Motor F100 motor from the T-Motor brand is available in two KV options and is designed for different tasks: the KV1100 model is focused on increased thrust and the ability to carry heavy payloads, while the KV1350 variant provides greater speed and maneuverability for racing or high-speed aircraft. When choosing between the T-Motor F100 KV1100 and T-Motor F100 KV1350, consider your drone type, payload weight, desired speed, and battery.

Detailed Specifications

• 1. Motor Type: Brushless Motor — known for high efficiency and durability.
• 2. KV Rating: KV1100 (1100 rpm/V) for greater thrust and lifting capacity; KV1350 (1350 rpm/V) for increased speed and better maneuverability.
• 3. Stator Size: Stator diameter is 23 mm, which determines the motor's operating characteristics and propeller compatibility.
• 4. Weight: Approximately 39 grams for each T-Motor F100 motor, allowing for optimal drone construction weight.
• 5. Housing Material: High-quality aluminum, ensuring efficient heat dissipation and durability during intensive use.
• 6. Number of Stator Poles: 12 poles — for more precise and stable rotation.
• 7. Operating Voltage: Recommended operation from 3S to 6S (11.1V – 22.2V), depending on configuration and choice of propellers and electronic speed controller (ESC).
• 8. Mounting Thread: Standard M3 thread for propeller attachment.
• 9. Application: Suitable for professional aerial photography and videography aircraft, racing quadcopters, and other multirotor platforms requiring high performance and reliability.

The T-Motor F100 motor is compatible with a wide range of ESCs and propellers; however, to achieve the best performance, it is important to select components according to the KV rating and battery operating voltage. For the KV1100 variant, it is recommended to use larger and slower propellers for maximum torque and lift; for KV1350 — lighter and faster propellers for aggressive flight dynamics.

If you are mounting the motor on a professional multicopter or racing quadcopter, pay attention to cooling and mounting compatibility: the aluminum motor housing promotes heat dissipation, and the typical M3 mounting thread facilitates integration into most frames and adapters.

Brand: T-Motor. Product Category: Drones and Quadcopters > Drone Accessories.

The information in this description includes all key technical parameters: motor type, KV values (1100 and 1350), stator diameter 23 mm, weight ~39 g, aluminum housing, 12 stator poles, operating voltage 3S–6S (11.1V–22.2V), M3 mounting thread, and recommended applications.
