iFlight XING 2806.5 1300kv 1700kv 1800kv 2200kv Motor

The original iFlight XING 2806.5 brushless motor is designed for heavy quadcopters and drones with 7–8 inch propellers. Brand: iFlight. Product type: Drones & Quadcopters > Motors. This motor combines durable construction, high-quality materials, and precise factory calibration for stable FPV flights, aggressive maneuvering, and efficient thrust under various load conditions.

Features

• 4mm titanium alloy shaft for increased strength and reliability under harsh loads
• Housing and base made of impact-resistant 7075 aluminum alloy, ensuring wear resistance and high structural rigidity
• High-quality Japanese NSK bearings, 11×5×5 mm, providing smooth rotation and long lifespan
• N52H arc magnets with a central slot for stable and powerful electromagnetic interaction
• Electromagnetically compatible magnets and stator to minimize losses and increase efficiency
• Bearing gap protection with an O-ring, reducing the risk of contamination and extending bearing life
• Motor wire protection to prevent damage to wiring during installation and operation
• Dynamically calibrated at the factory, reducing vibrations and improving smoothness at high RPMs

Specifications

• KV: 1300kv/700kv/1800kv/2200kv
• Configuration: 12N14P
• Shaft diameter: 5 mm
• Stator diameter: 28 mm
• Stator length: 6.5 mm
• Thread direction: Clockwise
• Internal resistance: 74 mΩ
• Input voltage: 3S-6S LiPo
• Max continuous power: 961 W (180 sec)
• Max continuous current: 39.4 A (60 sec)
• Bearing: NSK 11 × 5 × 5 mm
• Cable: 160 mm, 20AWG
• Mounting pattern: 19 × 19 mm, M3
• Dimensions: Φ29 × 19.25 mm

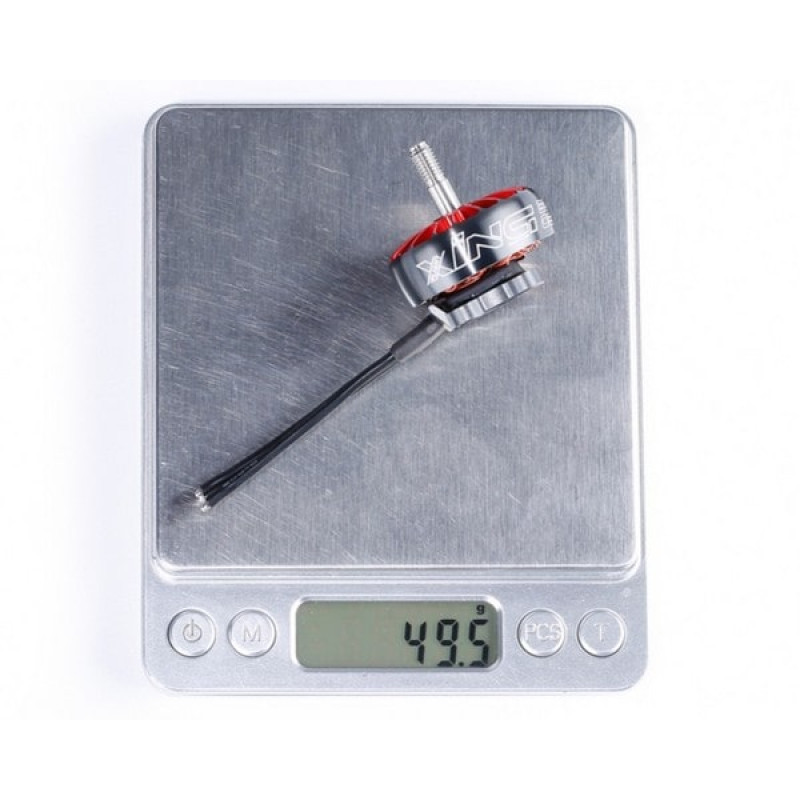

• Weight with wires: 49.5 g (with shortened wires)

Package Contents

• 1 × iFlight Xing 2806.5 1300KV brushless motor
• 4 × M3 × 8 mm bolts
• 1 × M5 flange nut with nylon insert

Please note: installing bolts that are too long risks damaging the motor winding, which can lead to motor failure. It is recommended to use bolts of the recommended length and adhere to the specified mounting parameters (19 × 19 mm, M3).

The iFlight XING 2806.5 motor is suitable for applications requiring high thrust and quick control response: FPV freestyle, long-range heavy-lift platforms, and other projects with 7–8'' propellers. Thanks to the combination of a titanium shaft, 7075 aluminum housing, high-quality NSK bearings, and strong N52H magnets, this motor provides an excellent balance between weight, durability, and efficiency.

The technical specifications and package contents meet the requirements of professional pilots and enthusiasts who value reliability and long component lifespan. Brand: iFlight guarantees quality control and adherence to factory calibration before shipment.
