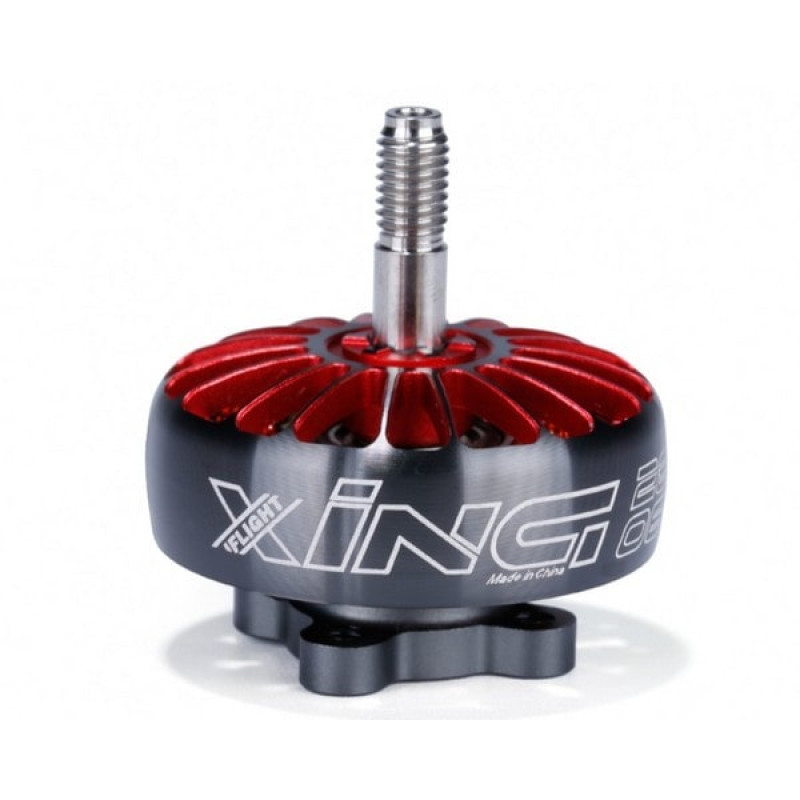

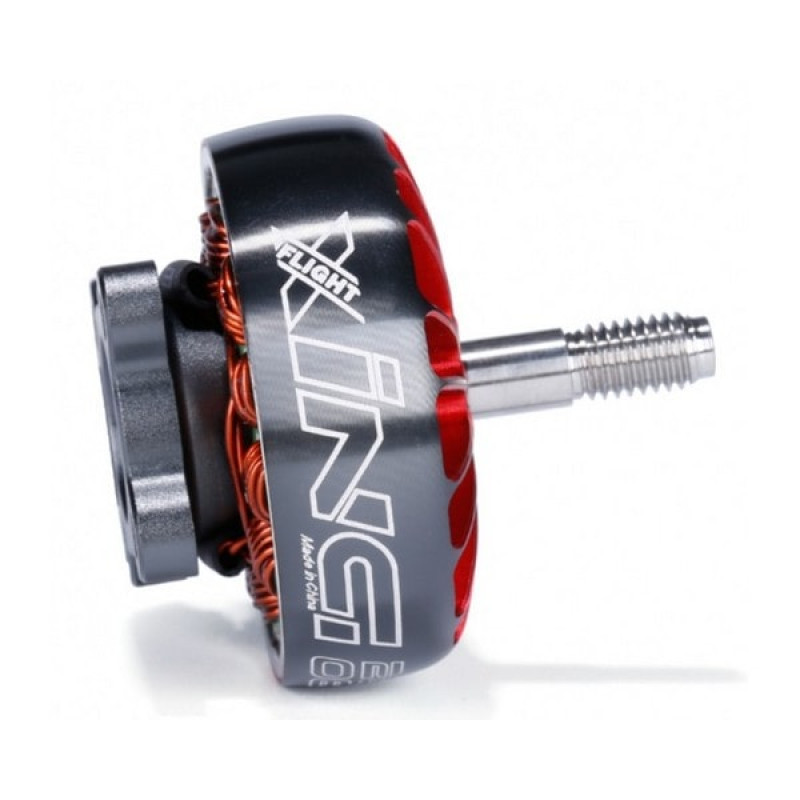

iFlight XING 2806.5 Motor — Powerful Brushless Motor for Large Quadcopters Model: iFlight XING 2806.5 (available KV options: 1300kv, 1700kv, 1800kv, 2200kv) from manufacturer iFlight. Designed for drones and quadcopters with 7–8-inch propellers, this motor provides high thrust, quick response, and smooth operation for FPV flights.


Description and Materials

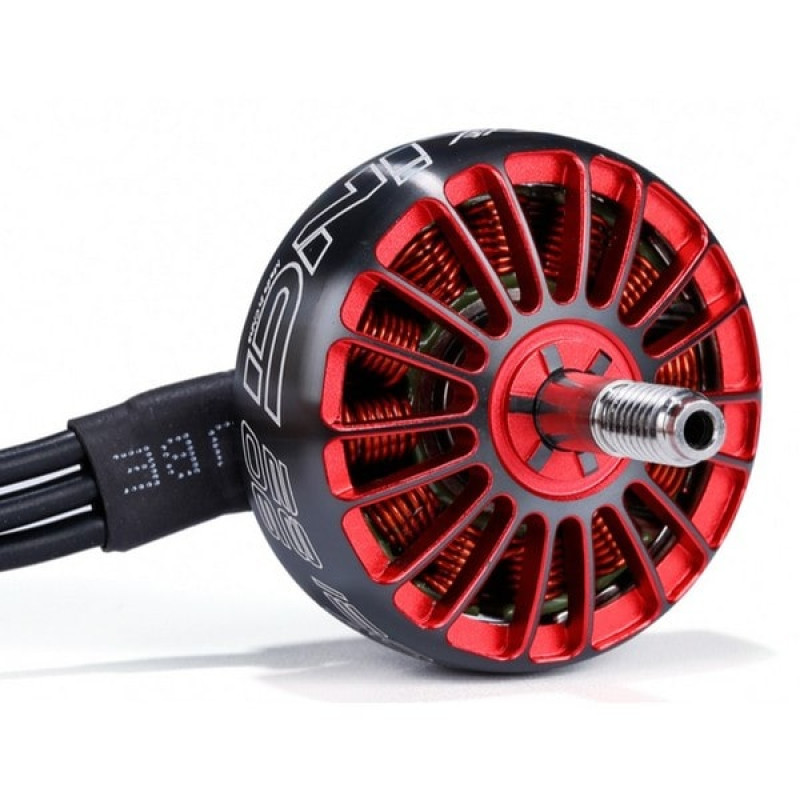

iFlight Xing 2806.5 brushless motors feature a unibody aluminum bell and a durable 7075 aluminum alloy base. The shaft is made of 4mm thick titanium alloy. Japanese NSK bearings (size 11 x 5 x 5 mm) are used. The magnets are N52H arc magnets with a center slot, which increases efficiency and resistance to demagnetization. The motor components (magnets and stator) are electromagnetically compatible, and factory dynamic balancing ensures minimal vibrations during rotation.

Features

• 4mm titanium alloy shaft
• Aluminum bell and 7075 aluminum alloy base
• High-quality Japanese NSK bearings, size 11×5×5
• N52H arc magnets with a center slot
• Electromagnetically compatible magnets and stator
• Bearing gap protection with O-ring
• Motor wire protection
• Dynamically balanced at the factory

Specifications

• KV: 1300kv/700kv/1800kv/2200kv
• Configuration: 12N14P
• Shaft diameter: 5 mm
• Stator diameter: 28 mm
• Stator length: 6.5 mm
• Thread direction: Clockwise
• Internal resistance: 74 mOhm
• Input voltage: 3S-6S LiPo
• Max continuous power: 961 W (180 sec)
• Max continuous current: 39.4 A (60 sec)
• Bearing: NSK 11 x 5 x 5 mm
• Cable: 160 mm, 20AWG

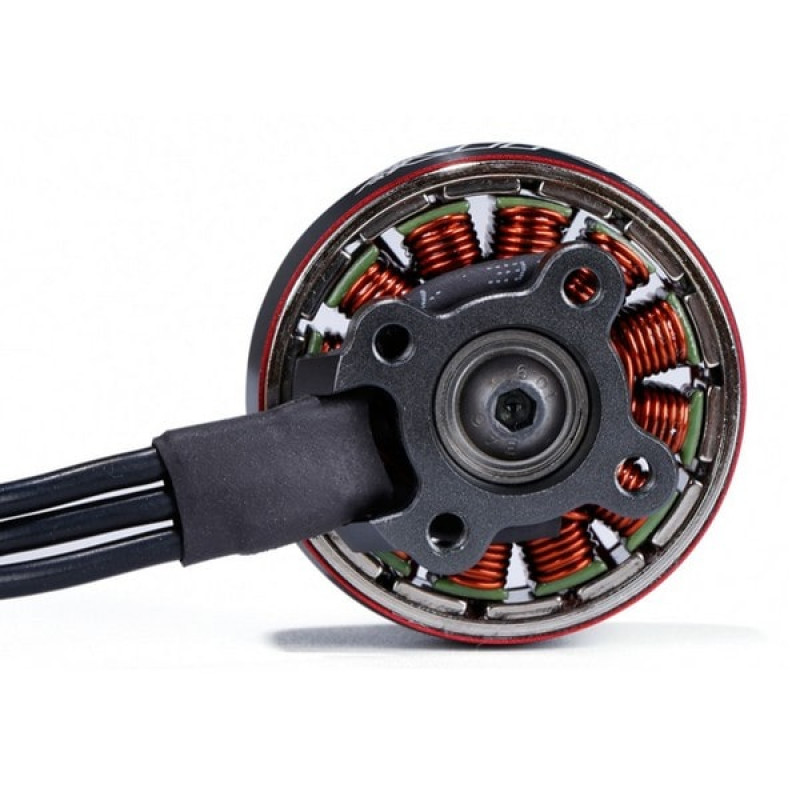

• Mounting pattern: 19 x 19 mm, M3
• Dimensions: Φ29 × 19.25 mm

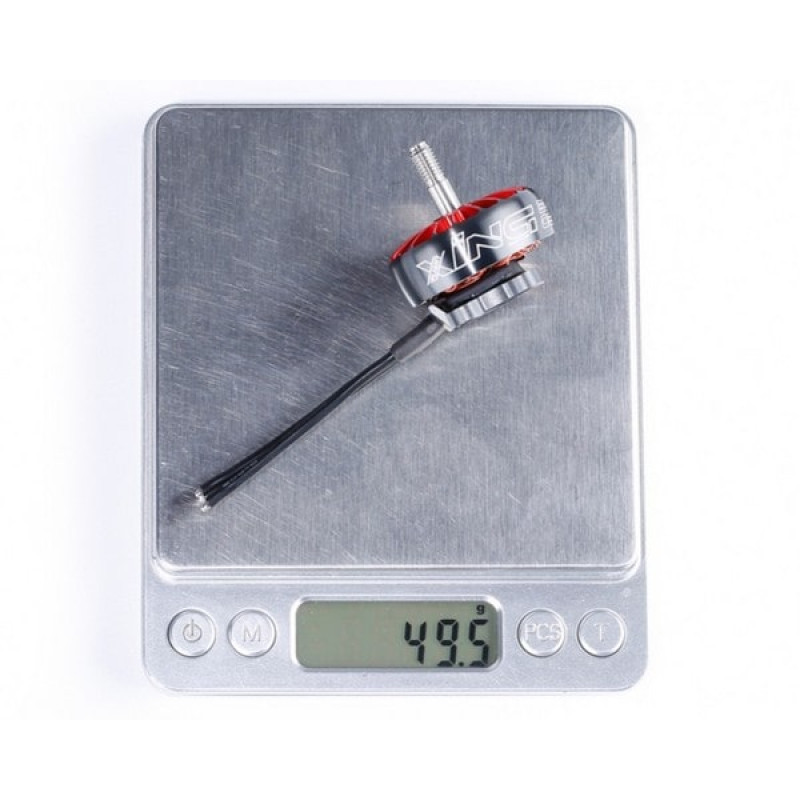

• Weight with wires: 49.5 g (with shortened wires)

Package Contents

• 1 × iFlight Xing 2806.5 1300KV brushless motor
• 4 × M3 × 8 mm bolts
• 1 × M5 flanged nylon lock nut

Please note: When installing, excessively long bolts can damage the motor winding, leading to its failure.

Additional Information

The product belongs to the category: Drones and Quadcopters > Motors. Manufacturer: iFlight. This motor is ideal for large multi-rotors that require a reliable component with high power-to-weight ratio and stable operation under load. The technical specifications allow the motor to be used with 3S–6S LiPo batteries, and factory balancing and high-quality bearings ensure a long service life and minimal vibrations during flight.
