iFlight XING 2806.5 1300kv 1700kv 1800kv 2200kv Motor

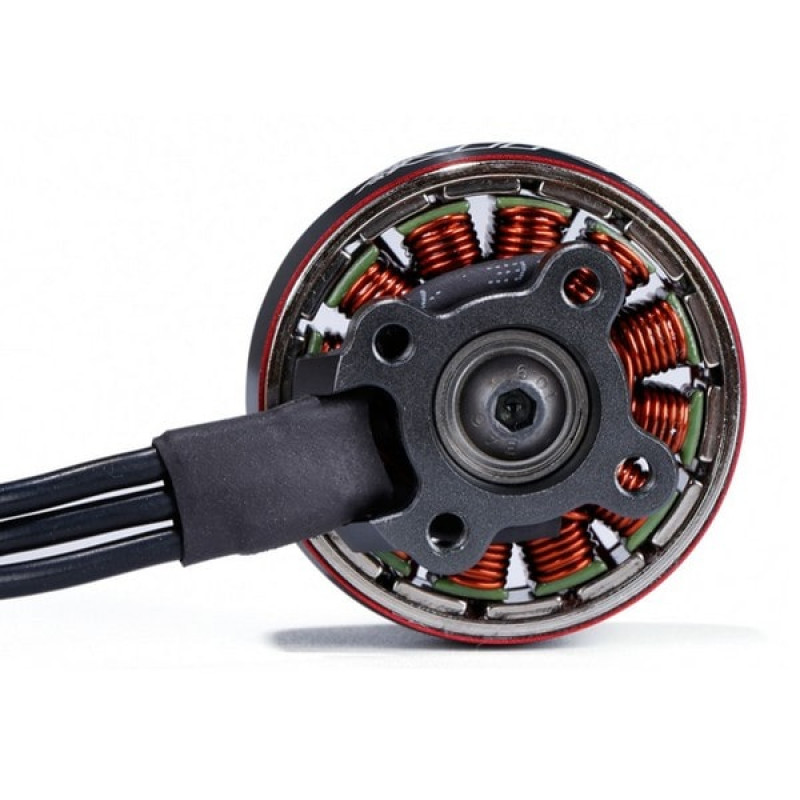

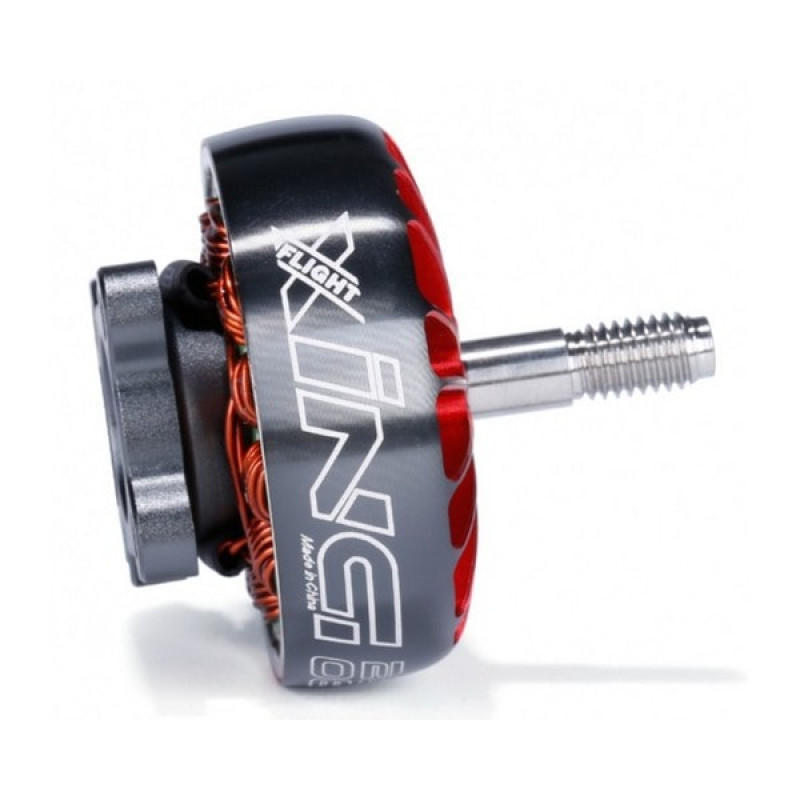

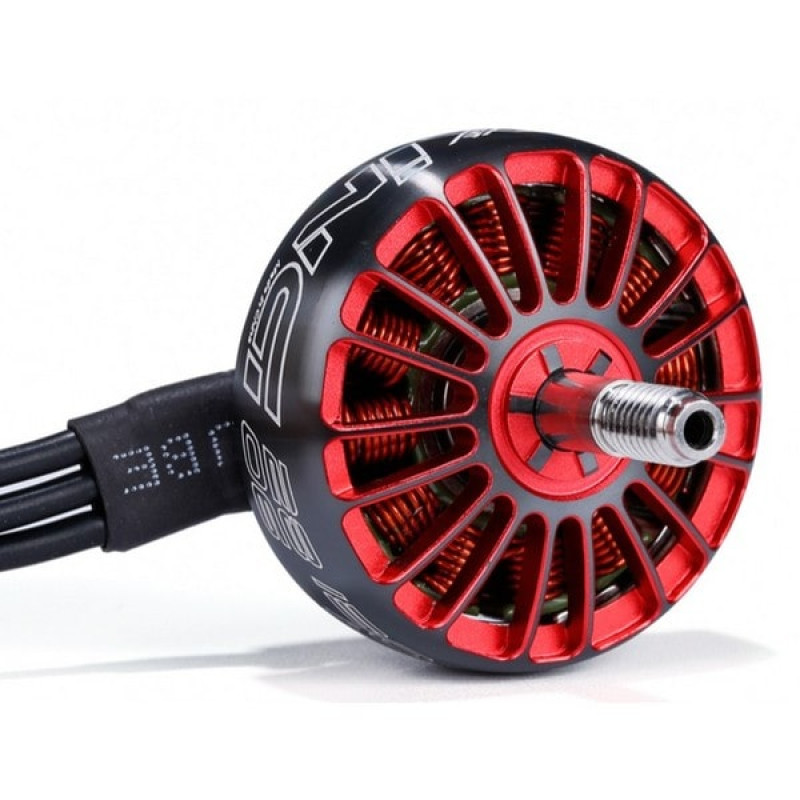

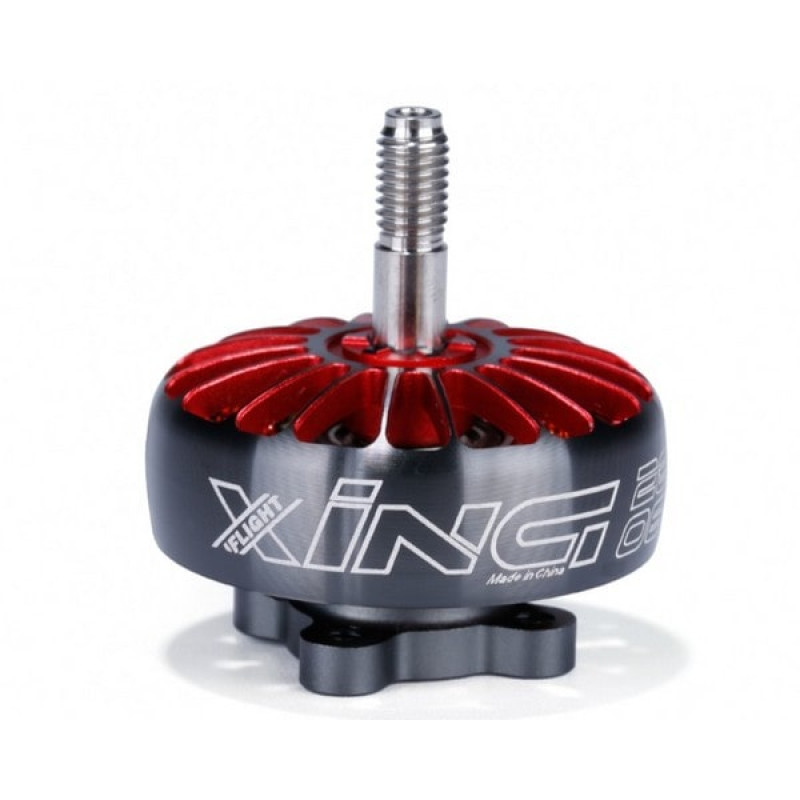

Introducing the iFlight XING 2806.5 brushless motor from iFlight — a reliable solution for large quadcopters and FPV machines with 7–8-inch propellers. This motor is designed for those who value high thrust, fast control response, and smooth rotation under load. The construction includes a unibody aluminum bell, Japanese NSK bearings, and N52H arc magnets, ensuring the motor operates at a high professional level.

Product category: Drones & Quadcopters > Motors.

FEATURES

• 4mm titanium alloy shaft
• Highly durable aluminum bell and 7075 aluminum alloy base
• High-quality Japanese NSK bearings, 11x5x5mm
• N52H arc magnets with center slot
• Electromagnetically compatible magnets and stator
• Bearing gap protection with O-ring
• Motor wire protection
• Dynamically calibrated at the factory

These features guarantee high reliability in extreme flight conditions and a long motor lifespan. High-quality NSK bearings and a reinforced 7075 alloy casing reduce vibrations and increase resistance to mechanical stress, while the titanium shaft contributes to durability.

SPECIFICATIONS

• KV: 1300kv/700kv/1800kv/2200kv
• Configuration: 12N14P
• Shaft diameter: 5 mm
• Stator diameter: 28 mm
• Stator length: 6.5 mm
• Thread direction: Clockwise
• Internal resistance: 74 mOhm
• Input voltage: 3S-6S LiPo
• Max continuous power: 961 W (180 sec)
• Max continuous current: 39.4 A (60 sec)
• Bearing: NSK 11 x 5 x 5 mm
• Cable: 160 mm, 20AWG
• Mounting pattern: 19 x 19 mm, M3
• Dimensions: Φ29 × 19.25 mm

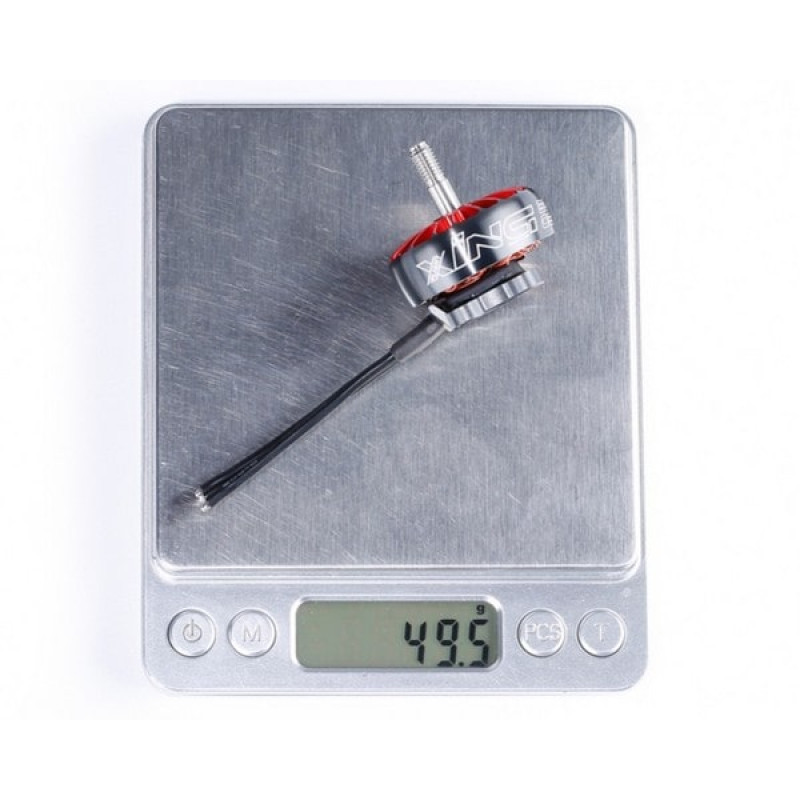

• Weight with wires: 49.5 g (with shortened wires)

Please note that the model name indicates the available KV options: 1300kv, 1700kv, 1800kv, and 2200kv, allowing you to choose the motor for different aircraft configurations and propeller weights. Specifications regarding shaft diameter and thickness, and other technical parameters are provided in detail for precise selection of compatible propellers and ESCs.

PACKAGE CONTENTS

• 1 x iFlight Xing 2806.5 1300KV brushless motor
• 4 x M3 x 8 mm bolts
• 1 x M5 flanged nylon insert lock nut

The kit includes everything you need to install the motor on the frame, but it's important to remember a crucial warning: using bolts that are too long can damage the motor winding, leading to its failure.

The iFlight XING 2806.5 motor — an excellent choice for FPV enthusiasts and those building large quadcopters with 7–8-inch propellers who need maximum thrust, reliability, and build quality from the manufacturer iFlight.

Other technical details and product variants can be clarified in the product description or with a store manager.
