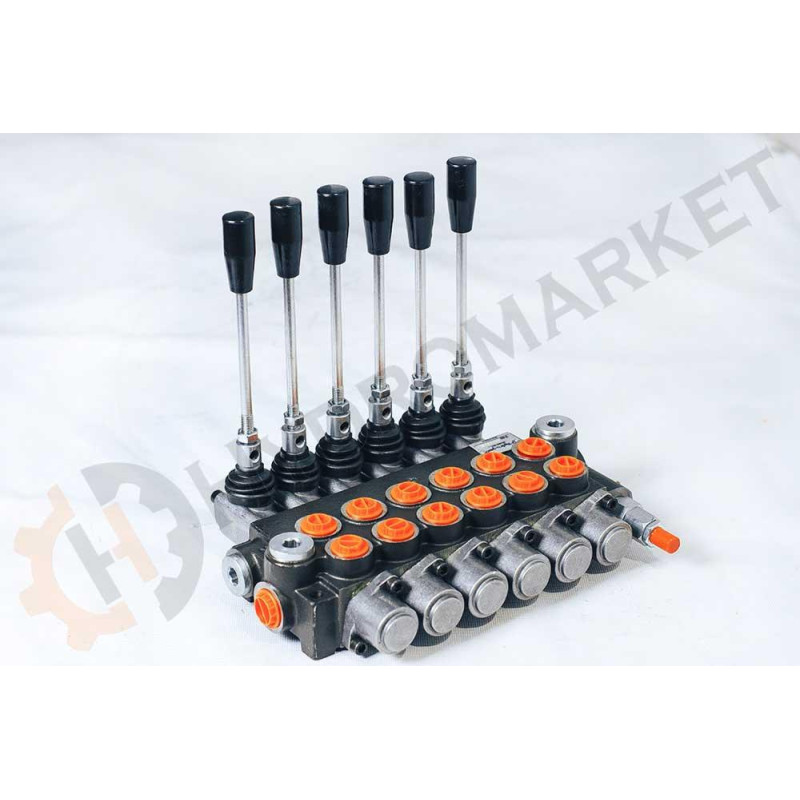

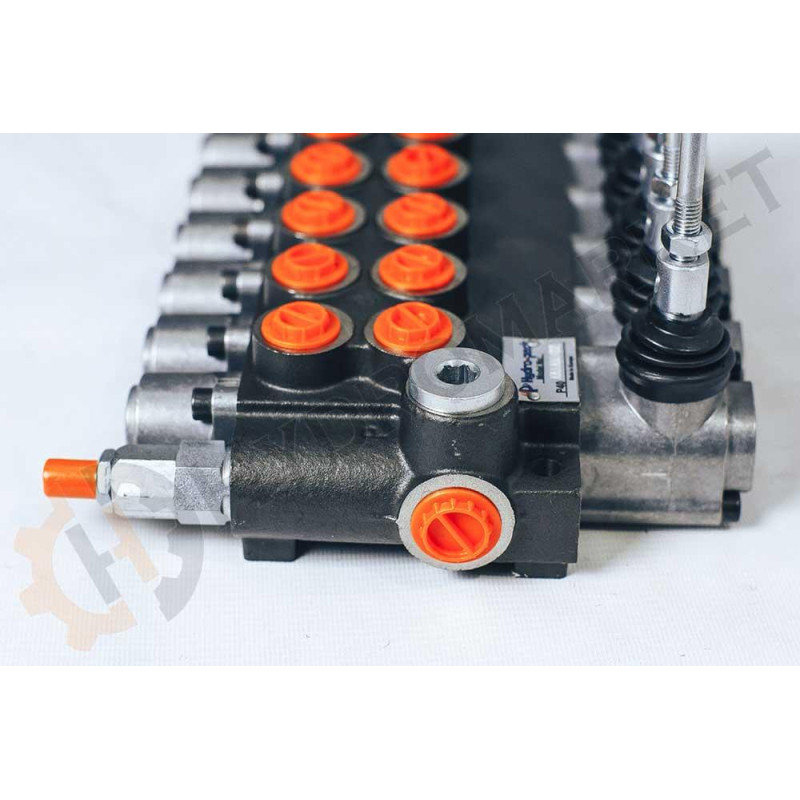

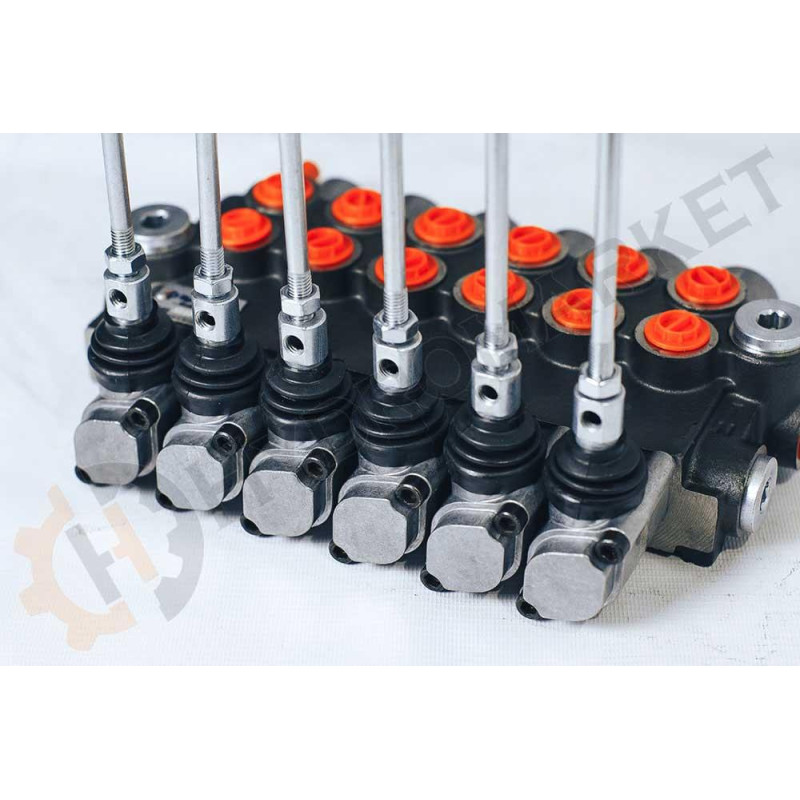

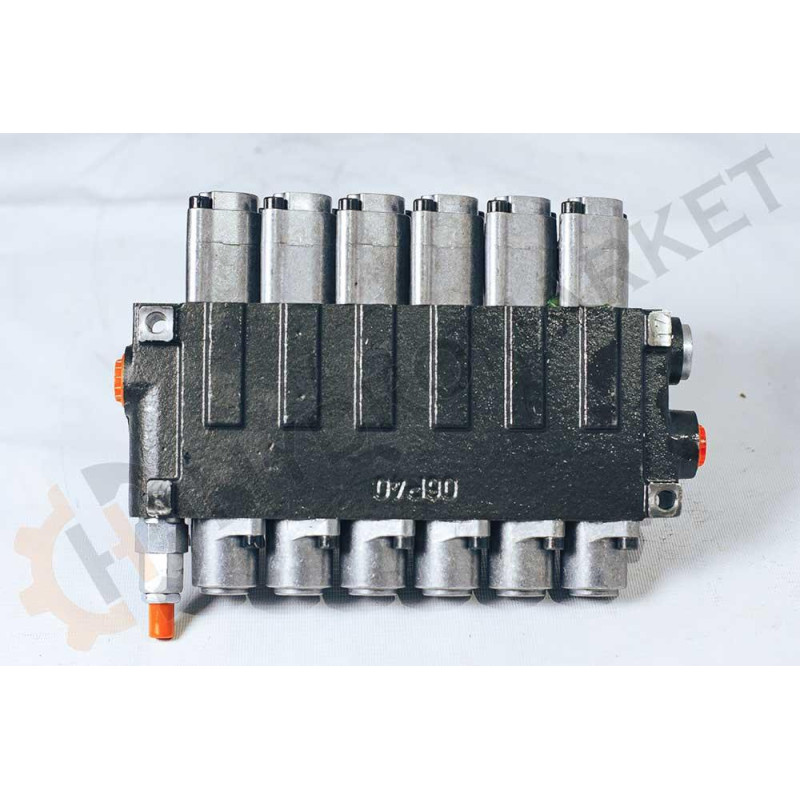

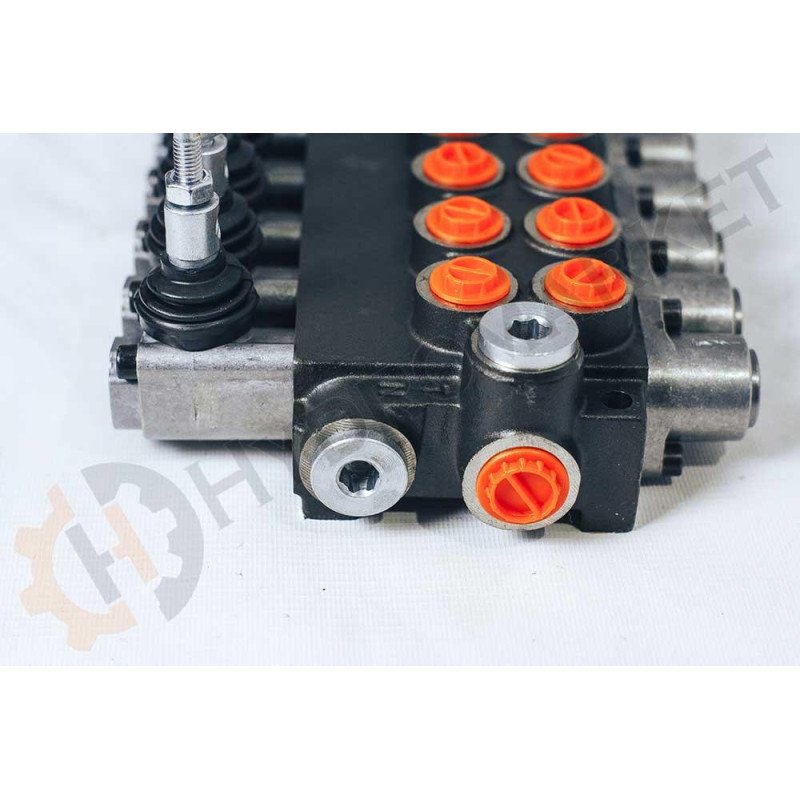

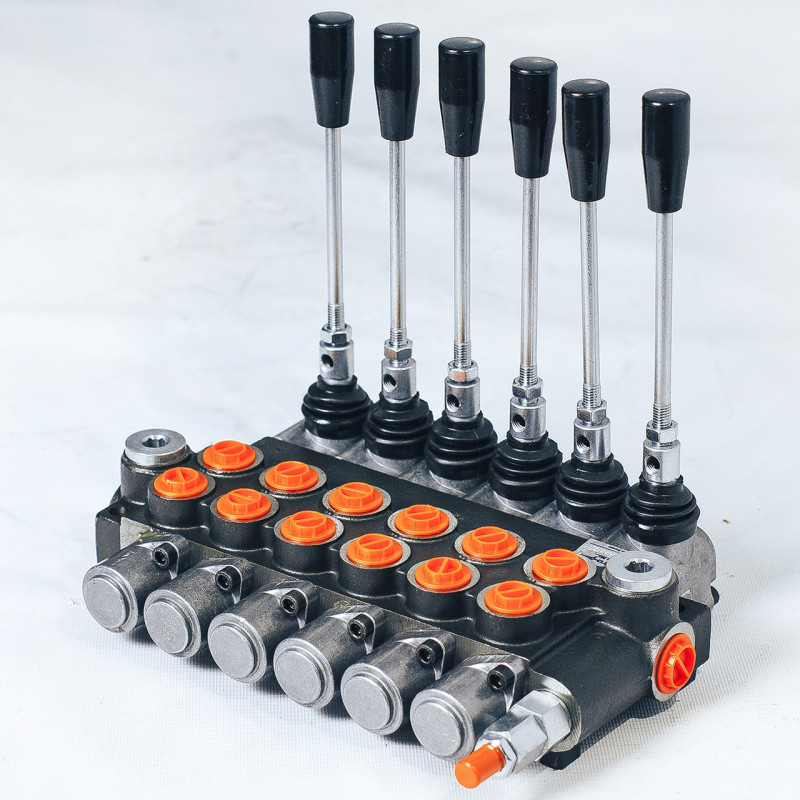

Monoblock Hydraulic Control Valve 6P40 Badestnost (Bulgaria)

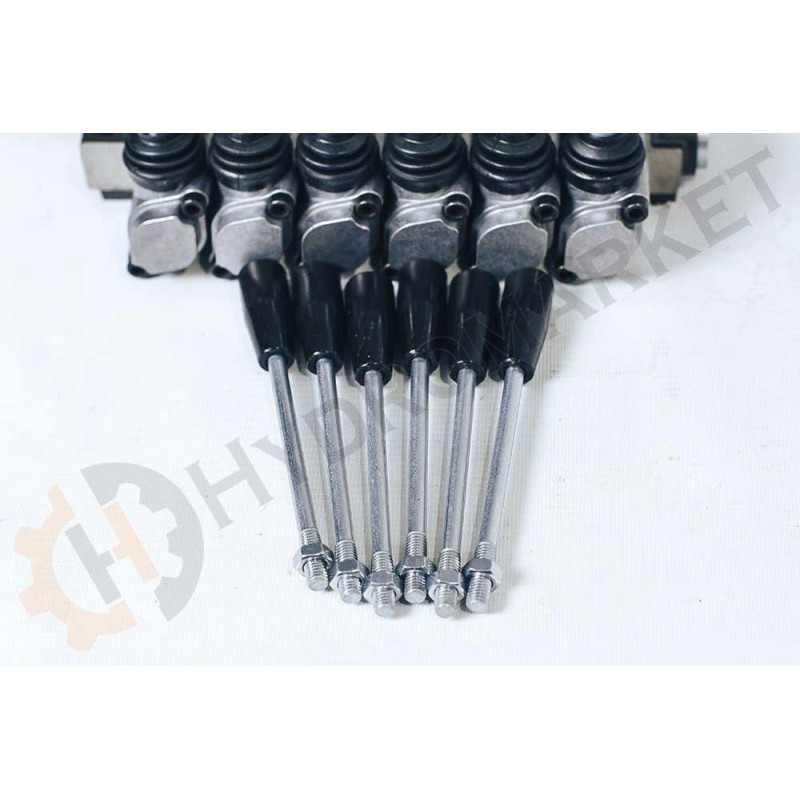

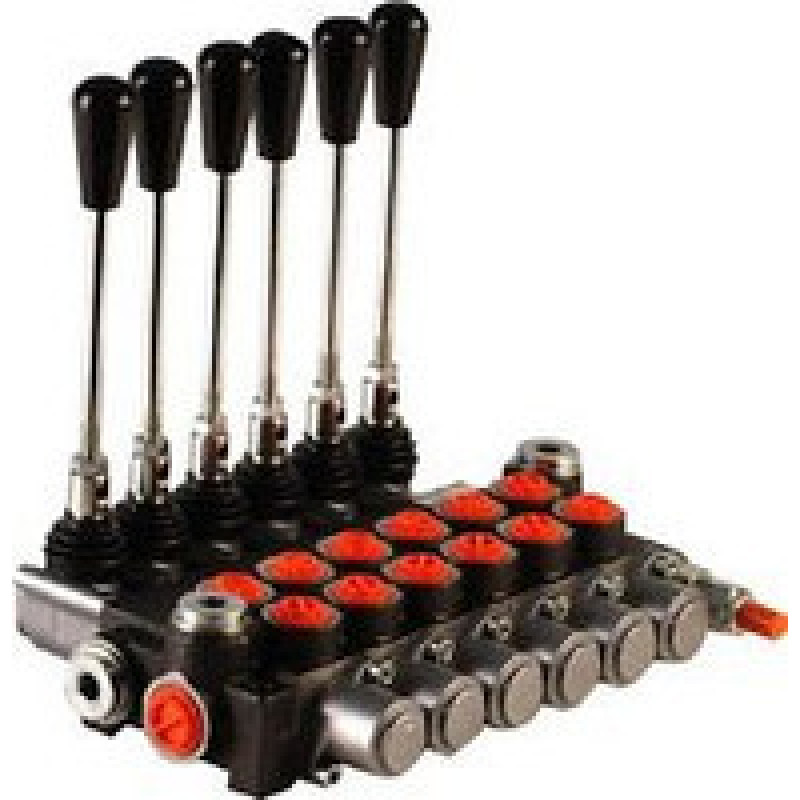

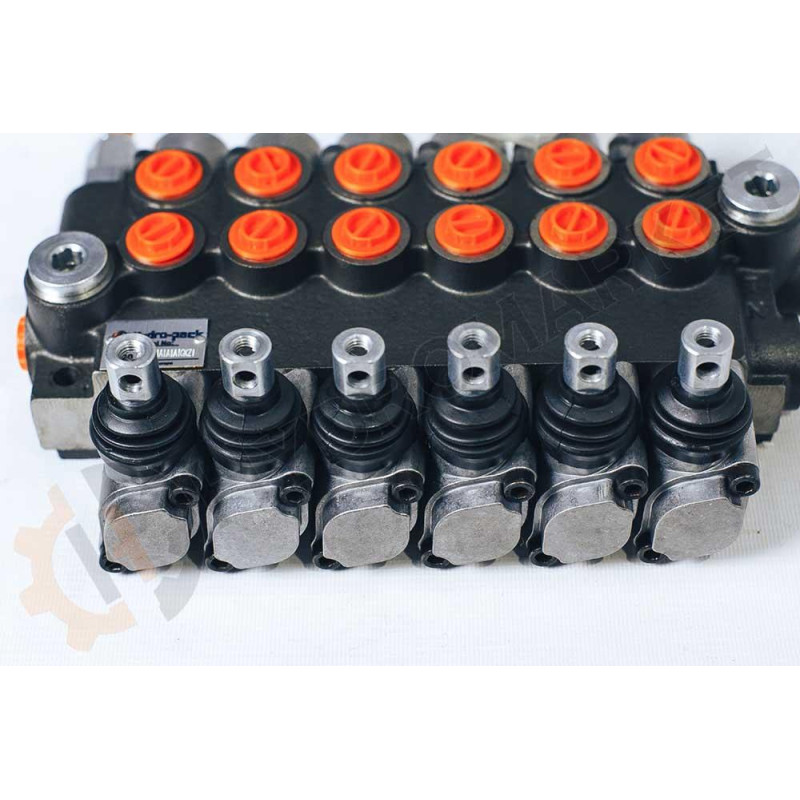

The Badestnost 6P40 monoblock hydraulic control valve, developed in Bulgaria, is a reliable technical solution for mobile and stationary hydraulic systems. The device has 6 working sections and is designed for a flow rate of 40 l/min, making it suitable for use in agricultural and construction machinery, as well as other equipment with moderate flow rates. Manual control is performed using levers that move the spools into three working positions, allowing the operator to precisely regulate the direction and intensity of the working fluid flow or fix the position for safe operation.
Design and Materials
The valve body is made of EN-GJL300 class cast iron for increased strength and durability. The plungers (spools) are made of carburized steel with hard chrome plating on the working surfaces, ensuring high wear resistance and corrosion resistance. Two M8 mounting bolts are provided for installation, simplifying setup and guaranteeing secure fastening to the unit.
Technical Parameters
- Number of working sections: 6
- Flow rate: 40 l/min
- Ambient temperature: -40°C...+60°C
- Working fluid: mineral oil / hydraulic oil
- Working fluid viscosity: 12...800 mm²/s
- Fluid temperature: -15°C...+80°C
- Recommended filtration: 10 per NAS 1638
- Maximum operating pressure: P = 315 bar; at T = 50°C: A, B = 300 bar
- Leakage (A,B-T): 5 cm³/min at 100 bar, 46 cSt
- Spool stroke: 6 mm
- Actuation force: < 200 N
- Mounting fasteners: 2 M8 bolts
- Detailed technical information and catalogs: PDF, PDF2
The 6P40 hydraulic control valve demonstrates high operational stability due to quality materials and precise manufacturing of moving elements. The small spool stroke (6 mm) and low actuation force (< 200 N) ensure convenient manual control even during prolonged operation. A wide range of viscosity and temperature conditions allows the device to be used in various climatic conditions without loss of performance.
Brand: Badestnost. Product category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Hydraulic Systems > Hydraulic Control Valves.

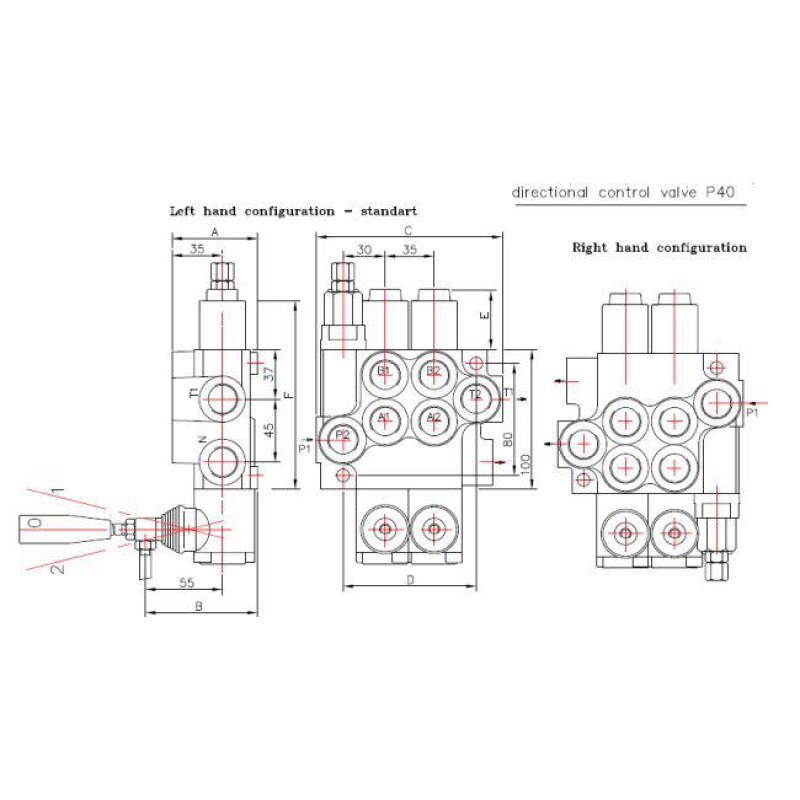

| A | B | C | D | P1 | P2 | T1 | T2 |
|---|---|---|---|---|---|---|---|
| 60 mm | 80 mm | 269 mm | 237 mm | + | + | + | + |
This monoblock hydraulic control valve from Badestnost is a practical choice for those seeking simple and reliable mechanical control of a hydraulic system. It combines robust construction, protected working surfaces, and compliance with filtration and operating pressure requirements. With proper operation and regular maintenance, the valve will ensure stable and long-lasting performance of the hydraulic unit.
