Monoblock Hydraulic Control Valve 6P80 Badestnost (Bulgaria)

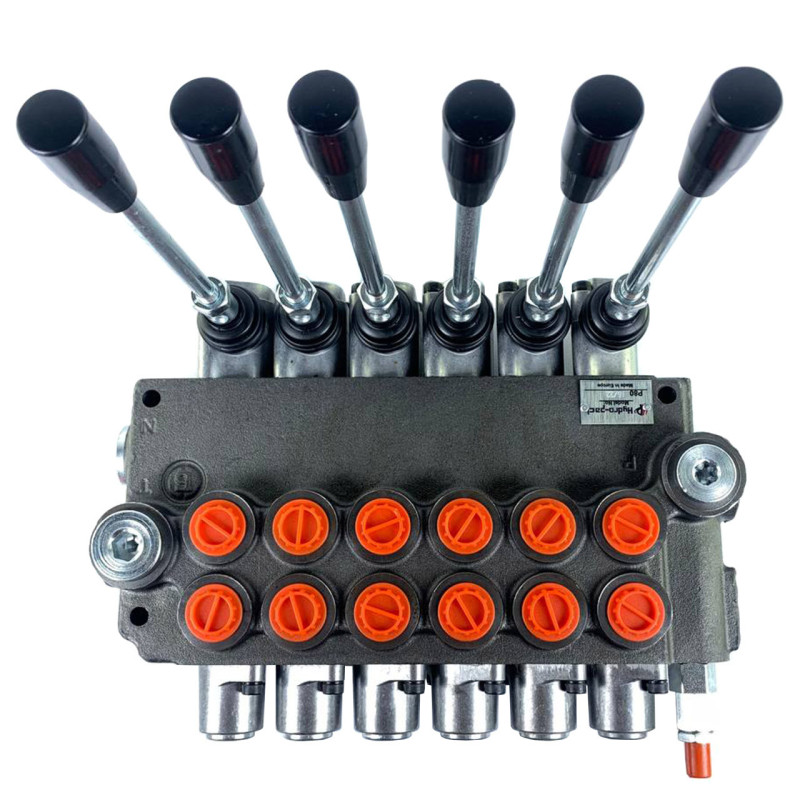

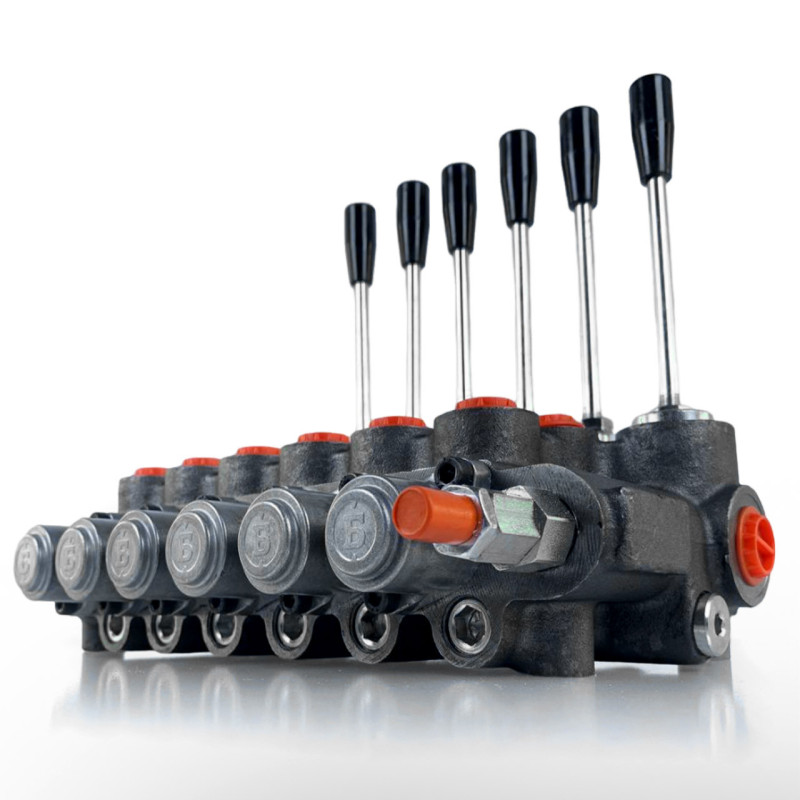

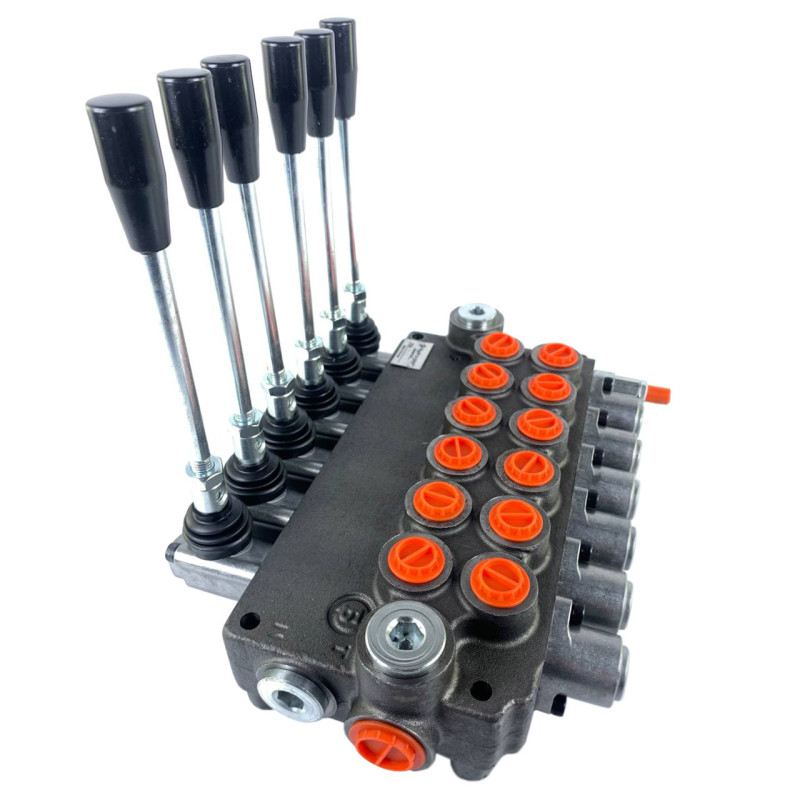

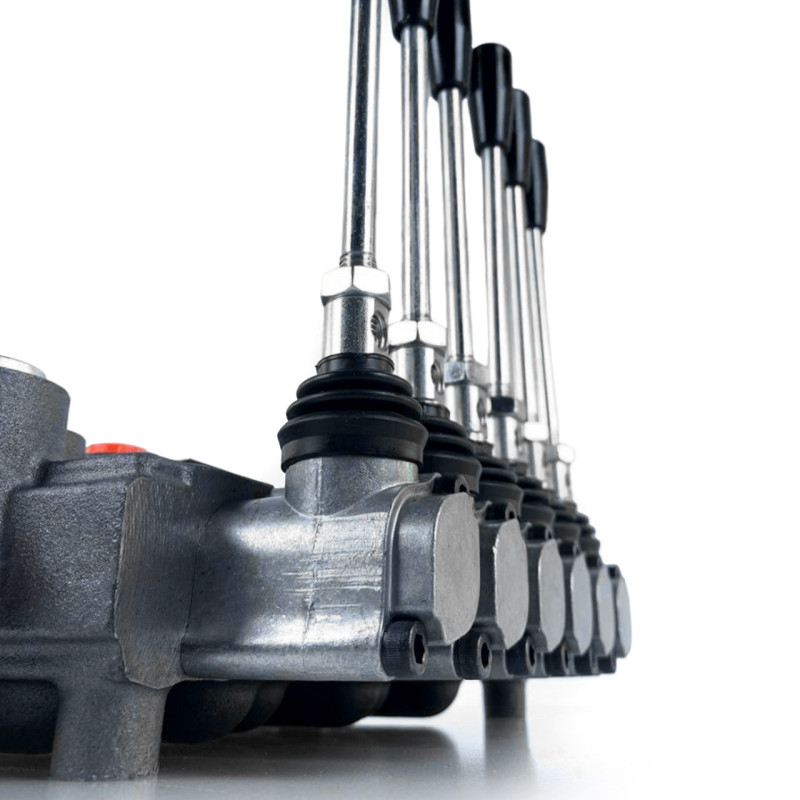

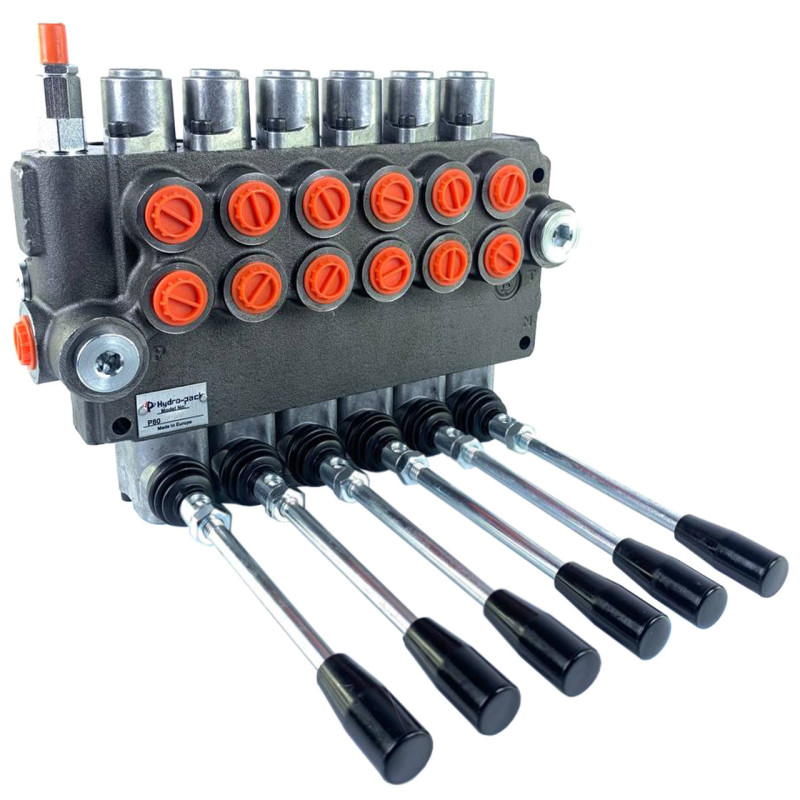

The Badestnost 6P80 monoblock hydraulic control valve with manual control is designed to manage the start, stop, and flow regulation of working fluid between hydraulic pumps and actuators (hydraulic cylinders, hydraulic motors). The 6P80 model features six working sections and a nominal flow rate of 80 l/min, making it a versatile solution for mobile and stationary equipment. Manual spools are switched in three positions using a conveniently located handle, ensuring simple and reliable control of moving mechanisms.

Design and Materials

The hydraulic control valve body is made of EN-GJL300 cast iron, ensuring high strength and wear resistance. The plungers (spools) are made of carburized steel and hard chrome-plated for enhanced wear resistance. Mounting is done with three M8 bolts. The spool stroke is +/- 7 mm, and the actuation force is less than 220 N.

Application

The 6P80 hydraulic control valve is widely used in mobile hydraulics: in construction, agricultural machinery, forklifts, and other equipment where precise and reliable control of fluid flow direction and intensity is required. The device allows the operator to fix the spool position for ease of operation and safety, and it operates across a wide range of temperatures and fluid viscosities.

Technical Specifications

• Number of working sections: 6
• Flow rate: 80 l/min
• Ambient temperature: -40°C...+60°C
• Hydraulic fluid: mineral oil / hydraulic oil
• Viscosity: 12...800 mm²/s
• Fluid temperature: -15°C...+80°C
• Filtration: 10 per NAS 1638
• Maximum operating pressure: P = 315 bar; at T = 50: A, B = 300 bar
• Leakage (A,B-T): 6 cm³/min at 100 bar, 46 cSt
• Spool stroke: +/- 7 mm
• Actuation force: < 220 N
• Mounting: three M8 bolts
• Materials: EN-GJL300 body, carburized steel plungers with chrome plating
• Control: manual spools, 3 positions
• Manufacturer: Badestnost (Bulgaria)
• Product type: Tractors, motorcycles, ATVs, boats (Vehicle) > Hydraulic Systems > Hydraulic Control Valves
• Detailed information: PDF, PDF2

Advantages

The Badestnost 6P80 stands out for its reliable design and ease of operation: high-quality materials and chrome-plated plungers increase wear resistance, while well-designed mounting ensures rigid fixation to the unit. The valve operates stably across a wide temperature range and with varying fluid viscosities, making it an optimal choice for upgrading hydraulic systems or creating new installations. Its technical parameters and dimensions allow the 6P80 to be integrated into both stationary and mobile systems, maintaining accessibility to controls and ease of maintenance.

If you need a monoblock hydraulic control valve for heavy-duty applications or for upgrading your equipment's hydraulic system, the Badestnost 6P80 offers an optimal balance between performance, reliability, and cost. The valve provides precise control of flow direction and intensity, low leakage, and durability thanks to the materials used and plunger processing technologies.
