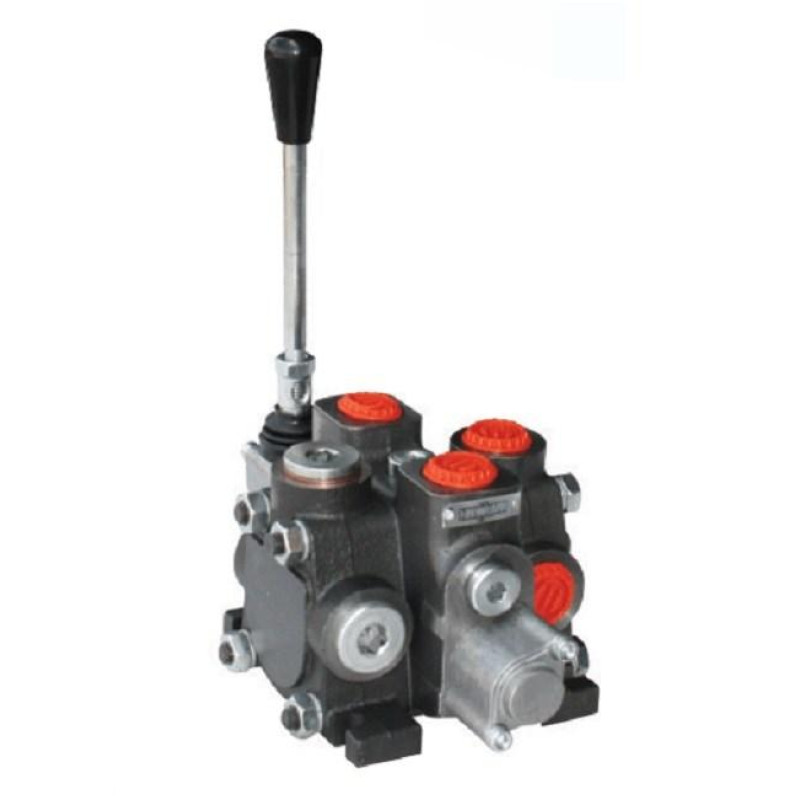

Sectional Hydraulic Control Valve 1PC100 Badestnost (Bulgaria)

The Badestnost 1PC100 sectional hydraulic control valve is a single-section manual valve designed for precise control of working fluid flow in hydraulic systems of special machinery. The 1PC100 model enables starting, stopping, and regulating flow between the pump and consumers (hydraulic cylinders, hydraulic motors) thanks to a manual spool with a lever and three operating positions. The housing and sectional design allow individual sections to be assembled into a single column, adding or removing sections for quick system modification without replacing the entire unit.

Areas of Application

Badestnost 1PC100 has found wide application in hydraulic systems of loaders, crane manipulators, agricultural machinery (harvesters), and tractors. Compact dimensions, reliable design, and ease of maintenance make this model an optimal choice for medium-load hydraulic circuits and quick integration into existing systems.

Technical Specifications

• Manufacturer: Badestnost (Bulgaria)
• Number of sections: 1
• Nominal flow capacity: 80 l/min
• Maximum flow capacity: 100 l/min
• Ambient temperature: -40°C...+60°C
• Recommended hydraulic fluid: mineral oil / hydraulic oil
• Working fluid viscosity: 20...100 mm²/s
• Fluid temperature: -15°C...+80°C
• Maximum operating pressure: P = 210 bar (T < 50 bar), A, B = 250 bar
• Leakage (A, B - T): 18 cm³/min at 120 bar
• Spool stroke: 7 mm
• Actuation force: < 200 N
• Mounting: three M8 bolts
• Control: manual spools, three positions
• Detailed information: PDF, PDF2

The 1PC100 model combines compact dimensions with sufficient flow capacity for medium-class applications. The modular design allows easy adaptation of the hydraulic system to changed tasks: adding or replacing sections without the need to purchase a new valve. For durable and stable operation, it is important to adhere to recommended temperature regimes and use specified oil types, as well as control the working fluid viscosity within 20–100 mm²/s.

If you need assistance with selecting compatible sections or integrating the 1PC100 into your equipment — our specialists will provide support and recommendations for installation and maintenance. The valve is suitable for a wide range of special machinery where a reliable sectional design with expandability is required.
