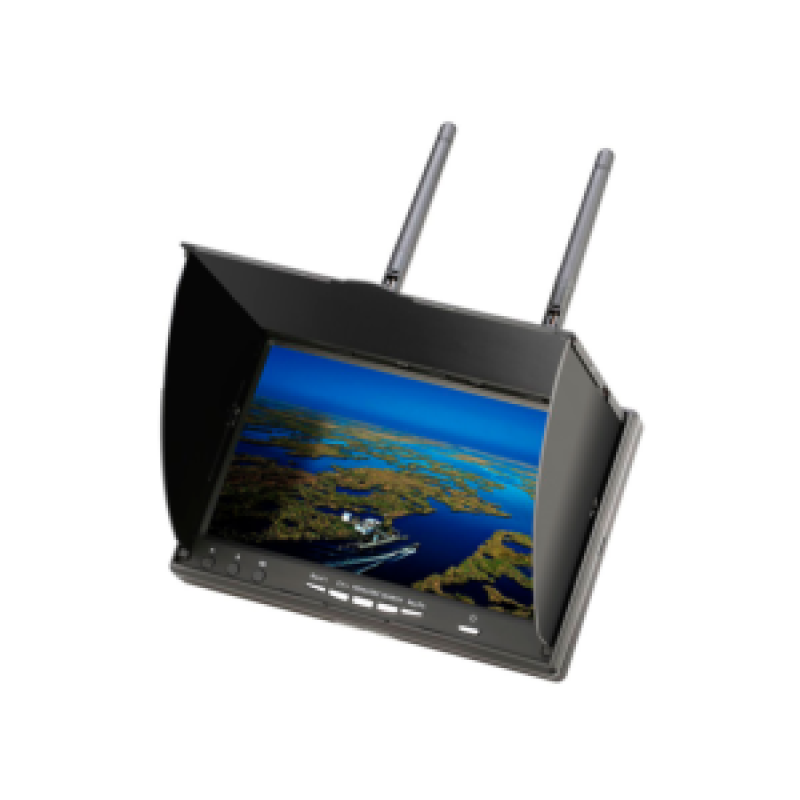

LCD 5802D 7″ 800x480 FPV Monitor with Built-in 5.8 GHz Receiver

Overview: The LCD 5802D 7″ monitor is a portable and reliable display for FPV flights, combining high image quality with extensive functionality. The device features a 7-inch LCD screen with 800×480 pixel resolution and 600 cd/m2 brightness, ensuring clear video playback even in intense sunlight. The built-in 40-channel 5.8 GHz receiver guarantees compatibility with most FPV video transmitters, and the integrated DVR allows video recording without the need for additional equipment. The monitor has a built-in 7.4V/2000mAh battery for autonomous operation and a compact, impact-resistant casing with mounting options for remote control or a tripod, making it convenient for flights and on-location shoots.

Key Advantages

• Built-in DVR for recording video in AVI format and photos in JPEG format without additional devices.
• Built-in 5.8G receiver with 40 channels for maximum compatibility with FPV systems.

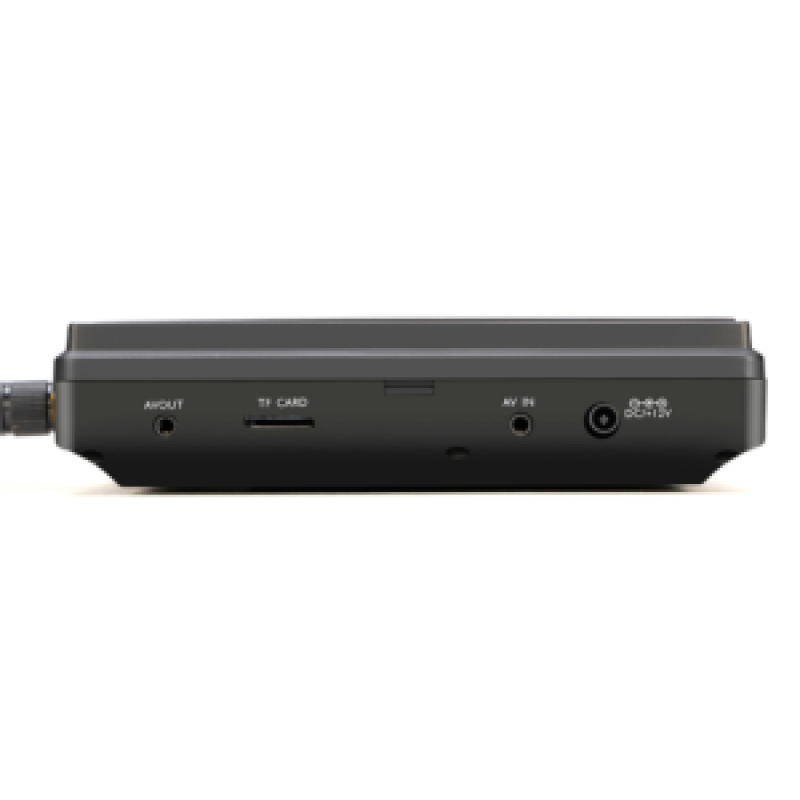

• Two 5.8 GHz AV outputs allow simultaneous connection of external monitors or signal transmission to additional devices.
• Automatic signal search and a user-friendly OSD menu simplify setup during flight.
• Bright LED-backlit screen (600 cd/m2) for a clear picture in various lighting conditions.
• Supports memory cards up to 32 GB for saving recordings and photos directly on the device.
• Compact size and low weight — 180x120x50 mm and 430 g — convenient for transport and mounting on equipment.

Technical Specifications

• Display Diagonal: 7″
• Resolution: 800×480
• Brightness: 600 cd/m2
• Recording Formats: JPEG, AVI
• Built-in Battery: 2000 mAh / 7.4 V
• Operating Voltage: DC 7~16 V
• Size: 180x120x50 mm
• Weight: 430 g

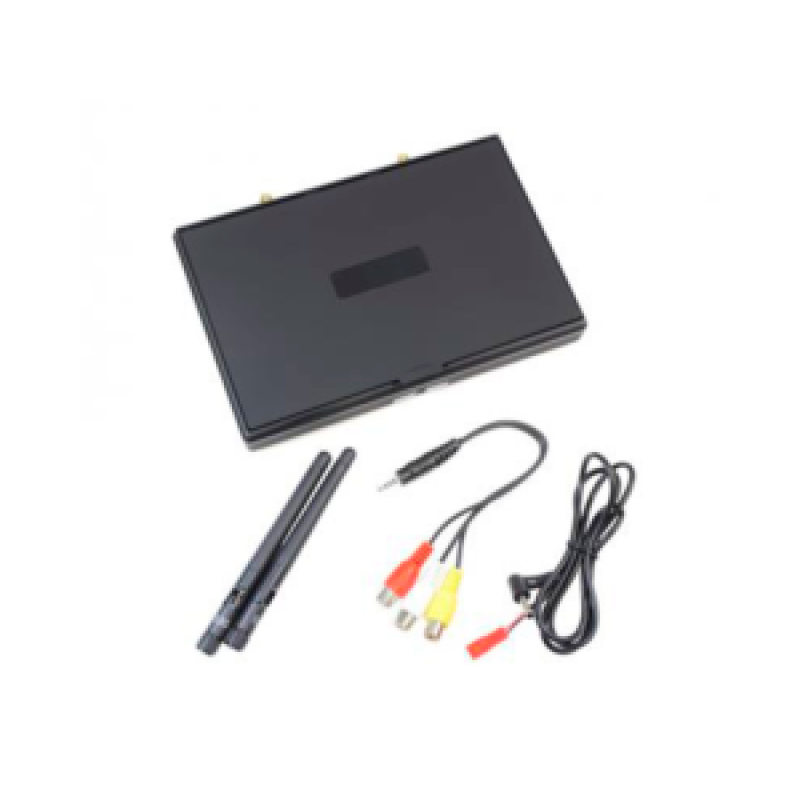

Package Contents

• LCD 5802D 7″ Monitor
• 2 x 5.8G Antennas
• AV Cable
• Charger

Purpose and Compatibility: The LCD 5802D 7″ monitor is designed for FPV flights, video recording from drones and quadcopters, and is also suitable for educational and amateur projects. The device is compatible with most 5.8 GHz video transmitters and allows simultaneous viewing and recording of footage thanks to the built-in DVR and two AV outputs. Support for memory cards up to 32 GB simplifies storage of recorded material, and the DC 7~16V operating voltage ensures flexible power from various sources.

Manufacturer: China.

Product Category: Drones & Quadcopters > Drone Components > Drone Accessories.

The LCD 5802D 7″ monitor combines functionality, portability, and reliability, making it an excellent choice for FPV pilots, amateur videographers, and anyone needing a compact solution for viewing and recording video from unmanned aerial vehicles. The device is suitable for both field conditions and stationary use thanks to convenient AV outputs and autonomous power.
