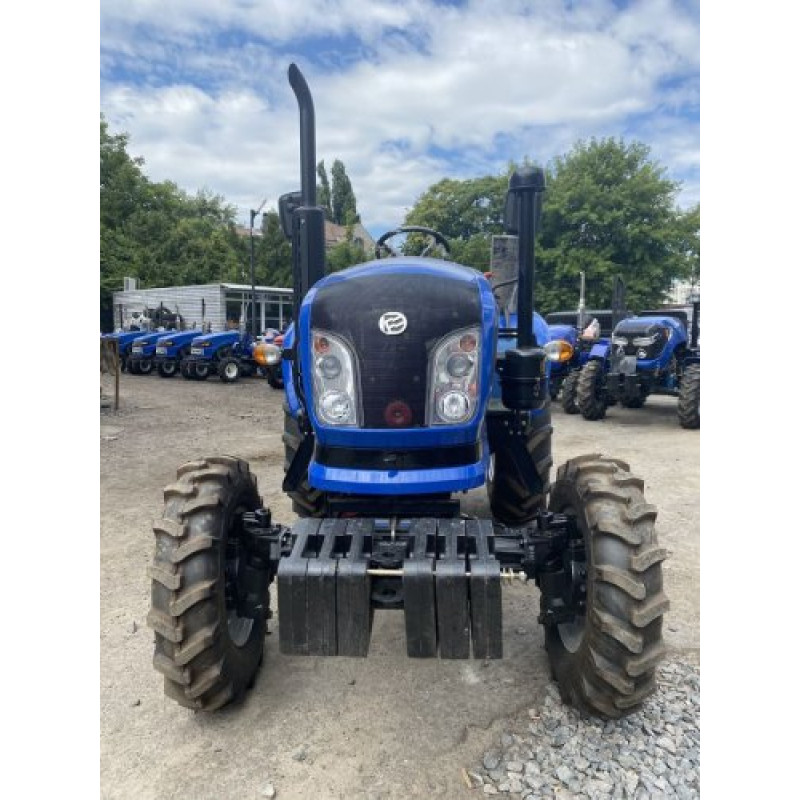

DongFeng DF-404 G2 Mini Tractor — Reliable Equipment for Your Farm
The DongFeng DF-404 G2 mini tractor from the DongFeng brand is a modern, versatile machine for agricultural, municipal, and household tasks. This model is equipped with a reversible gearbox and is designed for intensive use thanks to its powerful diesel engine and reliable components.
Engine and Main Characteristics: The diesel engine, model ZN490BT, is vertically mounted, 4-cylinder with direct injection and forced liquid cooling system. Engine displacement — 2545 cm³; cylinder bore/piston stroke — 90 × 100 mm; nominal crankshaft speed — 2400 rpm. Starting system — electric starter for safe and comfortable ignition. Fuel pump type — plunger, in-line. Nominal fuel consumption ≤ 255 g/kW·h; nominal engine oil consumption ≤ 2.04 g/kW·h.
Transmission, Drive, and Control: The 4×4 all-wheel drive with rear differential lock ensures excellent off-road capability. The (4+4)x2 gearbox with reverse provides 8 forward and 8 reverse gears, allowing for optimal speed selection for various operations. Clutch — dry, dual-disc; brakes — drum type. Cooling system fan drive — V-belt transmission. Power steering makes control light and precise.

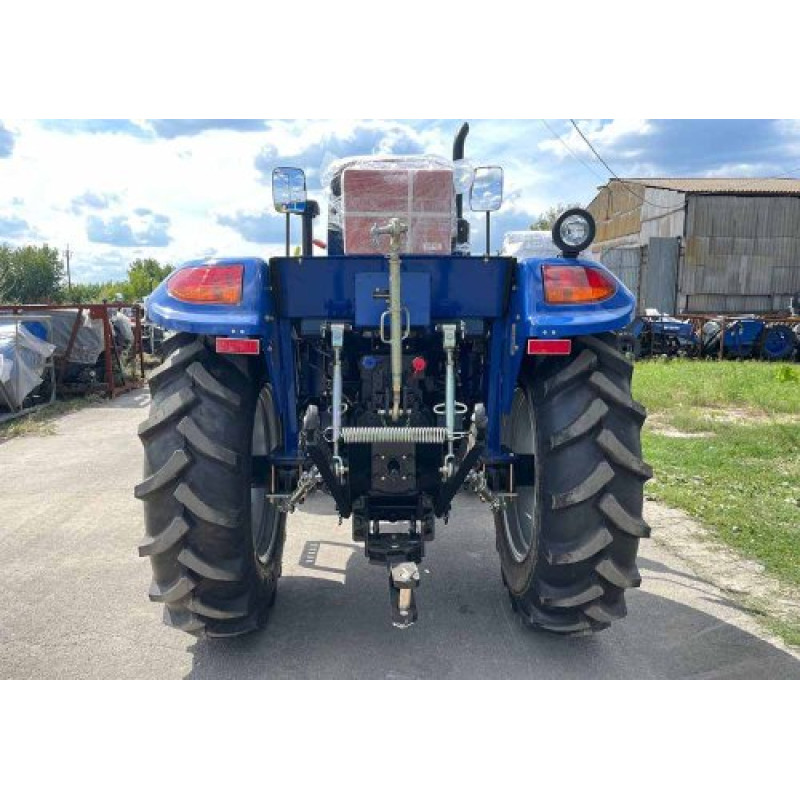

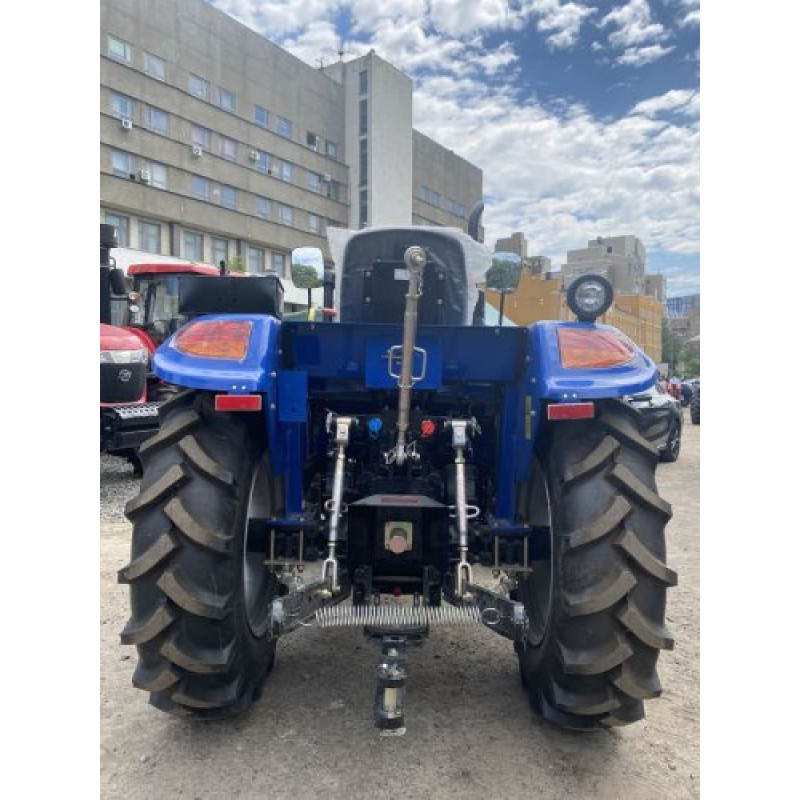

Power Take-Off, Hydraulics, Mounted Mechanism: The PTO operates at 540/720 rpm. The hydraulic system is equipped with a gear pump; the maximum lifting capacity of the mounted mechanism is up to 665 kg, allowing work with a wide range of mounted equipment.
Geometry, Tires, and Mobility: Minimum ground clearance — 370 mm; wheelbase — 1910 mm; rear wheel track — 1100–1500 mm, front — 1100/1400 mm; tire size: rear 7.5 × 16, front 12.4 × 24. Minimum turning radius with one-sided brake — 3.5 m. Theoretical travel speed: forward 1.47—25.01 km/h, reverse 1.13—19.20 km/h.
Capacities and Operational Parameters: Fuel tank capacity — 28 L; engine crankcase capacity — 6.6 L; gearbox and rear axle crankcase capacity — 35 L; front axle crankcase capacity — 5 L; engine cooling system capacity — 12 L. Nominal traction force — 7.86 kN. Structural weight — 1770 kg; dimensions (L × W × H) — 3460 × 1570 × 2180 mm.
By purchasing the DongFeng DF-404 G2 mini tractor from the Flash Army online store, you receive equipment with pre-filled engine and gearbox oils, as well as the option of free delivery throughout Ukraine by our own courier service. Our specialists will help you get the tractor running, demonstrate its operation, and provide qualified answers to all your questions. To place an order, add the item to your cart and leave your contact details — a manager will contact you. If you need a different configuration or model, contact a consultant to select equipment according to your criteria.
Key Features of DongFeng DF-404 G2:
- Power: 40 hp (29.4 kW)
- Engine: ZN490BT, vertical 4-cylinder, direct injection
- Gearbox: (4+4)x2 with reverse (8 forward / 8 reverse)
- Drive: 4×4, rear differential lock
- Power steering
- Mounted mechanism lift capacity: 665 kg
- PTO: 540/720 rpm
- Minimum ground clearance: 370 mm
- Fuel tank capacity: 28 L
Below are the full technical specifications of the DongFeng DF-404 G2 model:
| Tractor power, hp (kW) | 40 (29.4) |
| Wheel formula | 4 × 4 |
| Engine model | ZN490BT |
| Engine type | Vertical, 4-cylinder with forced liquid cooling and direct injection |
| Engine start | electric starter with safe start |
| Engine displacement, cm³ | 2545 |
| Cylinder bore / piston stroke | 90 × 100 |
| Nominal fuel consumption, g / kW·h | ≤ 255 |
| Fuel pump type | Plunger, in-line |
| Nominal engine crankshaft speed, rpm | 2400 |
| Nominal traction force, kN | 7.86 |
| Nominal engine oil consumption, g/kW·h | ≤ 2.04 |
| Gearbox (КПП) | (4 + 4)x2, reverse |
| Rear differential lock | Yes |
| Clutch | Dry, dual-disc |
| Power steering | Yes |
| Cooling system fan drive | V-belt |
| Braking mechanism | drum type |
| Power take-off (PTO) speed, rpm | 540/720 |
| Hydraulic system pump type | gear pump |
| Maximum lifting capacity of mounted mechanism, kg | 665 |
| Minimum ground clearance, mm | 370 |
| Wheelbase, mm | 1910 |
| Wheel track, mm | rear 1100-1500, front 1100, 1400 |
| Tire size | rear 7.5 × 16, front 12.4 × 24 |
| Minimum turning radius, m | with one-sided brake 3.5 |
| Theoretical travel speed, km / h | forward 1.47—25.01, reverse 1.13—19.20 |
| Fuel tank capacity, L | 28 |
| Engine crankcase capacity, L | 6.6 |
| Gearbox and rear axle crankcase capacity, L | 35 |
| Front axle crankcase capacity, L | 5 |
| Engine cooling system capacity, L | 12 |
| Overall dimensions, (L × W × H), mm | 3460 × 1570 × 2180 |
| Structural weight, kg | 1770 |
The DongFeng DF-404 G2 mini tractor is an optimal choice for those who need a powerful, versatile, and easy-to-maintain machine. If you need help choosing mounted or trailed equipment, please contact our managers. Product category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors.
