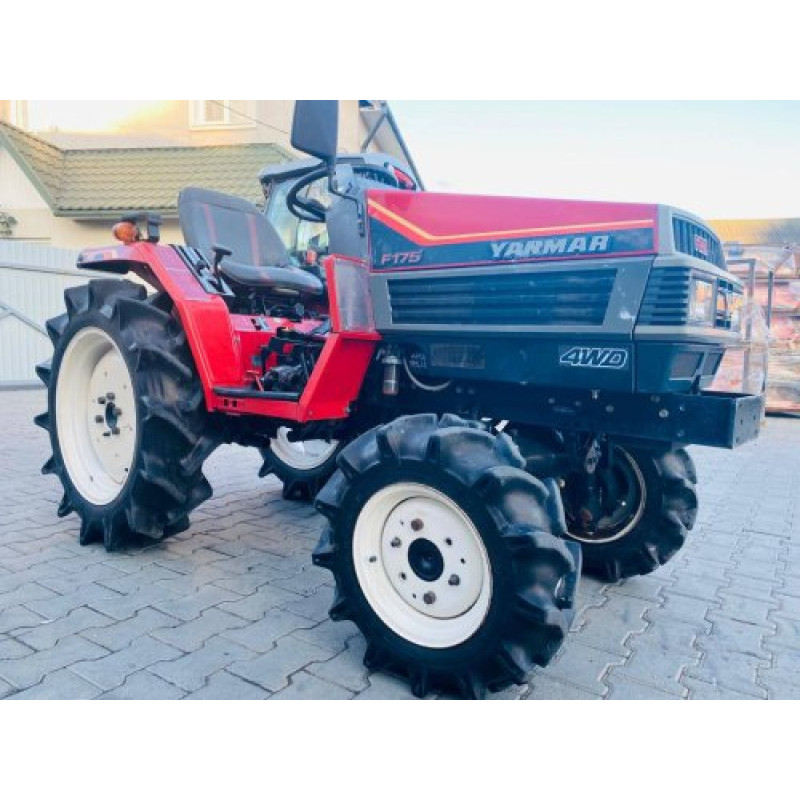

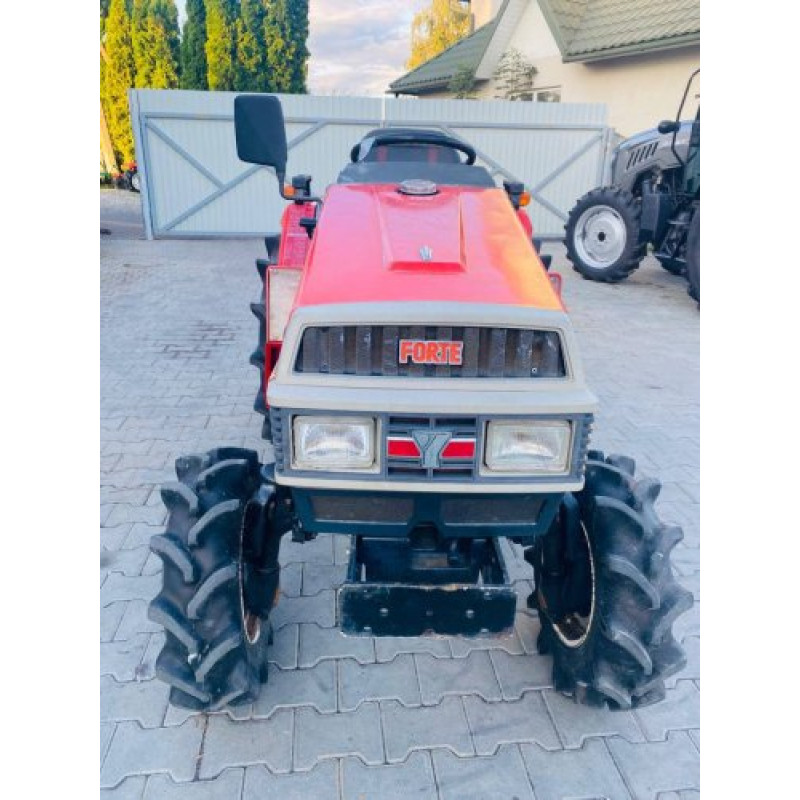

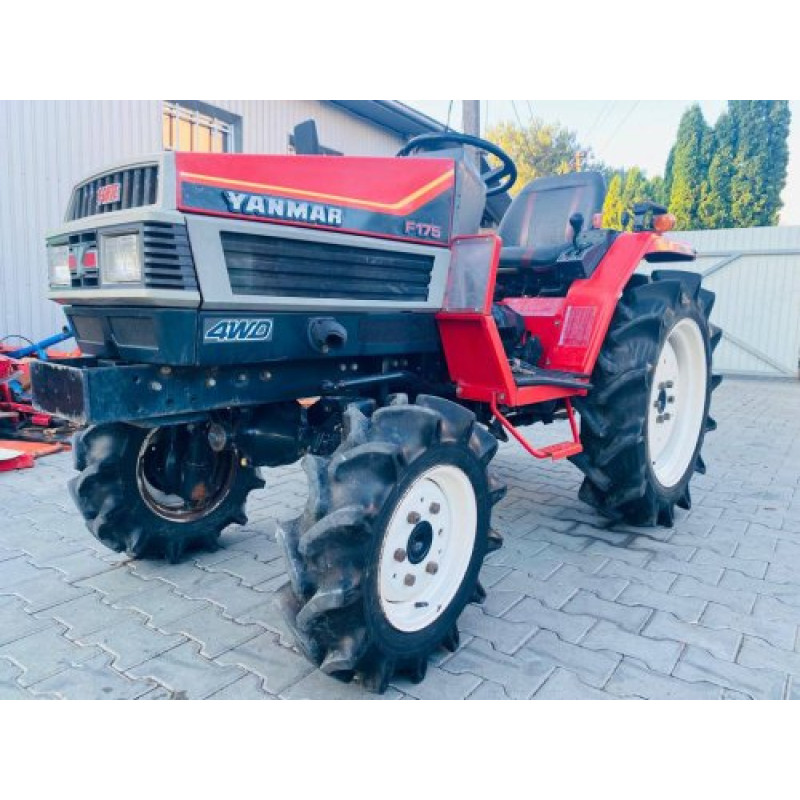

Mini Tractor Yanmar F175
Manufacturer: Yanmar. Product type: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors. The Yanmar F175 mini tractor combines compact dimensions with traditional Japanese engine and component reliability, making it an optimal choice for work on small farms, homestead plots, and in the utility and garden-park sectors.
The Yanmar F175 is equipped with an economical 17 hp diesel engine, three cylinders, and a 15-liter fuel tank, ensuring long operation without frequent refueling. The 4x4 wheel formula, combined with mechanical locking of the rear axle differential, enhances cross-country capability on difficult terrain and in challenging field conditions. The reliable (3+1)x2 gearbox allows operation at various speeds, and a maximum travel speed of up to 20 km/h ensures quick movement between plots.
Key technical specifications are listed below:
| Engine power, hp: | 17 |
| Wheel formula: | 4x4 |
| Engine type: | diesel |
| Number of cylinders: | 3 |
| Tank capacity, l: | 15 |
| Gearbox: | (3+1)x2 |
| Max travel speed, km/h: | 20 |
| Differential lock: | mechanical, rear axle |
| Brakes: | drum brakes |
| Overall length, mm: | 2300 |
| Overall width, mm: | 1050 |
| Overall height, mm: | 1350 |
| Front wheel size: | 4.5-10 |
| Rear wheel size: | 8-16 |
| Minimum turning radius, m: | 1.7 |
| Lifting capacity of lifting mechanism, kg: | 650 |
| PTO speed, rpm: | 540/720 |
| Weight, kg: | 780 |
Compact dimensions (length 2300 mm, width 1050 mm, height 1350 mm) make the Yanmar F175 maneuverable in tight conditions, and a minimum turning radius of 1.7 m ensures convenience when working between rows or in yards. The lifting capacity of the three-point hitch mechanism is 650 kg, allowing connection of a wide range of tillage and mounted equipment — plows, cultivators, mowers, and other implements. PTO speeds of 540/720 rpm make the tractor compatible with various mounted and trailed mechanisms.
The mini tractor is equipped with an easy-to-maintain transmission and reliable drum brakes, ensuring safe and durable operation with minimal maintenance costs. The F175's design is intended for intensive work in agriculture and private farms, where economy, durability, and ease of operation are important.
The Yanmar F175 is suitable for:
- cultivating small fields and gardens;
- garden and vineyard care;
- utility work on streets and in parks;
- transporting goods on a homestead plot.
If you need a compact, economical, and durable tractor from a proven manufacturer, the Yanmar F175 will be an excellent choice for your farm.
