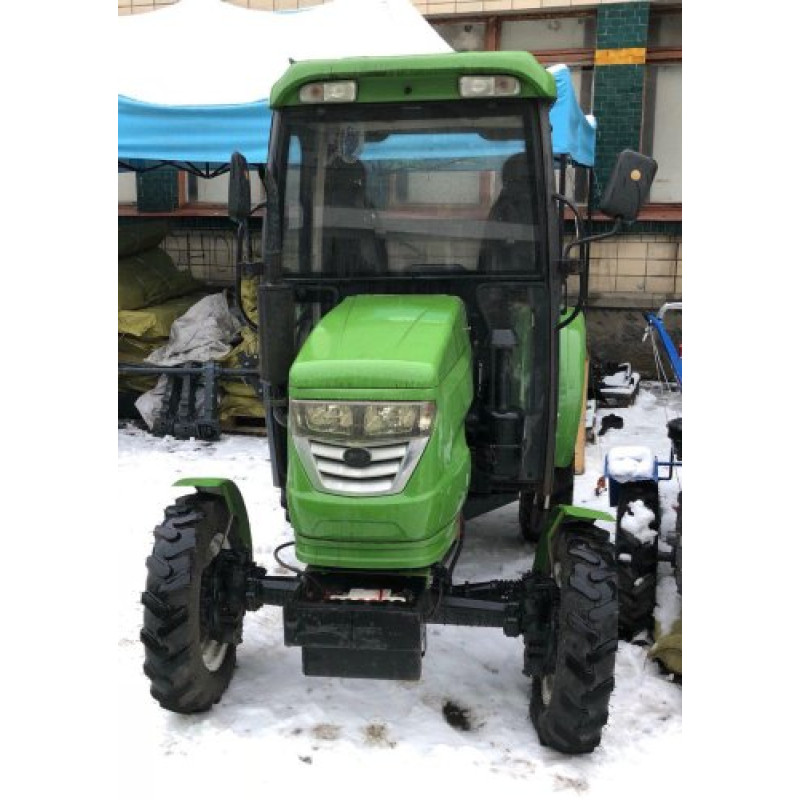

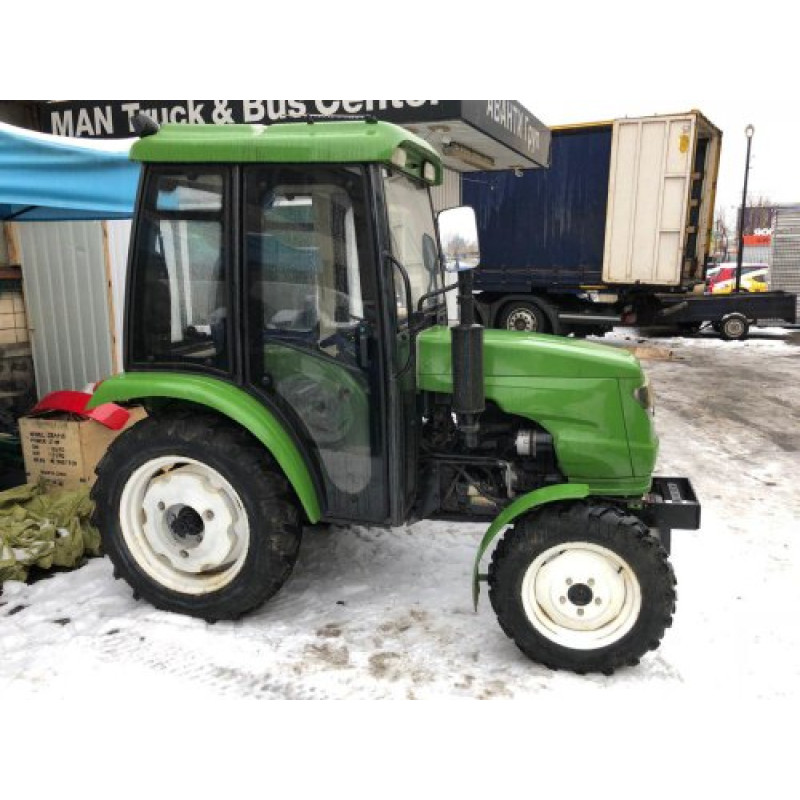

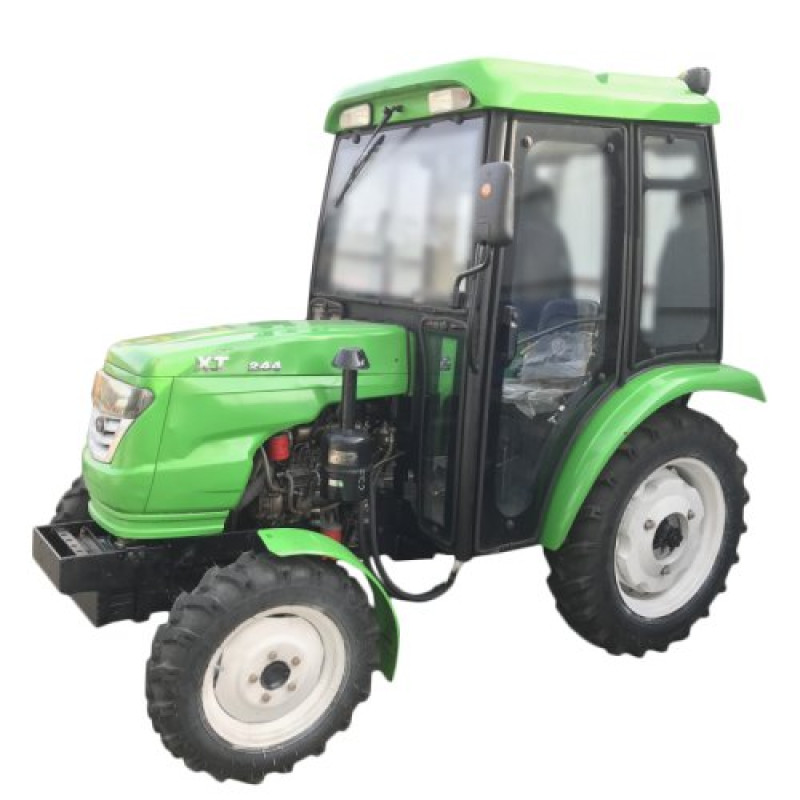

Mini Tractor XINGTAI XT-244 Cab
The Xingtai XT-244 Cab mini tractor is a versatile all-wheel drive (4x4) tractor from the Xingtai brand, designed for year-round operation. Thanks to its heated cabin, this model allows for agricultural and municipal work in rain, snow, or frost, ensuring operator comfort. A powerful 24 hp (18 kW) diesel engine with a displacement of 1532 cm3 and three cylinders guarantees productivity and reliability in the field.
Areas of Application and Advantages
The Xingtai XT-244 Cab is suitable for harrowing, cultivating, planting and harvesting grain crops, transportation, and working with attachments (cultivators, reapers, plows, etc.). The frameless chassis design and rear differential lock enhance off-road capability. The 407 kg lifting capacity of the hitch mechanism allows for the use of most typical attachments for small and medium-sized farms. The tractor's total weight of 1400 kg ensures stability during operation.
Design and Technical Features
| Type | vertical four-stroke diesel with water cooling |
| Cabin | with heating |
| Power steering | - |
| Tractor chassis | frameless |
| Power | 24 hp / 18 kW |
| Displacement | 1532 cm3 |
| Crankshaft speed | 2350 rpm |
| Number of cylinders | 3 |
| Cylinder diameter / piston stroke | 85x90 |
| Tractive effort | 6.4 kN |
| Engine crankcase volume | 6.6 L |
| Lift housing volume | 9 L |
| Cooling system volume | 6 L |
| Hitch mechanism lifting capacity | 407 kg |
| Drive | 4x4 |
| Lockable rear differential | yes |
| Approximate fuel consumption | 275 g/kWh |
| Engine start | electric starter |
| Clutch | dry, single-disc |
| Transmission | (4+1)x2 |
| Differential | closed, two-satellite |
| Forward speed | 2.5 - 28.4 km/h |
| Reverse speed | 2.5 - 9.47 km/h |
| Wheelbase | 1720 mm |
| Track width | front wheels - 1150-1215 mm, rear wheels - 1150-1350 mm |
| Tire size | front 6.0*16, rear 9.5*24 |
| Hydraulic system | semi-remote, gear pump |
| Ground clearance | 254 mm |
| PTO | 540/1000 rpm, rear |
| Overall dimensions (L*W*H) | 2950x1280x2360 mm |
| Weight | 1400 kg |
The model is equipped with an electric starter for quick and reliable engine ignition. The combination of 24 hp power, 1532 cm3 displacement, and economical fuel consumption (275 g/kWh) makes the XT-244 Cab an effective solution for farms and municipal services. The dry single-disc clutch and (4+1)x2 transmission provide a sufficient number of speed gears for field and transport operations.
The Xingtai XT-244 Cab works well with attachments — cultivators, plows, reapers, etc., thanks to its 407 kg lifting capacity and stable design. The rear differential lock, 254 mm ground clearance, and 4x4 drive increase off-road capability in challenging conditions and make the tractor a versatile helper on the farm.
Brand: Xingtai. Product type: Tractors > Mini Tractors. We also recommend checking out similar models: Jinma 404, Shifeng 354, Dongfeng, Xingtai, Foton, Zoomlion, DTZ 5244, Bulat 454, Bulat 250, Bulat 254, Belarus 320.4, Shifeng 350, DW 244, DTZ 5404K, Solis 26, Solis RX 50.
