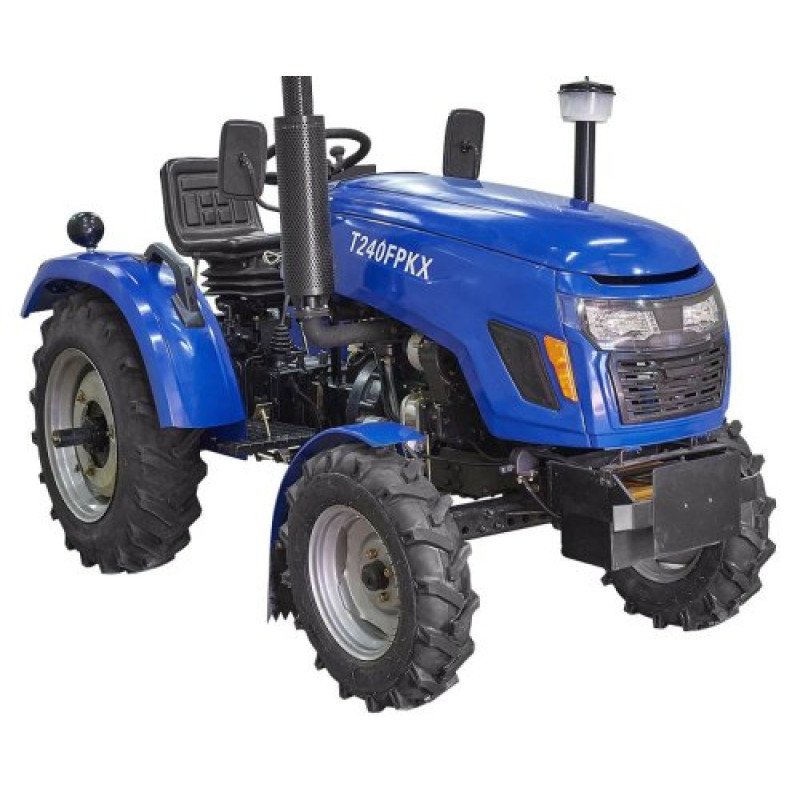

Xingtai T240 FPKX Mini Tractor — A Practical Choice for Cottages and Small Farms

Model: Xingtai T240 FPKX Mini Tractor. Manufacturer: Xingtai. This compact and affordable mini tractor is designed for working in gardens, plots from 0.1 hectares, fields up to 5–10 hectares, as well as for livestock farming, communal services, and construction. The Xingtai T240 FPKX combines simple design, an affordable price (around $4250 at the time of writing), and good maintainability thanks to straightforward technical solutions and wide availability of spare parts in Ukraine.

Advantages and Purpose

Why you should consider the Xingtai T240 FPKX:

• Low Cost. Optimal price-to-functionality ratio for small businesses and private farms.
• Compact Size. Convenient for maneuvering in confined areas and cottage communities.
• Quality Assembly. Reliable construction ensures long-term operation when maintenance recommendations are followed.
• Multifunctionality. Various agricultural implements can be attached to the rear; a dozer blade can be mounted at the front — up to 20–30 typical tasks on one base.
• Maintainability. Simple design and availability of spare parts throughout Ukraine.

Technical Specifications and Design Features

Engine. Equipped with a 3-cylinder KM385BT diesel engine, four-stroke, with direct fuel injection, naturally aspirated, and liquid-cooled. Engine displacement is 1,532 cm3, power is 24 hp (17.6 kW). Cylinder bore is 85 mm, piston stroke is 90 mm. Fuel consumption is low — 2.31 g/kWh*year. The fuel system is standard: lift pump, high-pressure fuel pump, tanks, hoses, injectors, coarse and fine filtration systems, allowing the use of various quality diesel fuel.

Chassis and Running Gear. Drive type is 4x2 (rear-wheel drive). Tracks are adjustable to the required width; steering wheels have a large turning angle for working in confined conditions. Ground clearance is 320 mm. The braking system is drum-type.

Hydraulics and PTO. One pair of hydraulic outlets is installed at the rear, and the lifting mechanism can handle up to 300 kg. The power take-off (PTO) shaft is single-speed — 540 rpm.

Controls and Transmission. Steering is classic, without power assistance. The instrument panel is simple, with five gauges. The transmission is mechanical, non-synchronized; number of gears (forward/reverse) (3+1)x2. Clutch is a single-disc dry friction type. There is a locked differential (lever to the right of the seat). The rear lifting mechanism is operated by a lever on the right. The driver's seat is adjustable forward and backward. Payment for equipment is cash to the courier upon receipt.

Brief List of Main Parameters

• Engine model: KM385BT, three-cylinder diesel, four-stroke, with direct fuel injection, naturally aspirated, liquid-cooled.
• Engine displacement: 1,532 cm3.
• Power: 24 hp (17.6 kW).
• Number of cylinders: 3; cylinder bore: 85 mm; piston stroke: 90 mm.
• Ground clearance: 320 mm.
• Drive type: 4x2 (rear-wheel drive).
• Transmission type: mechanical, non-synchronized; gears (3+1)x2.
• PTO: 540 rpm.
• Wheel sizes: front 6.00x14, rear 9.50x20.
• Capacities: engine oil 5 liters; cooling system 10 liters; fuel tank 20 liters.

The Xingtai T240 FPKX mini tractor is a practical solution for owners of small farms and cottagers looking for inexpensive, easy-to-operate, and maintainable equipment with a sufficient set of functions. If you need a compact rear-wheel drive tractor with a reliable three-cylinder engine and mechanical transmission — the Xingtai T240 FPKX is worth your attention.
