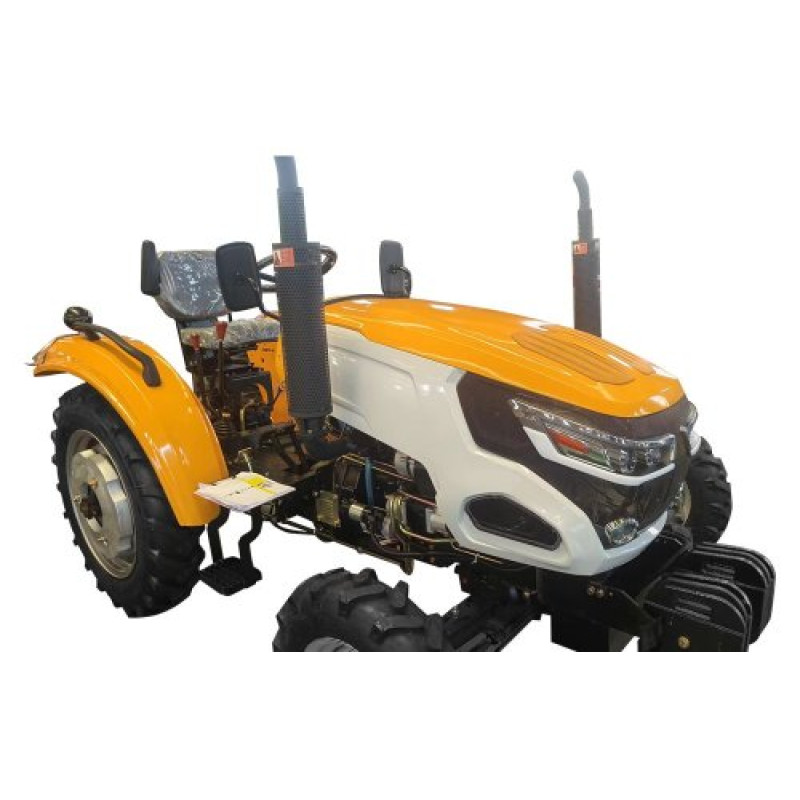

Xingtai 244LT Mini Tractor — A Reliable Compact Assistant for Your Farm
Brand: Xingtai. Model: Xingtai 244LT Mini Tractor. Category: Tractors > Mini Tractors. This mini tractor combines compact dimensions, a well-thought-out design, and sufficient power for work on private farms, dachas, gardens, or for utility tasks in small areas.
The heart of the machine is a three-cylinder, liquid-cooled, four-stroke diesel engine that ensures stable operation under load. The engine's displacement is 1532 cm3, and its power is 24 hp (17.6 kW). The engine's structural weight is 234 kg. The cylinder bore is 85 mm, piston stroke is 90 mm, and the number of cylinders is 3. This engine design guarantees reliability and long-term operation for daily tasks.
Key Technical Specifications:
Below is a complete table of the Xingtai 244LT model's technical specifications:
| Engine Type | Three-cylinder diesel, four-stroke, liquid-cooled |
| Engine Displacement, cm3 | 1532 cm3 |
| Engine Power, hp and kW | 24 hp or 17.6 kW |
| Number of Engine Cylinders | 3 |
| Cylinder Bore | 85 mm |
| Piston Stroke | 90 mm |
| Engine Structural Weight, kg | 234 kg |
| Wheelbase, mm | 1655 mm |
| Overall Dimensions, mm | 3100x1240x1960 mm |
| Front Wheel Track, mm | 1270 mm |
| Rear Wheel Track, mm | 1230 mm |
| Ground Clearance, mm | 230 mm |
| Drive Type | 4x4 |
| Transmission Type | Mechanical, non-synchronized |
| Number of Gears (forward/reverse) | (4+1)x2 |
| Clutch | Single-disc dry |
| Power Take-Off (PTO) Shaft, rpm | 540/720 |
| Front Wheel Size | 6.00x16 |
| Rear Wheel Size | 9.50x24 |
| Engine Oil Volume, L | 6.5 |
| Engine Cooling System Volume, L | 10 |
| Fuel Tank Volume, L | 20 |
Practicality and Applications
The Xingtai 244LT mini tractor is suitable for a wide range of tasks: soil cultivation, field preparation for sowing, tilling, haymaking, potato digging, and transporting goods on a homestead plot. The 540/720 rpm PTO shaft allows for connecting various mounted and trailed equipment — tillers, mowers, rakes, potato diggers, and other implements.
- Advantages: compact dimensions of 3100x1240x1960 mm, ensuring maneuverability in tight spaces.
- 230 mm ground clearance allows working on uneven terrain without unnecessary complications.
- 4x4 drive improves off-road capability in difficult conditions and increases stability when working on soft or slippery ground.
- The mechanical non-synchronized transmission with (4+1)x2 gear configuration is a simple and durable technical solution for field tasks.
Maintenance and Operating Costs
An engine oil volume of 6.5 L and a cooling system volume of 10 L provide sufficient resource between maintenance intervals. The 20 L fuel tank allows for extended operation without frequent refueling. The single-disc dry clutch simplifies maintenance and component replacement when necessary. The manufacturer provides consultations on configurations and additional equipment, allowing you to choose the optimal set for specific tasks.
The Xingtai 244LT is an optimal combination of price, reliability, and versatility for private farmers, utility companies, and garden plot owners. If you are looking for a compact tractor with a full set of basic features and the ability to connect a wide range of mounted equipment, this model will be a cost-effective solution.
Other technical parameters and consultation on configurations are available from the seller. Brand: Xingtai. Model: Xingtai 244LT Mini Tractor. Category: Tractors > Mini Tractors.
