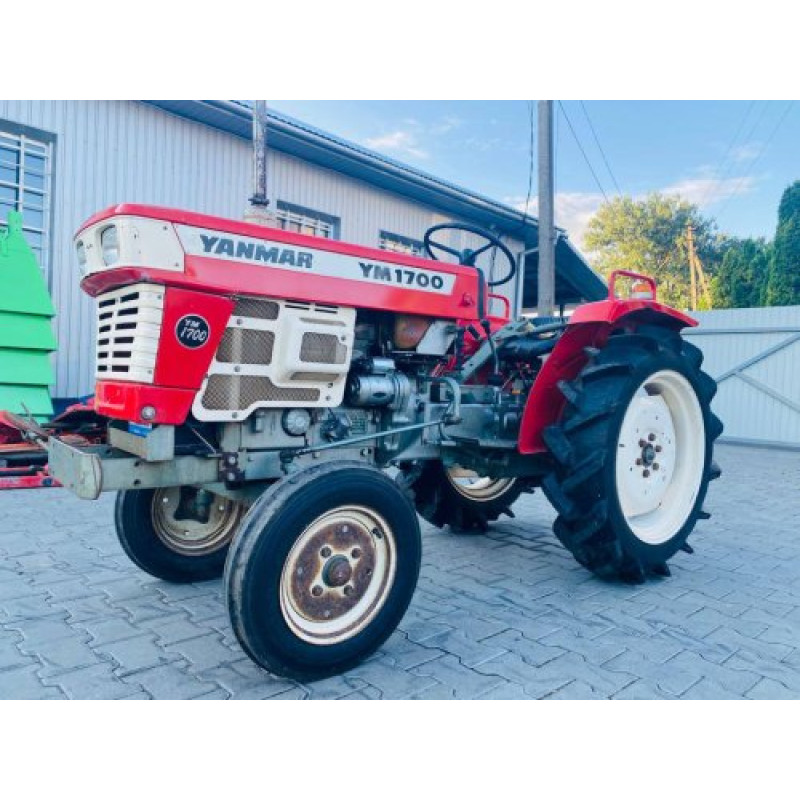

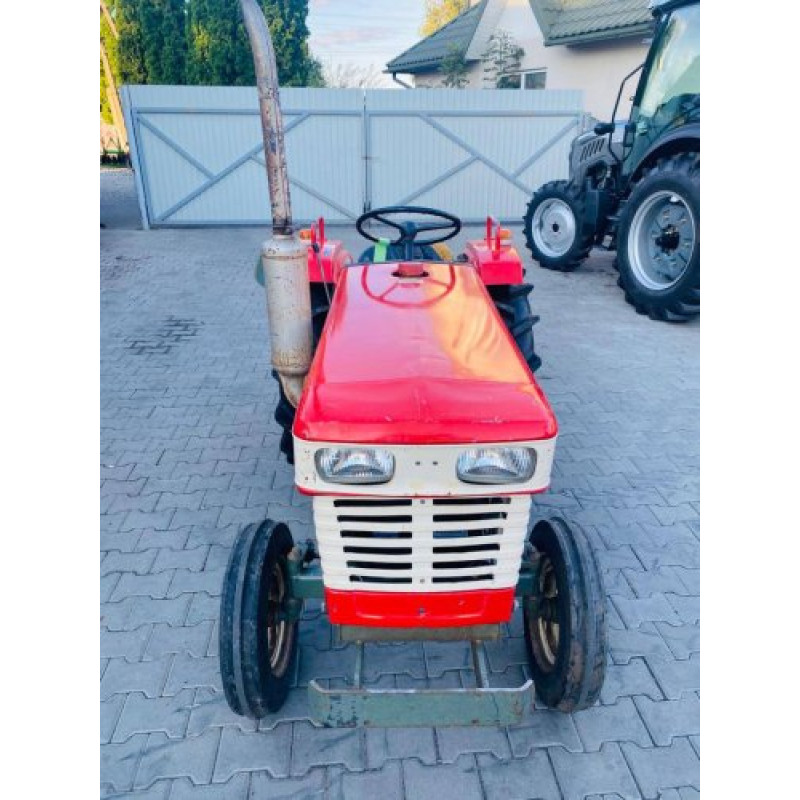

Mini Tractor Yanmar YM 1700
Manufacturer: Yanmar. Category: Tractors > Mini Tractors. The Yanmar YM 1700 is a compact, maneuverable, and reliable mini tractor designed for farm work, plot cultivation, gardening, use in small farms, and the municipal sector. Combining Japanese engine quality and a well-engineered chassis design, the model ensures long service life and economical operation.
Description and Advantages
The mini tractor is equipped with a 17 hp diesel engine; three cylinders guarantee smooth operation and a long service life. The 13-liter fuel tank allows for extended work without frequent refueling. The 8+2 gearbox enables selection of the optimal driving mode for various loads, and the mechanical locking of the rear axle differential improves проходимость on difficult terrain and challenging soil conditions.
Drum brakes provide reliable and predictable braking, while a minimum turning radius of 1.7 m makes the tractor extremely maneuverable in narrow passages and within plot boundaries. The lifting capacity of the rear hitch is 300 kg — sufficient for most implements for soil cultivation, small cargo transport, and territory maintenance. The tractor's weight of 829 kg makes it stable under load and, at the same time, convenient for transport on a trailer.
The power take-off (PTO) shaft has three operating frequencies: 540, 750, and 1000 rpm, ensuring compatibility with a wide range of mounted and trailed equipment. Tractor dimensions: length 2390 mm, width 1120 mm, height 1730 mm — these dimensions allow for convenient storage of the unit in a garage or shed, as well as operation in confined spaces.
| Engine power, hp: | 17 |
| Wheel formula: | 4x2 |
| Engine type: | diesel |
| Number of cylinders: | 3 |
| Tank capacity, l: | 13 |
| Gearbox: | 8+2 |
| Differential lock: | mechanical, rear axle |
| Brakes: | drum brake |
| Overall length, mm: | 2390 |
| Overall width, mm: | 1120 |
| Overall height, mm: | 1730 |
| Front wheel size: | 4.0-12 |
| Rear wheel size: | 8.3-24 |
| Minimum turning radius, m: | 1.7 |
| Lifting capacity of the lifting mechanism, kg: | 300 |
| PTO speed, rpm: | 540/750/1000 |
| Weight, kg: | 829 |
The Yanmar YM 1700 is distinguished by its ease of operation and maintenance, reliable mechanical components, and availability of spare parts from a renowned Japanese manufacturer. It is an optimal choice for private farm owners, municipal enterprises, and individuals seeking an economical, durable, and maneuverable mini tractor in the Tractors > Mini Tractors category. Thanks to its versatile transmission, three PTO modes, and sufficient lifting capacity, the YM 1700 easily handles implements for cultivation, sowing, harvesting, and transporting small loads.
