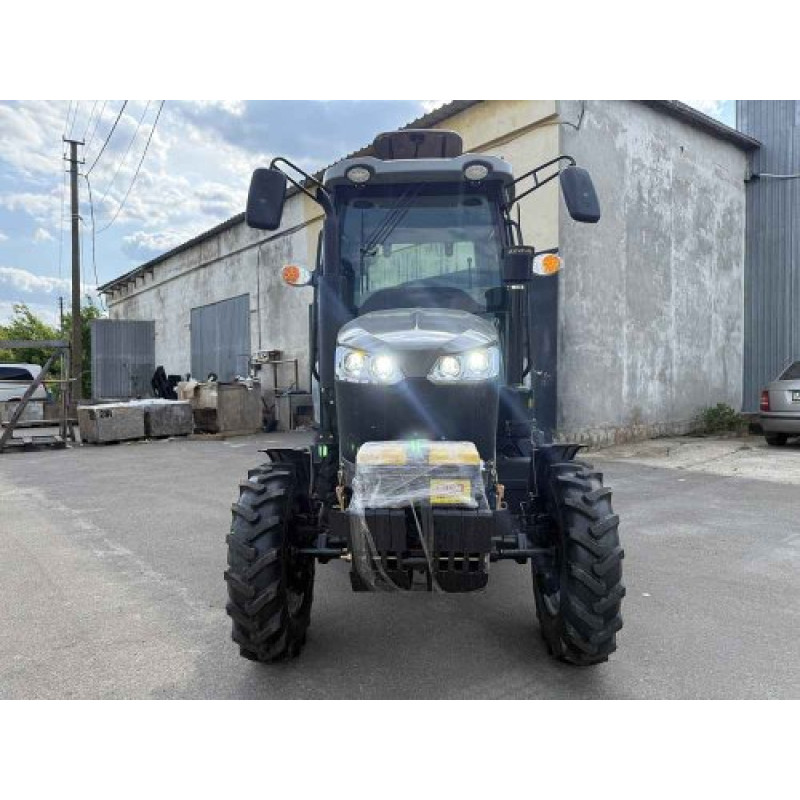

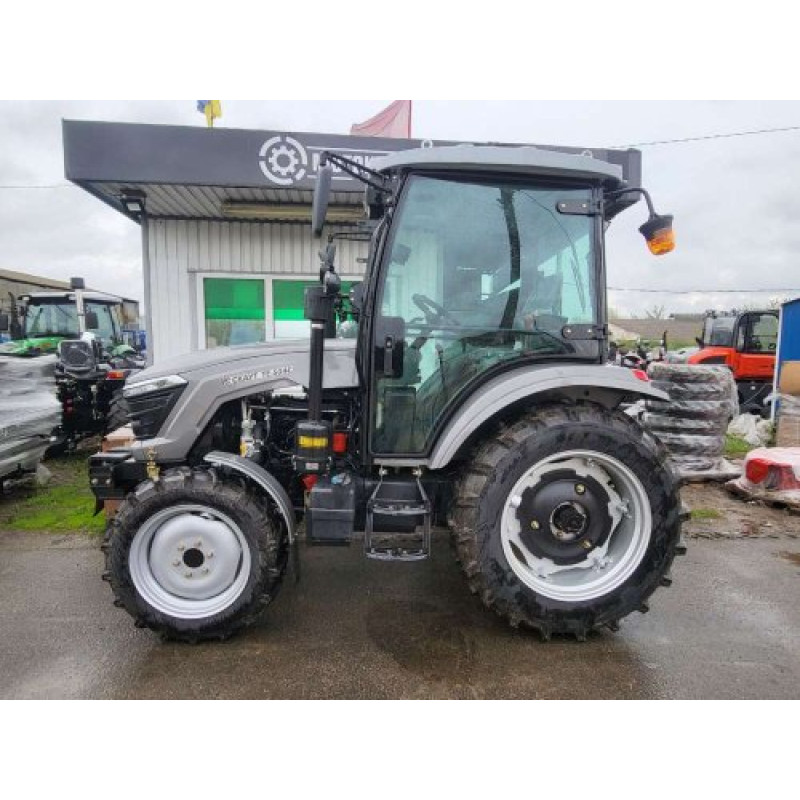

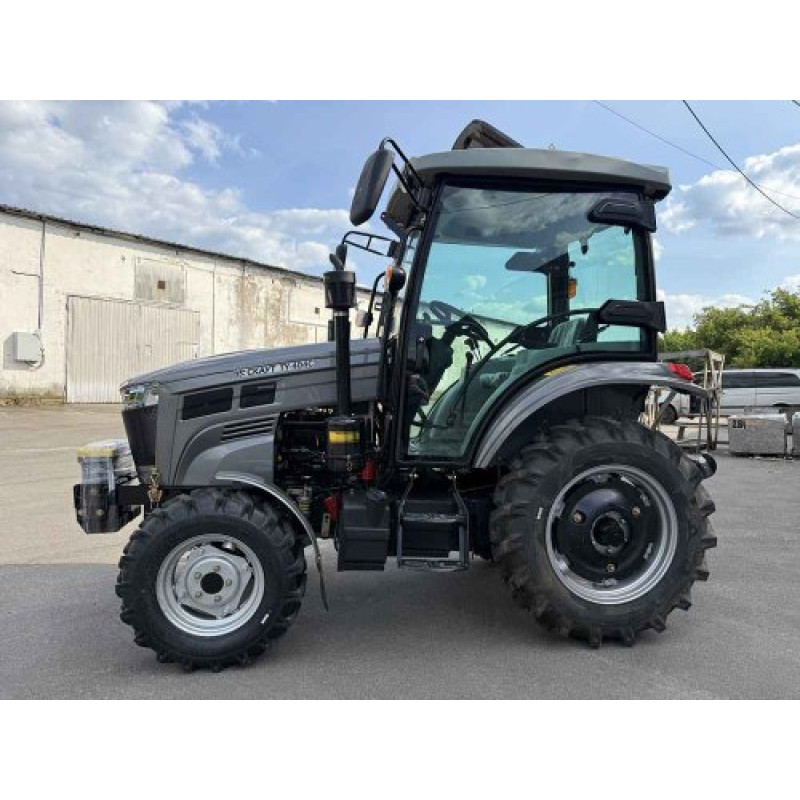

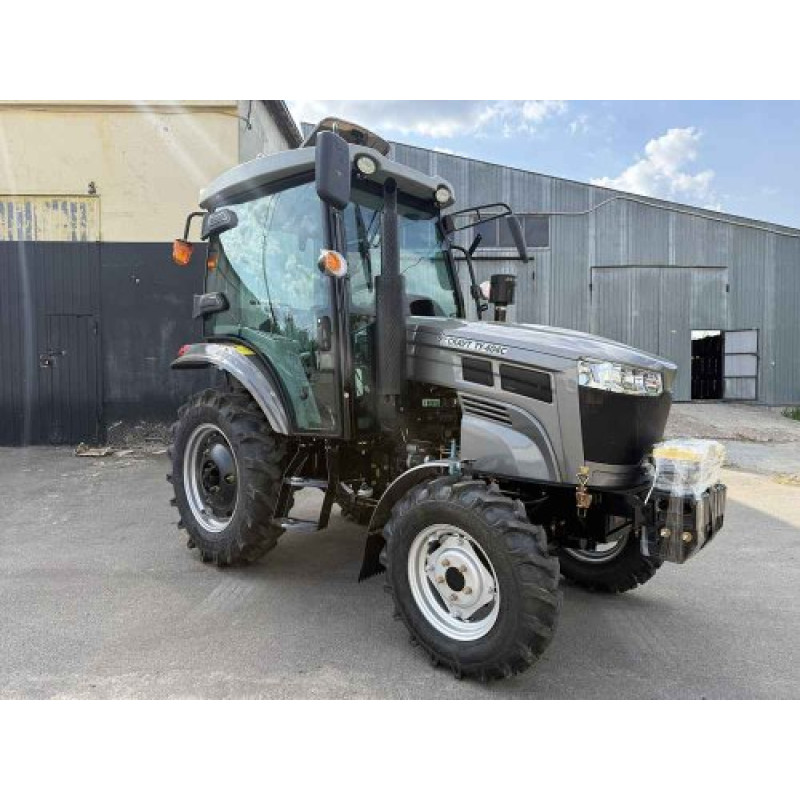

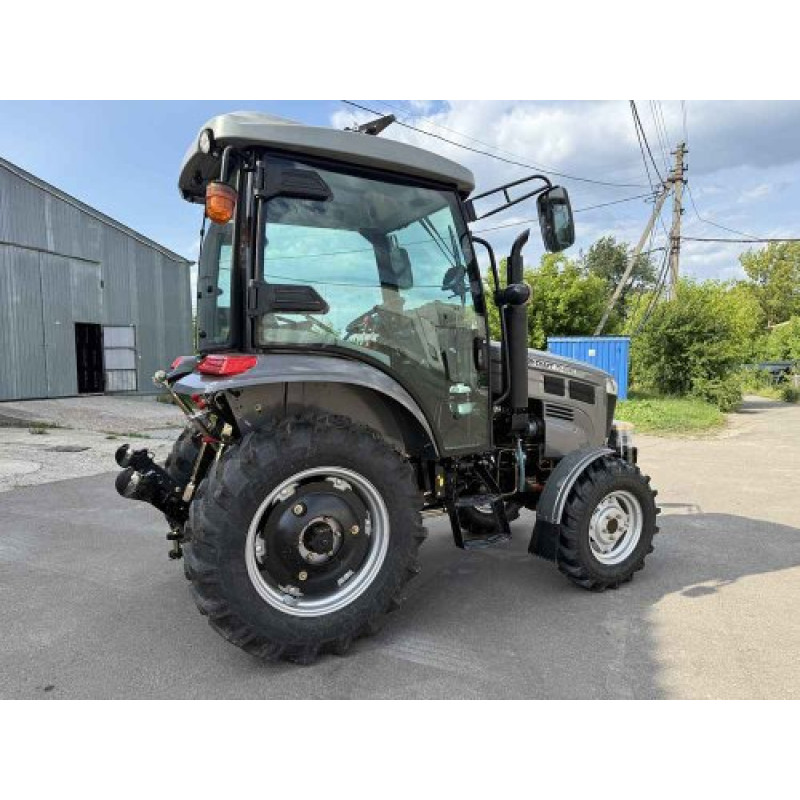

Scout TE-504C Mini Tractor with Air Conditioner
The Scout TE-504C Mini Tractor from the Scout brand is a powerful, reliable, and comfortable mini tractor in the "mini tractors" class, designed for a wide range of agricultural and utility tasks. The model combines an economical KM495 Stage 2 4-stroke diesel engine, 4x4 all-wheel drive, and a mechanical transmission. The presence of an air conditioning system ensures a comfortable operator working area even on hot days.
- Engine Power: 50 hp (36.8 kW)
- Wheel Formula: 4x4 (all-wheel drive)
- Engine Type: Diesel, 4-stroke, KM495 Stage 2 model
- Transmission Type: Mechanical
- Air Conditioning System: Present (operator comfort)
The Scout TE-504C is ideal for private farms, agricultural enterprises, and municipal work. With this mini tractor, you can efficiently perform the following tasks:
- Plowing and soil preparation for sowing
- Sowing and harvesting of agricultural crops
- Mowing and hay collection
- Cargo transportation and trailer operation
Key advantages of the model:
- High power and efficiency in the field thanks to 50 hp and a nominal traction force of 13.5 kN
- Reliability and durability of components and assemblies

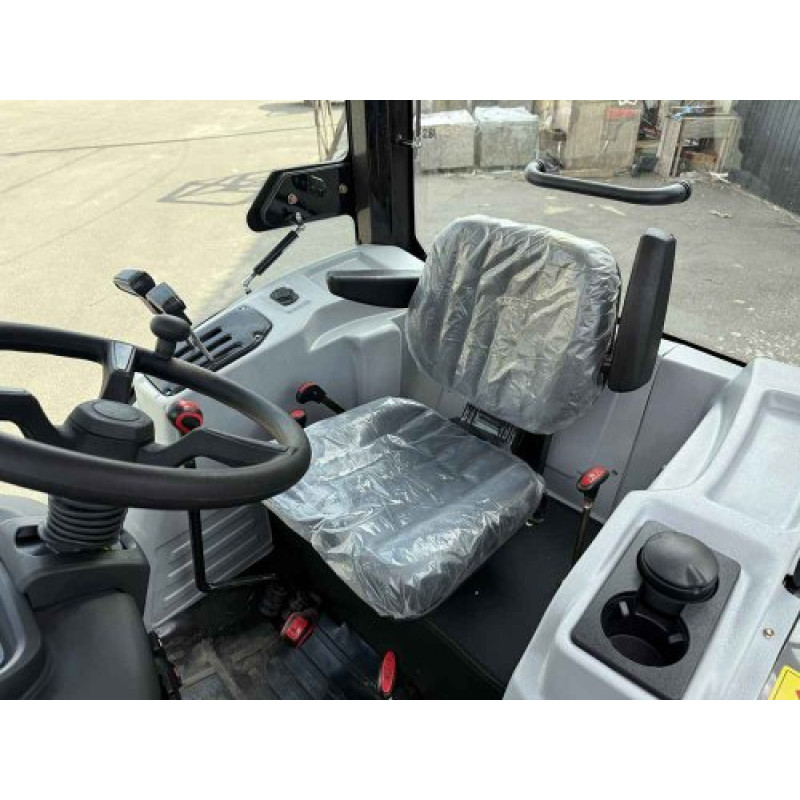

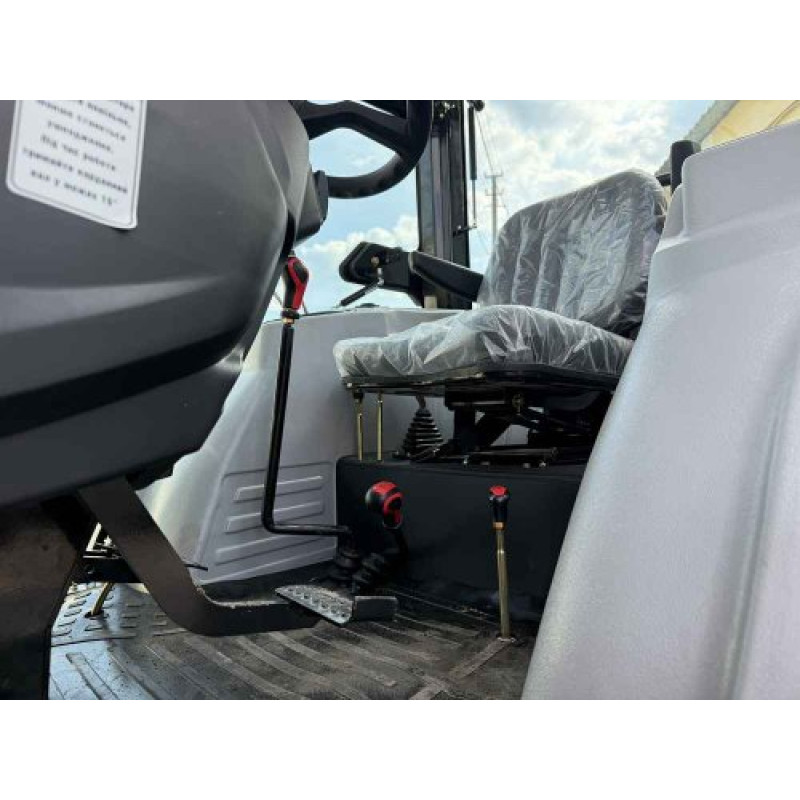

- Comfortable working conditions thanks to the air conditioner and ergonomic cabin

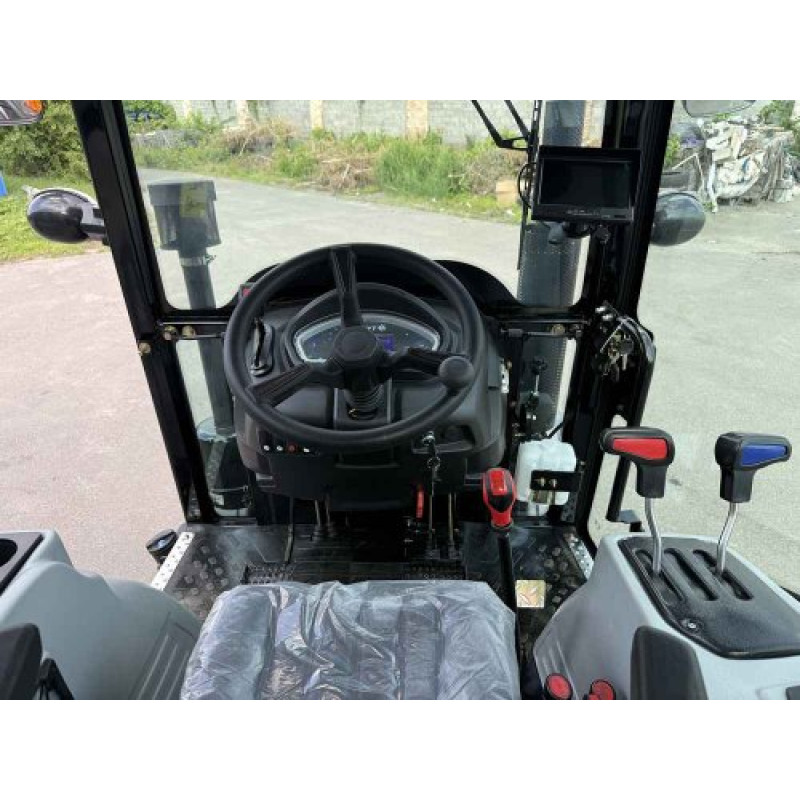

- Ease of control and convenient placement of controls
- Ability to aggregate with various mounted and trailed equipment
Special technical solutions and options enhance functionality and ease of operation:
- Cabin air conditioner ensures comfortable temperature maintenance and dust protection
- Increased cross-country ability due to 4x4 and significant ground clearance of 310 mm
- Presence of a compressor and a trailer socket increases convenience during cargo operations and maintenance
Technical Specifications
| Engine power, hp (kW) | 50 (36.8) |
| Wheel formula | 4x4 |
| Engine type | diesel, 4-stroke, KM495 Stage 2 |
| Number and arrangement of cylinders | 4, vertical |
| Engine start system | electric starter |
| Cooling system | liquid, closed, with forced circulation of coolant |
| Cooling system fan drive | V-belt drive |
| Engine displacement, cm3 | 3170 |
| Nominal engine fuel consumption, g/kWh | ≤243 |
| Nominal traction force, kN | 13.5 |
| Gearbox (КП) | (4+4)х2 |
| Rear differential lock | + |
| Clutch | dry 2-disc constantly closed type |
| Main drive | direct |
| Steering | hydraulic |
| Brakes | on the secondary shaft of the gearbox, brake drums |

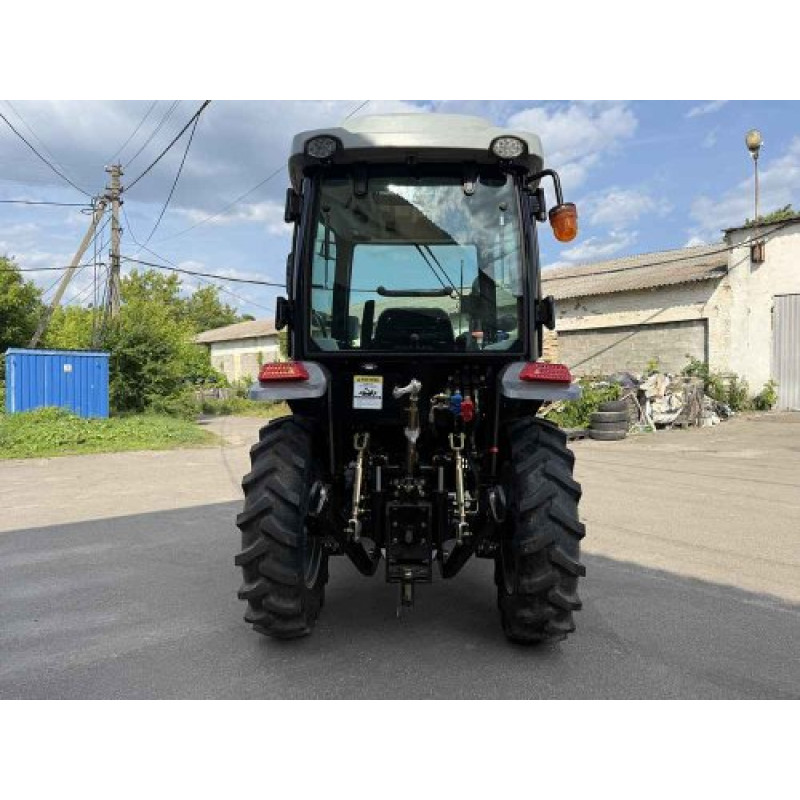

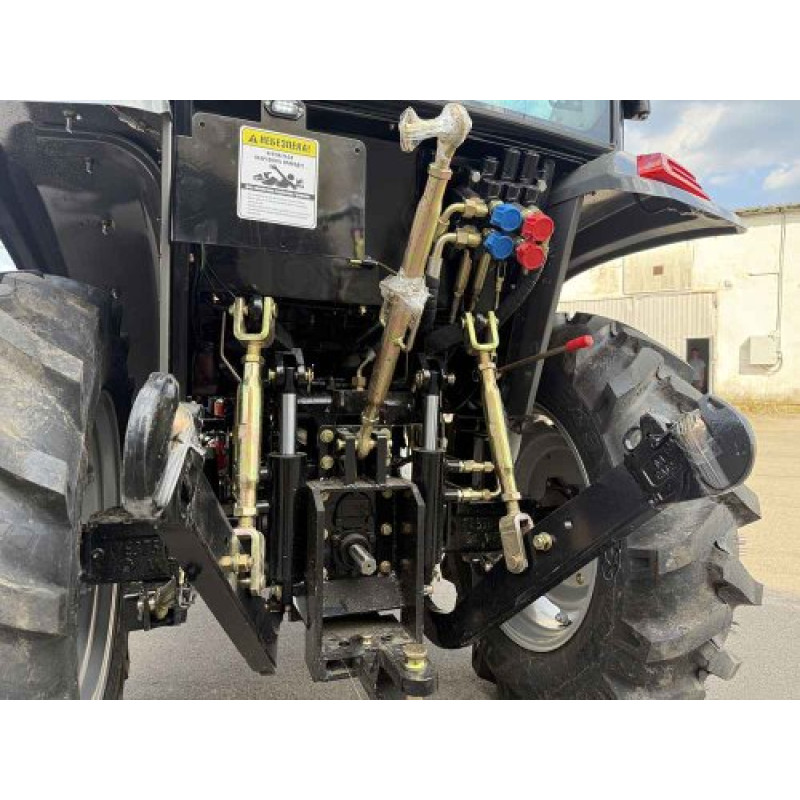

| Power take-off (PTO) shaft | rear, splined |
| Hydraulic system pump type | gear pump (НШ) for hitch drive / gear pump for power steering operation |
| Mounted equipment lifting capacity | 880 kg |
| Power take-off (PTO) shaft speed, rpm | 540 / 1000 |
| Wheel track | front 1200-1500, rear 1200-1500 |
| Tire size | front 8.30-20, rear 12.4-28 |
| Ground clearance, mm | 310 |
| Number of hydraulic outlets | 2 |
| Trailer connector (socket) | + |
| Compressor | + |
| Dimensions LxWxH mm | 3900х1650х2570 |
| Curb weight, kg | 2290 |
The Scout TE-504C's design is balanced: the 4-cylinder engine with a displacement of 3170 cm3 operates economically (nominal consumption ≤243 g/kWh) and provides stable traction for heavy operations. The mechanical gearbox (4+4)x2, direct main drive, and rear differential lock enhance control on difficult terrain and allow for efficient work in the field and on rough terrain. A reliable hydraulic system with a lifting capacity of 880 kg and two outlets enables the use of a wide range of mounted equipment.
For convenient transportation and work with a trailer, a trailer connector is provided, and the presence of a compressor adds practicality in maintenance and operation. Hydraulic steering, effective brakes on the secondary shaft of the gearbox, and an electric starter ensure comfortable and safe operator work.
Recommended for farms, agricultural enterprises, and private users who value operator comfort, versatility of application, and high reliability of the unit in field conditions. Brand: Scout. Category: Mini Tractors.
