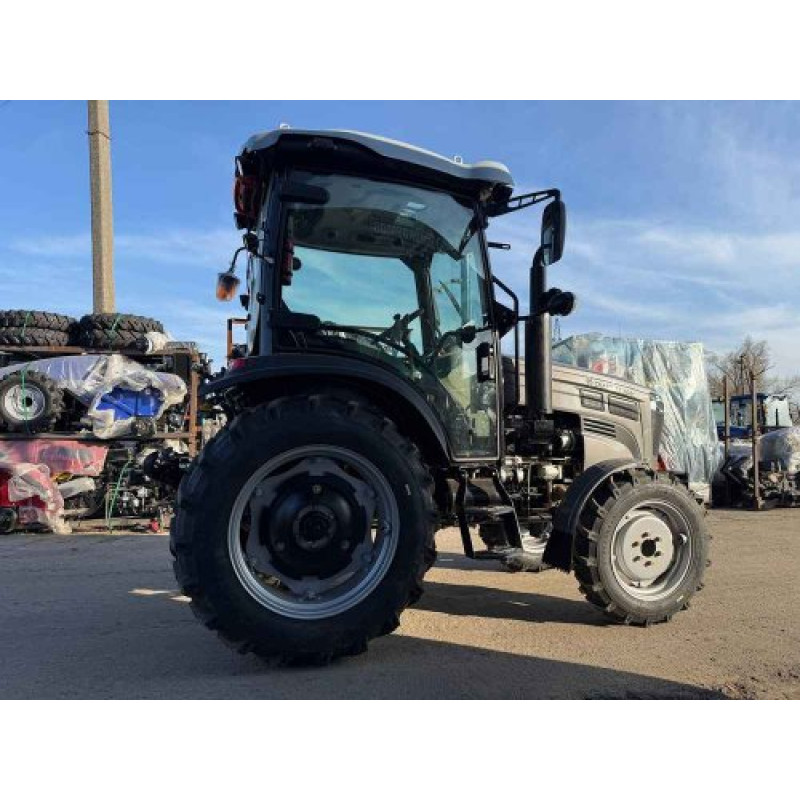

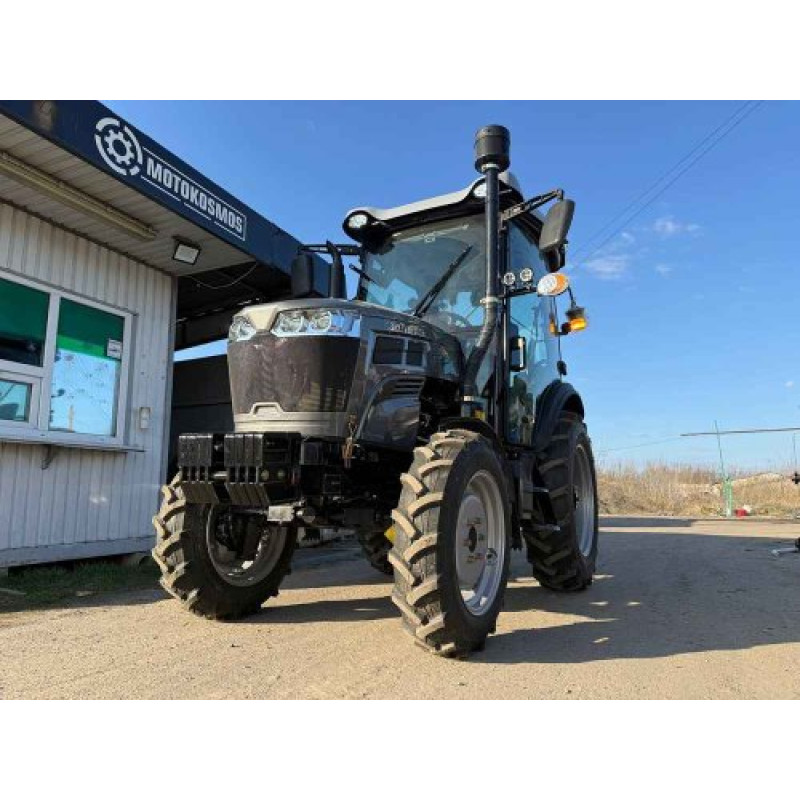

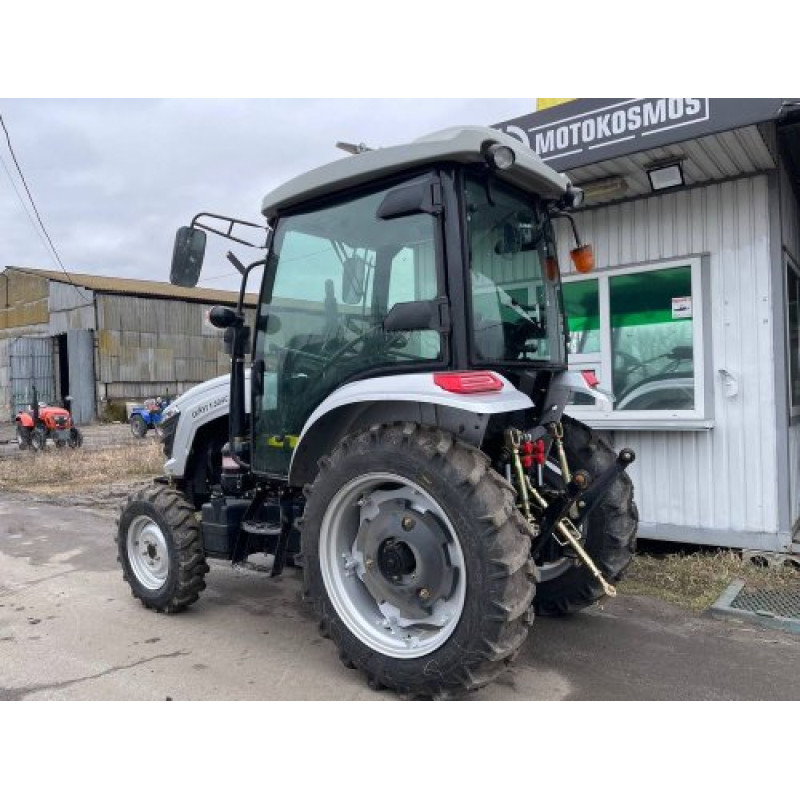

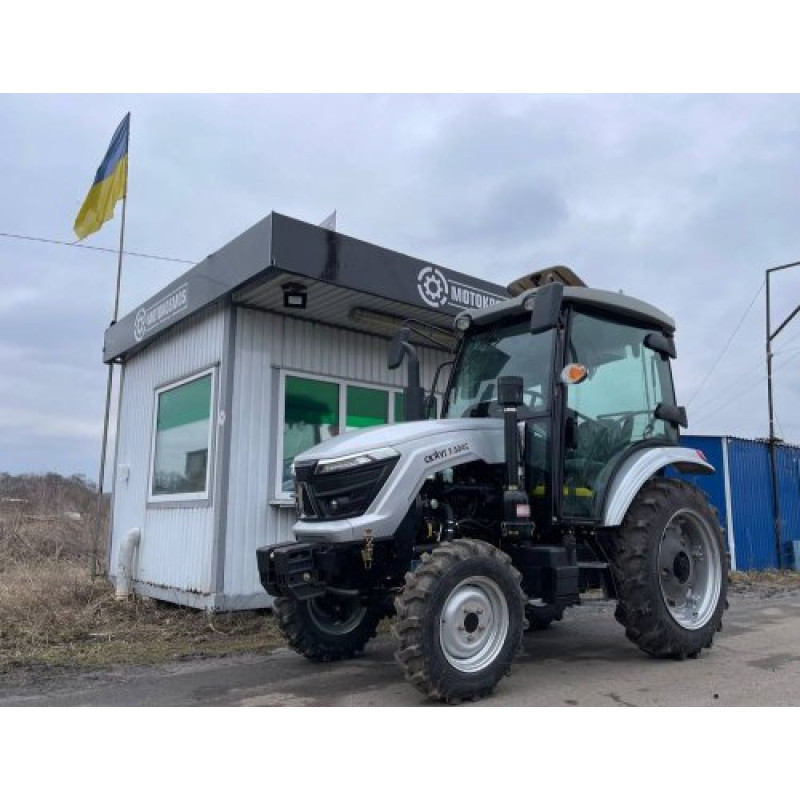

Scout TE-504C Mini Tractor — Reliable Budget Cabin Tractor from the Scout Brand

The SKAUT TE-504C mini tractor is a powerful, versatile 4x4 unit with a full-fledged cabin, combining a highly reliable diesel engine, a well-designed chassis, and extended factory equipment. Manufacturer: Scout. The model is positioned as one of the best budget solutions in the mini tractor segment due to its optimal power-to-cost ratio. The engine power is 50 hp (36.8 kW), making the TE-504C suitable for a wide range of agricultural, municipal, and general utility tasks.

Key Technical Features and Design Advantages

The SKAUT TE-504C is equipped with a four-cylinder diesel sleeved engine KM495 Stage 2 with a displacement of 3170 cm3, featuring a liquid cooling system and forced circulation through a front-mounted radiator. It includes an electric starter, a standard generator, a battery, and a preheating function for starting at temperatures down to -20°C. The fuel system has two-stage filtration, which increases its tolerance to diesel fuel quality.

• Chassis: Reinforced arched front axle with side reduction gears, designed for high loads and allowing the installation of a front loader and other heavy attachments.

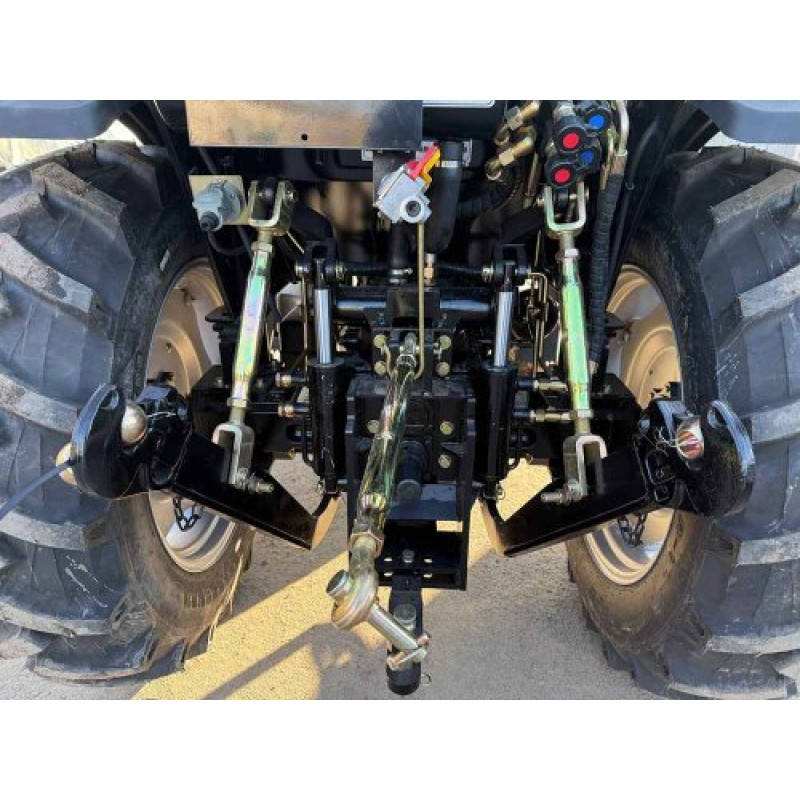

• Hydraulics: Two hydraulic cylinders with three operating modes — float, lift, and lower; pump type — gear pump (NSH) for attachment drive and NSH for power steering operation; 2 hydraulic outlets available.

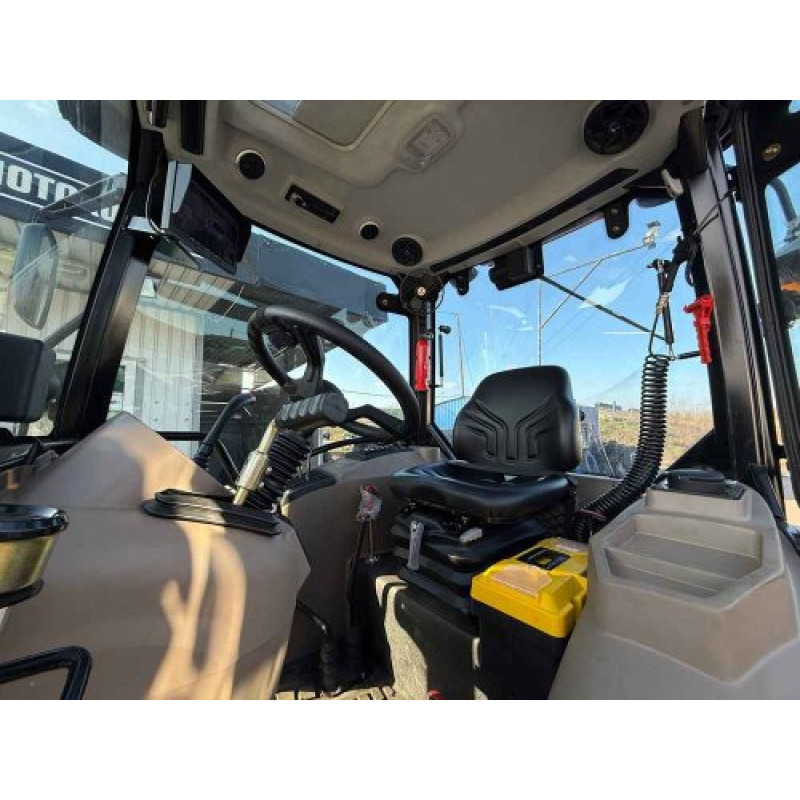

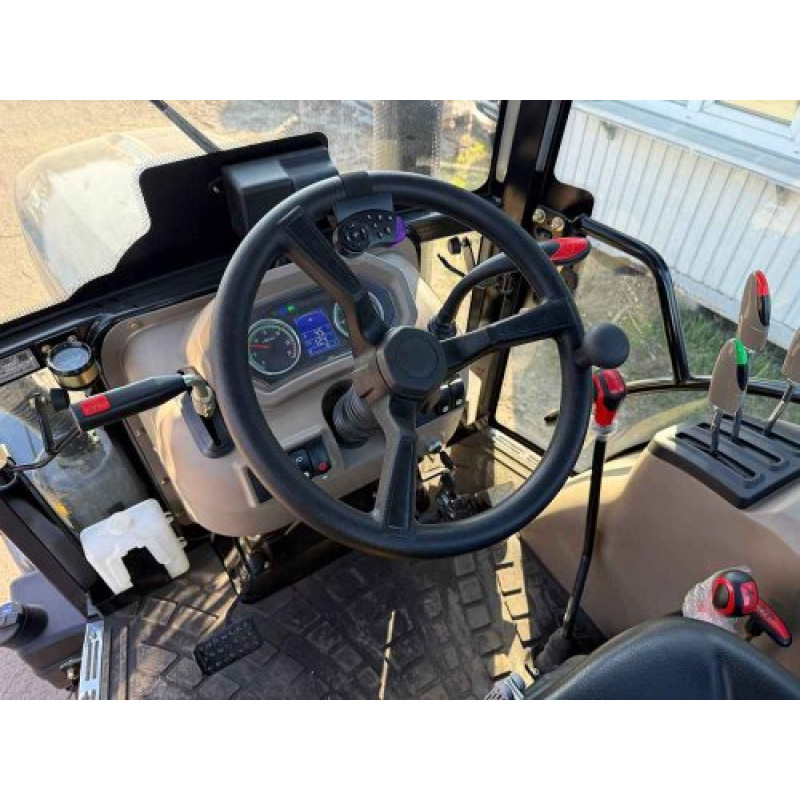

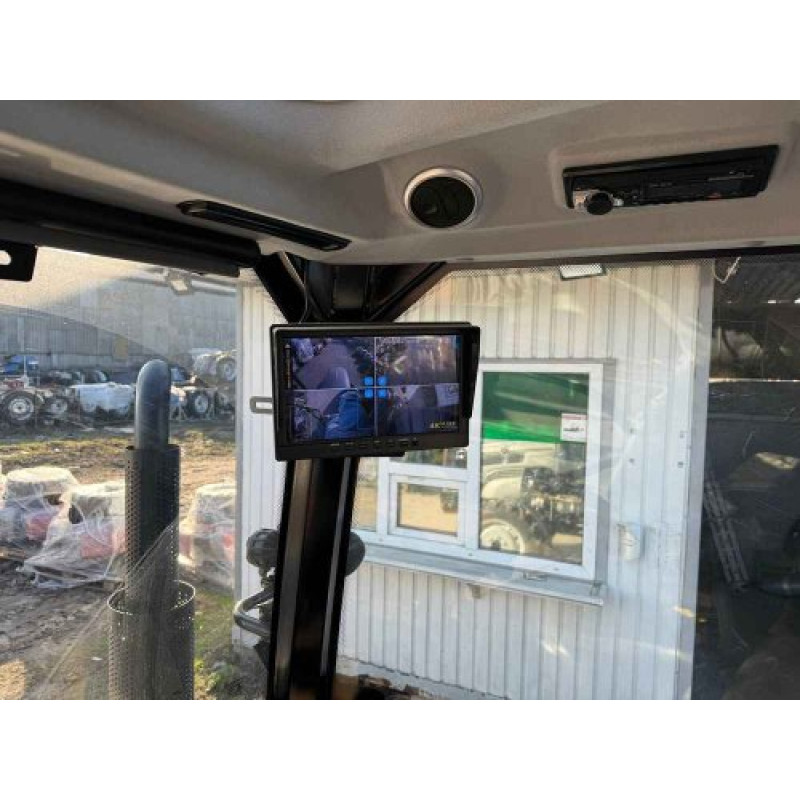

• Cabin: Spacious cabin with all-round visibility, rigidly mounted on the frame via rubber dampers; inside — flat floor, suspended pedals, dust covers on controls, airtightness, and a roof hatch for ventilation.
• Transmission: Reversible gearbox with 16 gears ((4+4)x2) and rear differential lock; dry two-disc clutch of constantly closed type; main drive — direct.

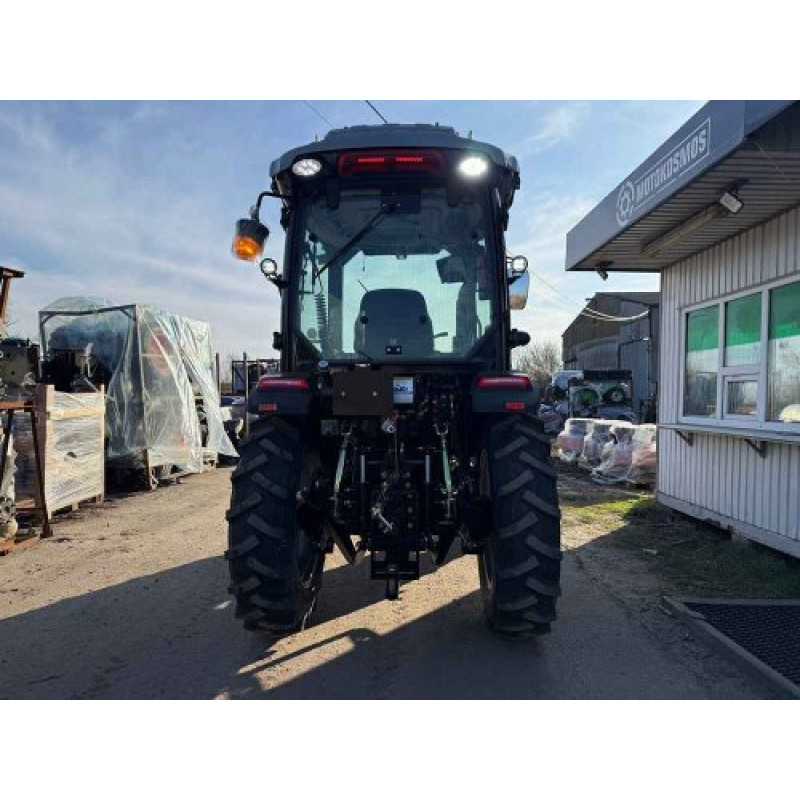

• PTO: Rear splined power take-off shaft with speeds of 540 / 1000 rpm; two-disc clutch allows engaging the PTO before the tractor starts moving.
• Brakes and Steering: Hydraulic power steering with power steering pump; brakes — on the secondary shaft of the gearbox with brake drums.

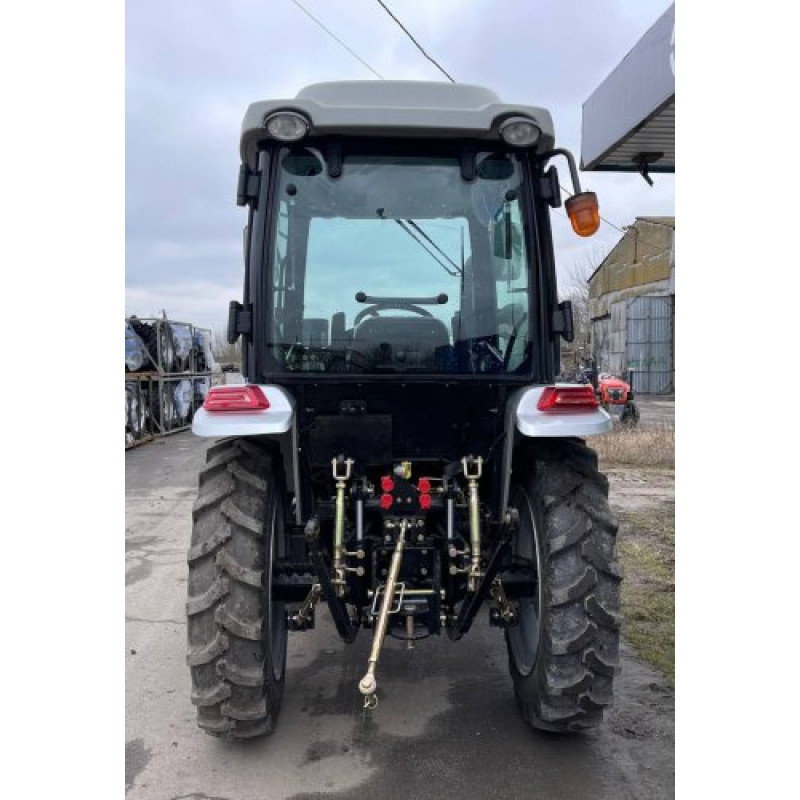

• Attachments and Equipment: Attachment lifting capacity — 880 kg; trailer connector (socket), compressor, modern optics, two pairs of quick-release hydraulic outlets, illuminated license plate holder, and an audio system are standard.
• Wheels and Tires: 4x4 wheel formula; front track — 1260-1460 mm, rear track — 1180-1440 mm; front tire size 8.30-20, rear tire size 12.4-28; ground clearance — 360 mm.
• Dimensions and Weight: LxWxH dimensions — 3350x1890x2650 mm; curb weight — 2290 kg.

The SKAUT TE-504C model is versatile: suitable for digging pits and trenches, clearing snow and debris, transporting goods, soil cultivation, sowing, applying fertilizers, irrigation, mowing grass, and fodder harvesting. Thanks to its design, it can be used in both private farms and the municipal sector.

Commercial Offer from Flash Army Online Store

The Flash Army online store offers the SKAUT TE-504C mini tractor with free delivery across Ukraine. Payment is possible upon receipt in cash or cashless; credit programs and installments are available. Each unit of equipment comes with an official manufacturer's warranty for 24 months, full technical documentation, and a spare parts kit for initial maintenance. For additional technical and commercial questions, please contact Flash Army consultants — we will help you choose the optimal configuration and payment method.

Technical Specifications:
