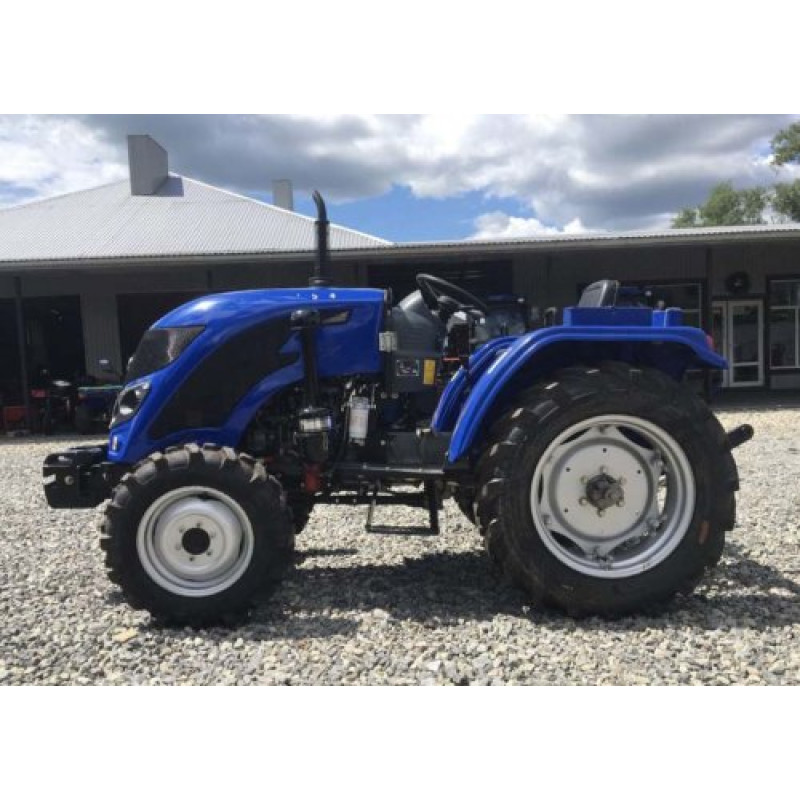

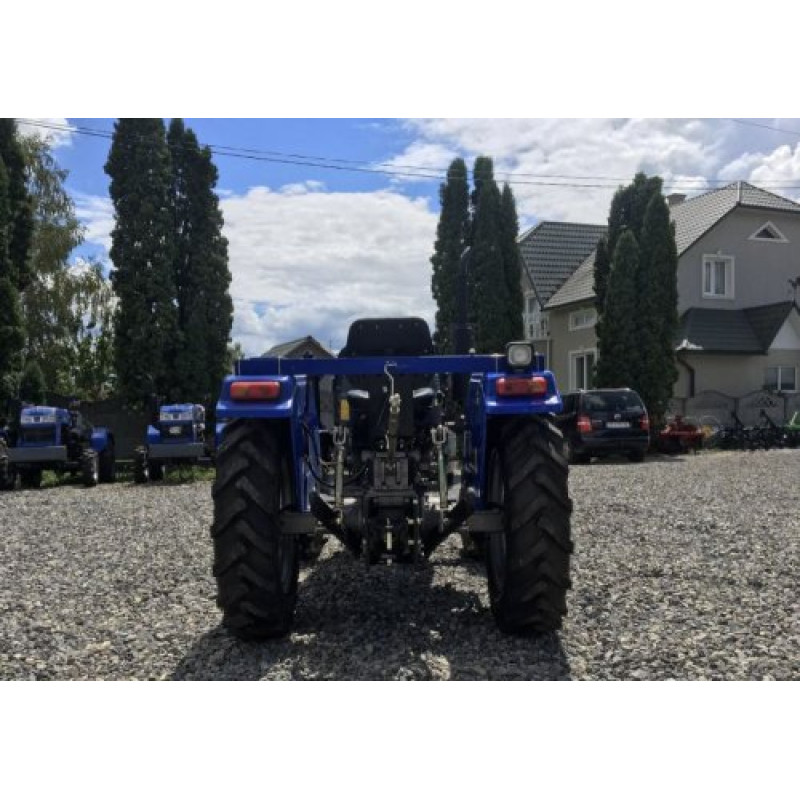

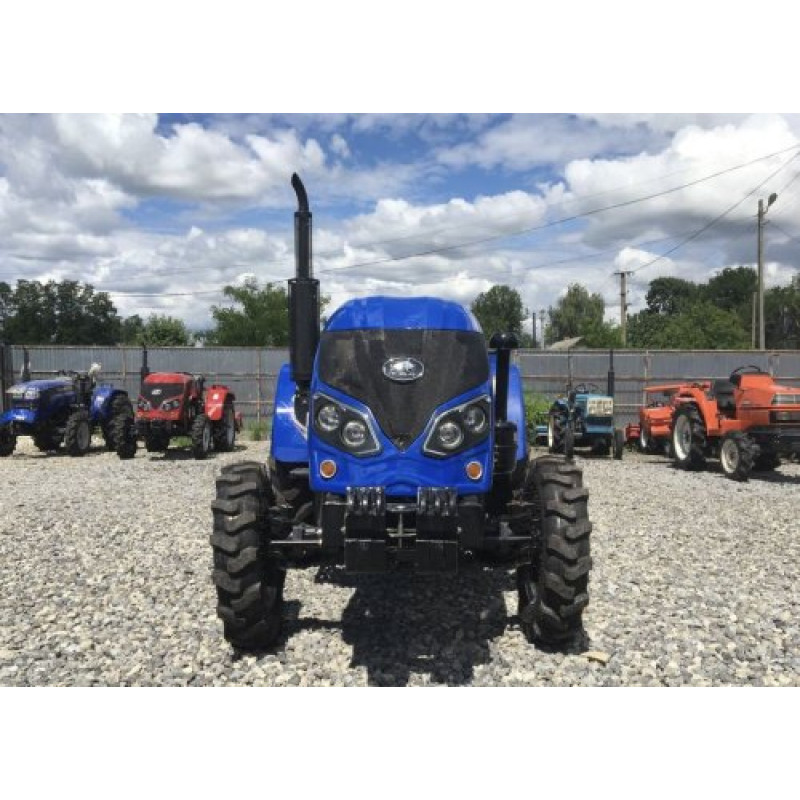

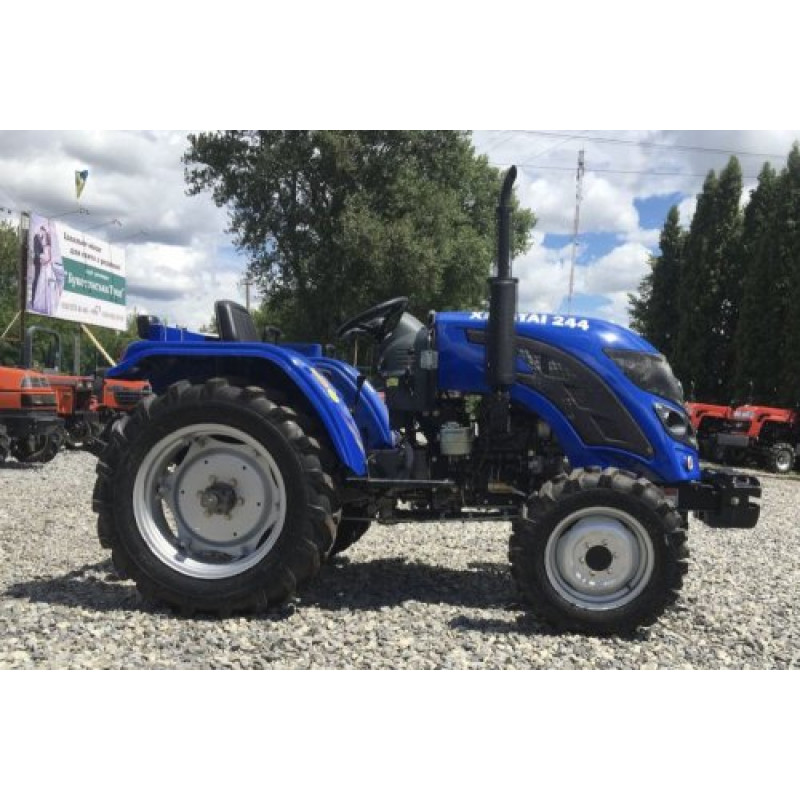

Xingtai 244 DHL Mini Tractor
Brief Description: The Xingtai 244 DHL mini tractor from the Xingtai brand is a compact and powerful all-rounder for farms, municipal services, and private households. Thanks to its 4x4 all-wheel drive and hydraulic power steering, this model offers high cross-country capability, maneuverability, and stability on various types of soil. It is ideal for soil cultivation, bed preparation, planting, cargo transportation, and working with various attachments.
Engine and Transmission: Equipped with a KM 385 BT diesel engine with 24 hp (17.6 kW) of power. The three-cylinder configuration with an 85 mm cylinder bore and 90 mm piston stroke ensures stable traction and economical fuel consumption (up to 244 g/(kW*h)). The single-disc dry clutch guarantees durability and easy maintenance. The transmission has a (4+1)x2 gear scheme, allowing for optimal speed selection for field work and transportation.
Power Take-Off (PTO) and Equipment Compatibility: The PTO operates at 540/720 rpm, making the tractor compatible with a wide range of mounted and trailed equipment: plows, cultivators, rotary shredders, trailers, and other implements. It is recommended to check the PTO speed compatibility before purchasing attachments.
Dimensions, Chassis, and Wheel Formula: Wheel formula 4x4, wheelbase 1560 mm. Overall dimensions are 3100 mm x 1240 mm x 1940 mm. The front wheel track is 980 mm, the rear track is adjustable within 980 mm - 1100 mm, allowing the tractor to adapt to different crops. The agricultural ground clearance is 330 mm, and the clearance is 220 mm. The tractor's weight is 1350 kg. Wheel sizes: front 6.50x16, rear 9.50x24.
Purpose and Advantages: The Xingtai 244 DHL is suitable for small and medium-sized farms, private farms, and municipal services. Its reliable design, affordable maintenance, and favorable price/quality ratio make it an attractive option for owners looking for versatile and economical machinery. The adjustable rear track, all-wheel drive, and powerful engine ensure efficient work in fields, vegetable gardens, and orchards.
Brand: Xingtai
Product Category: Tractors > Mini Tractors
Technical Specifications
| Tractor Traction Class | 0.4 |
| Wheel Formula | 4x4 |
| Engine Model | KM 385 BT |
| Engine Power, hp and kW | 24 hp or 17.6 kW |
| Number of Engine Cylinders | 3 |
| Cylinder Bore | 85 mm |
| Piston Stroke | 90 mm |
| Fuel Consumption | up to 244 g/(kW*h) |
| Wheelbase, mm | 1,560 mm |
| Overall Dimensions, mm | 3,100 mm x 1,240 mm x 1,940 mm |
| Front Wheel Track, mm | 980 mm |
| Rear Wheel Track, mm | 980 mm - 1,100 mm |
| Agricultural Ground Clearance, mm | 330 mm |
| Clearance, mm | 220 mm |
| Weight, kg | 1350 kg |
| Drive Type | 4x4 |
| Number of Gears | (4+1)x2 |
| Clutch | Single-disc dry |
| PTO Speed, rpm | 540/720 rpm |
| Front Wheel Size | 6.50x16 |
| Rear Wheel Size | 9.50x24 |
| Steering Type | Hydraulic power steering |
The Xingtai 244 DHL mini tractor is a balanced choice for those who need reliable machinery with sufficient power and compact dimensions. This model stands out for its ease of maintenance, versatility of application, and economical operation. Before purchasing, pay attention to the compatibility of attachments with the 540/720 rpm PTO and the possibility of adjusting the rear track for working with different crops.
