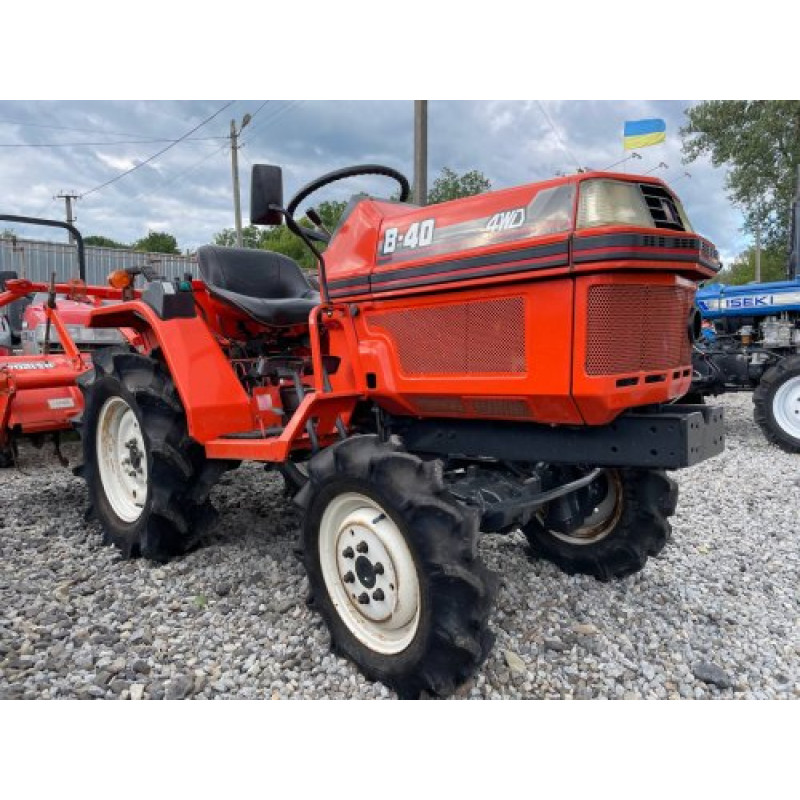

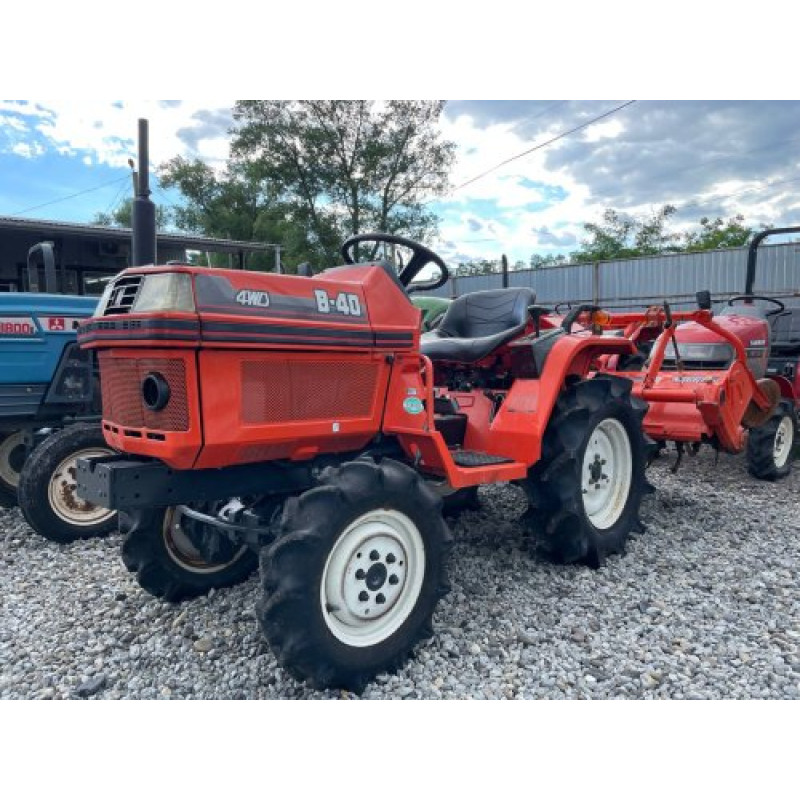

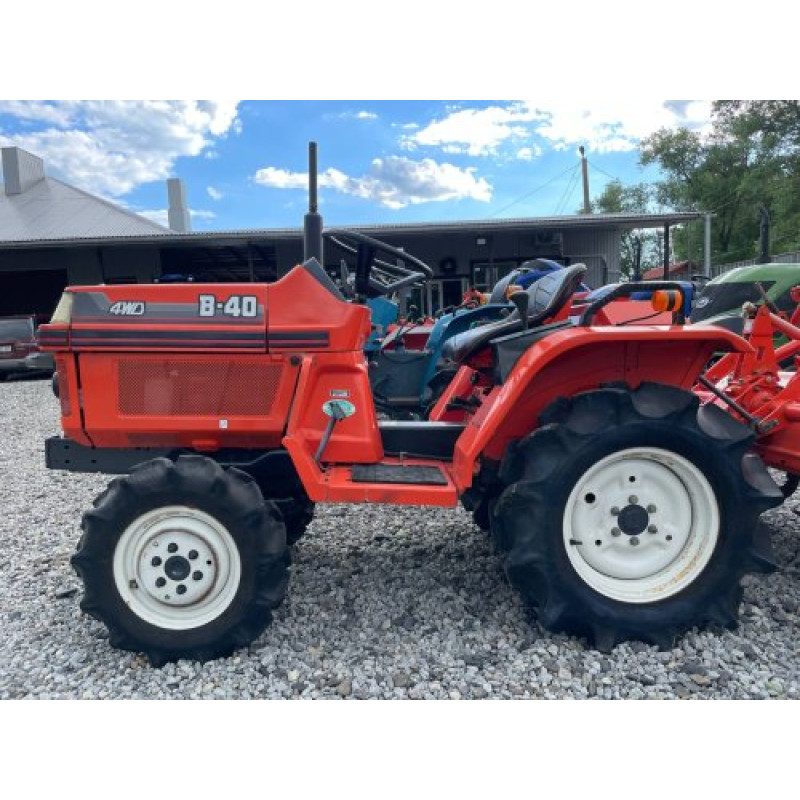

Kubota B-40 Mini Tractor is a compact, reliable, and versatile assistant for farmers, orchard owners, and utility services. This model from Kubota combines a robust design with an economical diesel engine and is designed for a wide range of tasks: soil cultivation, orchard care, short-distance cargo transportation, and area maintenance.
This mini tractor is equipped with a 14 hp, three-cylinder diesel engine, providing an optimal balance between traction and fuel economy. The 4x4 wheel formula, along with mechanical rear axle differential lock, enhances проходимость on difficult terrains and challenging soils. The fuel tank capacity is 17 liters, allowing for longer operation without frequent refueling. The machine weighs 550 kg, making it stable yet maneuverable in narrow rows.
Specifications:
| Engine power, hp: | 14 |
| Wheel formula: | 4x4 |
| Engine type: | diesel |
| Number of cylinders: | 3 |
| Tank capacity, L: | 17 |
| Gearbox: | 6+2 |
| Max speed, km/h: | 12.5 / 7 |
| Differential lock: | mechanical, rear axle |
| Brakes: | drum brake |
| Overall length, mm: | 2150 |
| Overall width, mm: | 1050 |
| Overall height, mm: | 1250 |
| Front wheel size: | 5-12 |
| Rear wheel size: | 8-16 |
| Lifting capacity of lifting mechanism, kg: | 300 |
| PTO speed, rpm: | 540/770/1200 |
| Weight, kg: | 550 |
Features and Benefits
The Kubota B-40 stands out for the reliability of its basic components and ease of maintenance. The 14 hp, three-cylinder diesel engine ensures stable operation under various loads and economical fuel consumption. The 4x4 wheel formula combined with mechanical rear axle differential lock significantly increases traction and allows for work on slopes and in wet soil. Drum brakes guarantee reliable braking under load, and the 6+2 gearbox provides flexibility in choosing speeds for field work and transportation.
Working Unit Parameters
The three-point hitch has a lifting capacity of 300 kg — sufficient for most small and medium-class mounted and trailed equipment. The presence of standard PTO speeds of 540/770/1200 rpm ensures compatibility with a wide range of agricultural machinery: mowers, plows, tillers, and other implements. Compact dimensions (2150 mm length, 1050 mm width, 1250 mm height) allow for efficient work in narrow rows and confined areas.
- Manufacturer: Kubota
- Type: mini tractor for agriculture and utility work
- Power: 14 hp, diesel
- Fuel tank: 17 L
- Weight: 550 kg
The Kubota B-40 is an optimal choice for owners of small farms, gardeners, as well as municipal and service enterprises that require compact yet productive machinery. The model combines the versatility of attachments, a reliable transmission, and convenient dimensions for daily operations. Thanks to its design and technical parameters, this mini tractor is suitable for a wide range of tasks: plowing and harrowing, mowing, soil loosening, as well as small-scale transport and utility work.
