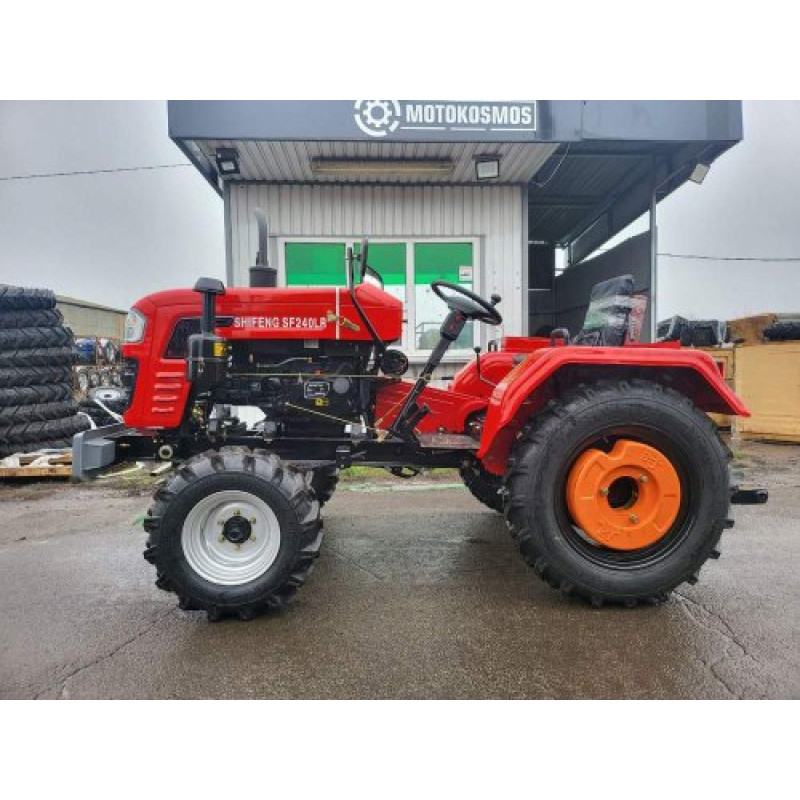

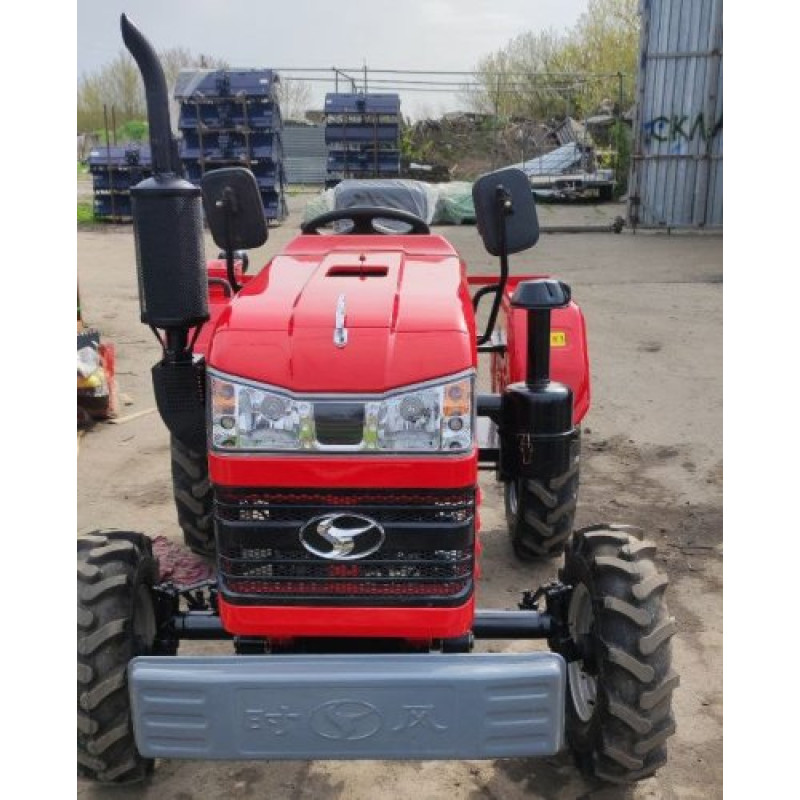

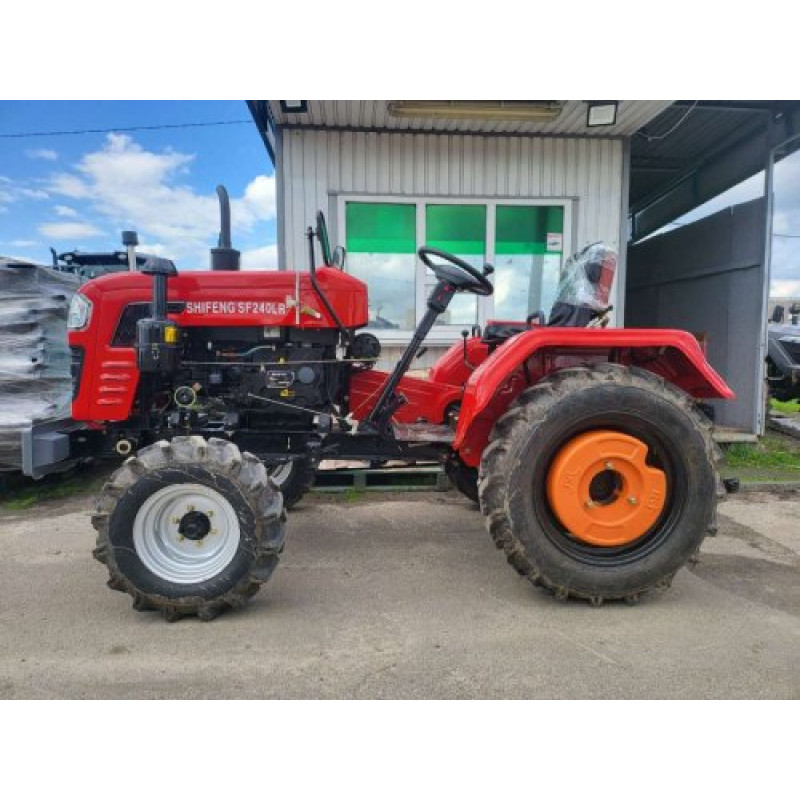

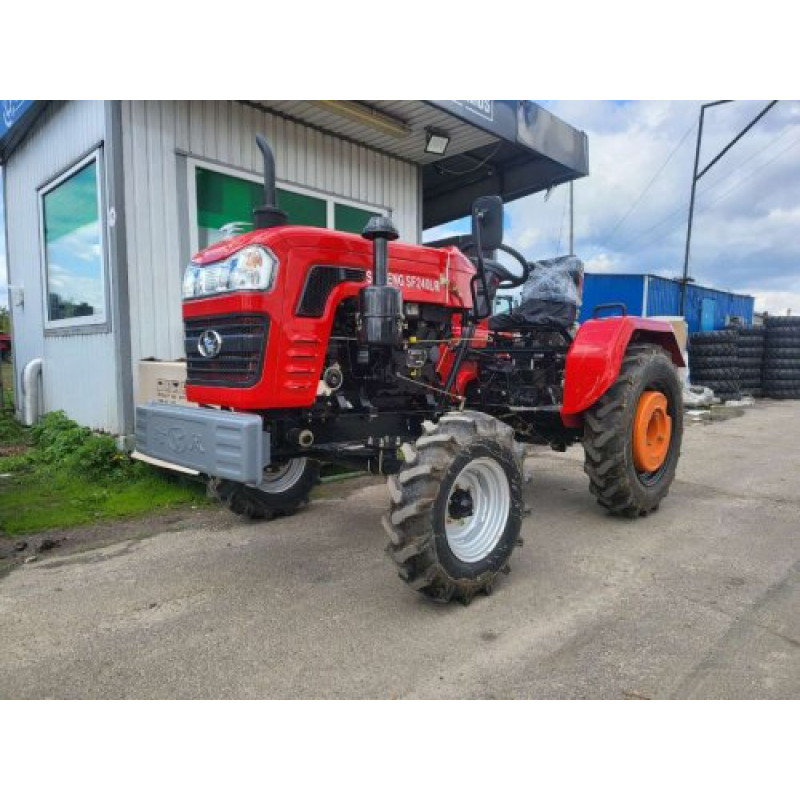

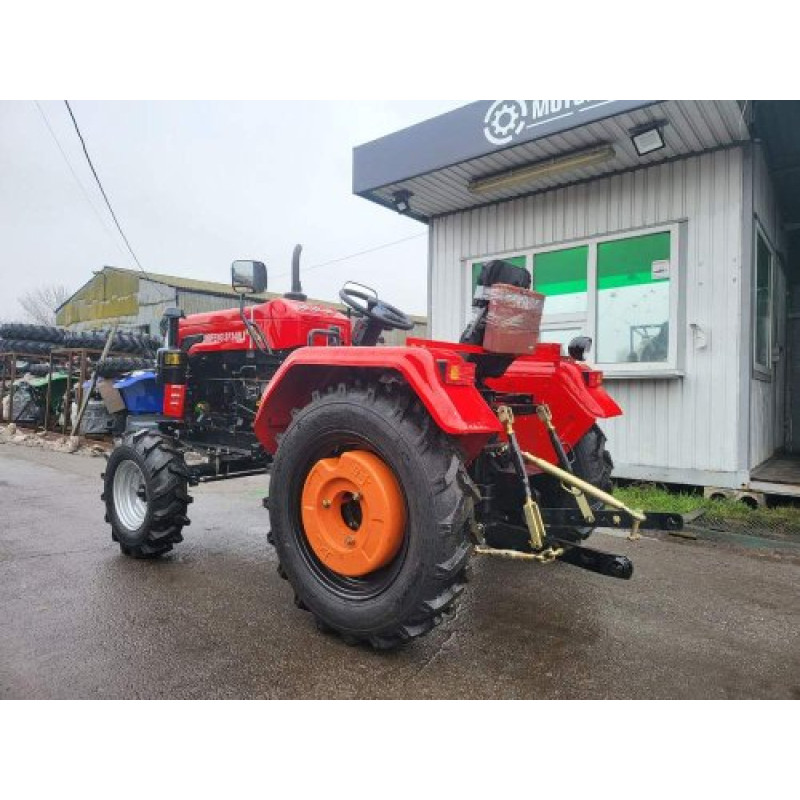

Mini Tractor Shifeng SF-240 LR — A Reliable Choice for Farm and Homestead
Brand: Shifeng. Category: Tractors > Mini Tractors. The Shifeng SF-240 LR mini tractor is a compact yet powerful machine designed for soil cultivation on small and medium-sized plots, working with trailed and mounted equipment, and transporting goods within the farm. The model combines the traditional reliability of a diesel engine with ease of operation, making it an effective solution for farmers, gardeners, and utility services.
The Shifeng SF-240 LR is equipped with a 4-stroke, water-cooled diesel engine that delivers 24 hp (17.6 kW) and has a displacement of 1344 cm3. The engine operates at a nominal speed of 2200 rpm and has an economical nominal fuel consumption (≤252 g/kWh). The tractor's design includes an efficient 15-liter cooling system and a 17-liter fuel tank, allowing for long operations without frequent refueling.
Key advantages of the model:
- Engine power: 24 hp (17.6 kW) — for a wide range of tasks;
- Displacement of 1344 cm3 and economical fuel consumption (≤252 g/kWh);
- PTO 540 rpm — compatibility with standard mounted equipment;

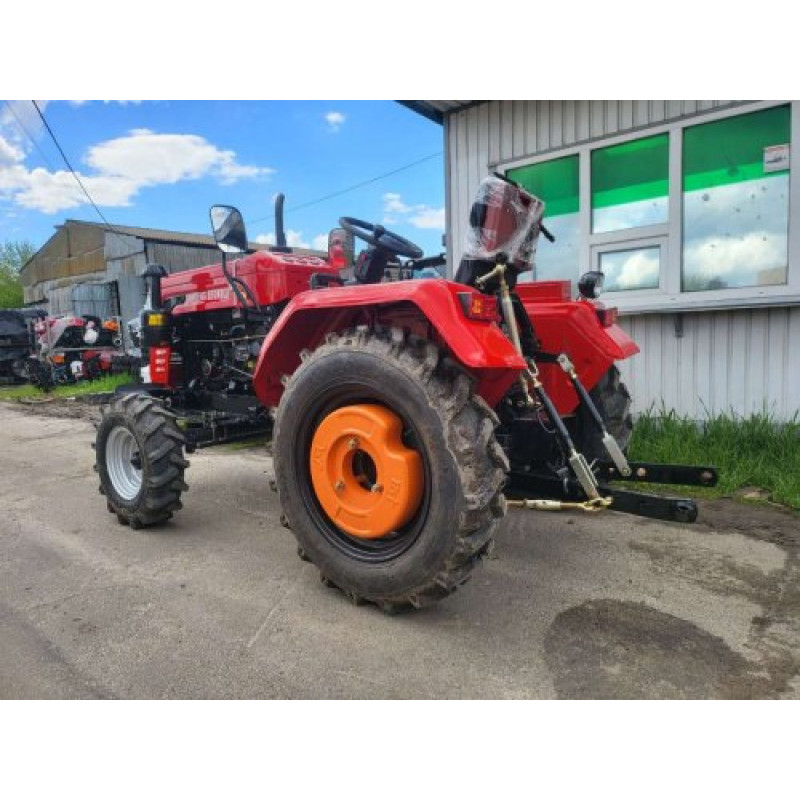

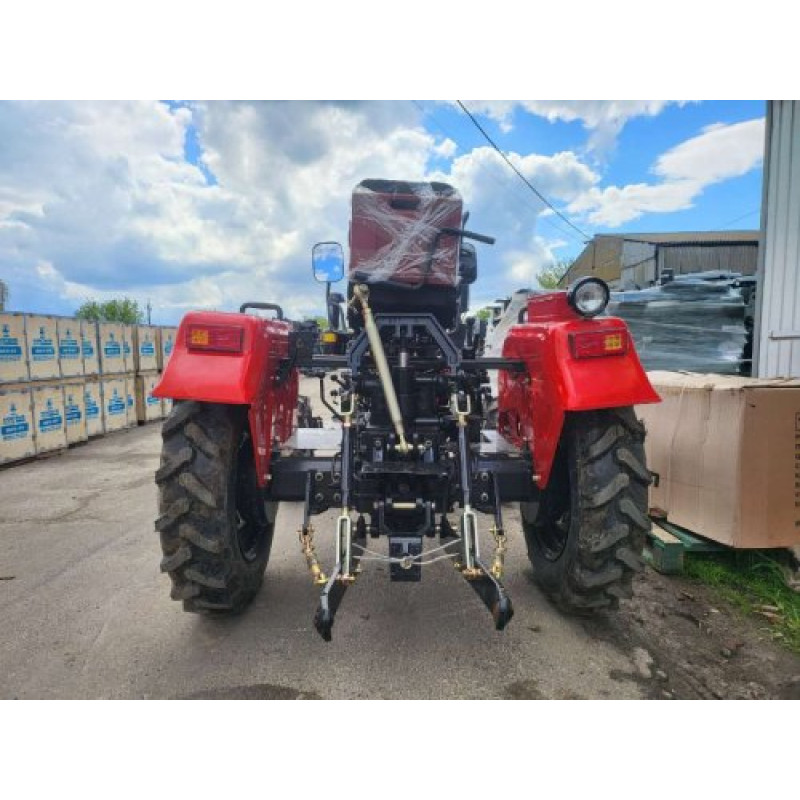

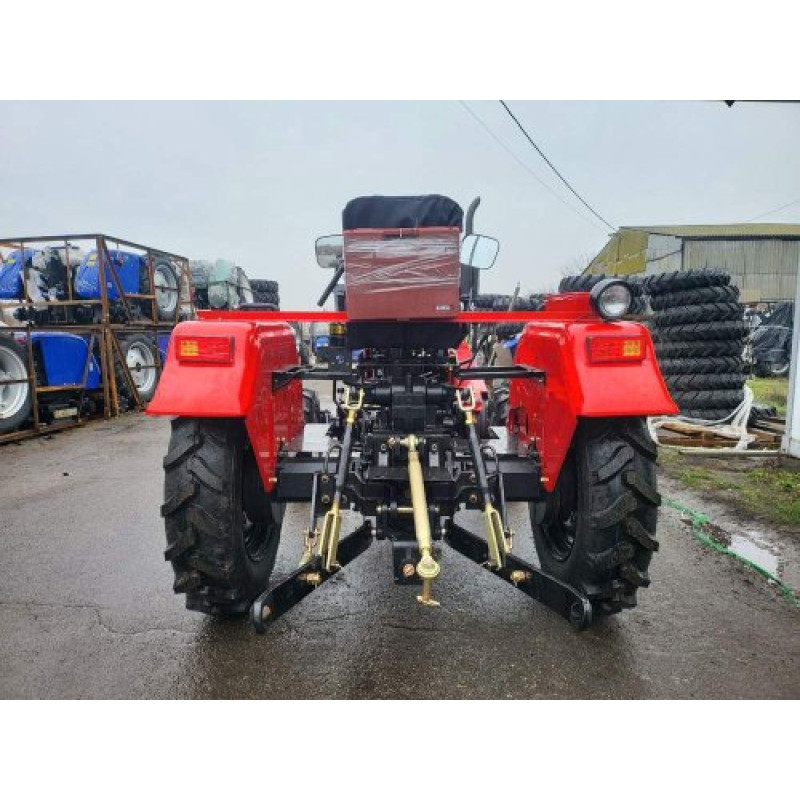

- Maximum lifting capacity of the hitch mechanism 400 kg — for efficient work with plowing, cultivation, and other operations;
- Compact dimensions 2860x1580x1720 mm and structural weight 890 kg — good maneuverability and stability.
Detailed technical specifications are provided below for convenience and quick parameter verification before purchase.
Technical Specifications
| Engine power, hp (kW) | 24 hp (17.6) |
| Wheel formula | 4x2 |
| Engine type | 4-stroke water-cooled diesel engine |
| Engine displacement, cm3 | 1 344 |
| Nominal fuel consumption g / kWh | ≤252 |
| Nominal engine crankshaft speed rpm | 2 200 |
| Nominal traction force kN | 4.7 |
| Gearbox (transmission) | non-synchronized, mechanical (3 forward +1 reverse) x 2 |
| Rear differential lock | Yes |
| Clutch | Dry, single-disc |
| Power steering | No |
| Braking mechanism | drum type |
| Power take-off (PTO) speed rpm | 540 |
| Maximum lifting capacity of the hitch mechanism, kg | 400.0 |
| Wheelbase, mm | 1 585 |
| Front wheel track, mm | 1170 |
| Rear wheel track, mm | 1200 |
| Front tire size | 6.0-12 |
| Rear tire size | 7.5-20 |
| Theoretical forward speed, km / h | 31.19 |
| Theoretical reverse speed, km / h | 11.25 |
| Fuel tank volume, L | 17 |
| Engine crankcase volume, L | 3.5 |
| Gearbox and rear axle crankcase volume, L | 12.0 |
| Lift housing volume, L | 5.0 |
| Engine cooling system volume, L | 15 |
| Overall dimensions (LxWxH), mm | 2860x1580x1720 |
| Structural weight, kg | 890 |
The SF-240 LR is suitable for those looking for easy-to-maintain, economical, and productive equipment. The model allows for a wide range of tasks: from soil preparation and sowing to area cleaning and cargo transportation. The presence of a differential lock and a robust mechanical gearbox increases cross-country capability on difficult terrain and heavy soils. Note the absence of power steering — this simplifies the design and reduces maintenance costs, but will require more effort when steering during intensive operation.
Technical parameters, integrated consumption indicators, and a large cooling system volume make the Shifeng SF-240 LR a practical choice for private farms, municipal enterprises, and greenhouse complexes. For clarification on configuration, warranty conditions, and delivery, please contact official Shifeng representatives or the seller.
