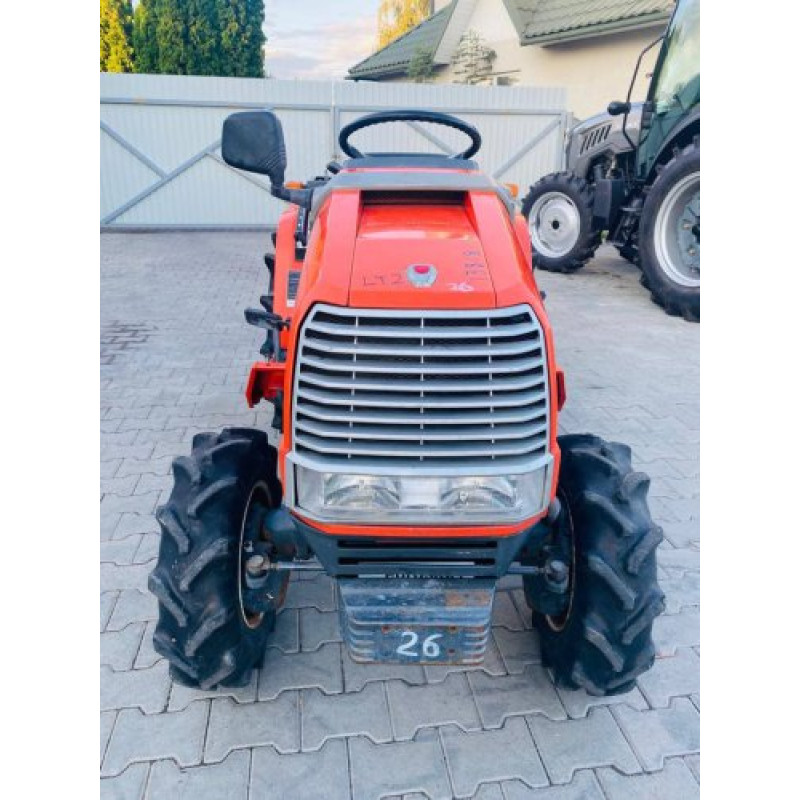

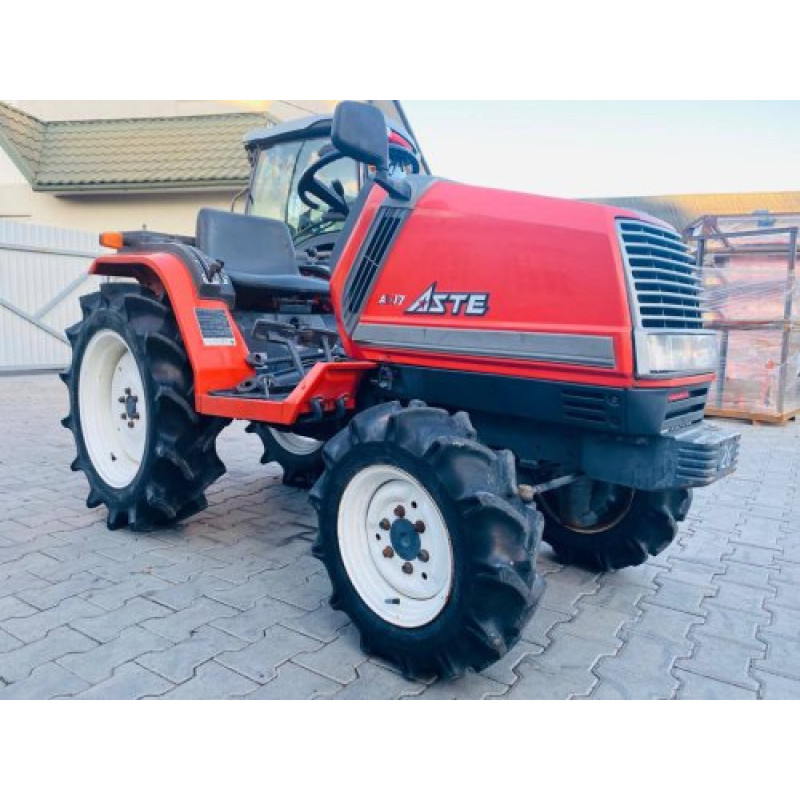

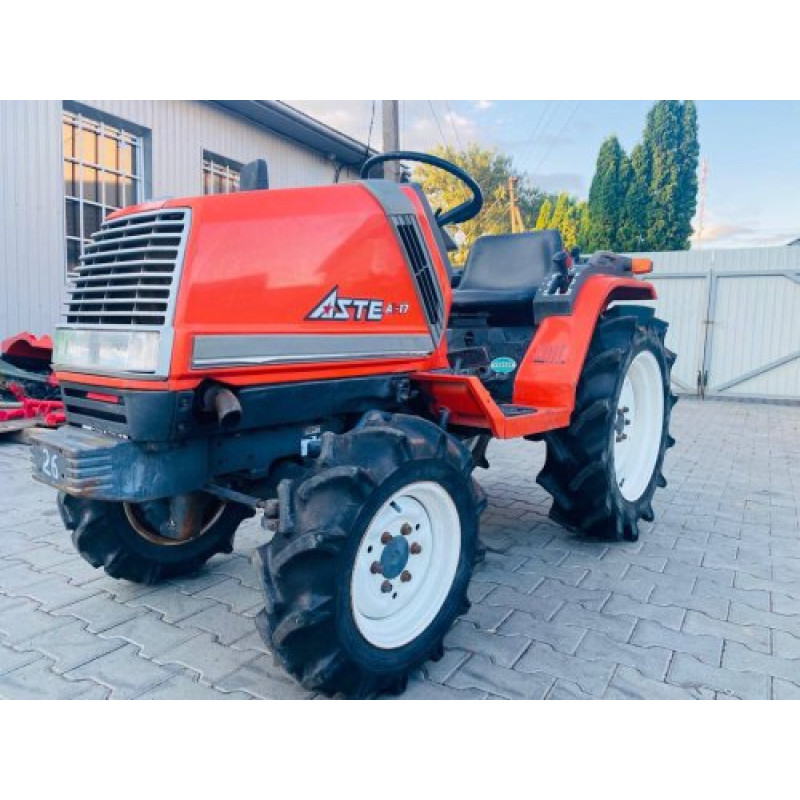

Kubota A-17 Mini Tractor — Overview, Specifications, and Purchase Terms

Model: KUBOTA A-17 Mini Tractor. Manufacturer: Kubota. Category: Tractors > Mini Tractors.

The Kubota A-17 is a compact and reliable mini tractor that combines maneuverability, off-road capability, and durability. This model is ideal for work on small farms, in greenhouses, and on garden plots. In terms of technical performance, the Kubota A-17 often surpasses similar models in its segment.

Engine and Fuel System

It is equipped with a 3-cylinder diesel engine with a power output of 17 hp. The fan is located at the front near the grille, and the radiator is under the dashboard, allowing for separate air and liquid cooling. The fuel system is of the standard type with a high-pressure fuel pump. Fuel consumption, depending on the load, is approximately 1-4 liters per hour. The documentation indicates a fuel tank capacity of 27 liters; the specifications table also shows 20 liters — both values are reflected in the original specification.

Chassis, Brake, and Hydraulic Systems

The mini tractor is all-wheel drive, with a 4x4 wheel formula. Wheel sizes: front 6.00-12, rear 8-18. The minimum turning radius is 2.0 m, ensuring high maneuverability in narrow areas. The braking system is drum-type with hydraulic actuation. The hydraulic system is two-section, allowing for the connection of rear and front mounted equipment. The lifting capacity of the rear hitch is up to 400 kg. The PTO operates in three modes: 540/799/1194 rpm.

Control and Operation

The steering is without power assistance, but the steering wheel turns quite easily. The instrument panel is solid and high-quality. The gearbox is 8+2 (indicated as (3+1) x2), all levers are located to the operator's left. The PTO lever is separate; to the right is the hydraulic lever for lifting/lowering and the depth adjustment control. The clutch is single-disc, there is a split brake, and both foot and hand throttles are present.

The price at the time of review is $6300. The equipment can be purchased with cash on delivery or on installment terms. Thanks to its durable construction and infrequent need for part replacement, the Kubota A-17 provides a quick return on investment.

Key Features

• Engine power: 17 hp.
• Engine type: diesel, 3 cylinders.
• 4x4 all-wheel drive, mechanical differential lock (rear axle).
• Two-section hydraulic system, lifting capacity 400 kg.
• PTO: 540/799/1194 rpm.
• Brakes: drum brakes with hydraulic control.

Specifications:

If you need a reliable mini tractor for a wide range of tasks, the Kubota A-17 is one of the best options in its segment. For availability, pricing, and delivery terms, please contact the sales department.
