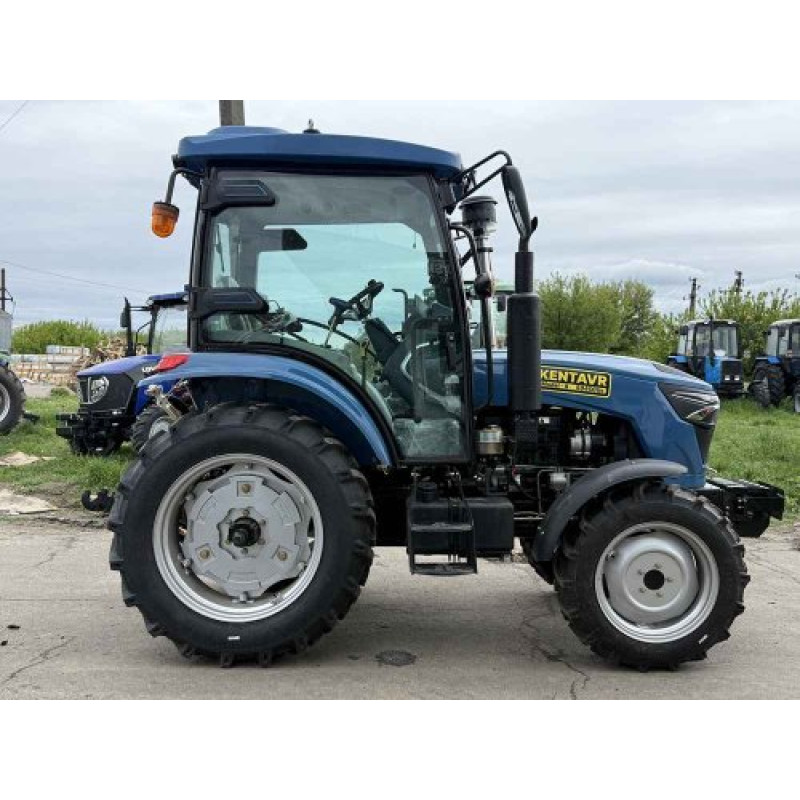

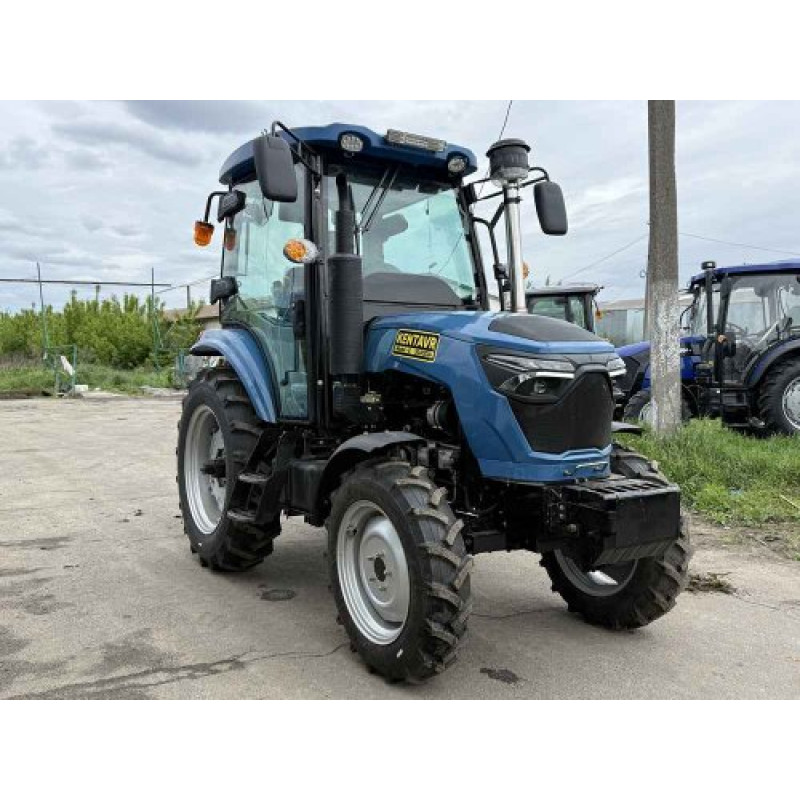

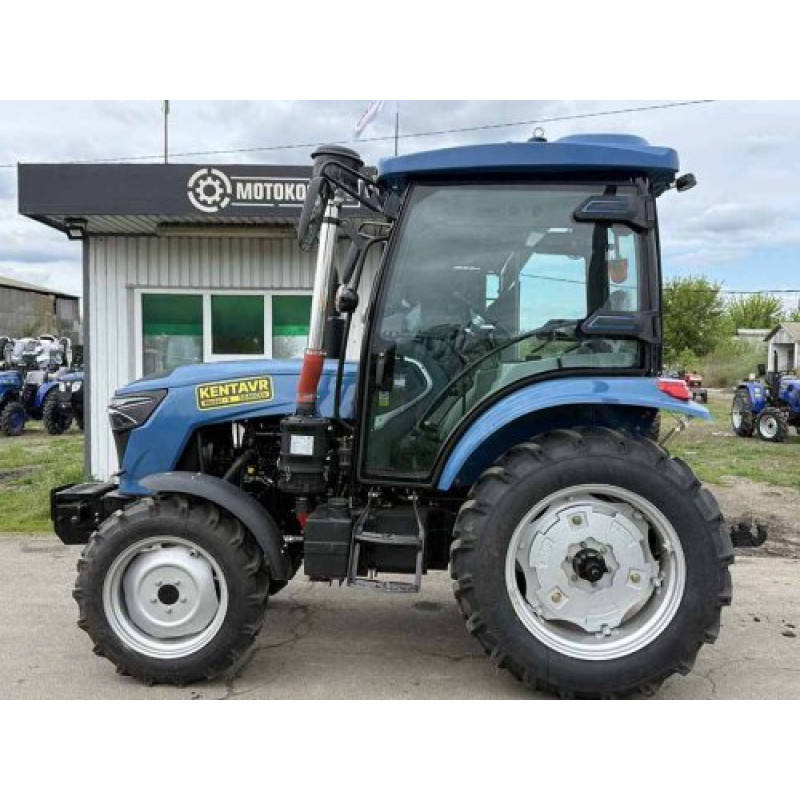

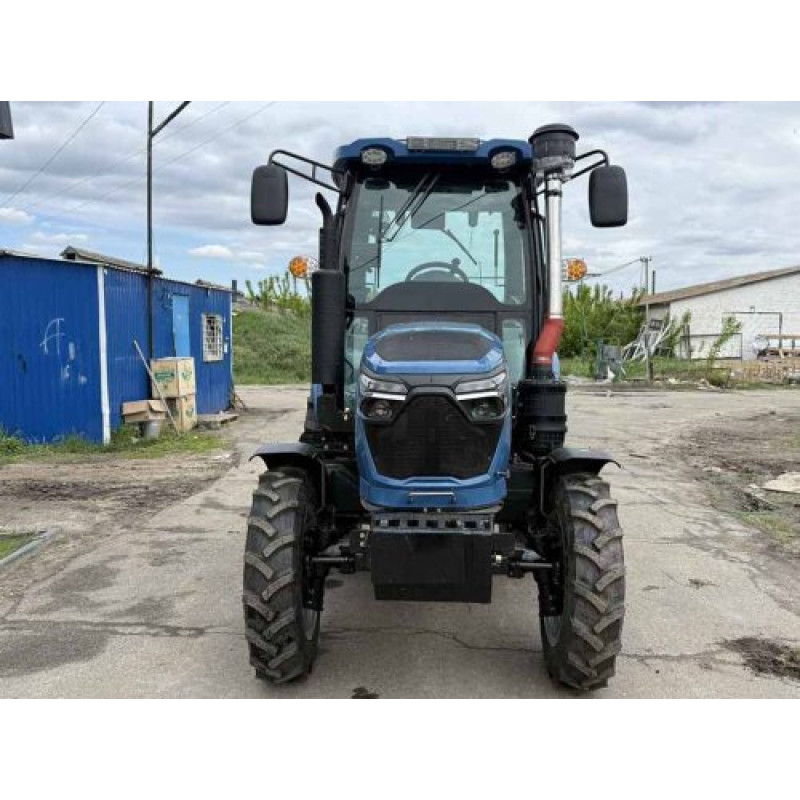

Mini Tractor KENTAVR S 504CCUe

The KENTAVR S 504CCUe mini tractor is a powerful and reliable machine for farm, park, and municipal work. It is equipped with a modern 4-stroke, 4-cylinder KM495 engine with liquid cooling and an electric starter, ensuring quick and easy starts in any conditions. The model combines high performance and fuel efficiency: the nominal engine power is 36.8 kW (50 hp), and a large 70 L fuel tank provides long autonomous operation without frequent refueling.

This mini tractor features a forced hydraulic system for efficient operation with attachments, 4x4 all-wheel drive, and differential lock for enhanced cross-country capability on challenging terrains. Power steering ensures operator comfort during prolonged use, and the presence of a compressor simplifies tire maintenance and additional equipment. A dry dual-disc clutch and drum brakes guarantee reliable torque transmission and safe braking.

Technical Specifications:

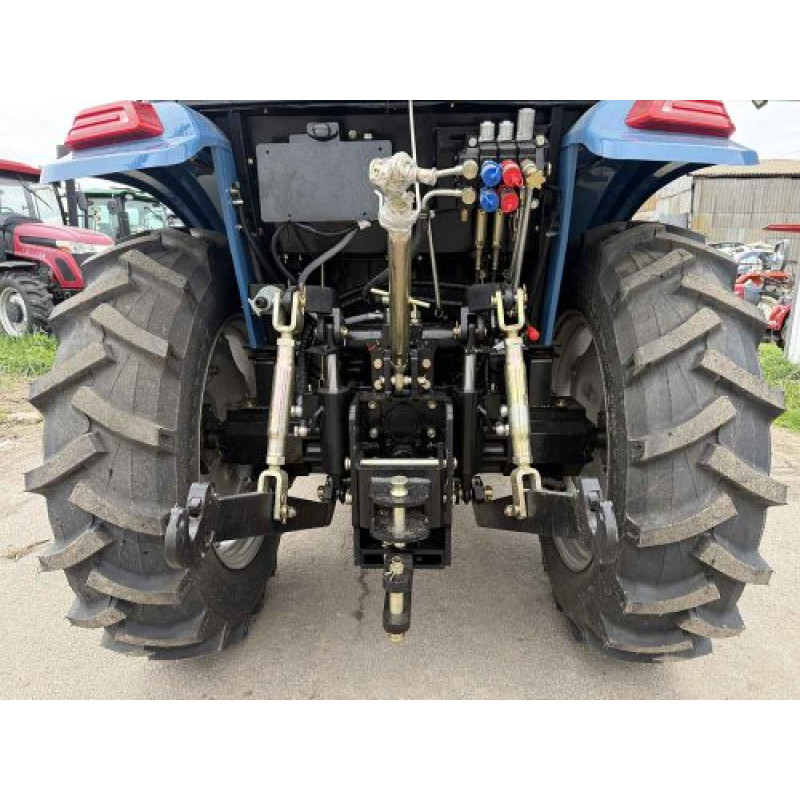

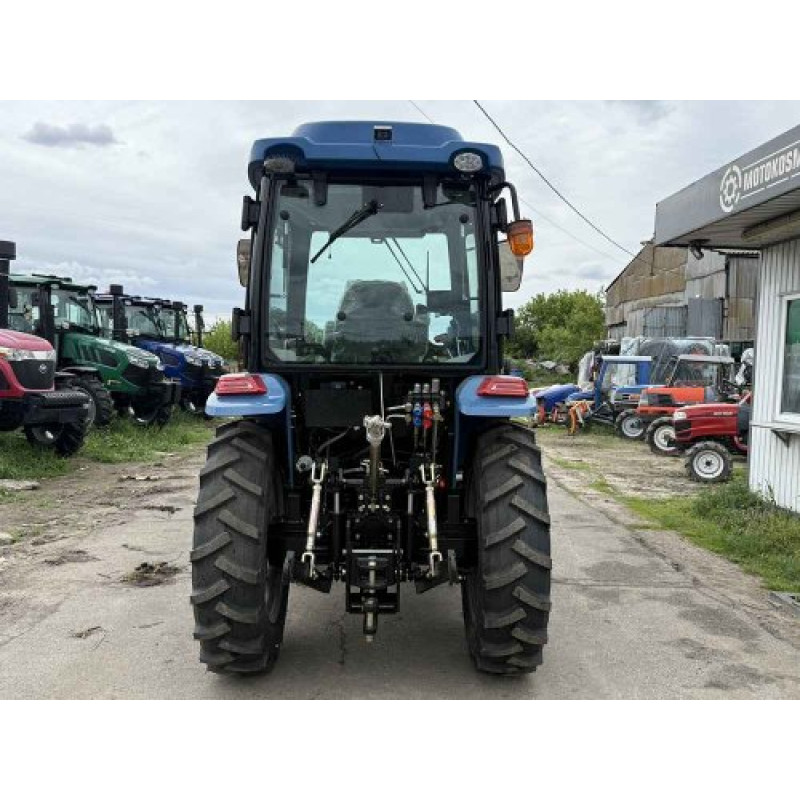

Thanks to the PTO with speeds of 540/1000 rpm, the KENTAVR S 504CCUe mini tractor easily works with a wide range of mounted and trailed equipment. The maximum lifting capacity of the hitch mechanism up to 650 kg allows the use of heavy working units. High ground clearance of 350 mm and compact dimensions of 3550x1500x2520 mm make the unit a versatile solution for work in gardens, vineyards, farms, and municipal services.

The fuel efficiency of the KM495 engine is supported by a plunger (in-line) oil pump and low oil consumption of 2.04 g/kWh, which increases service life and reduces operating costs. The 5 L cooling system and 8.5 L crankcase oil volume ensure stable engine operation even under load. The dry dual-disc clutch provides reliable transmission operation, and drum brakes ensure confident braking on various surface types.

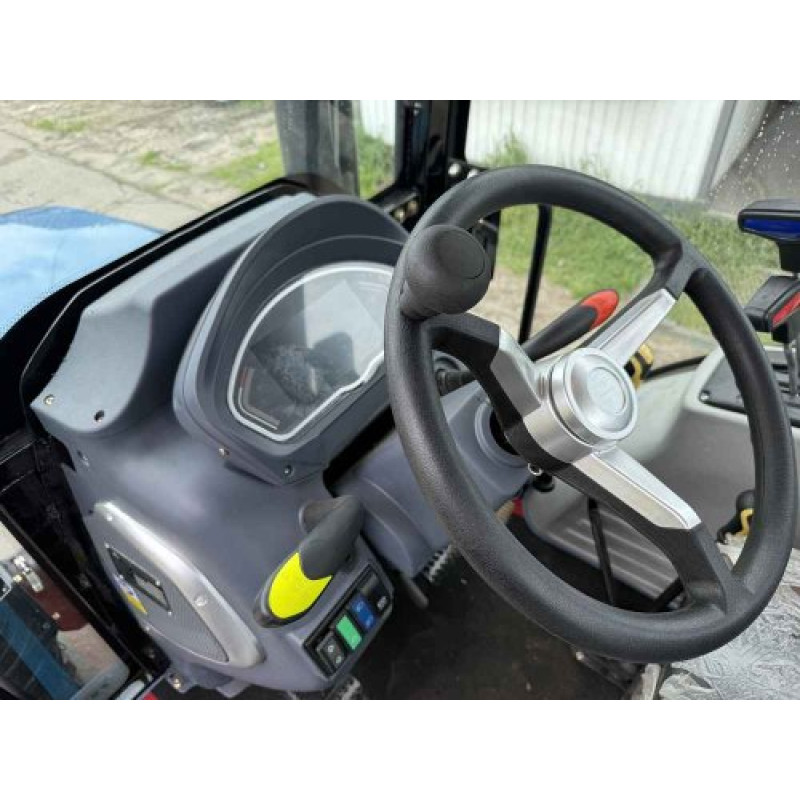

Power steering enhances comfort and reduces operator fatigue, a turning radius of 4.2 m allows maneuvering in confined spaces, and front track options of 1230/1450 mm and rear track options of 1100/1260/1360/1450 mm allow adapting the tractor to different operating conditions. Front tires 8.30-20 and rear tires 12.40-28 ensure reliable grip and stability during operation.

Brand: KENTAVR. Category: Tractors > Mini Tractors. The KENTAVR S 504CCUe model is suitable for farm owners looking for a balance between power, cross-country capability, and fuel efficiency in a compact form factor.
