Mini Tractor KENTAVR 404XU

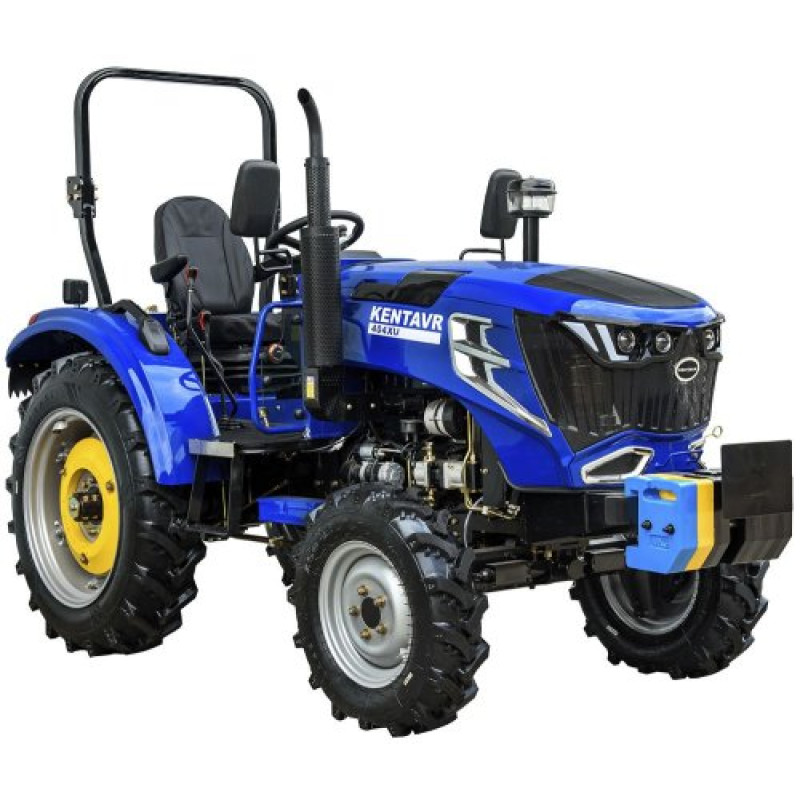

KENTAVR 404XU is a reliable and productive mini tractor for agricultural, municipal, and private work. Manufacturer: KENTAVR. This model combines a powerful diesel engine, 4x4 all-wheel drive, and versatile capabilities for working with attachments: soil cultivation, tilling, haymaking, working with plows, trailers, and other implements.
Engine: model KM490BT, vertical, 4-cylinder, 4-stroke diesel with forced liquid cooling and direct injection; displacement 2543 cm3; cylinder bore/piston stroke 90x100 mm; nominal crankshaft speed — 2350 rpm; nominal fuel consumption ≤238 g/kW*h; fuel pump type — plunger, in-line. Recommended engine oils: mineral or semi-synthetic oil for diesel engines.
Transmission and Drive: gearbox (4+4)x2; clutch dry, dual-disc; wheel formula — 4x4. The power steering is equipped with a separate pump and oil reservoir for comfortable and precise control. Cooling system fan drive — V-belt transmission; brake mechanism — drum type. Power take-off (PTO) shaft speed: 540/1000 rpm.
Hydraulics and Attachments: hydraulic system pump type — gear pump; maximum lifting capacity of the attachment mechanism — 550 kg, allowing for effective use of a wide range of attachments.
Operating Parameters and Dimensions: minimum ground clearance — 300 mm; wheelbase — 1840 mm; wheel track: rear 1220 mm, front 1122 mm. Tire size: rear 11.2-28.0, front 7.50-16.0. Fuel tank capacity — 30.0 L. Engine crankcase volume — 6.0 L; gearbox, rear axle, and lift crankcase volume — 12.5/4.0 L; front axle crankcase volume — 8.0 L; engine cooling system volume — 5.0 L. Tractor curb weight — 1800 kg. Overall dimensions (LxWxH): 3460x1550x1920 mm.
The model is characterized by a harmonious combination of power — 40 hp (29.3 kW), economy, and ergonomic operation. The design and technical solutions ensure durability and reliable operation under intensive loads. Transmission oil is recommended for the front axle.
| Tractor power, hp (kW) | 40 (29.3) |
| Wheel formula | 4x4 |
| Engine brand | KM490BT |
| Engine type | vertical, 4-cylinder, 4-stroke diesel with forced liquid cooling and direct injection |
| Engine displacement, cm3 | 2543 |
| Cylinder bore / piston stroke | 90x100 mm |
| Nominal engine fuel consumption, g/kW*h | ≤238 |
| Fuel pump type | plunger, in-line |
| Nominal engine crankshaft speed, rpm | 2350 |
| Engine oil type | mineral or semi-synthetic for diesel engines |
| Gearbox | (4+4)x2 |
| Front axle oil type | transmission oil |
| Clutch | dry, dual-disc |
| Power steering | with separate pump and oil reservoir |
| Cooling system fan drive | V-belt transmission |
| Brake mechanism | drum type |
| PTO shaft speed, rpm | 540/1000 |
| Hydraulic system pump type | gear pump |
| Maximum lifting capacity of attachment mechanism, kg | 550 |
| Minimum ground clearance, mm | 300 |
| Wheelbase, mm | 1840 |
| Wheel track, mm | rear 1220; front 1122 |
| Tire size | rear 11.2-28.0; front 7.50-16.0 |
| Fuel tank capacity, L | 30.0 |
| Engine crankcase volume, L | 6.0 |
| Gearbox, rear axle, and lift crankcase volume, L | 12.5/4.0 |
| Front axle crankcase volume, L | 8.0 |
| Engine cooling system volume, L | 5.0 |
| Overall dimensions (LxWxH), mm | 3460x1550x1920 |
| Curb weight, kg | 1800 |
The KENTAVR 404XU mini tractor is an effective solution for private farms and small agricultural production: it provides sufficient power, precise control thanks to power steering, a reliable transmission, and versatility when working with a large number of attachments.
