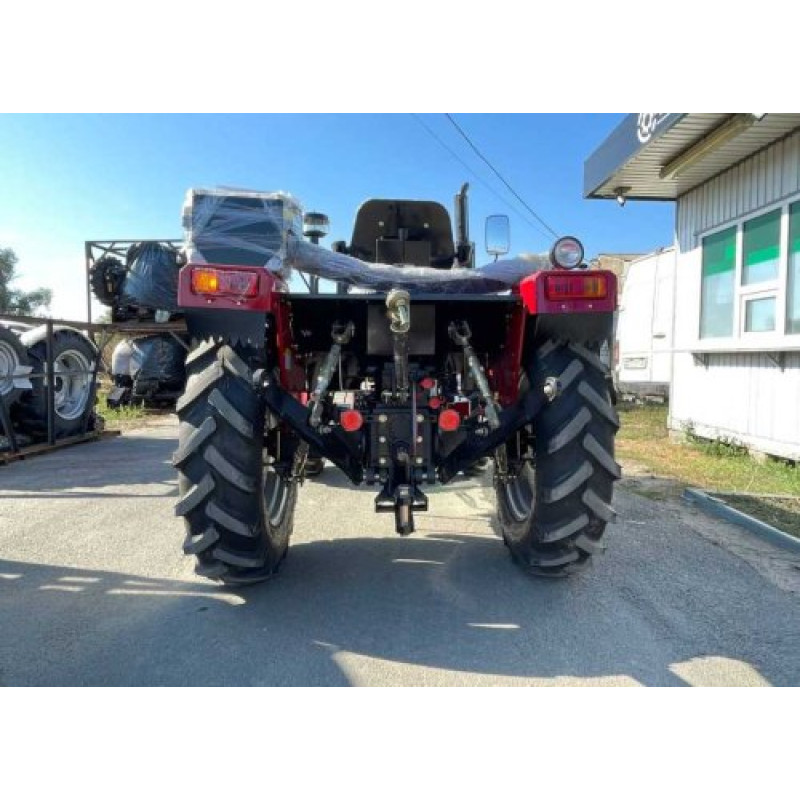

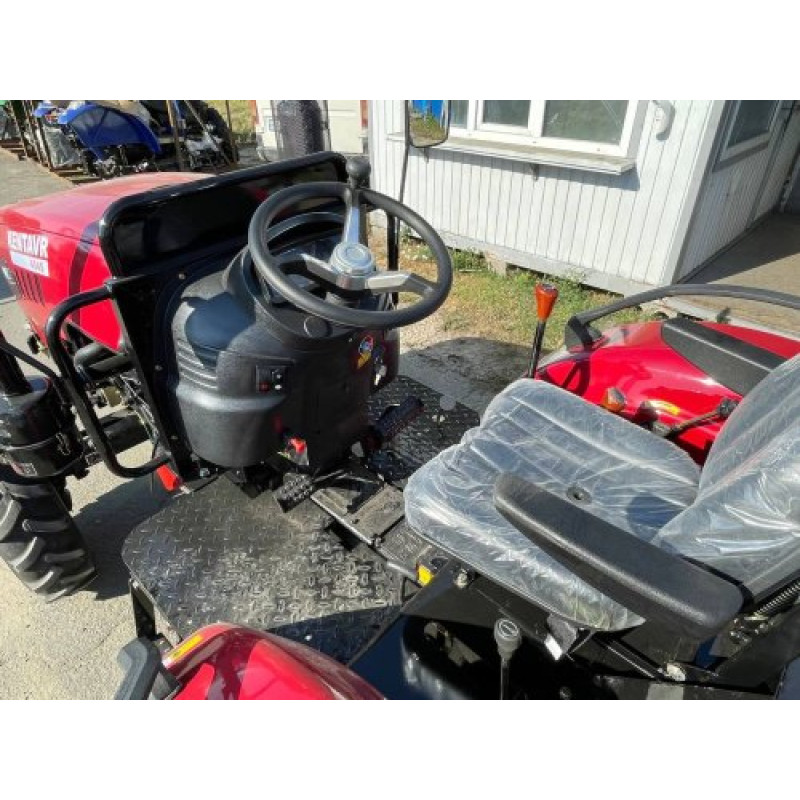

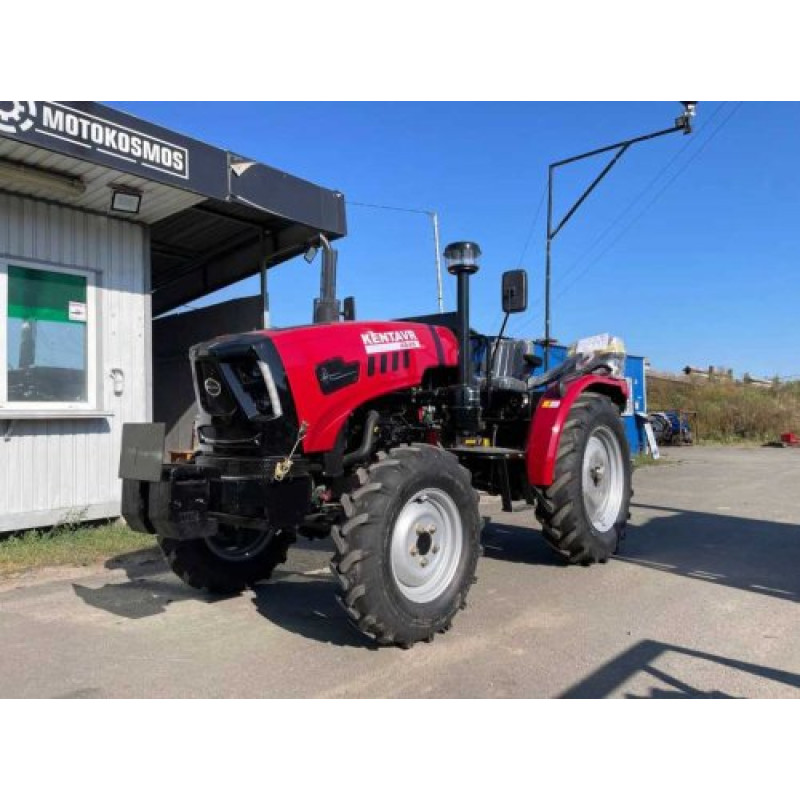

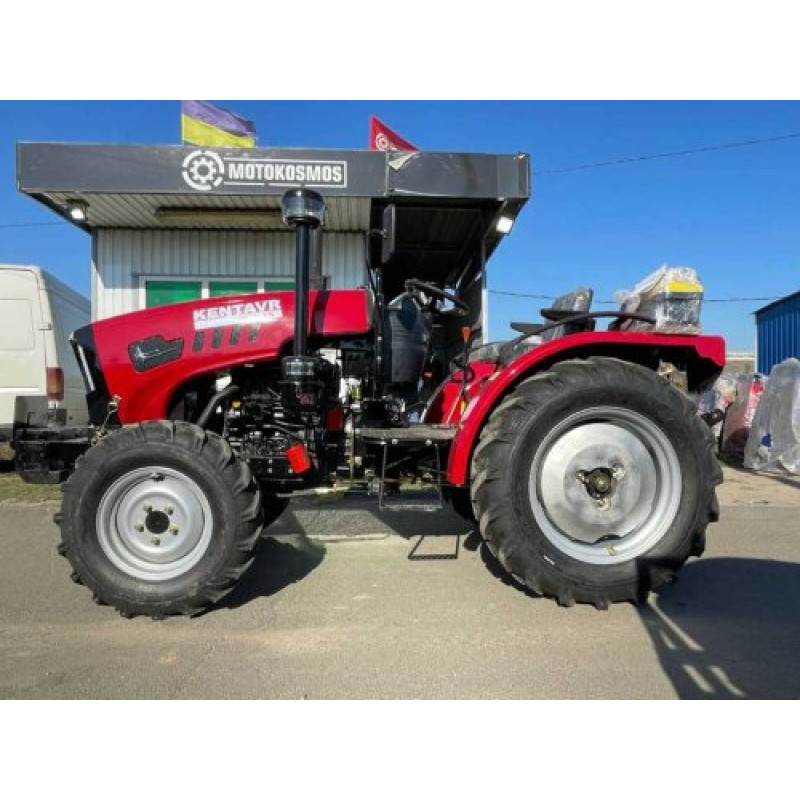

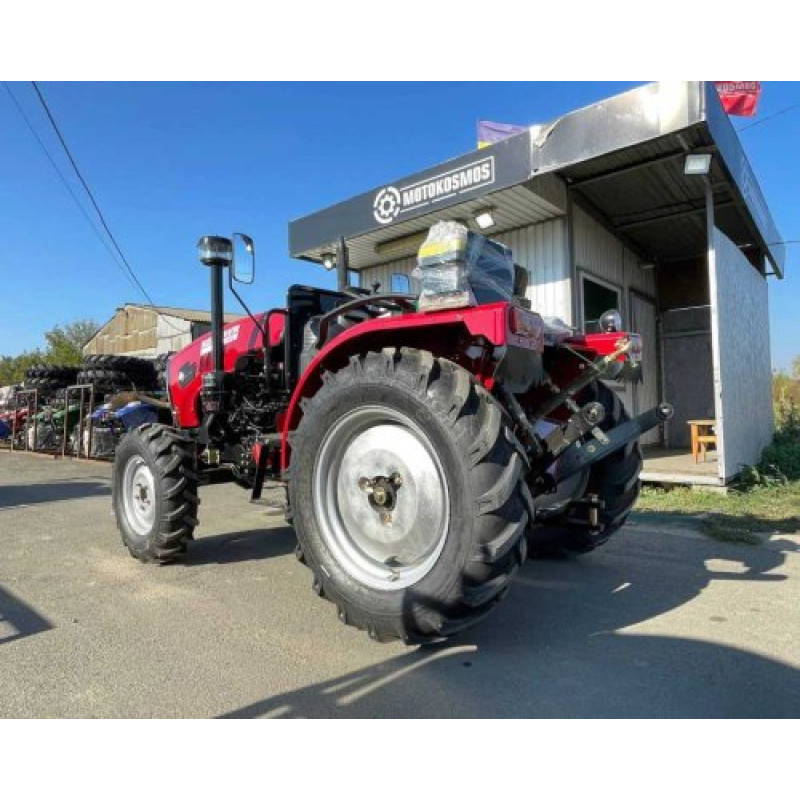

Mini Tractor KENTAVR 404 S
Brand: KENTAVR. Category: Tractors > Mini Tractors. A reliable universal mini tractor that combines efficiency, ease of maintenance, and broad application possibilities in farming, on the farm, or in the municipal sector.
Specifications:
| Tractor power, hp (kW) | 40 (29.3) |
| Wheel formula | 4x4 |
| Engine brand | JDM490T3 |
| Engine type | vertical, 4-cylinder, 4-stroke diesel with liquid forced cooling and direct injection |
| Engine displacement, cm3 | 2543 |
| Cylinder diameter / piston stroke | 90 x 1000 |
| Rated engine fuel consumption, g/kW*h | ≤238 |
| Fuel pump type | plunger, in-line |
| Rated crankshaft speed, rpm | 2350 |
| Engine oil type | mineral or semi-synthetic for diesel engines |
| Gearbox (transmission) | (4+1)x2 |
| Front axle oil type | transmission oil |
| Clutch | dry, single-disc |
| Power steering | with separate pump and oil reservoir |
| Cooling system fan drive | V-belt drive |
| Brake mechanism | drum type |
| Power take-off (PTO) shaft speed, rpm | 540/1000 |
| Hydraulic system pump type | gear pump |
| Maximum lifting capacity of hitch mechanism, kg | 550 |
| Minimum ground clearance, mm | 310 |
| Wheelbase, mm | 1820 |
| Wheel track, mm | front 1220, 1440; rear 1200, 1360, 1400 |
| Tire size | front 7.50-16.0; rear 11.2-24.0 |
| Minimum turning radius, m | with one-sided brake 4.15, without brake 4.45 |
| Theoretical travel speed, km/h | forward 0.39 - 31.97, reverse 0.51 - 12.76 |
| Fuel tank capacity, L | 35.0 |
| Engine crankcase capacity, L | 6.0 |
| Gearbox, rear axle, and lift crankcase capacity, L | 12.5 |
| Front axle crankcase capacity, L | 8.0 |
| Engine cooling system capacity, L | 5.0 |
| Overall dimensions (LxWxH), mm | 3540x1570x2050 |
| Curb weight, kg | 1440 |
The KENTAVR 404 S is equipped with a JDM490T3 engine with a displacement of 2543 cm3, vertical cylinder arrangement, and direct injection system. Its rated power of 40 hp (29.3 kW) at 2350 rpm provides sufficient torque for working with mounted and trailed equipment. Fuel efficiency is confirmed by a consumption of ≤238 g/kW*h, and the 35 L fuel tank ensures long autonomous operation in the field or on the plot.
The robust transmission with a (4+1)x2 gearbox and a single-disc dry clutch is combined with 4x4 all-wheel drive, ensuring high cross-country capability in difficult conditions. Drum brakes, power steering with a separate pump and oil reservoir facilitate maneuvering and control. The V-belt driven cooling system fan, gear pump hydraulics, and the ability to operate the PTO at 540/1000 rpm make the tractor versatile for various agricultural and municipal tasks.
Model Advantages
- Universal JDM490T3 four-cylinder diesel engine for heavy loads;
- 4x4 all-wheel drive and adjustable track for working on difficult soils;
- Two PTO operating modes 540/1000 rpm — for various mounted implements;
- Economical fuel consumption and a large 35 L fuel tank;
- Compact dimensions 3540x1570x2050 mm and acceptable curb weight 1440 kg for transport and storage;
- Minimum ground clearance of 310 mm and variable tire sizes for task adaptation.
The KENTAVR 404 S is ideal for soil cultivation, sowing, fodder harvesting, work in orchards and vineyards, as well as for municipal tasks. The reliability of its components, accessible maintenance, and broad possibilities for connecting implements make this mini tractor an excellent choice for small and medium-scale farmers and farms. The technical parameters provided in the table allow for assessing compatibility with various mounted devices and trailers, as well as planning operational work considering fuel consumption and size/weight limitations.
