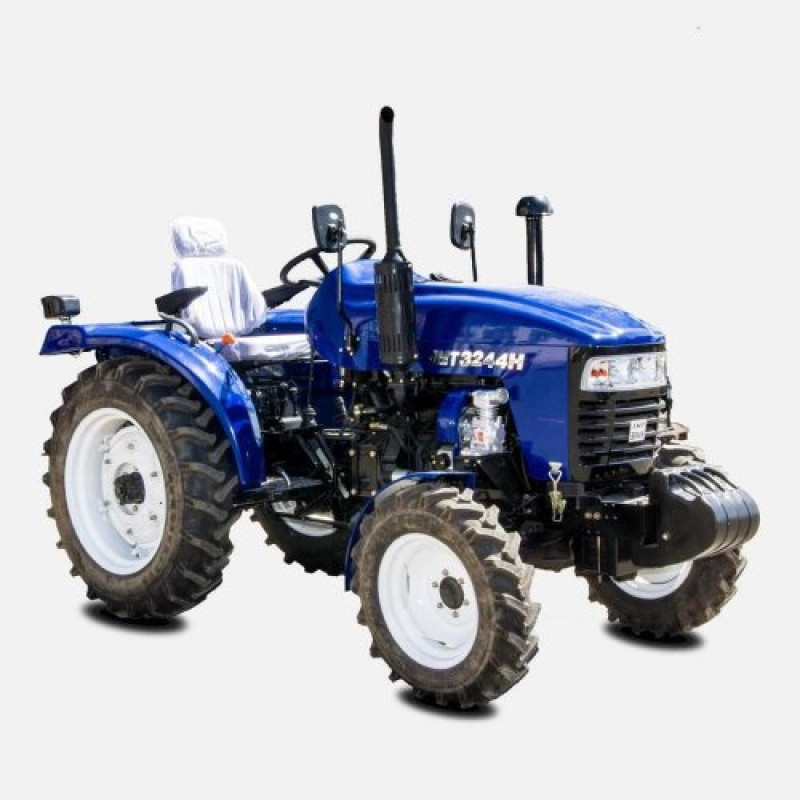

Jinma JMT3244H Mini Tractor — A Reliable Assistant for Your Farm
The JINMA JMT3244H model from the Jinma brand is a 24 hp (17.6 kW) all-wheel-drive mini tractor designed for intensive use in private and farming households, greenhouse complexes, and municipal services. The diesel vertical three-cylinder 4-stroke engine with forced liquid cooling and direct injection, with a volume of 1532 cm3, ensures reliable operation and efficient fuel consumption. An electric starter with safe start is provided for ease of operation.
The model's configuration and design solutions are aimed at simple maintenance and high productivity: 4x4 all-wheel drive, rear differential lock, power steering, dry dual-disc clutch, V-belt fan drive, and drum brakes. The tractor can handle various mounted and trailed equipment thanks to the PTO in 540/1000 rpm modes and a hydraulic system with a gear pump.
Advantages and Applications
The JMT3244H is distinguished by its versatility: it is suitable for cultivating gardens and small fields, working in orchards, performing municipal tasks, and for greenhouse farms. Agronomists and farmers note the quick return on investment, ease of maintenance, and a wide selection of mounted equipment. The presence of power steering makes driving less tiring, and the differential lock increases проходимость on difficult terrain.
You can buy JINMA JMT3244H throughout Ukraine with delivery from Vinnytsia, Kyiv, Kharkiv, Poltava, Chernihiv. Full payment or credit arrangement is possible. You should also pay attention to alternative models: Jinma 404, Shifeng 354, Dongfeng, Xingtai, Foton, Zoomlion, DTZ 5244, Bulat 454, Bulat 250, Bulat 254, Belarus 320.4, Shifeng 350, DW 244, DTZ 5404K, Solis 26, Solis RX 50.
Main technical specifications and operational parameters:
| Tractor power, hp (kW) | 24 (17.6) | |
| Wheel formula | 4x4 | |
| Engine type | vertical, 3-cylinder 4-stroke diesel with forced liquid cooling and direct injection. | |
| Engine start | electric starter with safe start | |
| Engine displacement, cm3 | 1532 | |
| Cylinder diameter / piston stroke | 85x90 | |
| Nominal fuel consumption, g / kWh | 248 | |
| Fuel pump type | plunger, in-line | |
| Nominal engine crankshaft speed, rpm | 2350 | |
| Nominal traction force, kN | 6.6 | |
| Engine oil type | mineral or semi-synthetic for diesel engines | |
| Nominal engine oil consumption, g / kWh | 2.04 | |
| Gearbox (КПП) | (4+1)x2x2 | |
| Oil type in gearbox, rear axle | transmission oil | |
| Oil type in front axle | transmission oil | |
| Rear differential lock | + | |
| Clutch | dry dual-disc | |
| Power steering | + | |
| Cooling system fan drive | V-belt drive | |
| Braking mechanism | drum type | |
| Power take-off (PTO) speed, rpm | 540/1000 | |
| Hydraulic system pump type | gear pump | |
| Power steering pump type | gear pump | |
| Maximum lifting capacity of mounted mechanism, kg | 420 | |
| Minimum ground clearance, mm | 315 | |
| Wheelbase, mm | 1645 | |
| Wheel track, mm | rear | 1090 / 1350 (by wheel repositioning) |
| front | 1260 | |
| Tire size | rear | 9.5-24 |
| front | 6.00-16 | |
| Minimum turning radius, m | with one-sided brake | 2.8±0.2 |
| without brakes | 3.0±0.2 | |
| Theoretical travel speed, km / h | forward | 1.75-26.4 |
| reverse | 2.28-11.02 | |
| Fuel tank volume, L | 19.0 | |
| Engine crankcase volume, L | 6.6 | |
| Gearbox and rear axle crankcase volume, L | 14.0 | |
| Front axle crankcase volume, L | 6.0 | |
| Engine cooling system volume, L | 10.0 | |
| Lift housing volume, L | 9.0 | |
| Overall dimensions, (LxWxH), mm | 2991x1290x1410 | |
| Curb weight, kg | 1265 | |
This mini tractor is equipped with an efficient hydraulic system and a mounted mechanism lifting capacity of 420 kg, allowing it to work with a wide range of implements: plows, harrows, seeders, mowers, and trailed equipment. A minimum ground clearance of 315 mm and compact dimensions of 2991x1290x1410 mm ensure проходимость on uneven terrain and ease of transport. A curb weight of 1265 kg makes the tractor maneuverable within a private plot.
Summary: The Jinma JMT3244H is a versatile, easy-to-maintain, and economical machine for small and medium-sized farms, combining a reliable diesel engine, all-wheel drive, convenient hydraulics, and optimal dimensions for work and transport.
