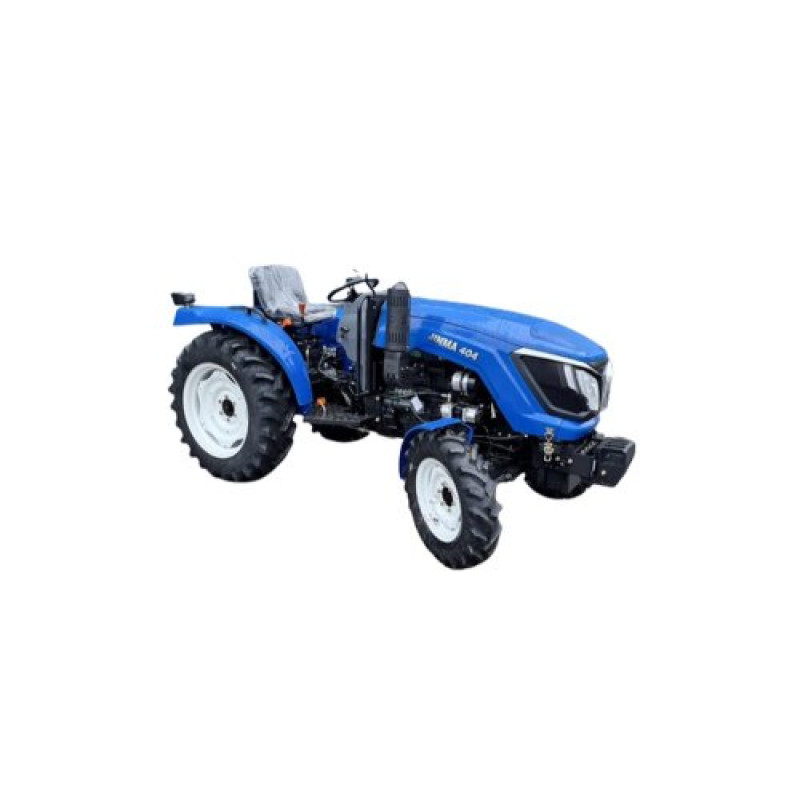

Mini Tractor Jinma JMT 404 — a reliable workhorse for your farm

The Mini Tractor Jinma JMT 404 model from the manufacturer Jinma is a compact yet powerful mini tractor from the category Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors, designed for a wide range of agricultural, municipal, and household tasks. Thanks to its well-thought-out design and robust components, this tractor demonstrates high cross-country capability and reliability in fields, gardens, or areas with complex terrain.

The main advantages of the Jinma JMT 404 are its efficient four-cylinder diesel engine, all-wheel drive, and the ability to lock differentials, ensuring stable operation under heavy loads and in difficult soil conditions. Ergonomics, power steering, and an electric starter make operation comfortable even for long work shifts.

Technical specifications of the model:

The engine with a displacement of 2543 cm3 and a nominal power of 40 hp (29.4 kW) provides sufficient traction for most attachments and operations. Pre-chamber injection combined with an in-line plunger pump ensures stable fuel supply and fuel efficiency under various load conditions. The differential lock option on the front and rear axles increases cross-country capability on difficult and slippery terrain.

The (4+1)x2 transmission configuration provides a wide range of gears for field work and transport, and the 540 rpm PTO is compatible with most standard mounted and trailed implements. The main gear is a pair of bevel gears; the rear differential is a four-satellite, conical, closed type with locking capability, and the front differential is self-locking.

Comfort during operation is guaranteed by power steering and an electric starter with safe start. The V-belt drive for the fan ensures simple design and reliable engine cooling. The dry single-disc clutch is easy to maintain and repair.

Technical fluids and volumes: fuel tank 35 L; engine crankcase volume 7 L; transmission and axle crankcase 20.2 / 6.6 L; lift housing 10 L; engine cooling system 7.2 L. Mineral or semi-synthetic oils are recommended for the engine, and mineral oils for the transmission and axles.

The model's dimensions of 3430×1480×1530 mm, with a weight of 1440 kg and a wheelbase of 1825 mm, make the tractor maneuverable yet stable during operation. The adjustable track width (front 1170/1250/1370 mm, rear 1230/1310/1370 mm) allows the Jinma JMT 404 to be adapted for row crops or various field conditions. A ground clearance of 300 mm ensures confident overcoming of obstacles and uneven terrain.

The Jinma JMT 404 is an optimal choice for private farms, municipal services, and small farming enterprises looking for a reliable, easy-to-maintain, and functional mini tractor. The package includes proven components: a dry single-disc clutch, V-belt fan drive, self-locking front differential, and the ability to lock the rear differential.

For additional options, spare parts availability, and possible configurations, please contact our managers — we will help you choose attachments and spare parts for your tasks.
