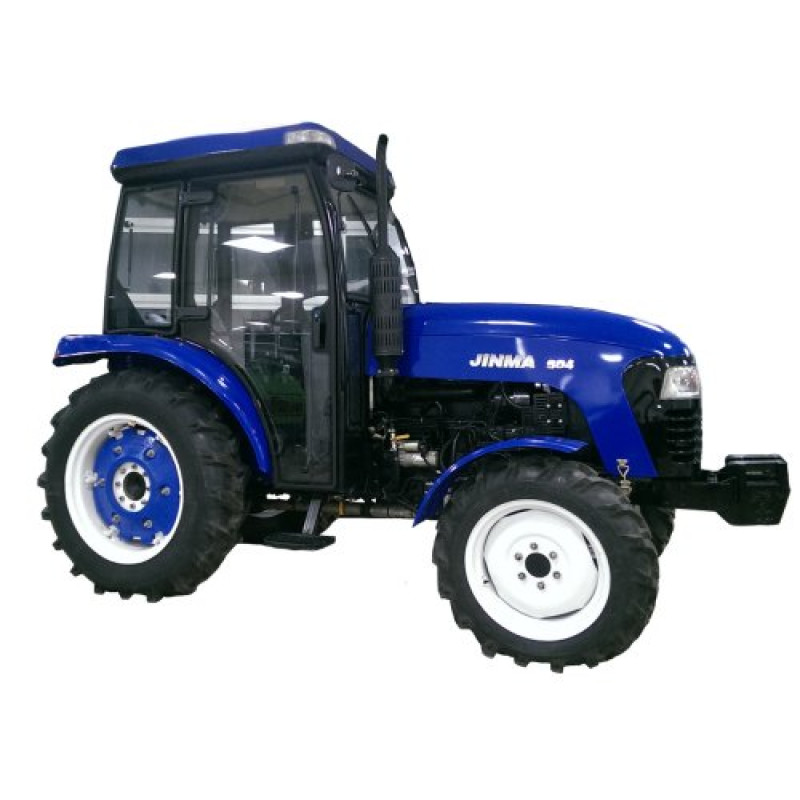

Mini Tractor Jinma 504 Cab+AC
The Jinma 504 Cab+AC mini tractor from the manufacturer Jinma is a reliable and versatile machine with 50 hp (36.8 kW) power, designed for farm work, municipal services, and household tasks. The model features 4x4 all-wheel drive, an electric starter for quick ignition, a spring-loaded seat for enhanced operator comfort during long shifts, and an equipped cabin with heating and air conditioning. The steering wheel is equipped with power steering, making maneuvering easy even in confined spaces, while a compact turning radius and high traction capability ensure efficient operation in fields and gardens.
Key Features and Applications
This tractor is equipped with a four-cylinder, 4-stroke, water-cooled diesel engine with a volume of 3456 cm3 and direct fuel injection, which guarantees economical fuel consumption, reduced noise, and unit durability. The nominal engine speed is 2350 rpm. Additional useful options include an hour meter, a rotating fan with a protective mesh for improved air microcirculation, a hood with shock absorbers for convenient access to components, a powerful battery, and two hydraulic pumps for increased hydraulic system performance.
- Applications: grass mowing, snow removal, haymaking, soil cultivation, cargo transportation.
- Comfort: cabin with heating and air conditioning, spring-loaded seat.
- Operational advantages: electric starter, power steering, small turning radius.
The general description mentions a lifting capacity of 740 kg and rear drum brakes for some versions, while the technical specifications in the table list a maximum hitch lifting capacity of 400 kg and a braking mechanism — a two-disc wet brake. Therefore, before purchasing, we recommend clarifying the specific unit's configuration with the seller, as characteristics may vary depending on the equipment option.
Recommended alternatives: Jinma 404, Shifeng 354, Dongfeng, Xingtai, Foton, Zoomlion, DTZ 5244NPH, Bulat 454, Bulat 250, Bulat 254, Belarus 320.4, Minitraktor Shifeng, DW 244, DTZ 5404K, Tractor Solis 26, Tractor Solis.
Technical specifications:
| Engine power, hp (kW) | 50 hp (36.8) |
| Wheel formula | 4x4 |
| Engine type | 4-stroke water-cooled diesel engine |
| Engine displacement, cm3 | 3456 |
| Nominal fuel consumption g / kWh | ≤257 |
| Nominal engine crankshaft speed, rpm | 2 350 |
| Gearbox (transmission) | non-synchronized, mechanical (4 forward + 1 reverse) x 2 |
| Rear differential lock | Yes |
| Clutch | Dry, two-disc |
| Power steering | Yes |
| Braking mechanism | two-disc wet brake |
| Power take-off (PTO) speed, rpm | 540/1000 |
| Maximum hitch lifting capacity, kg | 400.0 |
| Wheelbase, mm | 2010 |
| Front wheel track, mm | 1300 |
| Rear wheel track, mm | 1300-1600 |
| Front tire size | 8.30-20 |
| Rear tire size | 12.4-28 |
| Theoretical forward speed, km/h | 31.58 |
| Theoretical reverse speed, km/h | 10.43 |
| Fuel tank volume, L | 47 |
| Engine crankcase volume, L | 10 |
| Transmission and rear axle crankcase volume, L | 31 |
| Lift housing volume, L | 12 |
| Engine cooling system volume, L | 14 |
| Overall dimensions (LxWxH), mm | 3822/1640/2290 |
| Structural weight, kg | 2020 |
The additional text also mentions other dimensions of 3940x1625x2410 mm and a lifting capacity option of 740 kg for certain versions — please note these differences when choosing a configuration. The Jinma 504 Cab+AC stands out for its robust construction, ease of maintenance, and wide agricultural capabilities, making it an attractive option for medium-sized farms and budget municipal services.
