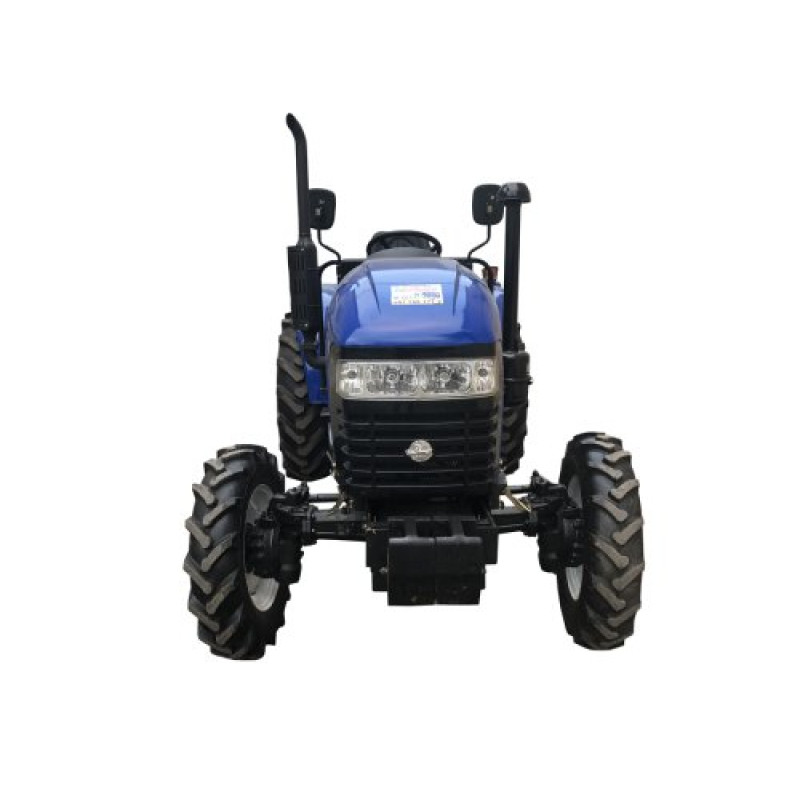

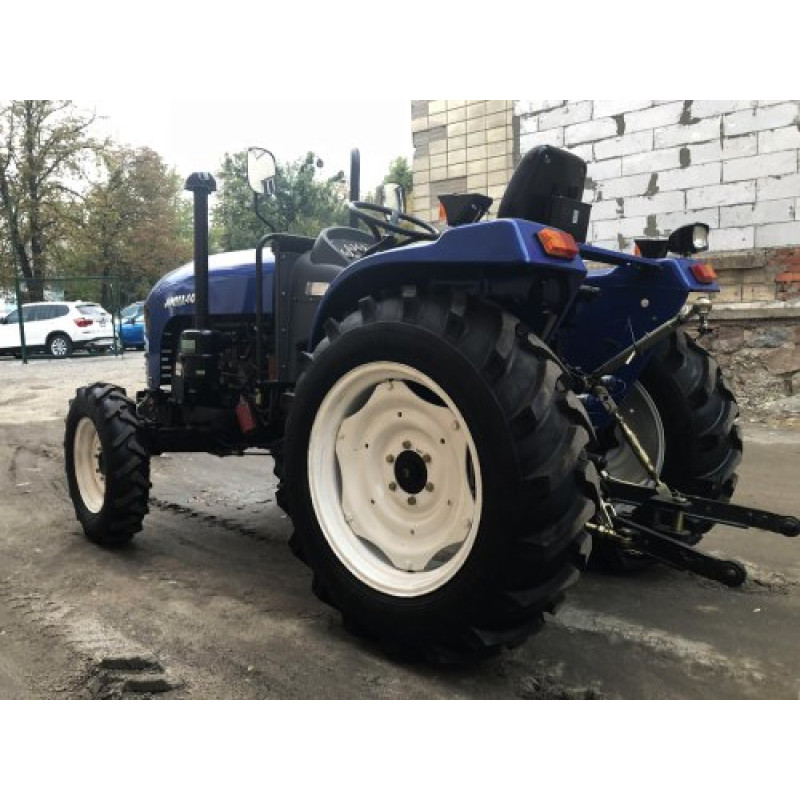

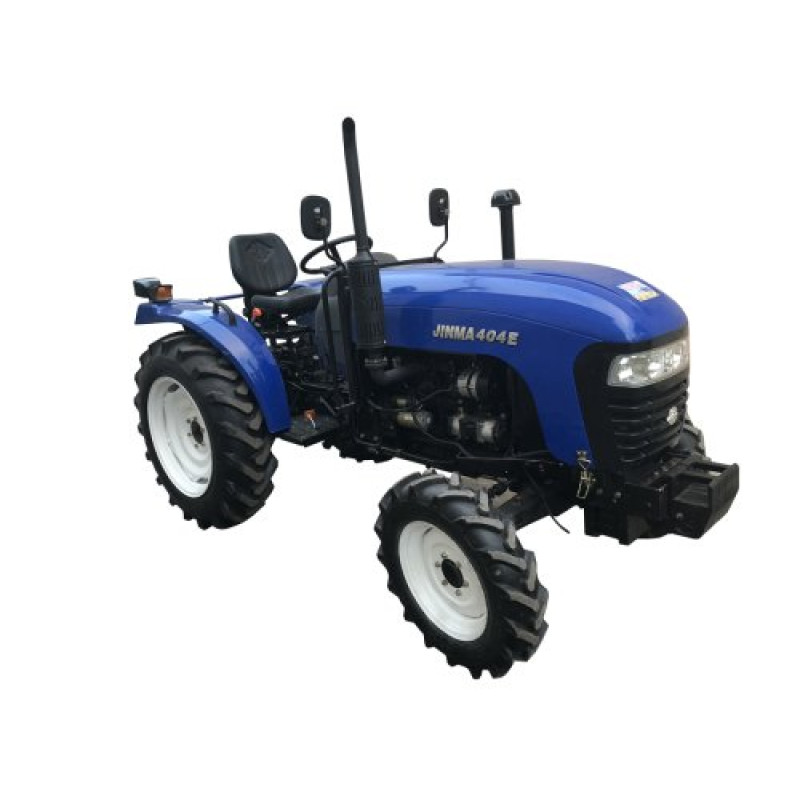

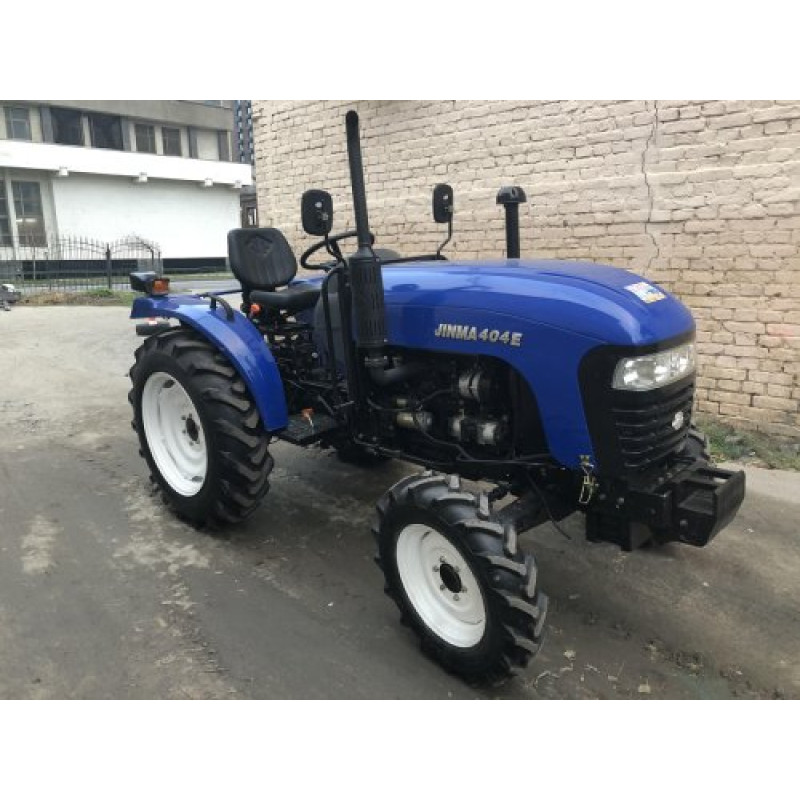

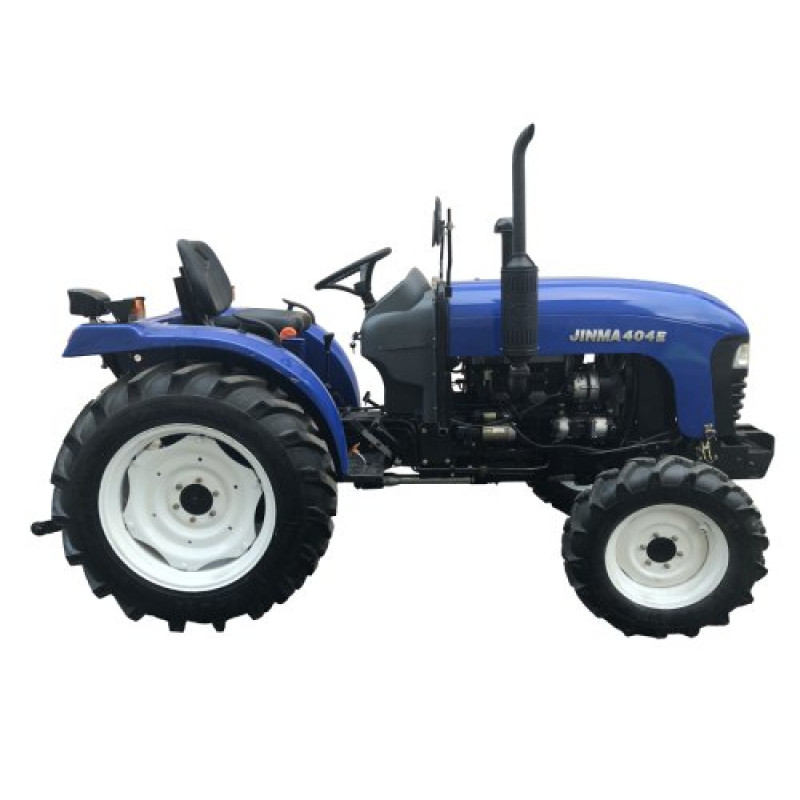

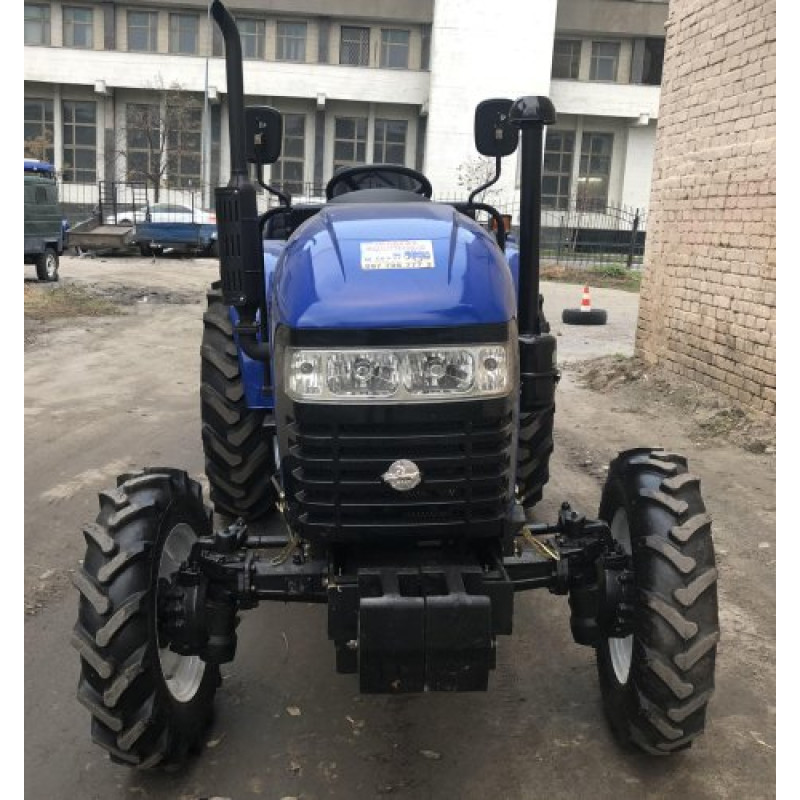

Mini Tractor Jinma 404 E — Overview and Specifications
Model: Mini Tractor Jinma 404 E. Brand: Jinma. Category: Tractors > Mini Tractors. This compact yet powerful mini tractor is designed for private households and small farms that require a versatile assistant for seasonal and year-round work.
According to the model description, the Jinma 404 E is equipped with a vertical three-cylinder four-stroke diesel engine with water cooling and pre-chamber injection — this information is provided in the introductory description. The tractor's power is 40 hp (29.4 kW), which ensures high productivity and allows for cultivating areas up to 10 hectares, as indicated by the manufacturer. At the same time, the technical table also mentions the number of cylinders — 4, which is reflected in the list of characteristics below (including all data from the original description).
A heated cabin allows the Jinma 404 E to be operated in cold weather, ensuring operator comfort throughout the season. For ease of control and reduced operator fatigue, the tractor is equipped with power steering. Cross-country capability and stability are enhanced by wider tire treads, adjustable rear wheel track, and the ability to lock the rear differential — this makes the machine suitable for both flat and rugged or mountainous terrain.
Areas of Application
- In agriculture: land cultivation, working with tillage and other mounted equipment.
- In construction: site planning, trench digging, material transport, and auxiliary work.
- In utilities: snow removal, waste collection, water pumping, and other seasonal tasks.
The mini tractor has received positive feedback for its versatility, reliability, and favorable price-quality ratio in the Ukrainian market. Customers can choose delivery options from Kyiv, Kharkiv, Poltava, Chernihiv, Vinnytsia, as well as the option to purchase on credit.
Key Advantages of Jinma 404 E
- Powerful diesel engine — 40 hp (29.4 kW) with water cooling.
- Power steering for comfortable and precise control.
- 4×4 all-wheel drive, differential lock, and high ground clearance for improved cross-country capability.
- Heated cabin for year-round operation.
- Adjustable front and rear wheel track for adaptation to various crops and working conditions.
Specifications:
| Type | vertical three-cylinder four-stroke diesel with water cooling, pre-chamber injection |
| Wheel formula | 4×4 (all-wheel drive) |
| Heated cabin | - |
| Power steering | + |
| Engine power | 40 hp / 29.4 kW |
| Displacement, cm3 | 2570 |
| Cylinder diameter / piston stroke | 90/100 |
| Number of cylinders | 4 |
| Pump type | plunger, in-line |
| Crankshaft speed | 2200 rpm |
| Lockable differential | + |
| Diesel consumption | 250 g/kW hour |
| Oil consumption | 2.72 g/kW hour |
| Engine start | electric starter with safe start |
| Cooling system fan drive | V-belt drive |

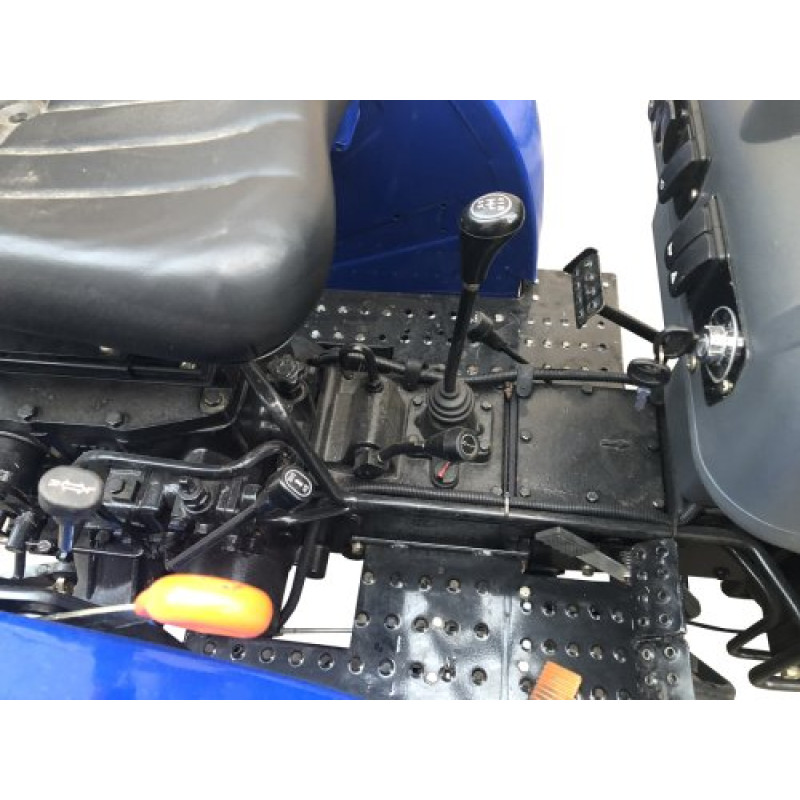

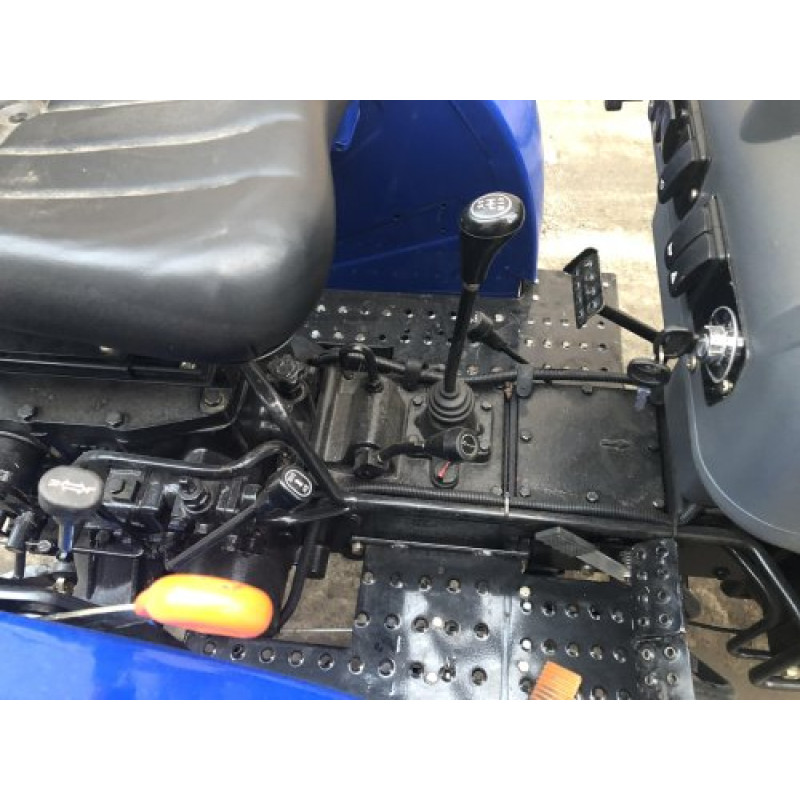

| Transmission | (4+1)×2 |
| Main gear | pair of bevel gears |
| Rear axle differential | four-satellite, conical, closed type, with lock |
| Front axle differential | conical, satellite, self-locking |
| Minimum turning radius with brake on one wheel / without brake | 3.4/4.2 m |
| Tractor frame | frameless |

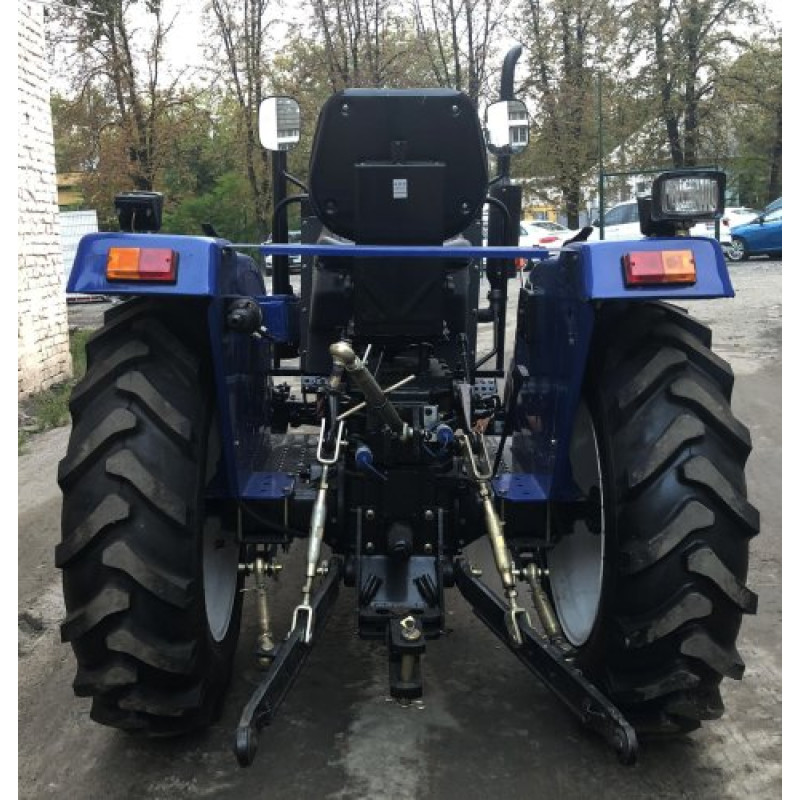

| Maximum lifting force of hitch mechanism | 6.7 kN |
| Tractive effort | 8.8 kN |
| Fuel tank capacity | 35 L |
| Engine crankcase capacity | 7 L |
| Transmission and rear / front axle crankcase capacity | 20.2/6.6 L |
| Lift housing capacity | 10 L |
| Engine cooling system capacity | 7.2 L |
| Oil type in transmission, rear / front axle | mineral for diesel engines |
| Engine oil type | mineral or semi-synthetic for diesel engines |
| Wheelbase | 1833 mm |
| Forward speed | 0.32- 26.4 km/h |
| Reverse speed | 0.26 - 11.34 km/h |
| Track width | front wheels - 1300 mm, rear wheels - 1150 - 1450 mm |
| Ground clearance | 295 mm |
| Clutch | dry, dual-disc |
| PTO | 540/1000 rpm, rear (2 rotation speeds) |
| Dimensions, length * width * height | 3825*1625*2065 mm |
| Weight | 1405 kg |
To buy the Jinma 404 E or get a consultation on configurations and prices in Ukraine, please contact the sales department. Delivery across Ukrainian cities and purchase on credit are available. This model combines reliability, ease of operation, and extensive capabilities for working with mounted and trailed equipment.
