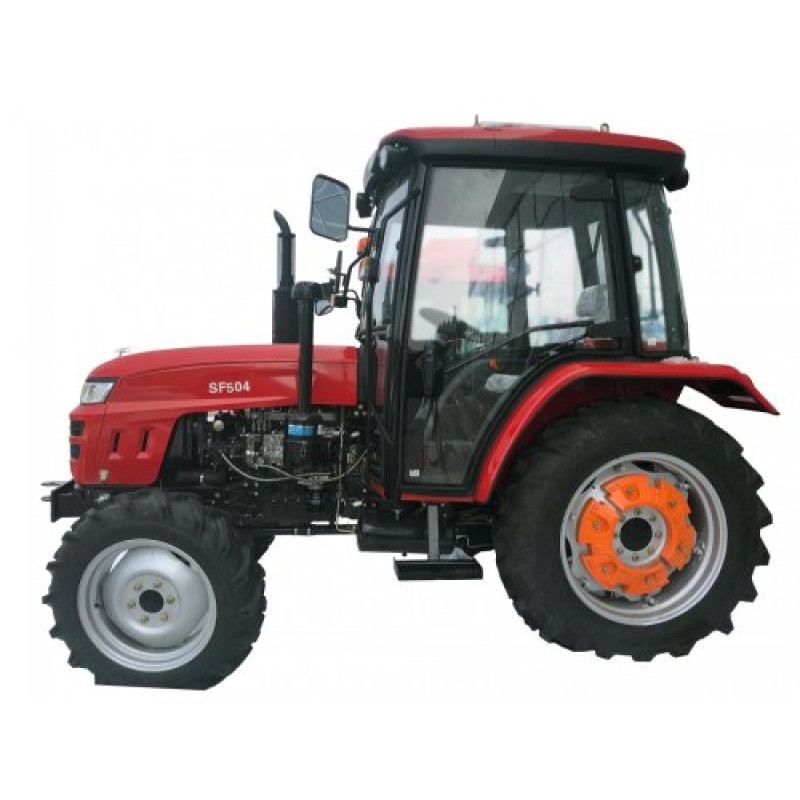

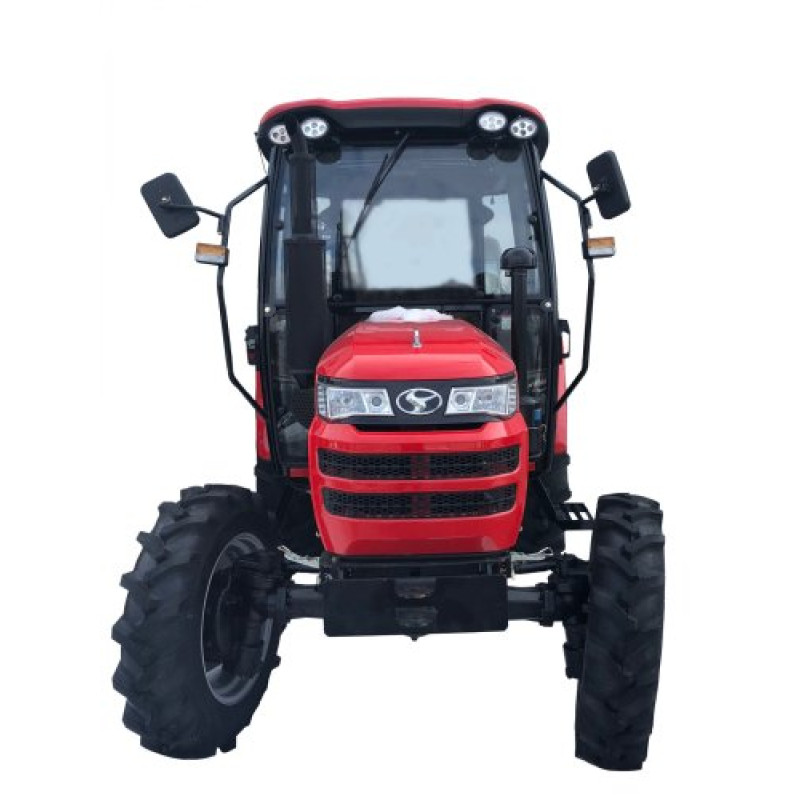

Mini Tractor Shifeng SF 504 Cab
The Shifeng SF 504 Cab mini tractor is reliable Chinese specialized equipment from the Shifeng brand for agricultural, municipal, and construction work. This model belongs to the category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors. The SF 504 Cab is a full-fledged 4WD mini tractor with a cab, combining an economical diesel engine, robust construction, and convenient options for working in difficult conditions. Warranty: 1 year or 500 engine hours. Delivery is available throughout Ukraine, payment options include full payment or purchase on credit.
Engine and Fuel Consumption

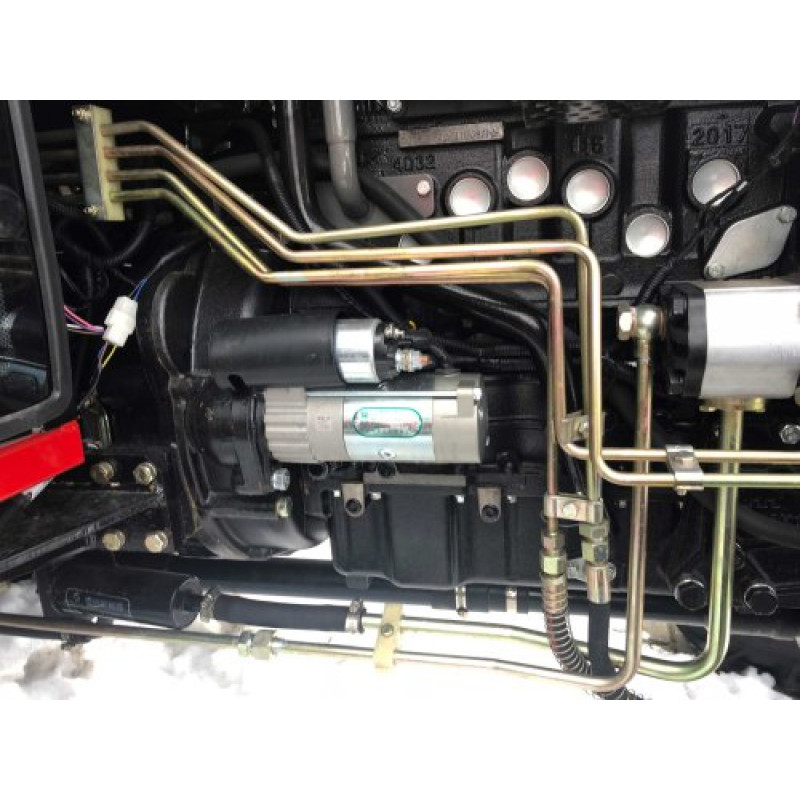

The mini tractor is equipped with a 4-cylinder diesel engine with water cooling and a volume of 3.2 L. The engine power is 50 hp (36.8 kW), with fuel consumption of 272 g/kWh. The engine can be started both with an electric starter and manually, ensuring reliable operation in the field and on the farm in various weather conditions.
Transmission, Drive, and Chassis
The transmission is a stepped mechanical type with a (4+1)x2 mode, effectively providing 8 forward and 2 reverse speeds. The drive is full (4WD) with rear differential lock for increased cross-country capability in hard-to-reach areas. Hydraulic power steering, clutch – dry dual-disc. Minimum ground clearance is 280 mm, wheelbase – 2040 mm, overall dimensions: 3685/1666/2210 mm. The total weight of the tractor is 2200 kg.
Braking System, Suspension, and Wheels
The rear axle is equipped with drum brakes and a parking brake. The high-strength suspension ensures a long service life and comfort during operation. Rear wheel size: 12.4-28, front: 8.3-20. Track width adjustment is provided – wheel discs can be turned inwards or outwards on the front and rear axles to increase maneuverability in narrow spaces.
Hydraulics, PTO, and Attachments

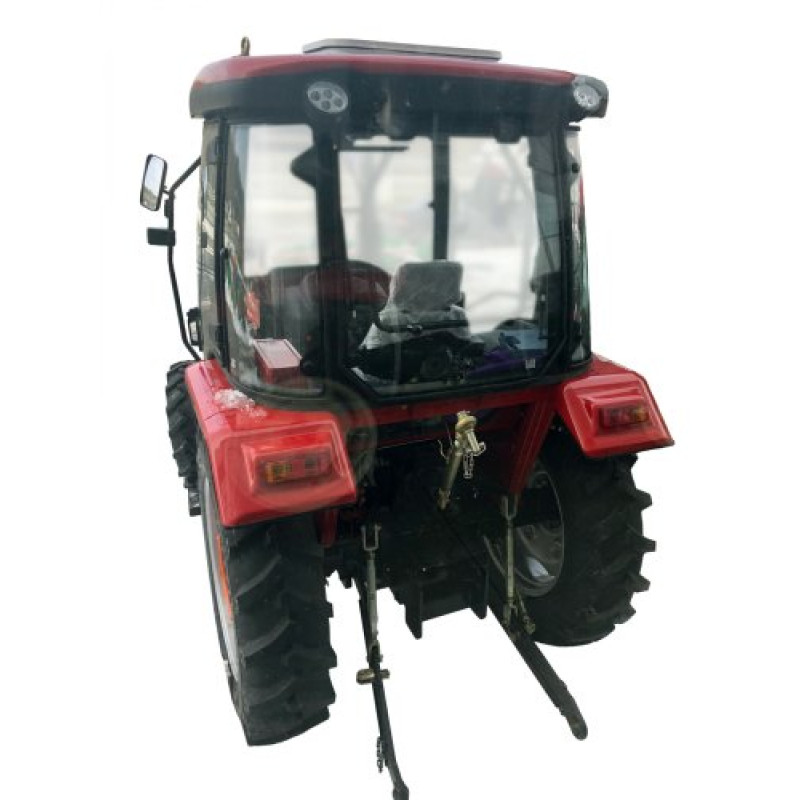

PTO – independent, number of splines: 6. Remote hydraulics are represented by two channels that operate the main trailed and mounted mechanisms. The possibility of installing attachments at the front and rear is provided. The hitch is height-adjustable, allowing for the mounting of a wide range of attachments for agriculture, municipal work, and construction.
Additional Features and Application
The mini tractor is equipped with a compressor (+), which facilitates maintenance and work with pneumatic systems. The SF 504 Cab design provides increased stability and reliability in field conditions. Recommended for farms, municipal services, and enterprises that require a versatile and durable machine.
Among similar models also worth considering: Jinma 404, Shifeng 354, Dongfeng, Xingtai, Foton, Zoomlion, DTZ 5244, Bulat 454, Bulat 250, Bulat 254, Belarus 320.4, Shifeng 350, DW 244, DTZ 5404K, Solis 26, Solis RX 50.
Technical specifications of Shifeng SF 504 Cab:
| Number of cylinders: | 4 |
| Engine power: | 50 hp/36.8 kW |
| Fuel consumption: | 272 g/kWh |
| Engine start type: | electric starter |
| Transmission type: | 4WD, classic (direct) |
| PTO type: | independent |
| Number of splines: | 6 PTO |
| Steering: | hydraulic |
| Remote hydraulics: | two channels |
| Clutch: | dry dual-disc |
| Wheelbase, mm: | 2040 |
| Minimum ground clearance, mm: | 280 |
| Rear wheel size: | 12.4-28 |
| Front wheel size: | 8.3-20 |
| Overall dimensions, mm: | 3685/1666/2210 |
| Number of gearbox speeds: | (4+1)x2 |
| Compressor: | + |
| Weight: | 2200 kg |
Interested in the price or delivery terms? Contact us for a detailed commercial offer, payment options, and assistance in choosing attachments according to the needs of your farm or enterprise.
