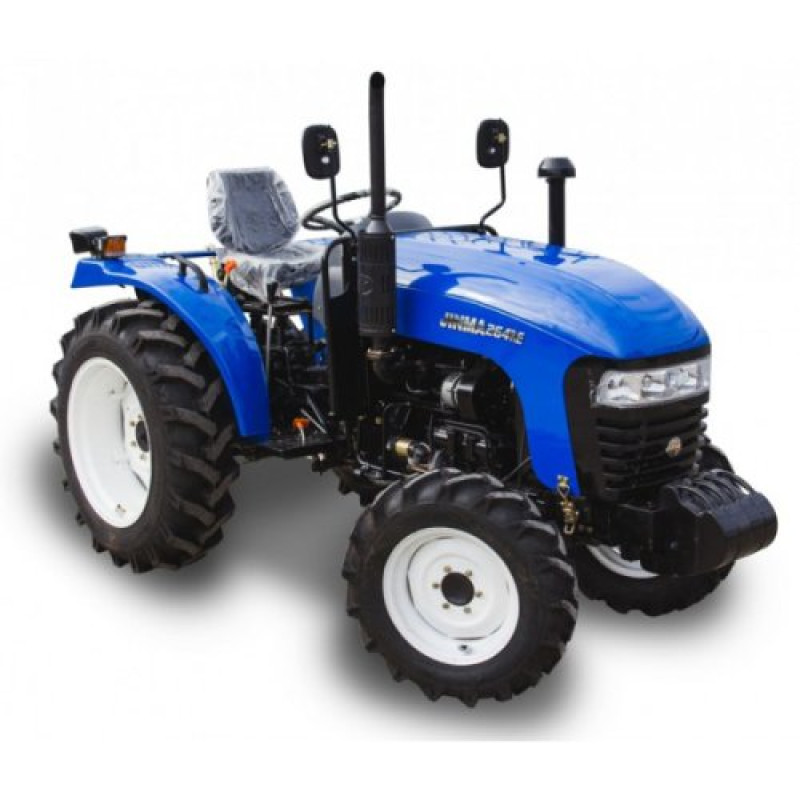

Jinma 264 RE Mini Tractor — A Reliable All-Rounder for Farmers and Municipal Works

Introducing the Jinma 264 RE Mini Tractor from manufacturer Jinma — a compact and powerful 4x4 mini tractor with reverse, designed for a wide range of agricultural, municipal, and utility tasks. The heart of the machine is the KM385BT diesel engine, a three-cylinder, 4-stroke, water-cooled unit with a displacement of 1532 cm3, and a nominal crankshaft speed of 2350 rpm. The estimated power is 24 hp (17.6 kW), ensuring an optimal balance of performance and fuel consumption (nominal consumption ≤ 275 g/kWh).

The transmission is a reversible mechanical gearbox with a (4+4) x2 configuration, effectively providing 8 forward + 8 reverse gears, which enhances maneuverability and productivity by allowing direction changes without a full stop. The front axle is connectable, so the drive can operate as full-time (4x4) when needed, and there is a rear differential lock for improved off-road capability. The clutch is dry, dual-disc; brakes are drum-type. Power steering is installed for comfortable operation.

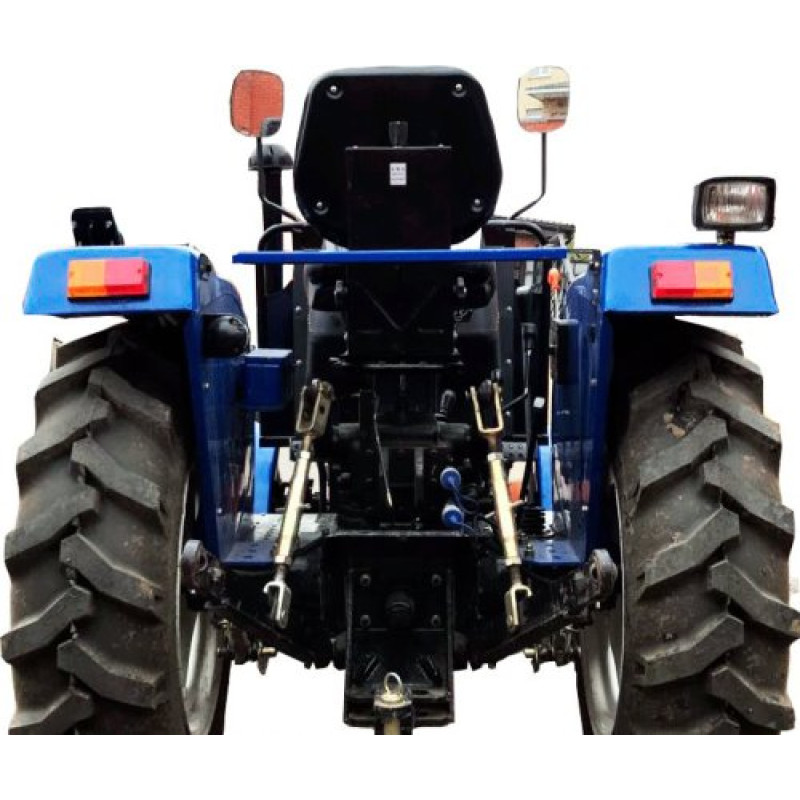

The PTO (power take-off) operates at standard speeds of 540 rpm, while the engine rotates at 2350 rpm in nominal mode. The maximum lifting capacity of the three-point hitch is 400 kg, allowing for effective use of a wide range of mounted and trailed equipment.

Dimensions, Tires, and Operating Parameters

The model's dimensions are specified in two close variants: 3085/1440/1930 mm or in the technical table as 3080/1280/1930 mm. The wheelbase is 1595 mm. Front tire size is 6.5-16, rear is 11.2-24. Front wheel track is 1070~1270 mm, rear is 1040~1200 mm, allowing for track width adjustment to adapt the tractor to different crop row spacings. Theoretical travel speed: forward — 26.4 km/h, reverse — 11.0 km/h. Nominal traction force — 7.7 kN. The machine's structural weight is 1350 kg.

Fluids and volumes: fuel tank — 18 L, engine crankcase volume — 4 L, gearbox and rear axle crankcase volume — 14 L, hydraulic lift housing volume — 9 L, engine cooling system volume — 12 L.

Advantages and Applications

• The reversible gearbox allows changing direction without a full stop, increasing operational speed.
• Full-time four-wheel drive with connectable front axle and differential lock enhances off-road capability on challenging terrain.
• Power steering makes control easy and precise, even with mounted equipment.
• Reliable KM385BT 24 hp diesel engine is designed for intensive use in the field and on the farm.
• Wide range of possibilities for mounted equipment thanks to 540 rpm PTO and floating hydraulic mode — ideal for inter-row cultivation, plowing, tilling, and other tasks.

The Jinma 264 RE model is suitable for both private farms and small to medium-sized agribusinesses: convenient geometry, adjustable axles, significant lifting capacity, and an economical engine ensure high productivity with moderate operating costs.

Delivery and service: Flash Army online store provides free delivery throughout Ukraine, consults on selection and maintenance, and offers installment purchase options. For orders or technical details, contact our manager — we will help with selecting mounted equipment and arrange delivery.

• 1. We sell only verified and original equipment.
• 2. We deliver to any city in Ukraine for free.
• 3. We provide consultations on operation and maintenance.
• 4. Installment options are available for customers.

Technical Specifications:

If you need additional information, a test drive, or a personalized offer — contact the sales department, our manager will provide delivery terms and help select mounted equipment for your tasks.
