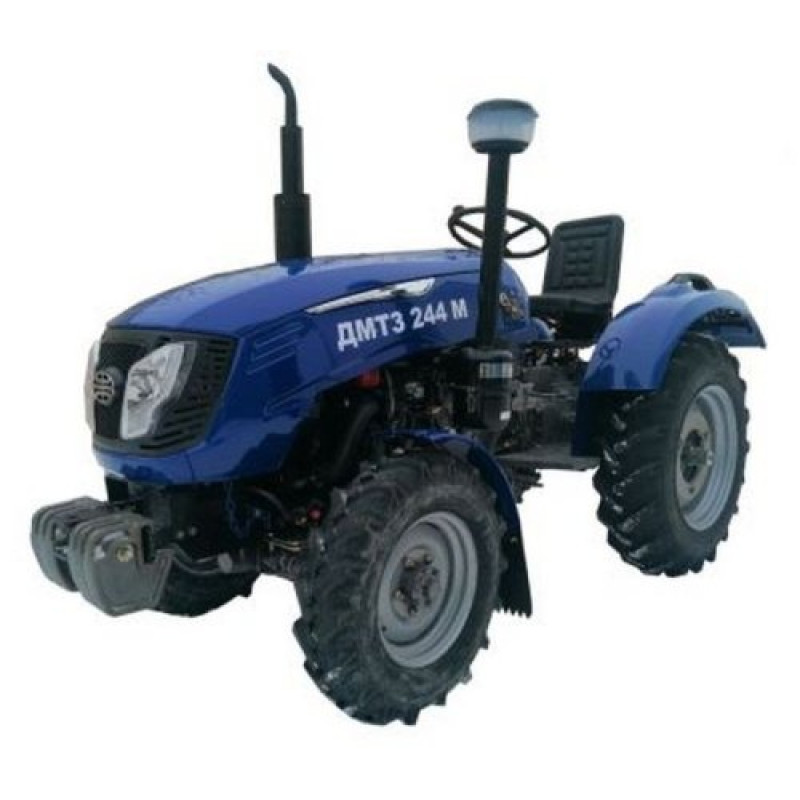

Mini Tractor DMTZ 244 M
Brand: DMTZ. Category: Tractors > Mini Tractors. The DMTZ 244 M mini tractor is a compact, reliable, and versatile unit designed for private farms, agricultural work, municipal tasks, and small construction projects. The combination of 4x4 all-wheel drive, robust construction, and an economical diesel engine makes this model convenient for working on difficult terrain and in confined spaces.
Description and Purpose
The mini tractor is equipped with a KM 385 engine, which develops 24 hp (17.6 kW), providing sufficient power for plowing, cultivating, tilling, transportation, and working with various mounted and trailed equipment. The structural weight is 1,064 kg, the clearance is 220 mm, and the agrotechnical ground clearance of 330 mm ensures stability in operation and the ability to safely maneuver between rows. Hydraulic power steering makes control easy and precise even during intensive use.
Technical Specifications
| Wheel formula | 4x4 |
| Engine model | KM 385 |
| Engine power, hp and kW | 24 hp or 17.6 kW |
| Number of engine cylinders | 3 |
| Cylinder diameter | 85 mm. |
| Piston stroke | 90 mm. |
| Fuel consumption | up to 244 g/(kWh) |
| Wheelbase, mm | 1,560 mm. |
| Overall dimensions, mm | 3,100 mm x 1,240 mm x 1,940 mm |
| Front wheel track, mm | 980 mm. |
| Rear wheel track, mm | 980 mm - 1,100 mm |
| Agrotechnical ground clearance, mm | 330 mm. |
| Clearance, mm | 220 mm. |
| Structural weight, kg | 1,064 kg. |
| Number of gears | (3+1)x2 |
| Clutch | Single-disc dry |
| PTO speed, rpm | 540 rpm |
| Front wheel size | 6.00x14 |
| Rear wheel size | 9.50x20 |
| Steering type | Hydraulic power steering |
Thanks to the (3+1)x2 transmission, the operator can precisely select the speed mode for various operations: from slow, heavy field work to faster transportation. The 540 rpm PTO ensures compatibility with most mounted and trailed equipment, making the tractor versatile in application.
Advantages and Operational Features
- Reliable three-cylinder KM 385 engine with sufficient service life and efficiency.
- 4x4 all-wheel drive for increased проходимость on difficult terrain.
- Adjustable rear wheel track width (980–1,100 mm) for adaptation to various crops and tasks.
- High agrotechnical clearance of 330 mm allows working between rows and in fields without damaging plants.
- Single-disc dry clutch and hydraulic power steering for comfortable and precise control.
- Economical fuel consumption of up to 244 g/(kWh), reducing operating costs.
The DMTZ 244 M mini tractor is an excellent choice for owners of small and medium-sized farms, municipal services, and enterprises requiring multifunctional equipment. It is suitable for soil cultivation, garden and vineyard care, transportation, work with mounted implements, and other tasks where reliability, maneuverability, and economy are important.
