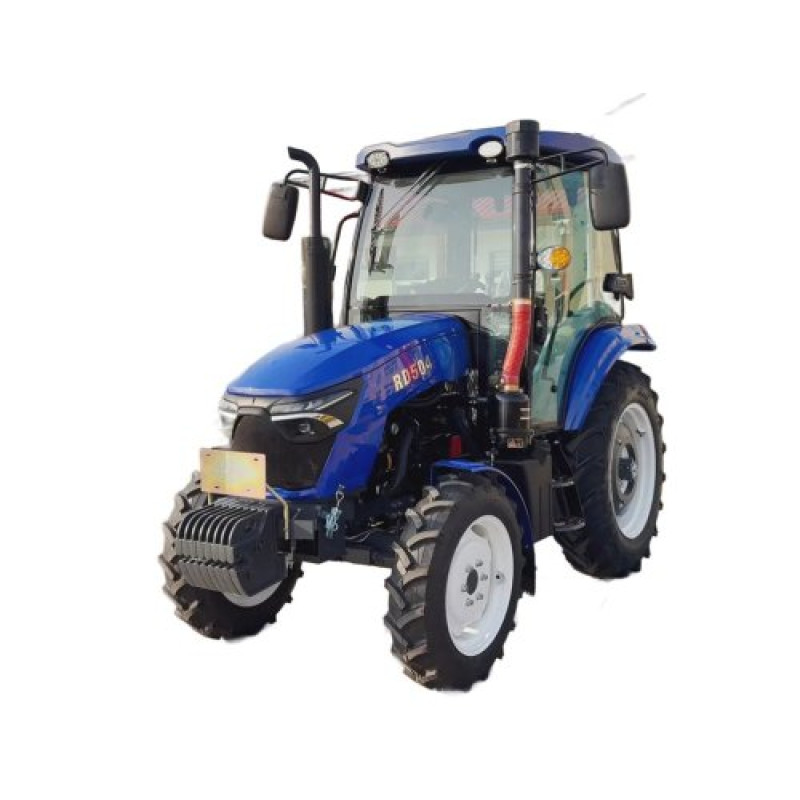

Faighter T-504CRD Mini Tractor with Air Conditioner — a powerful and reliable 50-horsepower (50 (29.42) hp) diesel mini tractor, designed for efficient operation in farms, private households, and agricultural enterprises. This model combines high traction characteristics, ease of maintenance, and enhanced operator comfort thanks to a closed cabin with air conditioning and heating.
- Engine Power: 50 hp (29.42 kW)
- Wheel Formula: 4x4 — all-wheel drive for better cross-country capability
- Engine: 4 cylinders, KM495BT diesel engine
- Engine Displacement: 3170 cm3
- Transmission Type: mechanical with reverse (Gearbox (4+4)x2 mechanical)
- Cabin: closed, with air conditioning, heating, and ergonomic seat
The Faighter T-504CRD is designed for a wide range of agricultural tasks: plowing and soil preparation for sowing, sowing and harvesting crops, mowing and haymaking, cargo transportation, and working with trailed and mounted implements. Thanks to its all-wheel drive and robust construction, it ensures stability on various soil types and in challenging conditions.
Key advantages of the model include:
- high productivity and fuel efficiency in field operations;
- reliable KM495BT diesel engine and durable transmission components;
- comfortable ergonomic cabin with air conditioning and heating, reducing operator fatigue during long shifts;
- mechanical reverse and (4+4)x2 gearbox for precise maneuvering even in narrow spaces;
- rear three-point hitch with a maximum lifting capacity of up to 880 kg for a wide range of implements;
- rear differential lock and power steering for better control on difficult terrains.
Special attention has been paid to ergonomics and operational convenience: the air conditioner protects the operator from dust and heat, a large fuel tank ensures long operation without frequent refueling, and a well-thought-out design facilitates maintenance.
Technical Specifications
| Engine power, hp (kW) | 50 (29.42) |
| Wheel formula | 4x4 |
| Engine type | 4 cylinders, KM495BT diesel engine |
| Engine displacement, cm3 | 3170 |
| Rated fuel consumption g/kWh | ≤243 |
| Rated engine crankshaft speed rpm | 2400 |
| Rated traction force kN | 13.5 |
| Gearbox | mechanical (4+4)x2 |
| Rear differential lock | yes |
| Clutch | dry, dual-disc |
| Power steering | yes |
| Brake mechanism | on rear wheels, disc, with mechanical drive, twin pedals |
| PTO speed rpm | 540/1000 |
| Maximum lifting capacity of hitch mechanism, kg | 880 |
| Front wheel track, mm | 1260-1460 |
| Rear wheel track, mm | 1180-1440 |
| Front tire size | 8.3-20 |
| Rear tire size | 12.4-28 |
| Fuel tank capacity L | 50 |
| Overall dimensions (LxWxH), mm | 3350x1890x2650 |
| Structural weight, kg | 2020 |
The Faighter T-504CRD Mini Tractor with Air Conditioner is a versatile assistant for modern farming: suitable for field cultivation, greenhouse work, haymaking, and loading/unloading operations. Its reliable construction, well-designed transmission, and comfortable cabin make this model a profitable investment for those who value productivity, durability, and operational comfort.
Brand: Faighter. Product category: Tractors > Mini Tractors.
