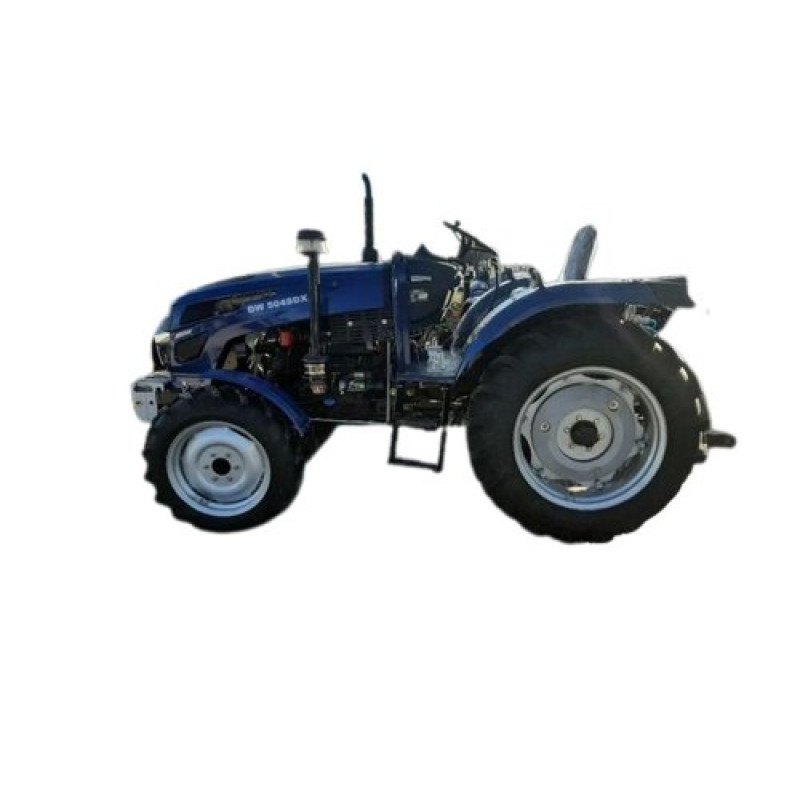

Mini Tractor DW 504 SDX — A Powerful and Reliable Choice for Your Farm
The DW 504 SDX mini tractor from manufacturer DW is a versatile machine in the Mini Tractors category, designed for a wide range of agricultural and farm tasks. The DW 504 SDX features a 4-stroke, 4-cylinder engine, model 4L100BT-105A, with water cooling, ensuring stable and durable operation under intensive loads. The tractor's power is 36.8 kW (50 hp), making it suitable for field cultivation, garden work, cargo transportation, and use with various attachments.
| Engine type: | 4-stroke, 4-cylinder, 4L100BT-105A |
| Power, kW: | 36.8 |
| Power, hp: | 50 |
| Cooling: | water |
| Fuel tank capacity, L: | 25 |
| Engine RPM, rpm: | 2350 |
| Engine start: | electric starter |
| Oil volume in crankcase, L: | 3.5 |
| Cooling system volume, L: | 5 |
| Bore and stroke, mm: | 85/95 |
| Oil consumption, g/kWh: | 2.04 |
| Fuel delivery: | direct injection |
| Oil pump: | plunger, in-line |
| Clutch type: | dry, twin-disc |
| Ground clearance, mm: | 460 |
| Differential lock: | yes |
| Brake system: | drum brakes |
| Front wheel track, cm: | 1300-1400 |
| Rear wheel track, cm: | 1300-1600 |
| Turning radius, m: | 4.2 |
| Wheel formula: | 4x4 (all-wheel drive) |
| Front tires: | 8.30-20 |
| Rear tires: | 12.40-28 |
| Overall dimensions L/W/H, mm: | 3550/1600/2100 |
| Steering: | with power steering |
| PTO shaft speed: | 540/720 |
| Maximum lifting capacity of hitch mechanism, kg: | 650 |
| Wheelbase, mm: | 1985 |
| Weight, kg: | 1750 |
The DW 504 SDX is equipped with an electric starter and a 25 L fuel tank, ensuring convenient starting and long operation without frequent refueling. The cooling system volume of 5 L and crankcase oil volume of 3.5 L guarantee efficient thermal management and reliable lubrication. The direct injection fuel delivery system and plunger in-line oil pump enhance engine efficiency and longevity; oil consumption is 2.04 g/kWh.
The tractor's design features emphasize its off-road capability and maneuverability: high ground clearance of 460 mm, 4x4 all-wheel drive, differential lock, drum brakes, and a turning radius of just 4.2 m. Adjustable front (1300-1400 mm) and rear (1300-1600 mm) wheel tracks allow the machine to adapt to various crops and working conditions. Front tires 8.30-20 and rear tires 12.40-28, along with a wheelbase of 1985 mm, ensure stability and optimal ground contact.
Power steering enhances comfort during prolonged operation, and the selectable PTO speed of 540/720 rpm makes the DW 504 SDX compatible with most attachments. The maximum lifting capacity of the hitch mechanism, 650 kg, allows for the use of a wide range of trailed and mounted equipment.
The DW 504 SDX is ideal for farmers, owners of small and medium-sized farms, municipal services, and businesses requiring a reliable, powerful, and economical mini tractor. The combination of 50 hp, all-wheel drive, and well-designed oil and fuel systems makes this model efficient for intensive daily use.
- Manufacturer: DW
- Model: DW 504 SDX
- Category: Mini Tractors
- Power: 36.8 kW / 50 hp
- Drive: 4x4
