The DW 504 G mini-tractor is a reliable, budget-friendly 50-horsepower assistant from the DW brand, designed for agricultural, communal, and private farming.

Brief Model Description

The DW 504 G is equipped with a four-stroke, four-cylinder KM495 diesel engine with water cooling, with a nominal power of 33.1 kW (45 hp) at 2350 rpm. Thanks to its 21 L tank, the tractor has a long operating life without frequent refueling. Engine start is provided by an electric starter; the model description also mentions the possibility of manual start, which increases reliability in field conditions. Under the hood, a generator and battery are located to power the electronics and ensure comfortable starting.

Advantages and Purpose

The DW 504 G mini-tractor is designed for a wide range of tasks: field cultivation, inter-row processing, gardening, communal work, and short-distance transport. The model stands out for its high cross-country capability thanks to its 4x4 all-wheel drive, 300 mm ground clearance, and large 11.20-24 rear tires with an aggressive tread, ensuring reliable grip even on wet or uneven terrain. The 7.50-16 front tires and adjustable track allow the tractor to adapt to various row spacings.

Advantages:

• 1. Budget-friendly cost with sufficient functionality and reliability.
• 2. High cross-country capability and adjustable track for inter-row work.
• 3. Maneuverability due to a small turning radius — 3.2 m.
• 4. Powerful hydraulics and compatibility with over 30 types of mounted and trailed equipment.
• 5. Extended manufacturer's warranty of 24 months, including spare parts and tools.

Technical Features and Operation

The mechanical gearbox has 10 gears (a combination of high and low ranges), allowing precise speed selection for various operations. The clutch type is dry, single-disc; there is a differential lock for working in difficult conditions. The brake system consists of drum brakes. The in-line plunger oil pump ensures stable oil supply; the oil volume in the crankcase is 3.5 L, oil consumption is 2.04 g/kW·h, cooling system volume is 5 L, and bore and stroke are 85/95 mm.

The power take-off (PTO) shaft operates at 540/720 rpm, allowing a wide range of mounted equipment to be connected. The maximum lifting capacity of the hitch mechanism is 650 kg. The wheelbase is 1800 mm, overall dimensions L/W/H: 3460/1550/2000 mm, and the tractor's weight is 1600 kg. The maximum travel speed is specified in the range of 2.12–31.39 km/h, which ensures both field work and road travel.

Configuration and Additional Options

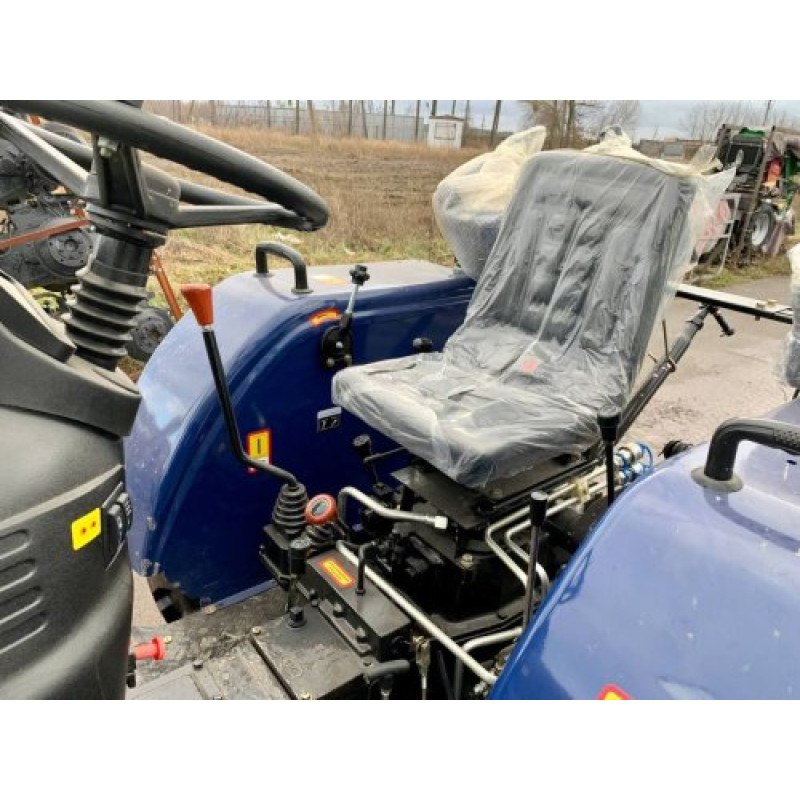

The standard configuration of the DW 504 G includes a pair of hydraulic outlets, an electrical socket for a trailer, fenders for the front and rear wheels, an automotive-type dashboard, and optics. The steering is equipped with power steering to reduce operator fatigue. A wide range of mounted equipment is available for the tractor: plows, cultivators, potato diggers, trailed sprayers, and other implements.

Purchase Conditions and Service

The Flash Army online store is an official representative of DW in Ukraine and offers the DW 504 G for purchase with the option of credit or installment payments. Delivery of equipment and mounted implements across Ukraine is free, and payment is possible upon receipt by a convenient method. The availability of service support, warranty and post-warranty maintenance, as well as spare parts, makes operation simple and cost-effective.

The DW 504 G model is suitable for farms, horticulture, work at communal enterprises, and private household plots where compact but powerful machinery with wide compatibility of mounted equipment is required.
