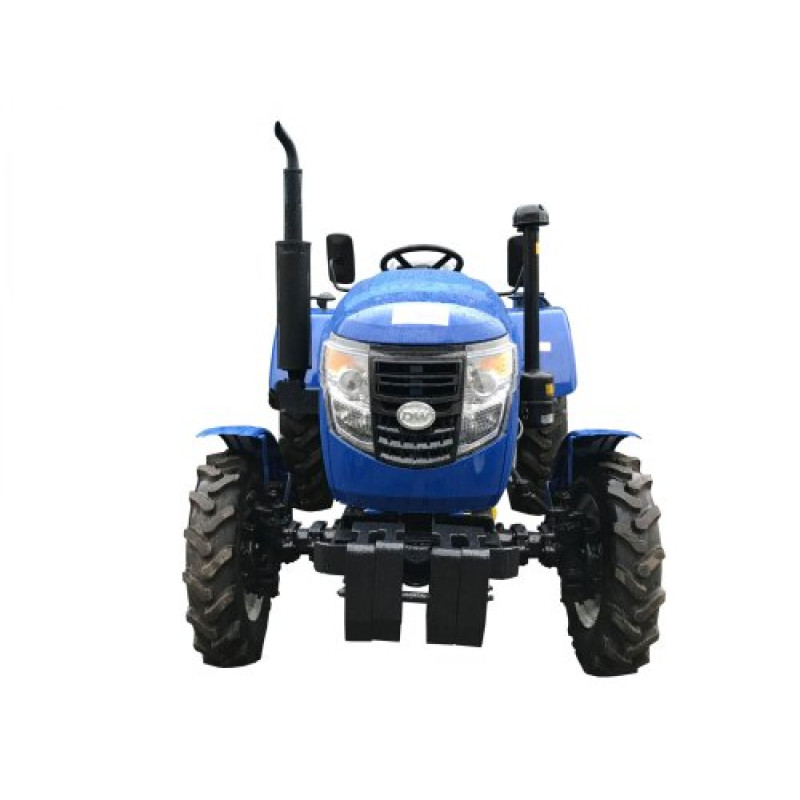

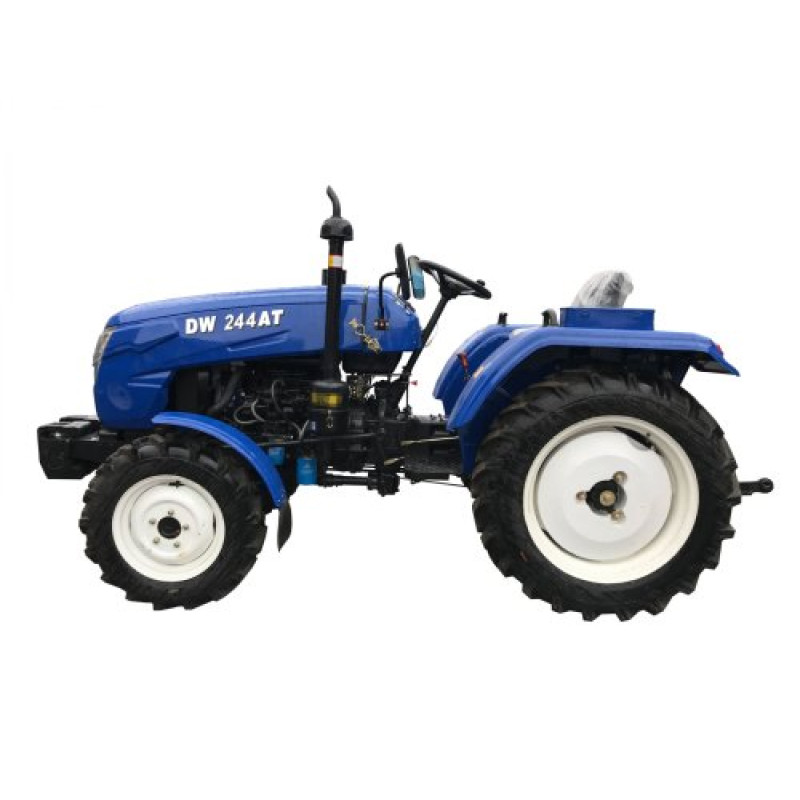

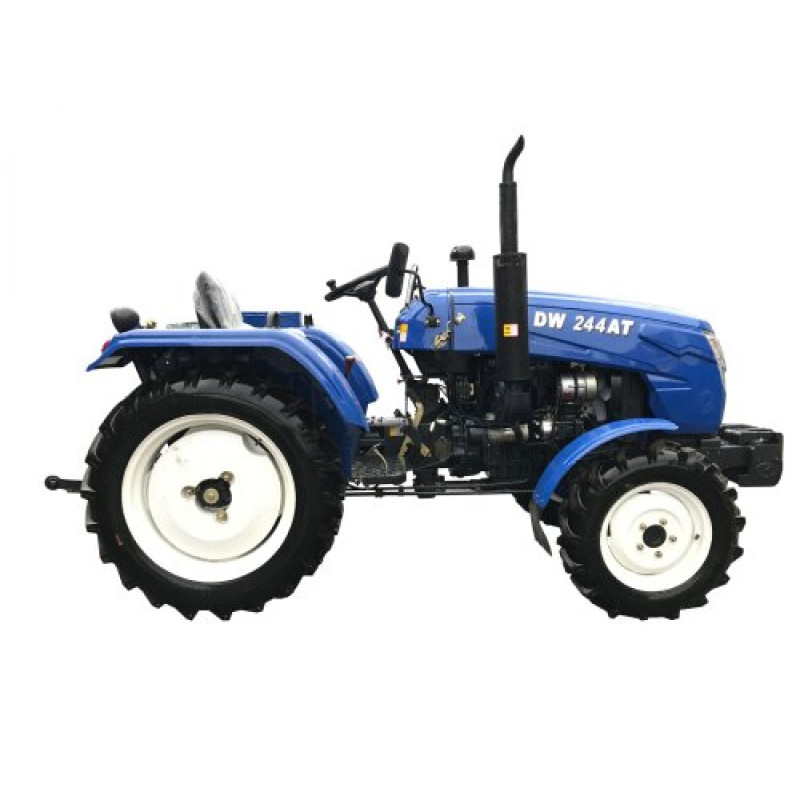

Mini Tractor DW 244AT — Overview

The Mini Tractor DW 244AT from the DW brand is a compact yet powerful 24 hp mini tractor designed for a wide range of agricultural, municipal, and private tasks. This model belongs to the category Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors and offers 4×4 all-wheel drive, which enhances cross-country capability and operational efficiency on various soil types.

Engine, Transmission, and Key Specifications

The DW 244AT is equipped with a vertical 3-cylinder, 4-stroke diesel engine with a displacement of 1530 cm³ and forced liquid cooling, delivering a nominal power of 24 hp (24.0 hp). The cylinder bore/piston stroke is 85/90 mm, the nominal shaft speed is 2300 rpm, and the nominal traction force is 7.2 kN. The engine is started by an electric starter with safe start. Engine type: diesel, vertical, with forced liquid cooling.

The transmission is mechanical with 8 forward and 2 reverse gears (8 forward/2 reverse). The theoretical forward speed is 0.37-30.64 km/h, and reverse is 0.49-12.23 km/h. The PTO operates at 540/720 rpm. The clutch is dry, single-disc. The gearbox is mechanical. Wheel drive type: all-wheel drive (4×4).

Operational Capabilities and Equipment

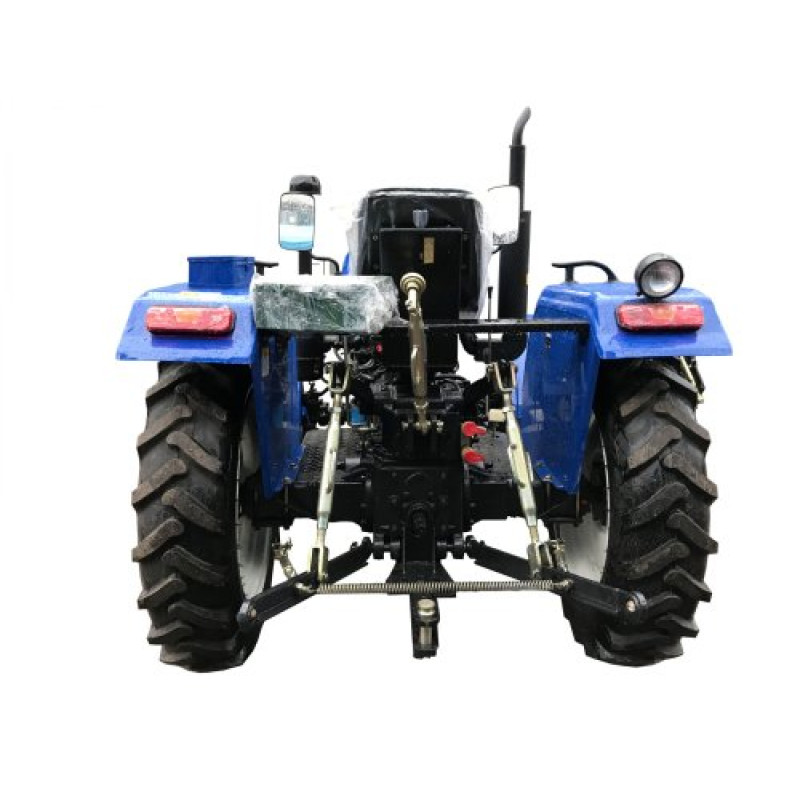

The DW 244AT is suitable for plowing, soil cultivation, sowing, harvesting, cargo transportation, and snow removal. The lifting capacity of the three-point hitch is up to 500 kg. The model is equipped with a trailer socket (yes) for convenient trailer attachment. Differential lock — yes, which improves cross-country capability in difficult conditions. The braking mechanism is drum-type; separate drum brakes ensure safe braking.

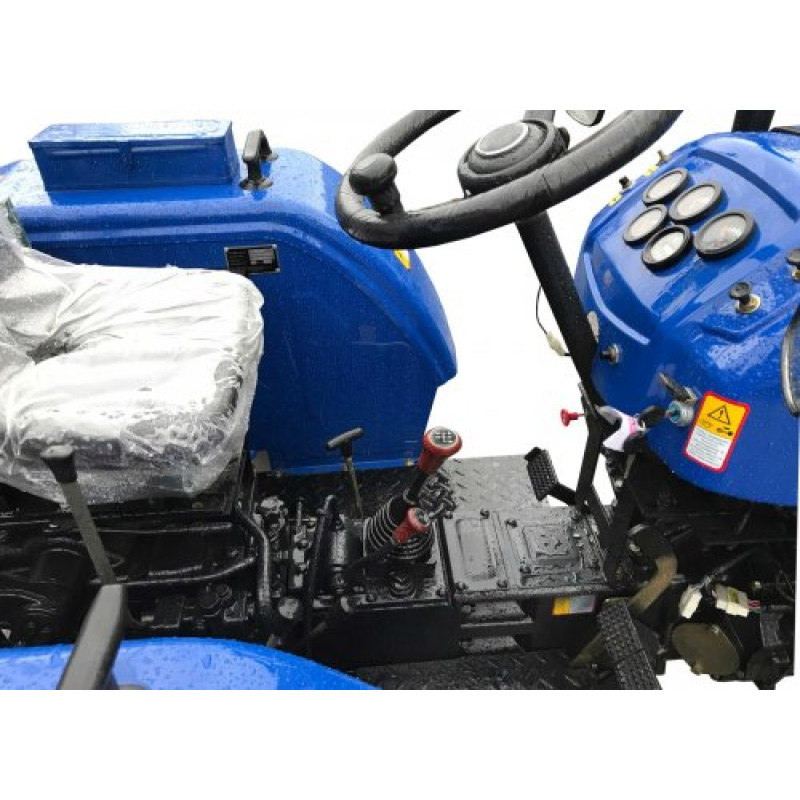

The hydraulic system features a gear pump, with 1 hydraulic output. The fuel system uses a plunger fuel pump. The cooling system fan is driven by a V-belt. The driver's seat with shock absorber ensures comfort during long operation.

Fuel tank capacity — 21 L. Recommended engine oil: mineral or semi-synthetic for diesel engines; for gearbox and axles — transmission oil. Crankcase volumes: engine — 3.0 L; gearbox and rear axle — 11 L; front axle — 3.0 L. Engine cooling system volume — 6.0 L. Stated fuel consumption is 275 g/kW*h, nominal engine oil consumption is 2.31 g/kW*h.

Tractor dimensions: 3350x1500x1860 mm, wheelbase — 1750 mm. Rear wheel track — 1260 mm, front — 1220 mm. Tire sizes: rear 9.5-24, front 6.5-16. Minimum ground clearance is 330 mm. Minimum turning radius, depending on braking mode, is 2.4–2.8 m, making the tractor very maneuverable in confined spaces.

The description provides two weight specifications: some sources indicate 1255 kg, others 1325 kg. Both values are retained in the technical data and may vary depending on configuration and measurement method.

The DW 244AT is recommended for those seeking reliable and easy-to-maintain equipment for sowing, cultivation, cargo transportation, snow removal, and other tasks. The model combines reliable mechanics, operator comfort (seat with shock absorber), and basic versatility for attachments.

Recommended accompanying models and analogues: Jinma 404, Shifeng 354, Dongfeng, Xingtai, Foton, Zoomlion, DTZ 5244NRX, Bulat 454, Bulat 250, Bulat 254, Belarus 320.4, Minitractor Shifeng, DW 244, and others.
