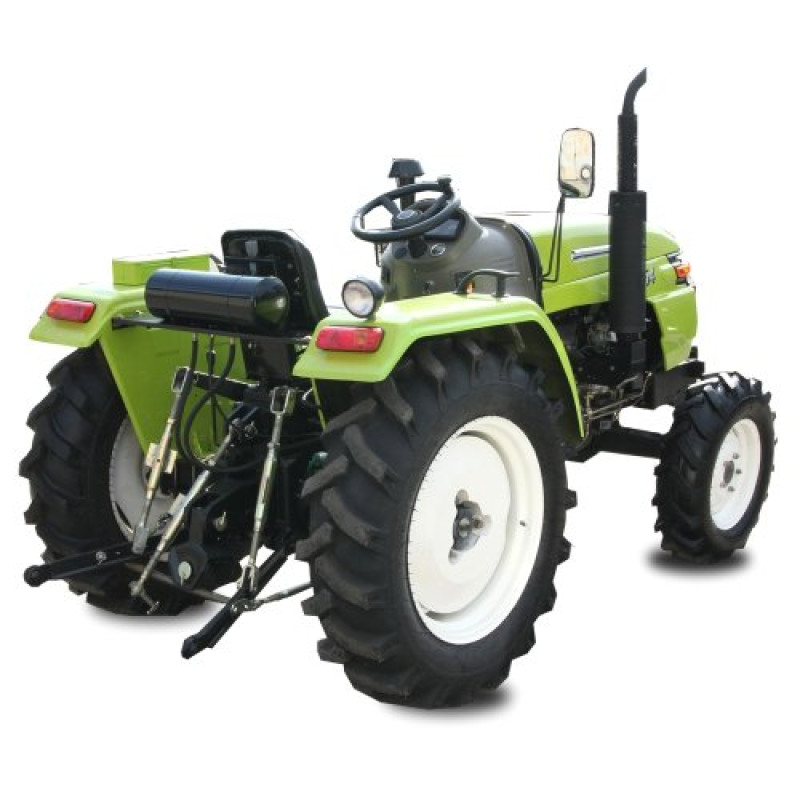

Mini Tractor DW 244AN — Overview and Specifications

The DW 244AN mini tractor from the DW brand is reliable and multifunctional equipment with a power of 24 hp (17.65 kW), designed for work in small and medium-sized agriculture, in vegetable gardens and orchards, as well as in utilities and construction. The model features 4x4 all-wheel drive, a diesel 4-stroke three-cylinder engine with vertical cylinder arrangement, a liquid cooling system, and an electric starter for easy ignition. The engine is characterized by economical fuel consumption and reliability under intensive use.

Key features:

• 1. Four-stroke 3-cylinder diesel engine, vertical cylinder arrangement.
• 2. Economical fuel consumption — up to 275 g/kWh.
• 3. Power steering for smooth and easy control.
• 4. All-wheel drive design with rear differential lock.
• 5. Adjustable tracks, allowing work between rows.
• 6. Front and rear headlights for working in the dark or in fog.

Operator comfort is ensured by a seat with shock absorption and adjustment, while the electronic instrument panel displays a fuel level indicator, water temperature, battery charge indicator, and an hour meter. The design includes a separate oil tank, hydraulic pump, compressor with receiver, and separate braking equipment — separate rear wheel brake drums. The engine is started by an electric starter.

The gearbox is implemented as (4+1)x2, providing eight forward and two reverse speeds. A two-speed power take-off (PTO) shaft with speeds of 540/720 rpm is provided, and a rear splined PTO shaft is installed. The maximum lifting capacity of the three-point hitch is stated as 423 kg in the review text and 500 kg in the specifications table, so it is recommended to clarify the specific configuration with the seller when choosing attachments.

Dimensions and weight: the review text mentions dimensions of 3030x1470x1933 mm, while the technical table provides dimensions of 3350x1500x1860 mm. The curb weight according to the technical table is 1328 kg. Minimum ground clearance is 330 mm, wheelbase is 1750 mm. Front wheel track is 1210 mm, rear wheel track is 1250 mm. Tire size: front — 6.50-16, rear — 9.50-24.

Movement parameters: minimum turning radius without brakes — 2.8 m, with brakes — 2.4 m. Travel speeds: forward — 0.37–30.64 km/h, reverse — 0.49–12.23 km/h. Fuel tank capacity — 21.0 L. The engine has a displacement of 1530 cm3, bore/stroke — 85/90 mm, nominal crankshaft speed — 2350 rpm, nominal traction force — 7.2 kN. Nominal engine oil consumption — 2.31 g/kWh.

For the transmission and axles, the following transmission oils are recommended: Silver SAE 85W-90, Gold SAE 80W-90, or Platinum SAE 75W-90. The clutch is dry, single-disc, constantly closed type. The main drive is direct. The hydraulic system pump type is a gear pump, number of hydraulic outputs — 1. The package may include a trailer connector (socket), compressor, power steering, hour meter, seat with shock absorber, and rear weights; a safety roll bar may be absent in the basic configuration.

Oil and system volumes: engine crankcase volume — 3.0 L, gearbox and rear axle crankcase volume — 11.0 L, front axle crankcase volume — 3.0 L, engine cooling system volume — 6.0 L.

Thanks to its versatility and reliability, the DW 244AN is suitable for plowing, soil cultivation, sowing, harvesting, and working with various attachments. We also recommend considering similar models: Jinma 404, Shifeng 354, Dongfeng, Xingtai, Foton, Zoomlion, DTZ 5244, Bulat 454, Bulat 250, Bulat 254, Belarus 320.4, Shifeng 350, DW 244, DTZ 5404K, Solis 26, Solis RX 50.

To buy a DW 244AN mini tractor with delivery in Kyiv, Kharkiv, Poltava, Vinnytsia, Chernihiv, or to arrange a loan — contact the sales department to clarify availability, configurations, and delivery terms.

Other details, delivery and payment terms — please clarify with the sales department.
