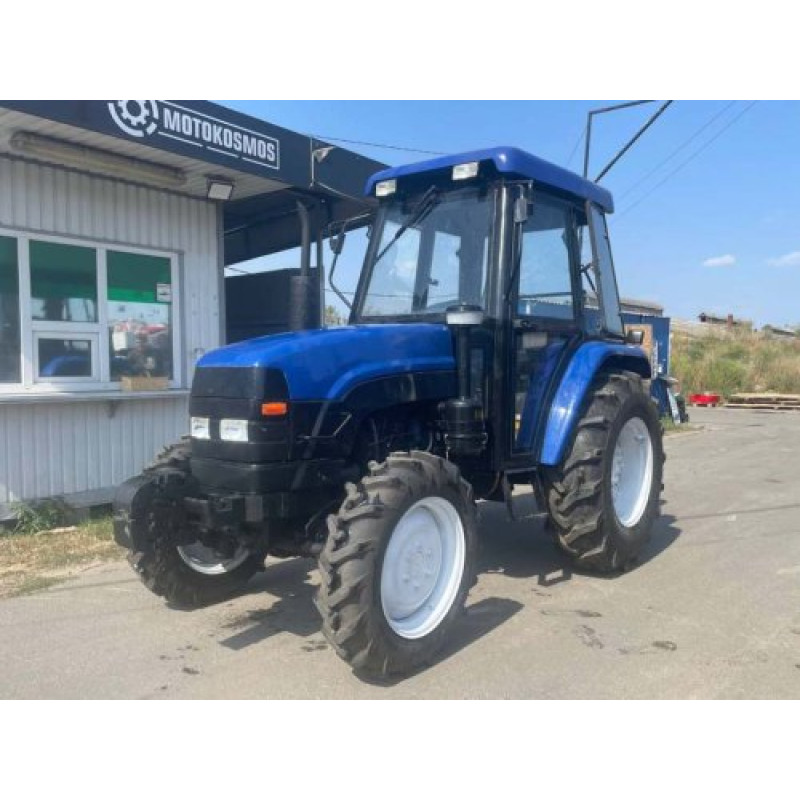

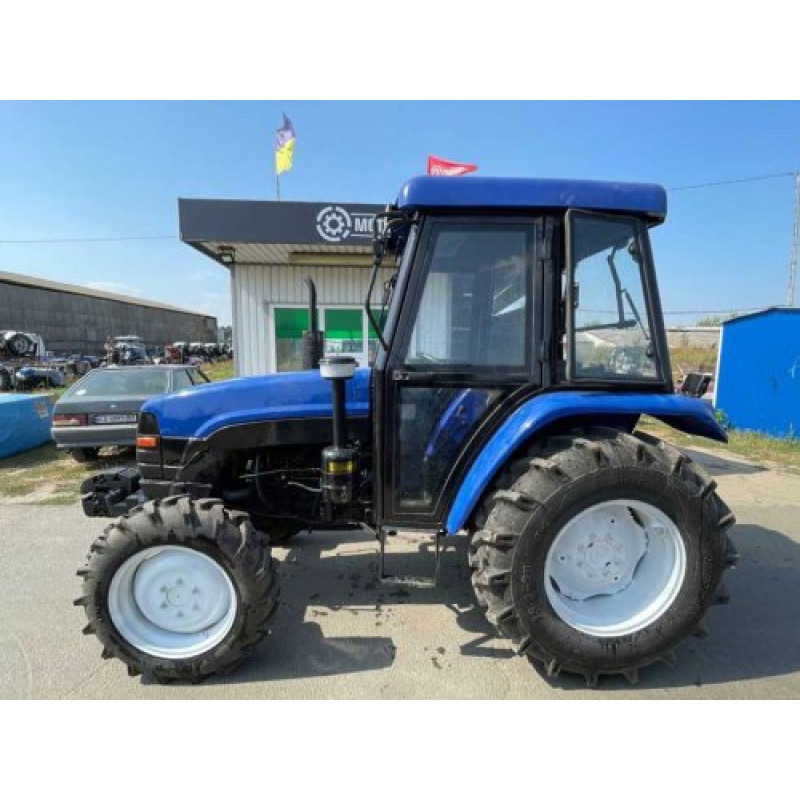

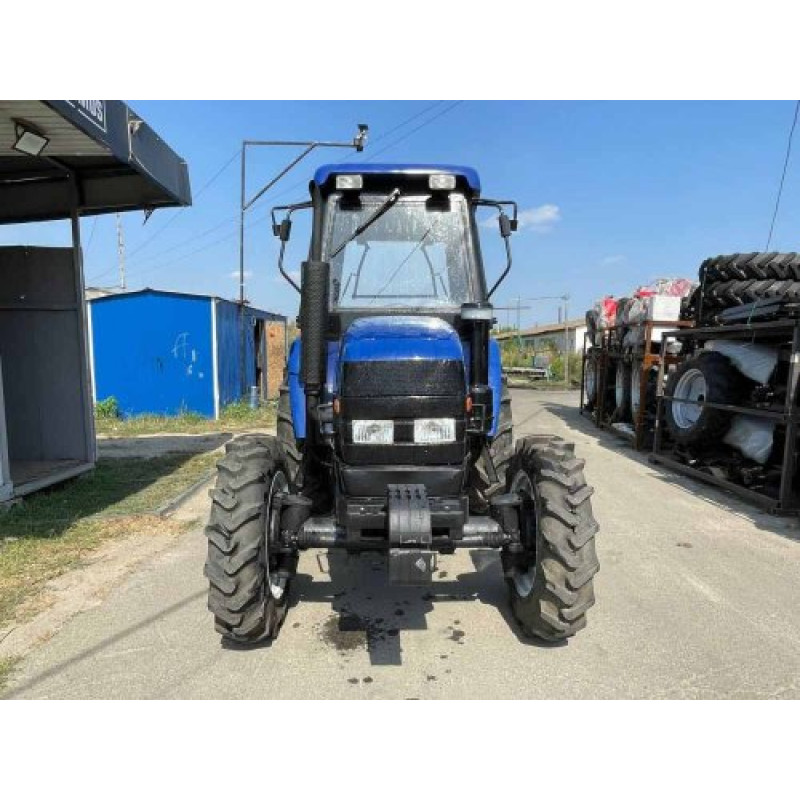

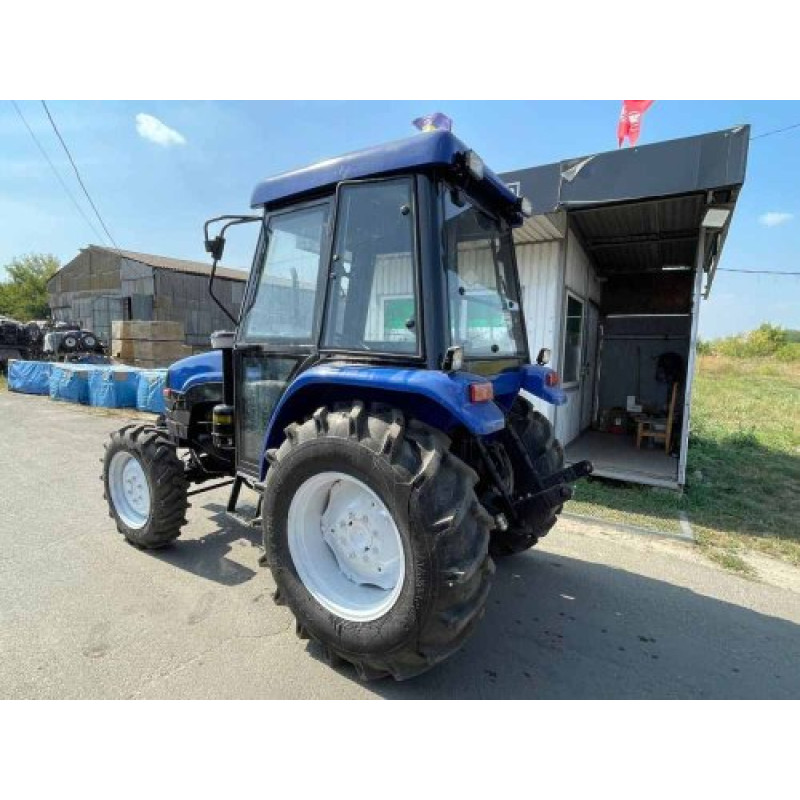

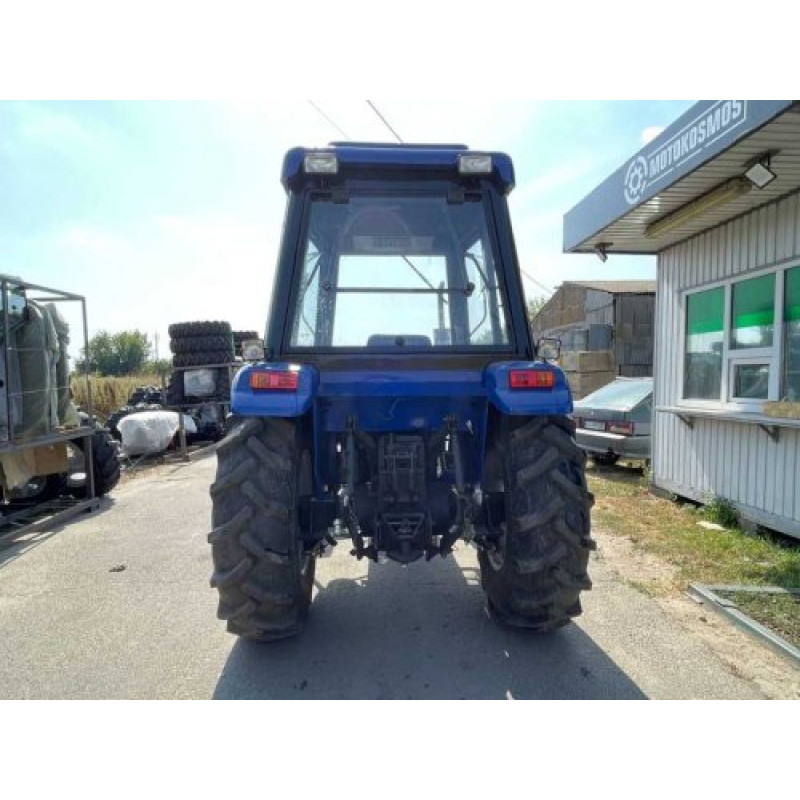

Mini Tractor DTZ 454 — A Reliable All-Rounder for Your Farm
The DTZ 454 mini tractor from the manufacturer DTZ is a compact yet powerful unit for private subsidiary farms, agriculture, and municipal work. The model is equipped with an economical diesel engine with a power of 45 hp (33.09 kW), 4x4 all-wheel drive, and an advanced transmission, making it a versatile solution for plowing, cultivating, transporting small loads, and working with a large amount of attachments.
Key Advantages and Applications
The DTZ 454 features a robust frame, power steering, a comfortable shock-absorbing seat, and an hour meter for operation control. Rear differential lock, disc brakes on the rear wheels, and a universal 8+4 gearbox ensure excellent traction and maneuverability. The PTO system with 540/1000 rpm modes allows connecting a wide range of mounted and trailed equipment, from plows and cultivators to mowers and potato diggers.
Recommendations Before Purchase
If you are looking for a mini tractor to perform various tasks — from cultivating small fields to municipal work — the DTZ 454 will be a cost-effective choice. Pay attention to the diesel fuel type, the presence of two hydraulic outlets for attachments, and power steering for ease of control. For long-term operation, adhere to the specifications for engine and transmission oil types indicated in the characteristics.
Below is a complete list of the model's technical parameters for a detailed assessment of its capabilities:
Engine power, hp (kW) | 45 (33.09) | |
Wheel formula | 4x4 | |
Engine type | diesel, 4-stroke, with direct injection, without turbocharging | |
Number and arrangement of cylinders | 4, vertical | |
Engine start system | electric starter | |
Cooling system | liquid, closed, with forced circulation of coolant | |
Cooling system fan drive | V-belt drive | |
Engine displacement, cm3 | 3175 | |
Cylinder diameter / piston stroke, mm | 95 / 112 | |
Nominal engine fuel consumption, g/kW*h | ≤ 232 | |
Nominal engine crankshaft speed, rpm | 2300 | |
Nominal traction force, kN | 11.3 | |
Engine oil type | mineral or semi-synthetic for diesel engines | |
Nominal engine oil consumption, g/kW*h | 2.2 | |
Gearbox (КП) | 8+4 | |
Gearbox and rear axle oil type | Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90. (transmission) | |
Front axle oil type | Silver SAE 85W-90; Gold SAE 80W-90; Platinum SAE 75W-90. (transmission) | |
Rear differential lock | + | |
Clutch | dry, 1-disc, constantly closed type | |
Main drive | direct | |
Brakes | on rear wheels, disc | |
Power take-off (PTO) shaft | rear, splined | |
Hydraulic system pump type | gear pump | |
Power take-off (PTO) shaft speed, rpm | 540 / 1000 | |
Maximum lifting capacity of mounted mechanism, kg | 662 | |
Minimum ground clearance, mm | 325 | |
Wheelbase, mm | 1990 | |
Wheel track, mm | front | 1250 |
rear | 1200-1500 | |
Tire size | front | 8.30-20 |
rear | 12.40-28 | |
Minimum turning radius, m | without brakes | 4.5 |
with brakes | 3.7 | |
Travel speed, km/h | forward | 0.32-31.88 |
reverse | 0.47-11.01 | |
Fuel tank capacity, L | 42 | |
Engine crankcase volume, L | 7 | |
Gearbox and rear axle crankcase volume, L | 28.5 | |
Front axle crankcase volume, L | 7.0 | |
Engine cooling system volume, L | 9 | |
Number of hydraulic outlets | 2 | |
Trailer connector (socket) | + | |
Compressor | - | |
Power steering | + | |
Hour meter | + | |
Seat with shock absorber | + | |
Overall dimensions (L x W x H), mm. | 3513х1750х2130 | |
Curb weight, kg | 2350 | |
Configuration and Labeling
Brand: DTZ. Model: Mini Tractor DTZ 454. Category: Tractors > Mini Tractors. The description includes a full list of technical parameters necessary for making an informed decision regarding purchase and subsequent operation.
- Brand: DTZ
- Model: Mini Tractor DTZ 454
- Category: Tractors > Mini Tractors
The DTZ 454 mini tractor is a balance of power, reliability, and economy, optimal for owners of small and medium-sized farms who are looking for multifunctional equipment with simple maintenance and wide possibilities for connecting attachments.
