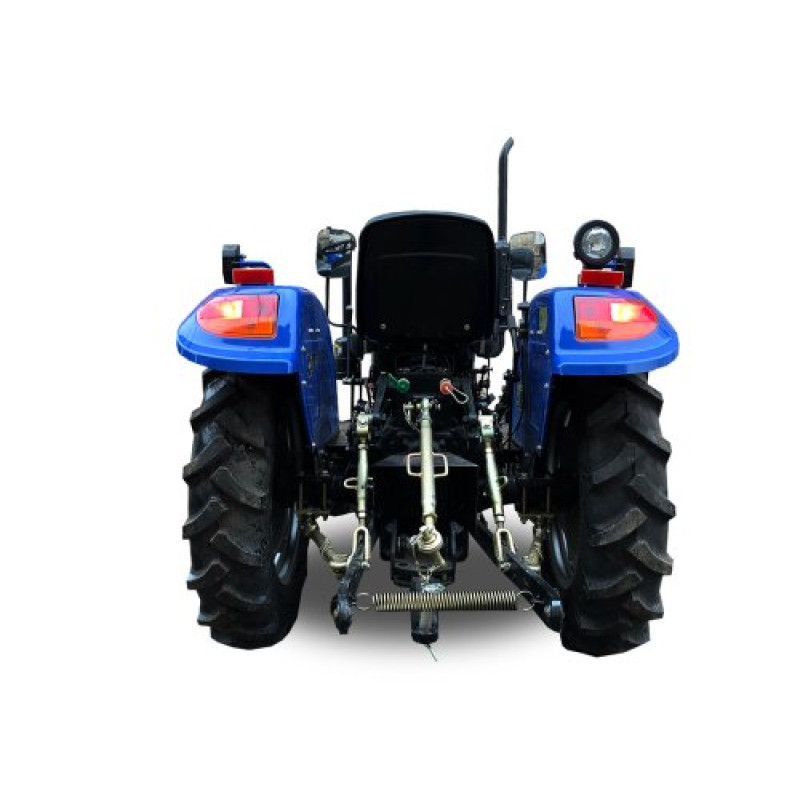

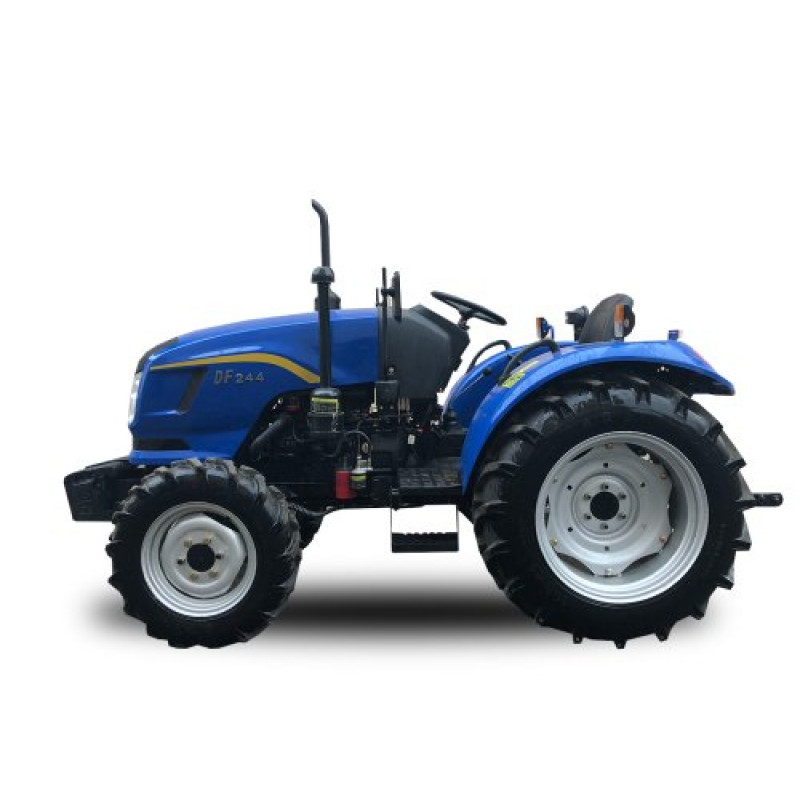

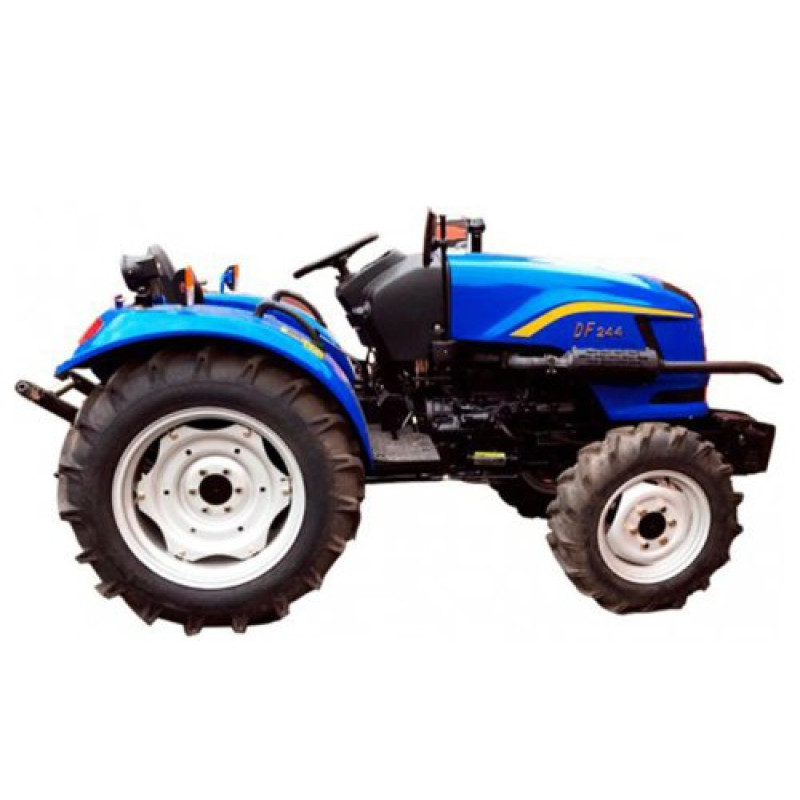

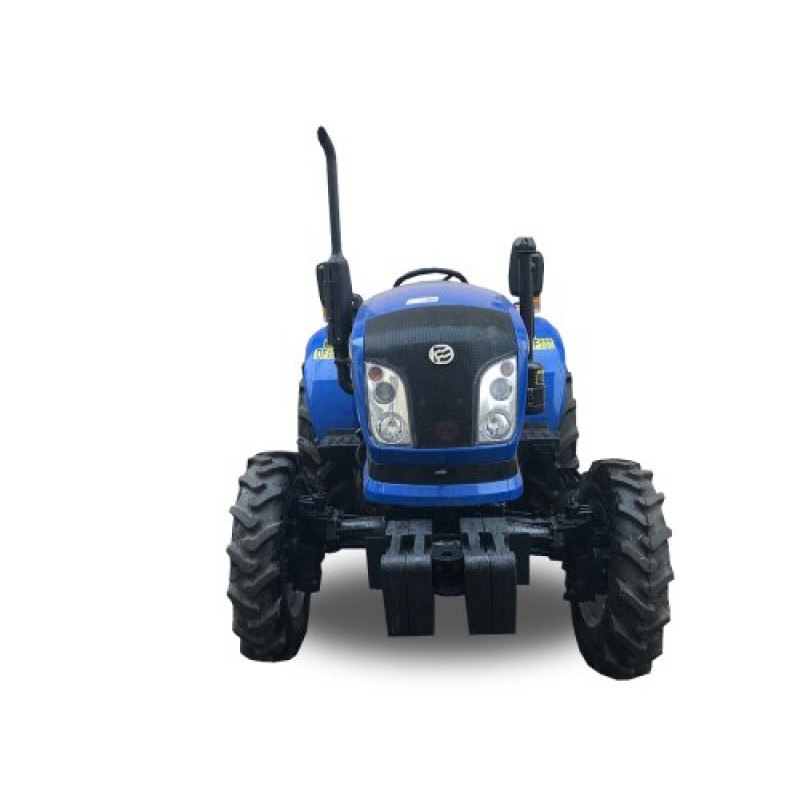

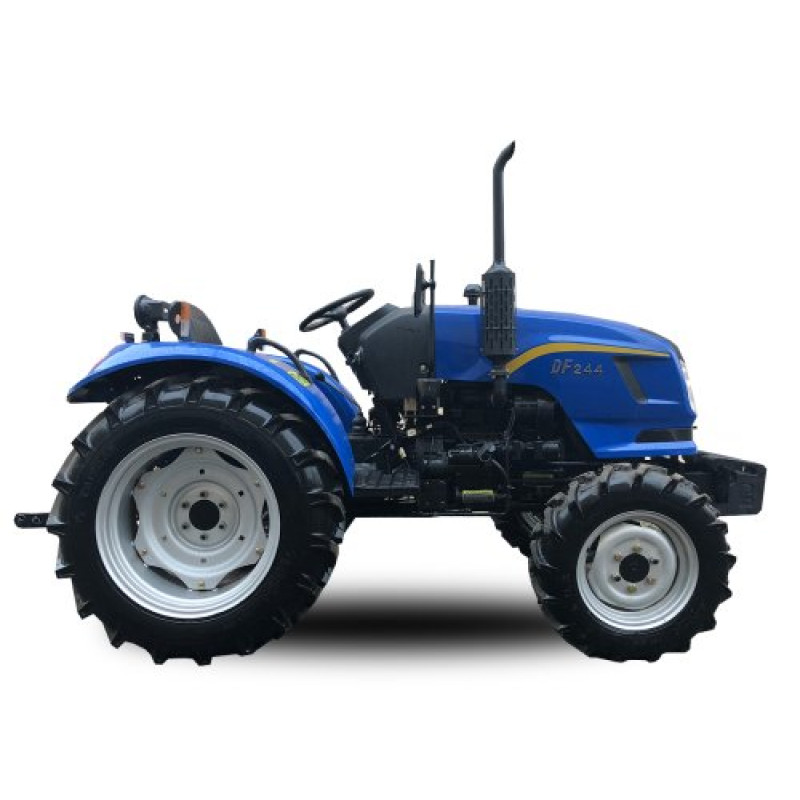

Mini Tractor Dongfeng DF 244D
Brand: DongFeng. The Dongfeng DF 244D model is a compact and reliable 4×4 mini tractor designed for work on plots up to 5 hectares, as well as for construction, municipal, and gardening tasks. This compact tractor combines robust construction, versatility, and compatibility with a wide range of mounted and trailed equipment.
Type and Category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors. Recommended for owners of homesteads, farms, greenhouses, and municipal services.
Engine and Start-up: Three-cylinder four-stroke diesel engine with water cooling, 24 hp (17.6 kW) power. Mineral or semi-synthetic oil is permitted for lubrication. Start-up is performed by an electric starter with safe start.
Fuel System and Consumption: Fuel tank capacity is 25 liters. The documentation provides two fuel consumption figures: an average value of 248 g/kWh and a value of 275 g/kWh (in the technical table). Average engine oil consumption is 2.04 g/kWh.
Gearbox, Clutch, and Transmission: Gearbox type (4+1)×2, dry single-disc clutch. The tractor is equipped with a closed two-satellite differential with locking capability, which provides better cross-country ability on difficult terrain.
Operating Characteristics: Crankshaft speed — 2350 rpm. Ground clearance — 350 mm, turning radius — 2.8 m. Forward speed — from 0.98 to 22.4 km/h; reverse — from 1.16 to 6.11 km/h. Front wheel track — 952 mm; adjustable rear track — 1030–1210 mm. Tire sizes: front 6.0×12, rear 9.5×24.
Hydraulics and PTO: Semi-automatic (semi-remote) hydraulic system with a gear pump. The power take-off (PTO) shaft is located at the rear, two-speed 540/730 rpm, allowing connection of various implements for soil cultivation and transport work.
Dimensions and Weight: Compact dimensions (L×W×H) — 3200×1440×2000 mm. The weight is indicated in different parts of the documentation: 1180 kg (in the description) and 1310 kg (in the technical table).
Advantages and Applications: The DF 244D features a wide wheelbase, high ground clearance, and adjustable wheel track, as well as a rear differential lock. This makes the mini tractor versatile for plowing, cultivation, work in greenhouses, on homesteads, in construction, and in the municipal sector. Compatible with mounted and trailed equipment for plows, cultivators, trailers, garden, and municipal machinery.
Delivery and Financing: Delivery throughout Ukraine; dispatch from Kyiv, Poltava, Kharkiv, Chernihiv, Vinnytsia in the shortest possible time. Option to purchase on credit or in installments by arrangement.
All technical parameters for quick reference are listed below:
| Type | Three-cylinder four-stroke diesel with water cooling |
| Wheel formula | 4×4 (all-wheel drive) |
| Power | 24 hp / 17.6 kW |
| Crankshaft speed | 2350 rpm |
| Number of cylinders | 3 |
| Differential lock | + |
| Diesel consumption | 275 g/kWh (in table); 248 g/kWh also stated in text |
| Start-up | electric starter |
| Clutch | dry, single-disc |
| Gearbox | (4+1)×2 |
| Differential | closed, two-satellite with lock |
| Ground clearance | 350 mm |
| Turning radius | 2.8 m |
| Forward speed | 0.98 - 22.4 km/h |
| Reverse speed | 1.16 - 6.11 km/h |
| Track | front wheels - 952 mm, rear wheels - 1030 - 1210 mm |
| Tire size | front 6.0×12, rear 9.5×24 |
| Hydraulic system | semi-automatic, gear pump |
| Power take-off shaft | 540/730 rpm, rear (2 speeds) |
| Dimensions (L×W×H) | 3200×1440×2000 mm |
| Weight | 1180 kg (in description), 1310 kg (in tech. table) |
The Dongfeng DF 244D is a balanced choice for those seeking an affordable yet functional mini tractor with all-wheel drive and extensive implement capabilities. If you need advice on selecting implements or delivery terms, please contact our managers.
