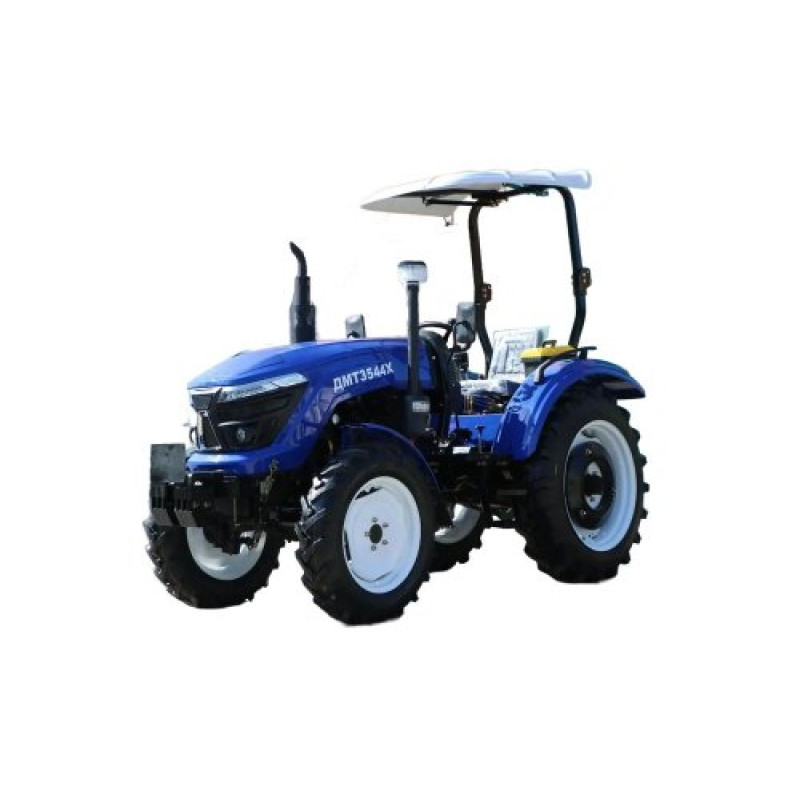

Mini Tractor ДМТЗ 544X — Overview and Purpose
The ДМТЗ 544X mini tractor is a reliable and powerful machine from the manufacturer ДМТЗ, designed for a wide range of tasks on private farms, agricultural enterprises, and in the municipal sector. This unit combines ease of operation, robust construction, and high technical specifications, ensuring efficient work with various mounted and trailed equipment. Tractor class: Tractors > Mini Tractors. The ДМТЗ 544X is intended for plowing small fields, cultivation, planting and harvesting, caring for orchards and vineyards, as well as for municipal work and transporting goods over short distances.
Technical Specifications and Key Parameters
Below are all technical parameters from the original description, structured for easy reference:
- Engine type: diesel, four-stroke, with direct fuel injection, non-turbocharged, liquid-cooled.
- Engine displacement: 2836 cm3.
- Engine power: 50 hp (36.8 kW).
- Number of cylinders: 4.
- Wheelbase: 1820 mm.
- Overall dimensions (LxWxH): 3250x1500x1900 mm.
- Ground clearance: 400 mm.
- Drive type: 4x4 (all-wheel drive).
- Transmission: mechanical, non-synchronized.
- Number of gears (forward/reverse): (4+1)x2.
- Clutch: single-disc dry.
- Power take-off (PTO), rpm: 540/1000.
- Front wheel size: 7.5x20.
- Rear wheel size: 11.2x28.
- Fuel tank capacity: 30 L.
Technical Specifications (Table)
| Engine type | diesel, four-stroke, with direct fuel injection, non-turbocharged, liquid-cooled |
| Engine displacement, cm3 | 2836 cm3 |
| Engine power, hp and kW | 50 hp or 36.8 kW |
| Number of engine cylinders | 4 |
| Wheelbase, mm | 1820 mm |
| Overall dimensions, mm | 3250x1500x1900 mm |
| Ground clearance, mm | 400 mm |
| Drive type | 4x4 |
| Transmission type | Mechanical, non-synchronized |
| Number of gears (forward/reverse) | (4+1)x2 |
| Clutch | Single-disc dry |
| Power take-off, rpm | 540/1000 |
| Front wheel size | 7.5x20 |
| Rear wheel size | 11.2x28 |
| Fuel tank capacity, L | 30 |
Advantages and Operational Features
The liquid-cooled, four-cylinder engine ensures stable operation under load, and its 50 hp power allows for connecting a wide range of mounted equipment: rotary tillers, plows, cultivators, seeders, and other devices. The 4x4 all-wheel drive, combined with a ground clearance of 400 mm, ensures confident movement over rough terrain and in conditions of increased soil moisture. The mechanical non-synchronized transmission and single-disc dry clutch make technical maintenance simple and accessible, which is important for daily operation in farming and municipal enterprises.
The presence of a PTO with 540/1000 rpm modes provides versatility for connecting various types of driven implements. Compact dimensions of 3250x1500x1900 mm and a 30 L fuel tank capacity guarantee autonomous operation throughout a work shift without frequent refueling. The 1820 mm wheelbase and tire types 7.5x20 (front) and 11.2x28 (rear) ensure the necessary cross-country capability and stability when working with loads.
The ДМТЗ 544X mini tractor is an effective solution for those seeking an economical, reliable, and sufficiently powerful tractor in the "mini" class for solving everyday agricultural and municipal tasks.
