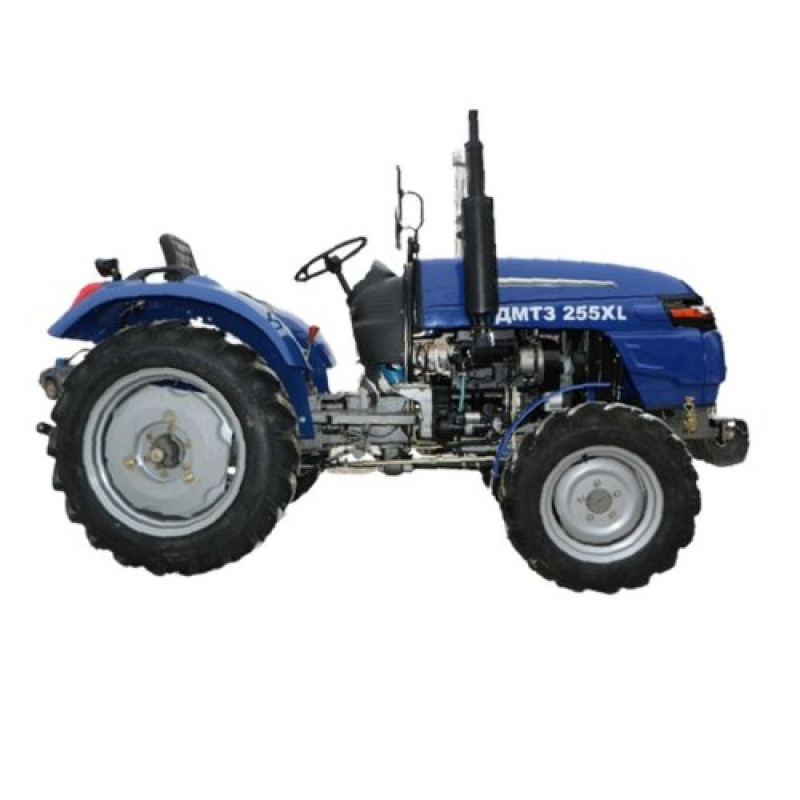

Mini Tractor DMTZ 255 XL

Brand: DMTZ. The DMTZ 255 XL mini tractor is a compact yet powerful universal tractor designed for a wide range of agricultural, municipal, and general utility tasks. Combining a reliable three-cylinder diesel engine, 4x4 all-wheel drive with front axle engagement, and a mechanical stepped transmission, this model performs efficiently on medium-sized fields, in homesteads, and when working with mounted and trailed equipment.

Engine: Three-cylinder diesel four-stroke KM385BT with direct fuel injection, non-turbocharged, liquid-cooled. Volume 1,532 cm3, power 24 hp (17.6 kW), cylinder diameter 85 mm, piston stroke 90 mm, nominal fuel consumption up to 244 g/(kW*h). Engine oil capacity 5 L, cooling system capacity 10 L, fuel tank 29 L.

Transmission: Mechanical stepped gearbox with 8 forward and 2 reverse gears provides a speed range: forward from 1.72 to 26.02 km/h, reverse from 1.61 to 5.24 km/h. Clutch type — dry dependent single-disc basket (dry single-disc clutch). Transmission oil capacity — 20 L, front axle — 5 L, hydraulic tank — 9.5 L.

Drive and chassis: 4x4 wheel formula with engageable front axle drive. Wheelbase 1020 mm, overall dimensions 2700 mm x 1100 mm x 1900 mm (height to the top of the muffler). Front wheel track 1000 mm / 1030 mm, rear wheel track 1020 mm. Agrotechnical ground clearance 380 mm, clearance 270 mm. Minimum turning radius is 2.8 m with one brake pedal depressed and 3.3 m without depressing it.

Braking system: Dry-type drum brakes on the rear wheels with separate brake pedals for increased safety and ease of control. Wheel configuration: front 6.00 - 16, rear 9.50 - 24. The structural weight of the tractor is 1,005 kg, ensuring a good balance of maneuverability and stability when working with mounted equipment.

Power Take-Off (PTO): Rear semi-independent, operating modes 540 / 720 rpm, 6 splines, diameter 35 mm — allows connecting a wide range of mounted and trailed implements for plowing, cultivation, sowing, and other agricultural tasks. Electrical onboard system — 12 V.

The travel speed parameters ensure versatility of application: meeting the needs of agricultural and municipal work from slow operation with trailed equipment to fast movement across fields and between plots. The machine's dimensions and geometry allow working in confined conditions and narrow row spacing.

The mini tractor is ideal for cultivating small and medium-sized plots, utility work, and use with mounted equipment on farms and in municipal services. The combination of the economical KM385BT diesel engine, reliable 8/2 mechanical gearbox, and 4x4 all-wheel drive makes the DMTZ 255 XL a cost-effective choice for those seeking durable and versatile machinery.

The DMTZ 255 XL model combines engine economy, component reliability, and ease of maintenance — an optimal choice for farmers and municipal services who value the balance of power, maneuverability, and operating costs. Product category: Tractors, Mini Tractors.
