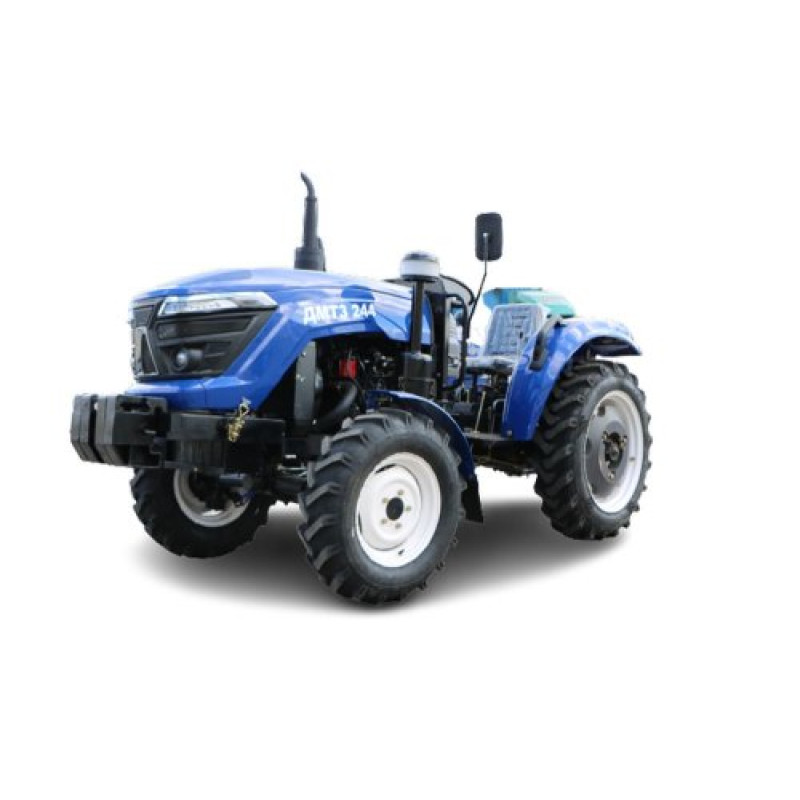

The DMTZ 244 mini-tractor from the DMTZ brand is a reliable and multifunctional compact tractor with a power of 24 hp (17.65 kW), designed for agricultural work, household plots, utility services, and other economic tasks. This model combines economy, ease of maintenance, and the ability to work with a wide range of mounted and trailed equipment thanks to its PTO, powerful hydraulics, and power steering.
Key Features and Benefits
Engine: 4-stroke diesel with direct injection, non-turbocharged, three-cylinder with vertical cylinder arrangement, equipped with an electric starter for easy starting. The engine displacement is 1531.33 cm3, cylinder bore/piston stroke is 85/90 mm. Nominal crankshaft speed is 2350 rpm. Economy is confirmed by a nominal fuel consumption of ≤275 g/kWh, recommended oil is mineral or semi-synthetic for diesel engines, nominal oil consumption is 2.31 g/kWh. Nominal traction force is 5.8 kN.
The transmission is represented by a (4+1)x2 gearbox with rear differential lock, ensuring versatility of driving modes. The clutch is a dry 1-disc constantly closed type, the main gear is direct. The braking system is located on the secondary shaft of the gearbox and is made in the form of brake drums. Steering is hydraulic with power steering, which makes control easy and precise even when working with mounted equipment.
The power take-off (PTO) is rear, splined, operating in two speed modes: 540/1000 rpm, which allows connecting various implements. The hydraulic system is equipped with gear pumps (NSh) for driving the hitch and a separate NSh for power steering operation. The maximum lifting capacity of the hitch mechanism is 420 kg. Thanks to these solutions, the DMTZ 244 is universal for tillage, mowing, transportation, and utility work.
Dimensions, Tracks, and Wheels
Ground clearance is 300 mm, wheelbase is 1700 mm, front wheel track is 1200 mm, rear is 1230 mm. Wheel size: front 6.50-16, rear 11.2-24. The minimum turning radius is 3.0 m without brakes and 2.3 m with brakes. Overall dimensions (L x W x H): 3100x1500x1900 mm, curb weight is 1350 kg.
Fuel Capacities and Technical Volumes
Fuel tank capacity is 17.0 L. Engine crankcase volume is 6.6 L, gearbox and rear axle crankcase is 11.0 L, front axle crankcase is 4.0 L. Engine cooling system volume is 6.0 L. These indicators ensure long operation without frequent refueling and simplify maintenance.
Additional Features and Equipment
- Number of hydraulic outlets: 4
- Trailer connector (socket): present
- Power steering: yes
- Hour meter: installed
- Suspension seat: yes
- Rear weights: included
Speed modes ensure efficient operation in the field and on the road: forward 2.11-32.19 km/h, reverse 1.68-7.75 km/h. Compact dimensions along with wide capabilities make the DMTZ 244 an ideal choice for farmers and private households who need an affordable and functional mini-tractor for daily tasks.
Technical specifications:
| Engine power, hp (kW) | 24 (17.65) |
| Drive | 4x4 |
| Engine type | diesel, 4-stroke, with direct injection, non-turbocharged |
| Number and arrangement of cylinders | 3, vertical |
| Engine start | electric starter |
| Engine cooling | liquid, with forced circulation of coolant |
| Cooling system fan drive | V-belt drive |
| Engine displacement, cm3 | 1531.33 |
| Cylinder bore / piston stroke, mm | 85 / 90 |
| Nominal engine fuel consumption, g / kWh | ≤275 |
| Nominal engine crankshaft speed, rpm | 2350 |
| Nominal traction force, kN | 5.8 |
| Engine oil type | mineral or semi-synthetic for diesel engines |
| Nominal engine oil consumption, g/kWh | 2.31 |
| Gearbox | (4+1)x2 |
| Rear differential lock | + |
| Clutch | dry 1-disc constantly closed type |
| Main gear | direct |
| Steering | hydraulic |
| Braking system | on the secondary shaft of the gearbox, brake drums |
| Power take-off (PTO) | rear, splined |
| Hydraulic system pump type | gear pump (NSh) for hitch drive / NSh for power steering operation |
| PTO speed, rpm | 540 / 1000 |
| Maximum lifting capacity of the hitch mechanism, kg | 420 |
| Ground clearance, mm | 300 |
| Wheelbase, mm | 1700 |
| Wheel track, mm | front 1200, rear 1230 |
| Wheel size | front 6.50-16, rear 11.2-24 |
| Minimum turning radius, m | without brakes 3.0, with brakes 2.3 |
| Travel speed, km/h forward | 2.11-32.19, reverse 1.68-7.75 |
| Fuel tank capacity, L | 17.0 |
| Engine crankcase volume, L | 6.6 |
| Gearbox and rear axle crankcase volume, L | 11.0 |
| Front axle crankcase volume, L | 4.0 |
| Engine cooling system volume, L | 6.0 |
| Number of hydraulic outlets | 4 |
| Trailer connector (socket) | + |
| Power steering | + |
| Hour meter | + |
| Suspension seat | + |
| Rear weights | + |
| Overall dimensions (L x W x H), mm | 3100x1500x1900 |
| Curb weight, kg | 1350 |
The DMTZ 244 mini-tractor is an optimal combination of compactness, economy, and functionality. It is suitable for a wide range of tasks: tillage, working with mounted equipment, sweeping and mowing, transportation, and utility work. Its reliable design, well-thought-out transmission, two PTO modes, and high-quality hydraulic system make it an affordable and effective solution for farmers and private households.
