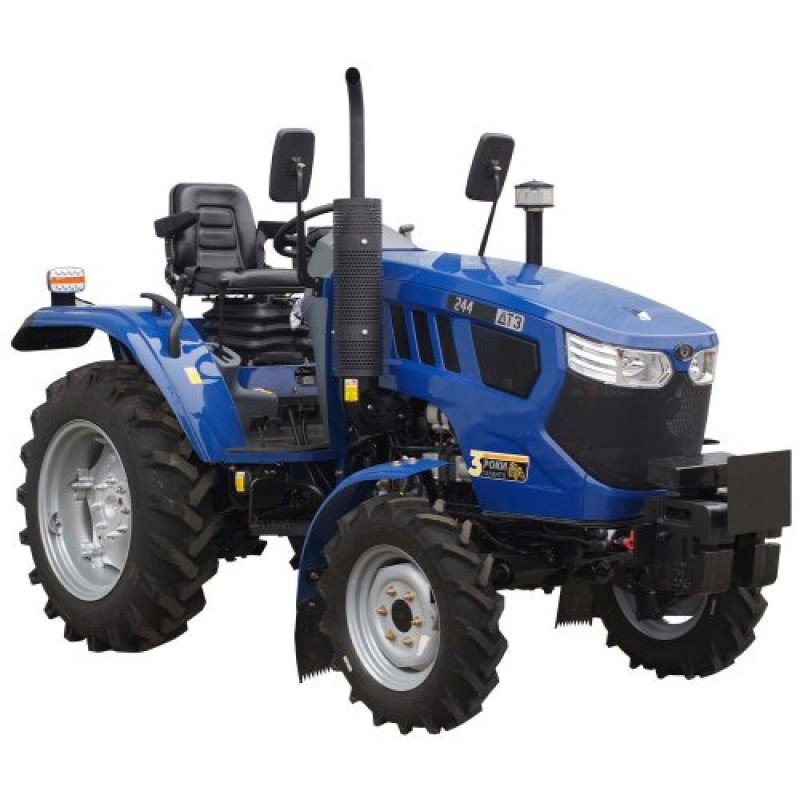

Mini Tractor DTZ 244
Brand: DTZ. Product type: Tractors > Mini Tractors. The reliable and versatile DTZ 244 mini tractor is designed for a wide range of agricultural and municipal tasks: soil cultivation, sowing, orchard and vineyard care, cargo transportation, and working with mounted and trailed equipment.
Description and Key Features
Engine: model DD390, power 24 hp. This is a diesel, 4-stroke unit with direct injection. Cylinders: 3, vertical arrangement. Starting system — electric starter. Cooling system — liquid, closed with forced circulation of coolant. Engine displacement — 1909 cm³. Nominal crankshaft speed — 2350 rpm.
| Engine model: | DD390 |
| Engine power: | 24 hp |
| Wheel formula: | 4x4 |
| Engine type: | diesel, 4-stroke, with direct injection |
| Number and arrangement of cylinders: | 3, vertical |
| Starting system: | electric starter |
| Cooling system: | liquid, closed with forced circulation of coolant |
| Engine displacement: | 1909 |
| Nominal engine crankshaft speed, rpm: | 2350 |
| Gearbox (КП): | 9+9 |
| Clutch: | dual-disc |
| Power take-off (PTO) shaft: | rear, splined |
| Hydraulic system pump type: | gear pump |
| PTO speed, rpm: | 540/1000 |
| Maximum lifting capacity of mounted mechanism, kg: | 414 |
| Minimum ground clearance, mm: | 350 |
| Wheelbase mm: | 1700 |
| Wheel track, mm: | front 1170, 1370; rear: 1200, 1320, 1400 |
| Tire size: | front 7.50-16; rear: 11.2-28 |
| Travel speed, km/h: | forward 2.62-42.7; reverse 2.56-41.6 |
| Fuel tank capacity, L: | 39.0 |
| Overall dimensions (L x W x H), mm: | 3400x1500x2020 |
| Weight, kg: | 1530 |
Transmission and Operating Capabilities
Power transmission occurs via a mechanical gearbox with gear shifting in two directions — 9+9, which provides great speed variability during field work or transportation. Clutch — dual-disc for reliable traction transmission. The rear, splined power take-off (PTO) shaft has modes of 540/1000 rpm, compatible with most mounted and trailed equipment.
Hydraulics, Mounted Mechanism, and Tires
The hydraulic system is based on a gear pump, ensuring stable fluid supply. The maximum lifting capacity of the mounted mechanism is 414 kg, which is sufficient for lifting and attaching typical plows, cultivators, mowers, and other equipment. The front wheel track can be adjusted (1170 or 1370 mm), and the rear — 1200, 1320, or 1400 mm. Tire sizes: front — 7.50-16, rear — 11.2-28.
Dimensions, Speed, and Operational Data
The mini tractor has a minimum ground clearance of 350 mm, ensuring passability over rough terrain and between orchard rows. Wheelbase — 1700 mm. Dimensions (L x W x H) — 3400x1500x2020 mm. Machine weight — 1530 kg. Fuel tank capacity — 39.0 L. Speed modes: forward — from 2.62 to 42.7 km/h, reverse — from 2.56 to 41.6 km/h. Wheel formula: 4x4.
Where to Use
The DTZ 244 is ideal for small farms, agricultural enterprises, auxiliary farms, municipal services, and private plots. Its compact size, all-wheel drive, and sufficient ground clearance make it a versatile tool for plowing, cultivating, sowing, fodder harvesting, orchard and vineyard care, as well as for transporting goods over short distances.
- Advantages: economical DD390 diesel engine, 24 hp power, reliable 9+9 transmission, dual-disc clutch, rear PTO 540/1000 rpm, adjustable track, and sufficient ground clearance.
- Purpose: plowing, cultivation, sowing, fodder harvesting, mowing, transportation, working with mounted equipment.
The DTZ 244 mini tractor is an optimal combination of power, functionality, and compactness for a wide range of tasks on your farm. Brand: DTZ. Product type: Tractors > Mini Tractors.
