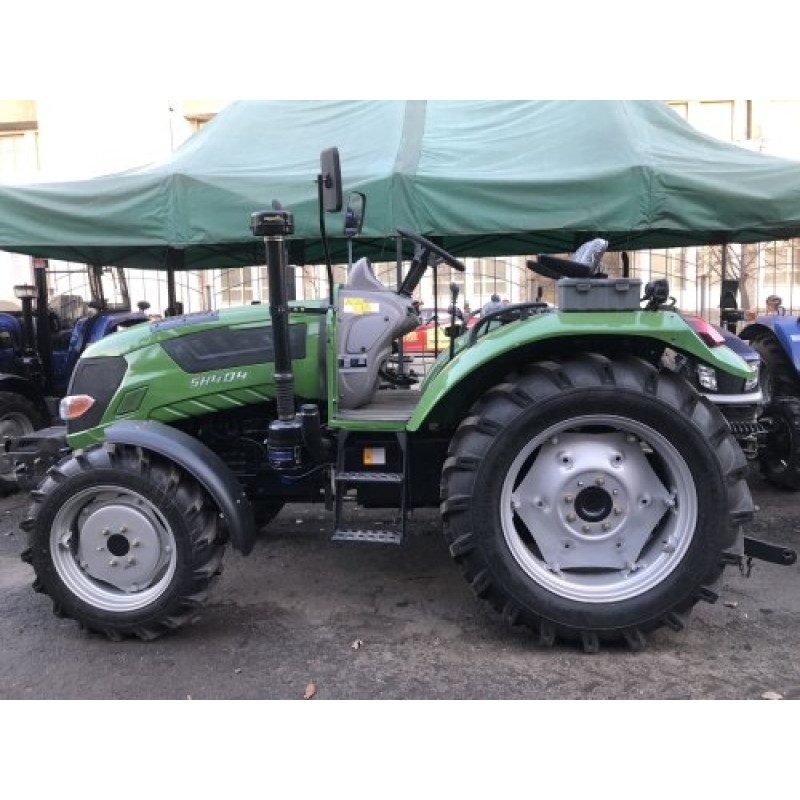

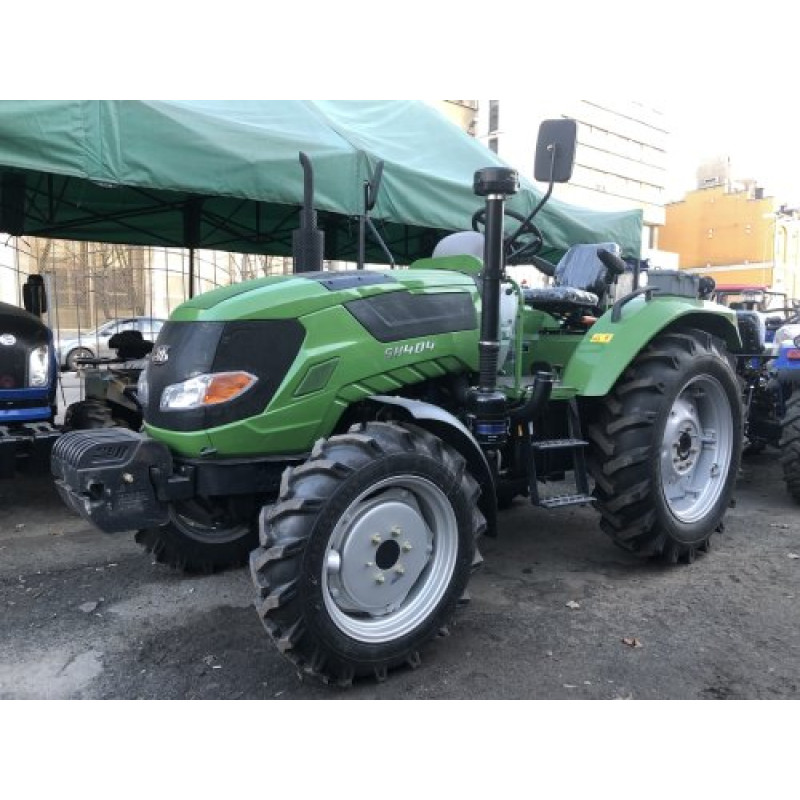

DEUTZ-FAHR SH-404 Mini Tractor — German Quality at an Affordable Price
The DEUTZ-FAHR SH-404 model from the renowned German manufacturer Deutz-Fahr combines European reliability and modern technical solutions. The DEUTZ-FAHR brand has been producing tractors, combines, and other agricultural machinery since 1977, with over a million tractors of this brand operating in various countries. The SH-404 mini tractor is designed for cultivating fields and gardens, forestry and farming, and working in livestock complexes and municipal enterprises.
Technical and Functional Advantages of DEUTZ-FAHR SH-404

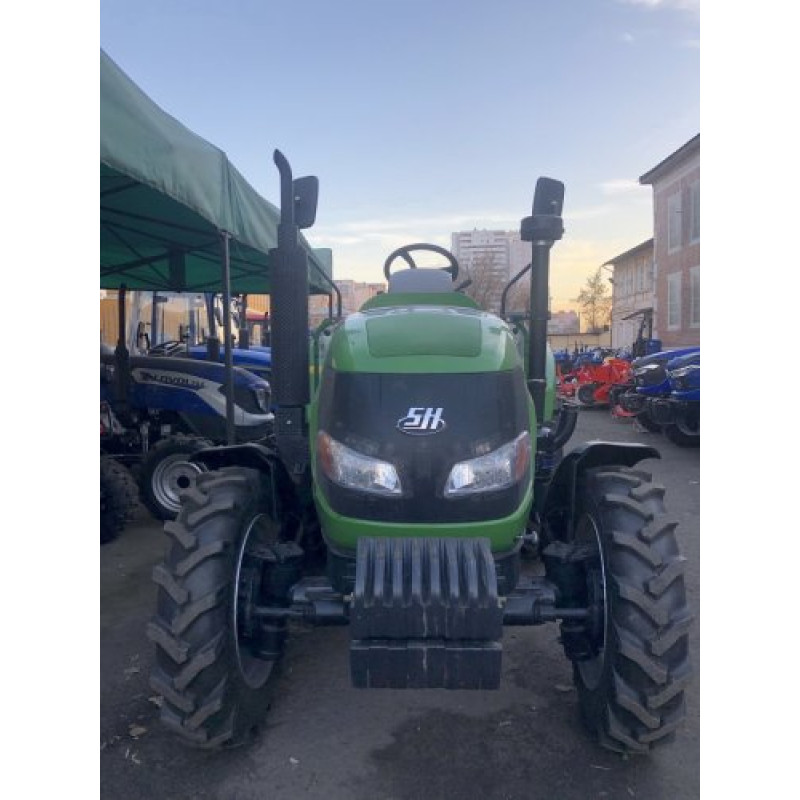

At the heart of the mini tractor is a four-cylinder diesel engine, model 4L23BT, with a power output of 40 hp. The engine displacement is 2310 cm3, a forced liquid cooling system protects against overheating under high loads, and a glow plug facilitates starting in cold weather. For better off-road capability, the SH-404 has 4x4 all-wheel drive and is equipped with four 20 kg counterweights, which increases stability when working with attachments.

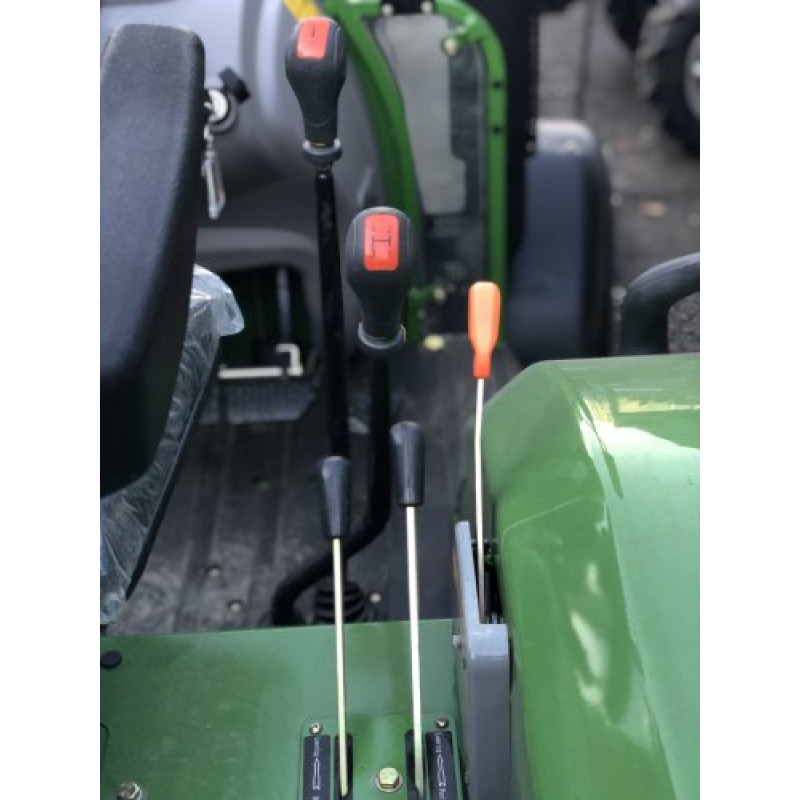

The gearbox is designed for operation in high and low gear modes: the description text mentions a configuration of 8 forward speeds and 2 reverse speeds, while the technical table indicates a 12+12 configuration. The clutch is dual-disc. The PTO is a two-speed power take-off shaft with 540/1000 rpm.

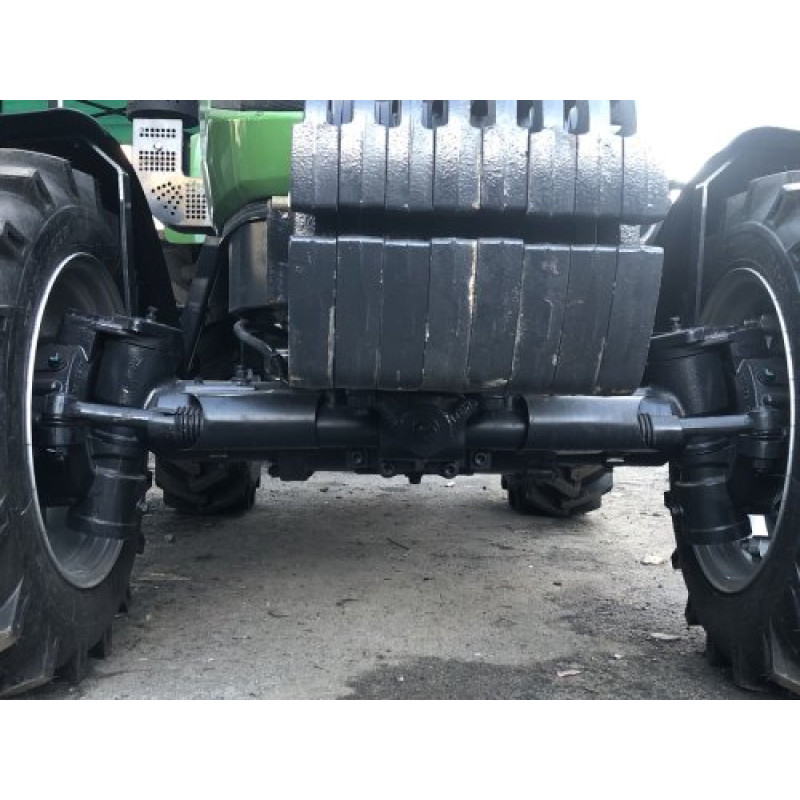

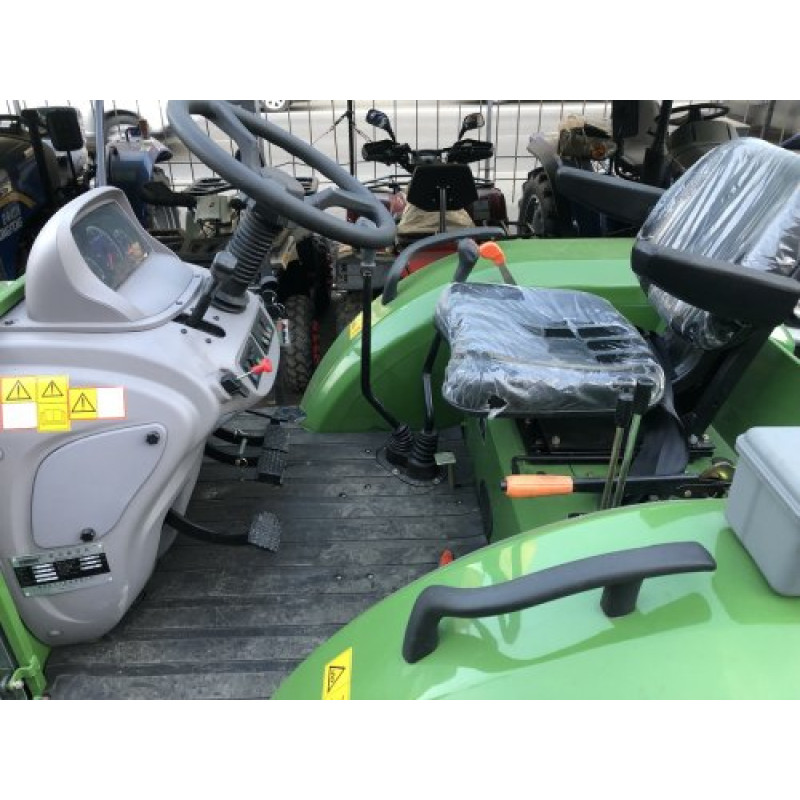

The power steering is equipped with two hydraulic cylinders, which reduces the turning radius and simplifies maneuvering. Operator comfort is enhanced by an adjustable soft seat with shock absorbers. The updated modern design includes improved optics for wider and more uniform light distribution, as well as two rearview mirrors for increased safety and ease of control.
Where to Buy DEUTZ-FAHR SH-404 in Ukraine
The Flash Army online store offers the DEUTZ-FAHR SH-404 mini tractor at a favorable price due to direct cooperation with manufacturers. The buyer receives an official warranty on the equipment and free doorstep delivery. For detailed consultation, place an order on the website or contact us by phone.
Technical Specifications of DEUTZ-FAHR SH-404:
| Tractor Power | 40 hp |
| Wheel Formula | 4x4 |
| Engine Model | 4L23BT |
| Number of Cylinders | 4 |
| Engine Displacement | 2310 cm3 |
| Cooling System | Liquid |
| Engine Start | Glow plug |
| Gearbox | 12+12 |
| Clutch | Dual-disc |
| PTO | Two-speed power take-off shaft 540/1000 rpm |
| Rear Differential Lock | + |
| Power Steering | + |
| Rear Brakes | Disc |
| L/W/H | 3303/1460/1996 mm |
| Ground Clearance | 290 mm |
| Tractor Weight | 1470 kg |

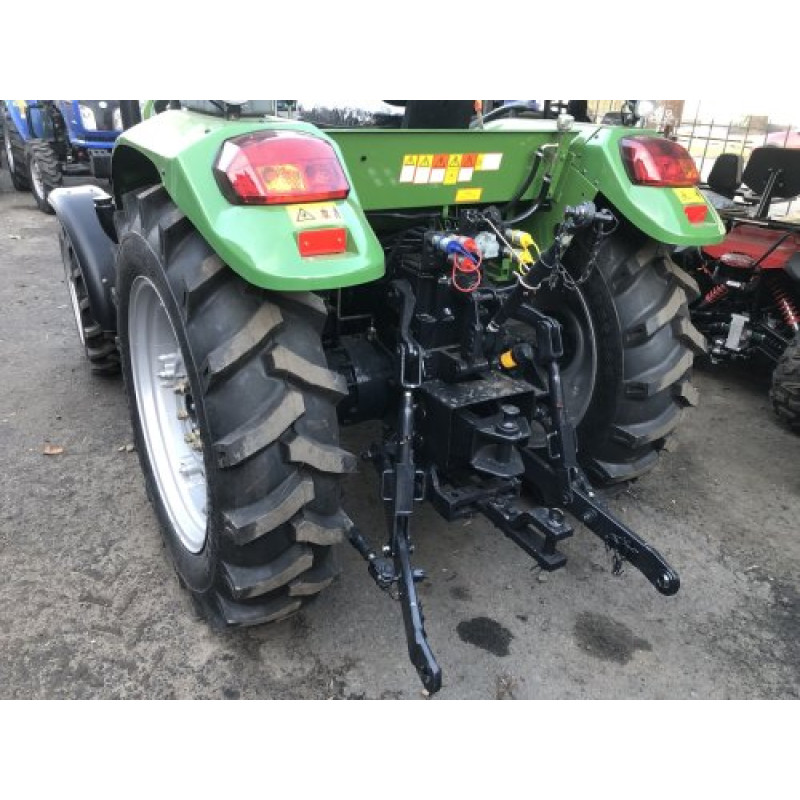

| Lifting Capacity of Hitch Mechanism | 660 kg |
| Front / Rear Tires | 6.5-16/11.2-24 |
Product Category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors. Brand: DEUTZ-FAHR. Model: SH-404.
