FPV Drone Control Patch Antenna (Mavic) 2.4GHz

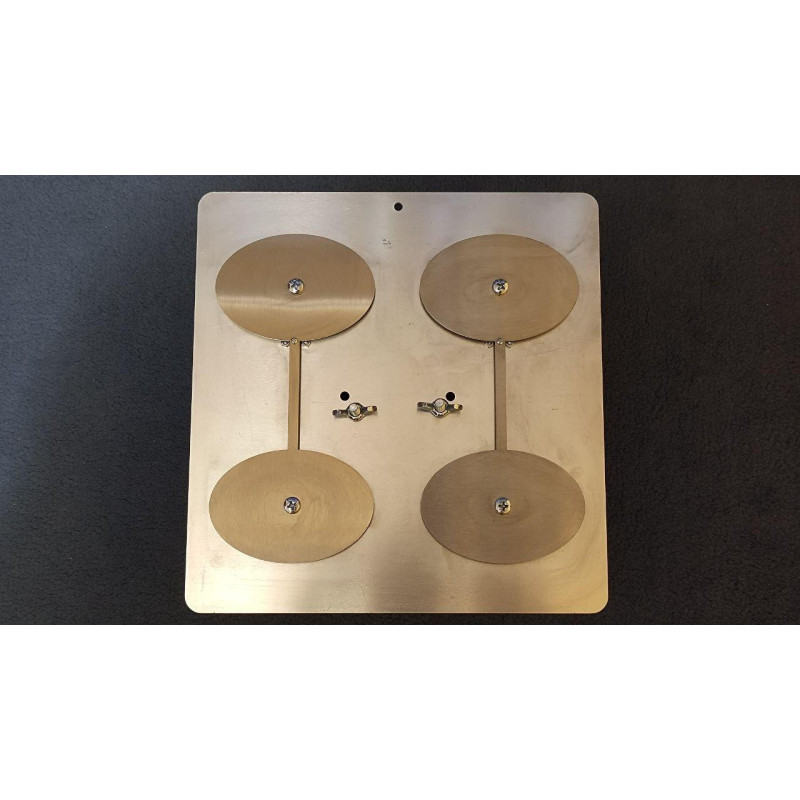

Brand: Aeronetix. Product type: Antennas > Patch Antennas. This patch antenna is designed to improve communication quality between the remote control and an FPV drone, specifically for Mavic series models, in the 2.4 GHz range, providing a stable directional signal over a significant distance.
Advantages and Purpose
The high-gain directional design ensures reduced interference and improved control range. The antenna is ideal for flights in open spaces, for aerial photography, and for agile flights where a focused beam pattern is required. Its durable and relatively lightweight construction facilitates installation and transport, making it convenient for field operations and on-location shoots.
Technical Specifications
Specifications:
- Frequency range: 2420-2500 MHz
- Gain: 13 dBi
- Beamwidth: horizontal plane - 56 degrees; vertical plane - 22 degrees
- Housing dimensions (as per description): 248x230x20 mm
- Weight (as per description): 400 g
- Connector: RP-SMA (2 pcs)
These parameters provide a concentrated antenna pattern with high gain, making the antenna compatible with 2.4 GHz controllers and particularly useful for upgrading standard remote control antennas to improve signal stability.
Additional Parameters and Dimensions
The description also provides numerical parameters characterizing the antenna's geometry and mass. Note the difference in units of measurement between the list of dimensions in mm and the table values in meters/kilograms — this information is important when selecting mounts and assessing compatibility.
| Parameter | Value |
|---|---|
| Length | 23.0 |
| Weight, kg | 0.400 |
| Height | 3.0 |
| Width | 26.0 |
According to technical data: length — 23.0, height — 3.0, width — 26.0, and weight — 0.400 kg. Together with the specified dimensions of 248x230x20 mm and weight of 400 g, this provides a complete understanding of the antenna's size and mass for proper selection of mounts and placement on the remote control.
Compatibility and Installation

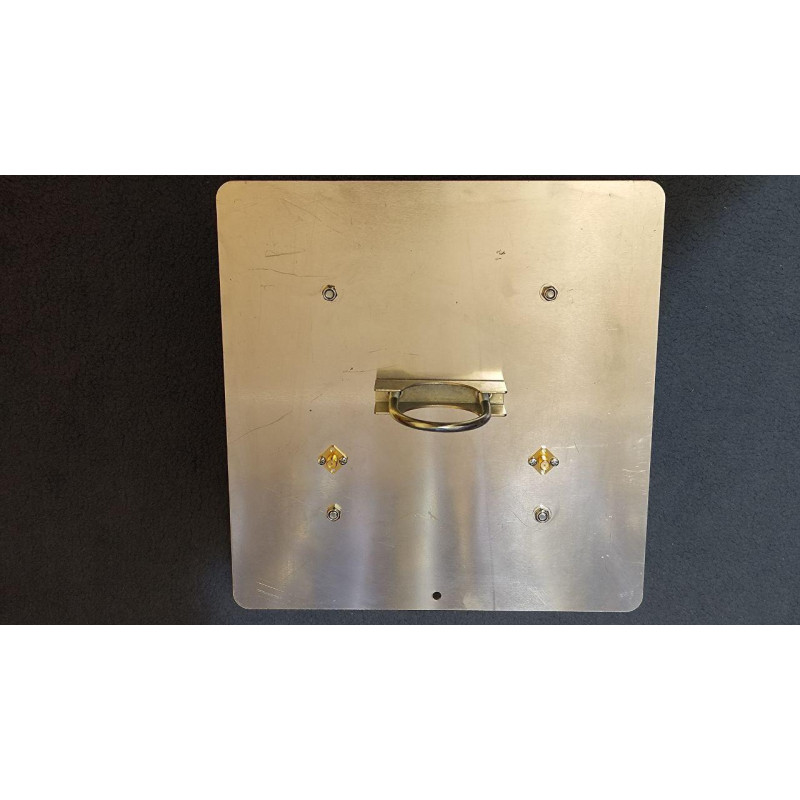

The antenna is equipped with two RP-SMA connectors, allowing connection to compatible controllers or use in conjunction with adapters and converters. The design provides for simple mounting on standard brackets or adapters of the remote control's antenna system. It is recommended to check connector compatibility and the distance between the antenna and the remote control before long flights, and to test signal directionality in field conditions beforehand.
Who It's For
This patch antenna is suitable for FPV enthusiasts, professionals performing long-range aerial photography, and anyone upgrading standard Mavic series remote control antennas to improve communication reliability during complex maneuvers and shoots. The manufacturer Aeronetix guarantees quality performance and compliance with stated characteristics. Before installation, familiarize yourself with the instructions and check connector compatibility.
